3920329 Cummins 6CT8.3 10T Starter Motor Wholesale 24V

3920329 Cummins 6CT8.3 Starter Motor for Heavy Equipment

Cummins 6CT8.3 engines appear in excavators and other heavy equipment, so the engine alone may not explain cable routing or service history. Add the machine model, serial and old-starter label to 3920329 for a response that covers both fitment and commercial supply.

The reference family spans Cummins, Denso and Case numbers, and old equipment may contain a remanufactured starter. Confirm the 10T drive, three Ø14 mounting holes, locating face and terminal clocking rather than treating 228000-7380 or 3920329 as universal fitment proof.

3920329 Cummins 24V 7.5kW Starter Motor Details

This starter is specified as 24V, 7.5kW, 10T, module 3.175 and clockwise rotation. The high-output motor and 10T drive should remain one product definition across the quotation, packing list and distributor catalogue.

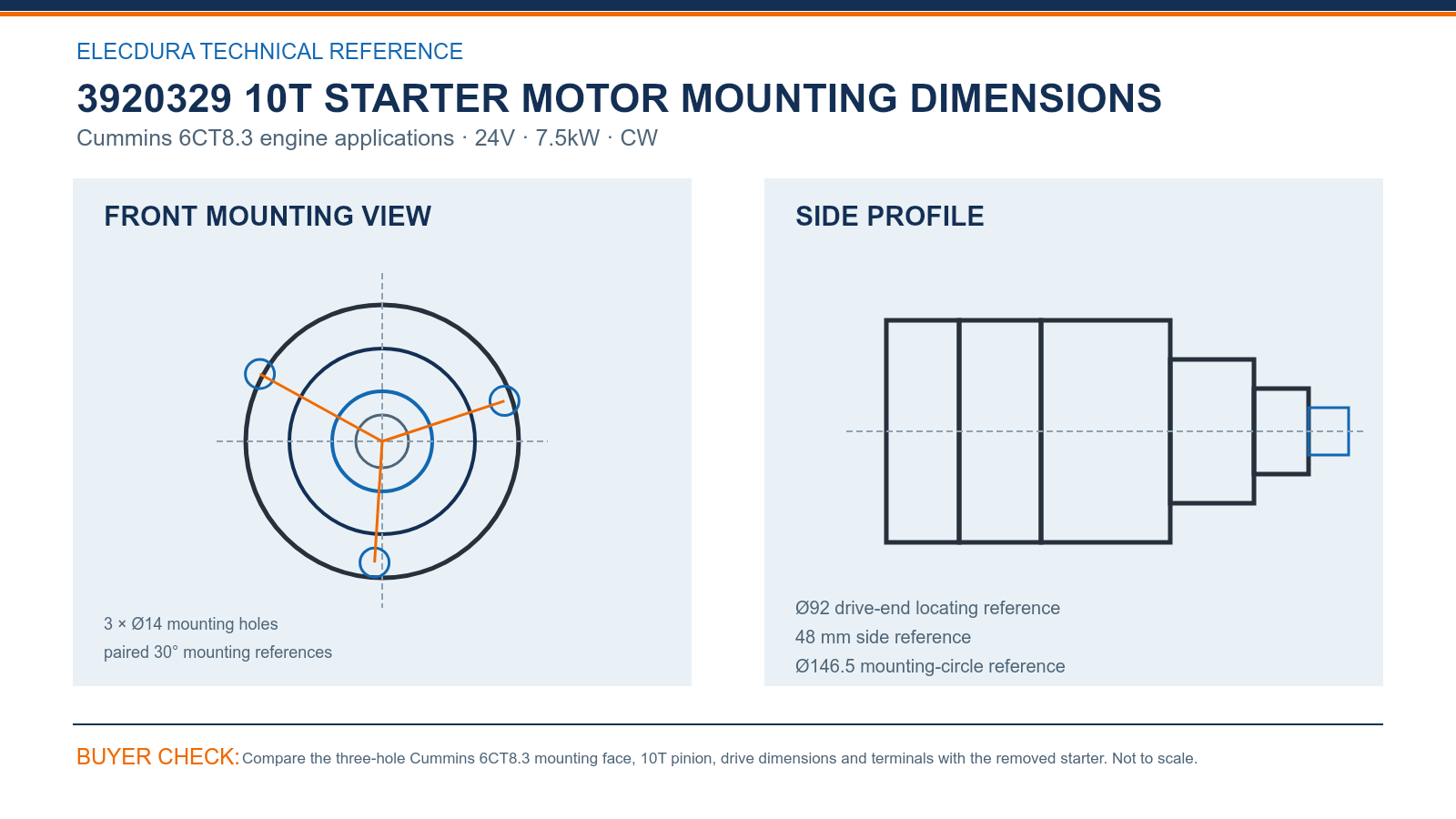

3920329 Cummins 6CT8.3 Starter Motor Dimensions for Wholesale Supply — compare the drawing with the removed starter before placing a volume order.

Compare three Ø14 holes on the Ø146.5 mounting circle, the Ø92 locating reference, 48 mm side position and paired 30° angles. A front photograph with the camera parallel to the flange helps show whether the three points and locating diameter agree.

3920329 Cummins 6CT8.3 OE and Mounting Checks

Searchable numbers include Cummins 3920329, 3283814, 3604662RX and 3675247RX; Denso 228000-5610, 228000-5630, 228000-7380 and 228000-7381; and Case 223900A1/A2. Keep the 6CT8.3 machine and physical comparison beside the reference group.

Excavator and engine distributors can group demand where machines share the confirmed drive end and terminals, but should retain quantity by customer or equipment family. This supports stronger volume pricing without losing the information needed for future fitment or after-sales questions.

3920329 Starter Motor Support for Engine Distributors

Receiving teams should verify the 10T pinion, three Ø14 holes, clean Ø92 locating surface and protected electrical studs before sampled 24V testing. The 7.5kW starter is heavy, so inner support must prevent movement and nose-housing impact during export transport.

The Elecdura video presents starter assembly and electrical testing for B2B buyers. Cummins distributors can use it when reviewing production capability, then agree first-lot sampling, reinforced packing, destination labels and replenishment timing for 6CT8.3 service.

3920329 Starter Motor FAQs for B2B Buyers

Which application details belong with a 3920329 enquiry?

Provide the Cummins 6CT8.3 engine, host machine model and serial, then copy 3920329 and every readable Denso or Case reference. Add front, pinion and terminal photographs. This gives Elecdura enough context to review the 10T product and helps the distributor retain a machine-specific history for repeat supply.

How should 3920329 and 228000-7380 be used together?

List both complete numbers when they appear, along with 3283814, 3604662RX or 223900A1 where relevant. Keep the 6CT8.3 engine and physical checks beside them. The cross-brand group improves sourcing visibility, while the 10T pinion, flange and terminals determine whether the actual old unit matches this product.

What defines the high-output 3920329 starter?

The defined set is 24V, 7.5kW, 10T, module 3.175 and clockwise rotation. Keep these values together on the request and product label. A starter can share the 7.5kW rating but use another pinion or mounting face, so output alone is not enough for an equipment replacement.

Which measurements support the 6CT8.3 mounting comparison?

Use a square front photograph to compare three Ø14 holes around the Ø146.5 circle and the Ø92 locating diameter. Check the paired 30° layout and 48 mm side position. Add an end view of the 10T pinion so the mounting and gear interface remain visible as separate fitment checkpoints.

Why should an excavator buyer describe the operating duty?

Machine type, site conditions and downtime priority influence reserve stock, packing and delivery decisions even when the starter is the same. State whether the 6CT8.3 supports an excavator or another installation, describe remote-site access and give the required date. Elecdura can then address the product and supply risk in one response.

What workshop evidence helps with a 6CT8.3 no-crank report?

Test the 24V battery bank under load, measure positive and ground voltage drop, and confirm the start signal at the solenoid. Note slow crank, click or grinding symptoms and inspect accessible ring-gear teeth. Linking those readings to the 3920329 shipment helps separate circuit, engagement and starter-condition questions.

How should the 7.5kW Cummins starter be protected for export?

Use rigid shaped support so the heavy unit cannot move, cover the 10T pinion and electrical studs, and keep the three mounting ears away from hard carton edges. Mark 3920329, Cummins 6CT8.3 and the shipment lot clearly. Destination receiving can then identify and inspect samples before branch distribution.

What information produces a complete 3920329 B2B offer?

Send the 6CT8.3 engine and host machine, complete OE group, straight pinion, flange and terminal photographs, quantity by destination, target date and packing preference. Elecdura will compare the 3920329 configuration and reply with product feedback, wholesale pricing, production or stock timing, reinforced packing and delivery options for heavy-equipment supply.

Request 3920329 Cummins 6CT8.3 Starter Motor Pricing

Send the Cummins 6CT8.3 and host-machine details, complete old-starter references, straight pinion, flange and terminal photographs, quantity, required date and destination to info@elecdurauto.com. Elecdura will compare 3920329 and reply with wholesale pricing, packing and lead time.
