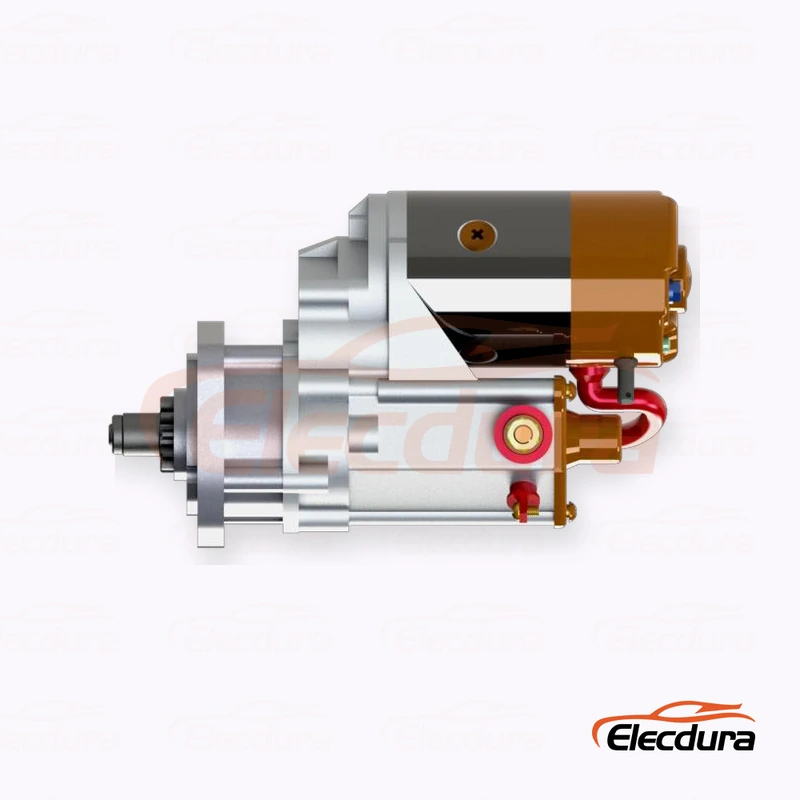

3Q5 Yuchai Yunnei 24V 11T Starter Motor Wholesale

3Q5 Starter Motor Wholesale Value for Yuchai and Yunnei Buyers

Chinese diesel-engine distributors can use 3Q5 as a clear starting identity for Yuchai and Yunnei enquiries, while retaining the engine plate and removed-unit photographs needed for a dependable first order.

A short reference should not become a universal claim across both engine brands. The two-ear drive end, eleven-tooth pinion and terminal arrangement must agree with the starter being replaced.

3Q5 Starter Motor Specifications and Mounting Drawing for B2B Matching

The 24V 4.5kW rating defines the electrical platform, while 11T, module 3 and clockwise rotation define the drive. Keeping these details together prevents an incomplete specification from reaching purchasing.

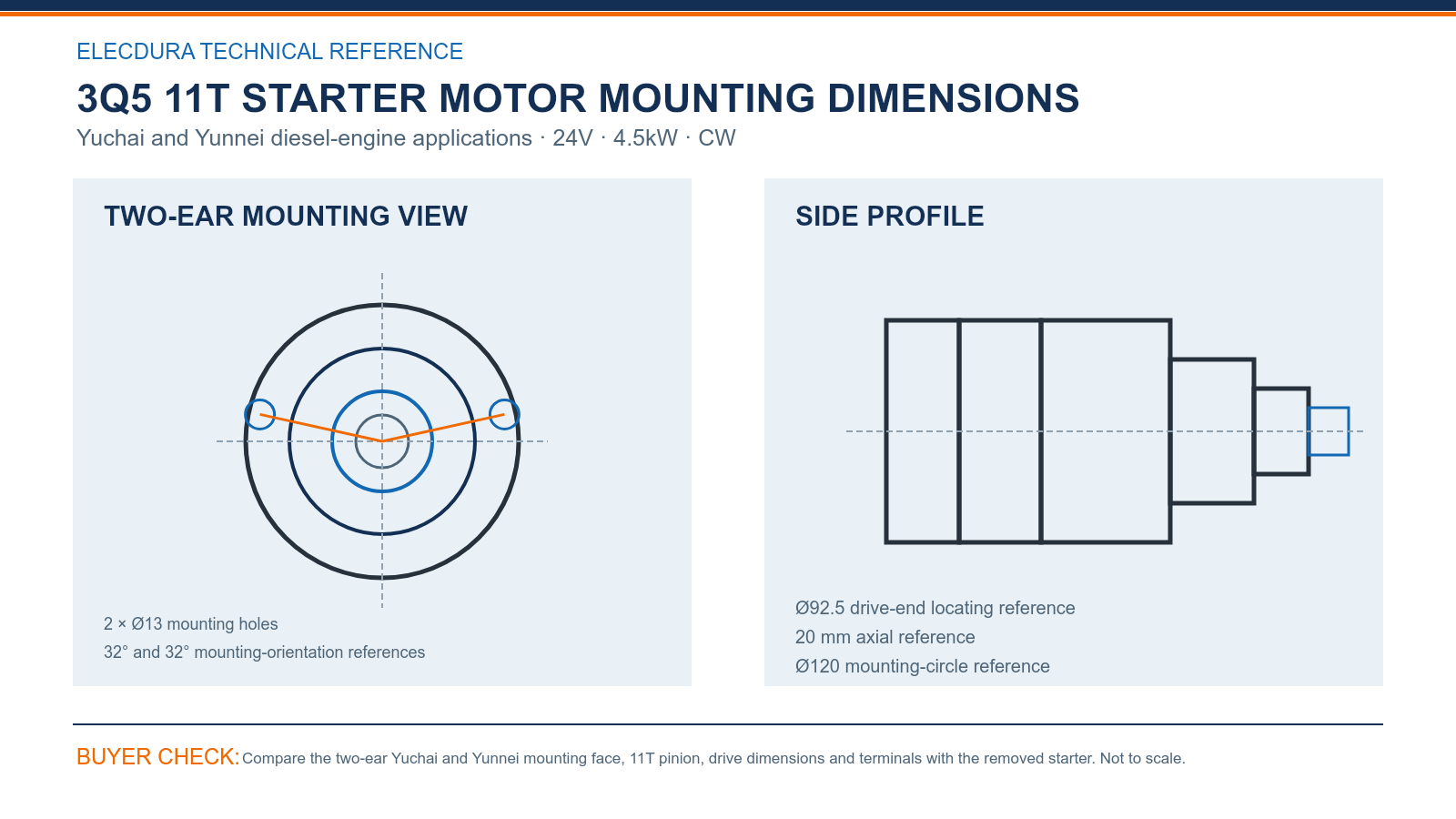

3Q5 Starter Motor Dimensions for Yuchai and Yunnei Buyers — compare the drawing with the removed starter before placing a volume order.

Use the drawing to compare both Ø13 holes, the Ø120 mounting circle, Ø92.5 locating reference, 20 mm axial position and the paired 32° orientation before a volume shipment.

3Q5 Starter Motor Application Checks for Distributor Purchasing

For this line, 3Q5 should appear beside the Yuchai or Yunnei engine identity on the enquiry. A readable engine plate and complete old-unit views provide more value than a short code entered alone.

Distributors serving both engine families can keep separate customer-use notes while maintaining one confirmed product definition. That approach improves picking accuracy without expanding the fitment statement beyond the buyer's verified engine.

3Q5 Starter Motor Supply Support and Production Video for Importers

On the first shipment, receiving staff can compare the reference, pinion, mounting ears, locating face and terminals against the accepted images. Later replenishment can then follow the same physical baseline.

The video below shows Elecdura starter-motor assembly and electrical testing for wholesale supply. It helps procurement teams review production capability while buyers still match 3Q5 to the engine and removed unit.

3Q5 Starter Motor FAQs for B2B Buyers

What must accompany the short 3Q5 reference in a wholesale enquiry?

A useful 3Q5 enquiry combines the short reference with the Yuchai or Yunnei engine model and plate, the 24V 4.5kW 11T CW specification, and straight views of the removed starter. Together, these details give purchasing and technical teams enough information to compare the two-ear drive end without treating 3Q5 as a universal application.

How should a buyer separate Yuchai demand from Yunnei demand for this starter?

The buyer should provide Yuchai or Yunnei engine brand, model and plate plus the removed starter. For 3Q5, those details must agree with the two-ear face, 11T drive and Yuchai or Yunnei engine identity rather than a broad brand description. This keeps two engine programs traceable during quotation and repeat ordering. Attach the confirmed 3Q5 comparison to the quotation so receiving can check the same product.

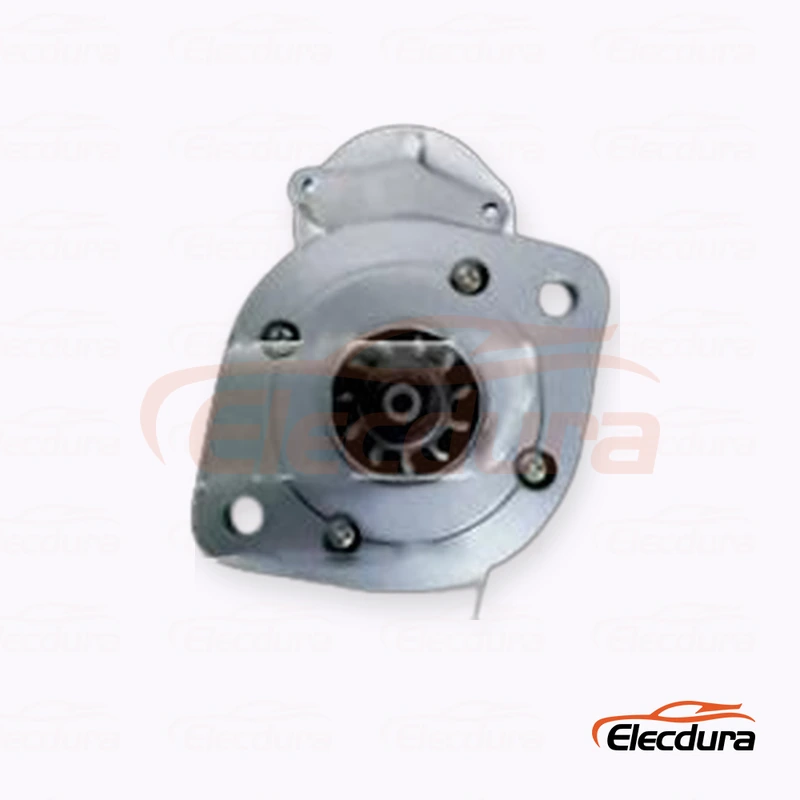

Which drive-end measurements identify the 3Q5 two-ear housing?

Measure 2 × Ø13 holes, Ø120 mounting circle, Ø92.5 locating reference and 20 mm axial reference on the removed starter or a trusted sample. For 3Q5, keep square front and side photographs showing the two-ear face, 11T drive and Yuchai or Yunnei engine identity. This lets technical buyers reject a visually similar three-hole or differently offset housing. Keep the matched 3Q5 images with branch stock details for future replenishment.

Why must the 11T module-3 pinion be checked before purchasing?

Eleven teeth alone do not define the gear form. Confirm the 11T count and module 3 together, then verify clockwise rotation and the two-ear drive end on the removed starter. This complete comparison protects ring-gear engagement and prevents another 24V starter with a similar output rating from entering the order.

Can 3Q5 alone support a volume order?

No. Treat 3Q5 as the starting reference, then add the Yuchai or Yunnei engine plate, straight mounting-face and terminal photographs, and the 11T module-3 drive details. This prevents a short code from becoming the only basis for a volume order and gives receiving staff a repeatable comparison for later deliveries.

How can distributors keep this line clear in a mixed Chinese-engine warehouse?

Use Yuchai and Yunnei application labels plus 11T and two-ear geometry when deciding 3Q5 reserve quantities and warehouse labels. A description that includes the two-ear face, 11T drive and Yuchai or Yunnei engine identity makes repeat picking faster and clearer. This reduces picking errors between visually similar starters. Carry the agreed 3Q5 identity through packing and branch-transfer documents.

What should receiving staff compare on the first 3Q5 shipment?

On the first incoming 3Q5 lot, inspect reference, pinion, both mounting ears, locating face, solenoid terminals and rotation. Compare several units with accepted photographs of the two-ear face, 11T drive and Yuchai or Yunnei engine identity before they move to branches or jobsites. This creates a repeatable incoming-inspection record for later orders. Retain the 3Q5 comparison photographs with the delivery lot for after-sales review.

Which details let Elecdura quote 3Q5 supply accurately?

A quotation request should include engine model and plate, old-unit reference and photos, quantity, packing request and destination. Keeping those details with 3Q5 lets sales address the product match and commercial terms in one response. This collects the minimum commercial and fitment information for a useful quotation. Include the confirmed 3Q5 configuration in later forecasts and repeat purchases.

Request a 3Q5 Starter Motor Wholesale Quotation from Elecdura

Send the Yuchai or Yunnei engine model and plate, every readable starter marking, straight drive-end and terminal photographs, required quantity, packing request and destination to info@elecdurauto.com. Elecdura will review the 3Q5 product match and return a practical wholesale quotation.
