428000-4420 Volvo Western Star 4.0kW Starter Motor Wholesale

428000-4420 Starter Motor Sourcing for Multi-Brand Truck Fleets

Heavy-truck databases can connect 428000-4420 to several brands and engine families. A useful purchase request should name the truck model, engine and complete old-unit number, because a broad Volvo or Western Star description is not enough for a fleet with mixed powertrains.

Send the VIN, engine plate, mounting-face photograph and terminal layout. Elecdura compares the 10T drive, module 4.1, three Ø17 holes and axial points before discussing a unit for central or depot inventory.

428000-4420 Starter Motor Dimensions for Heavy-Truck Fleets

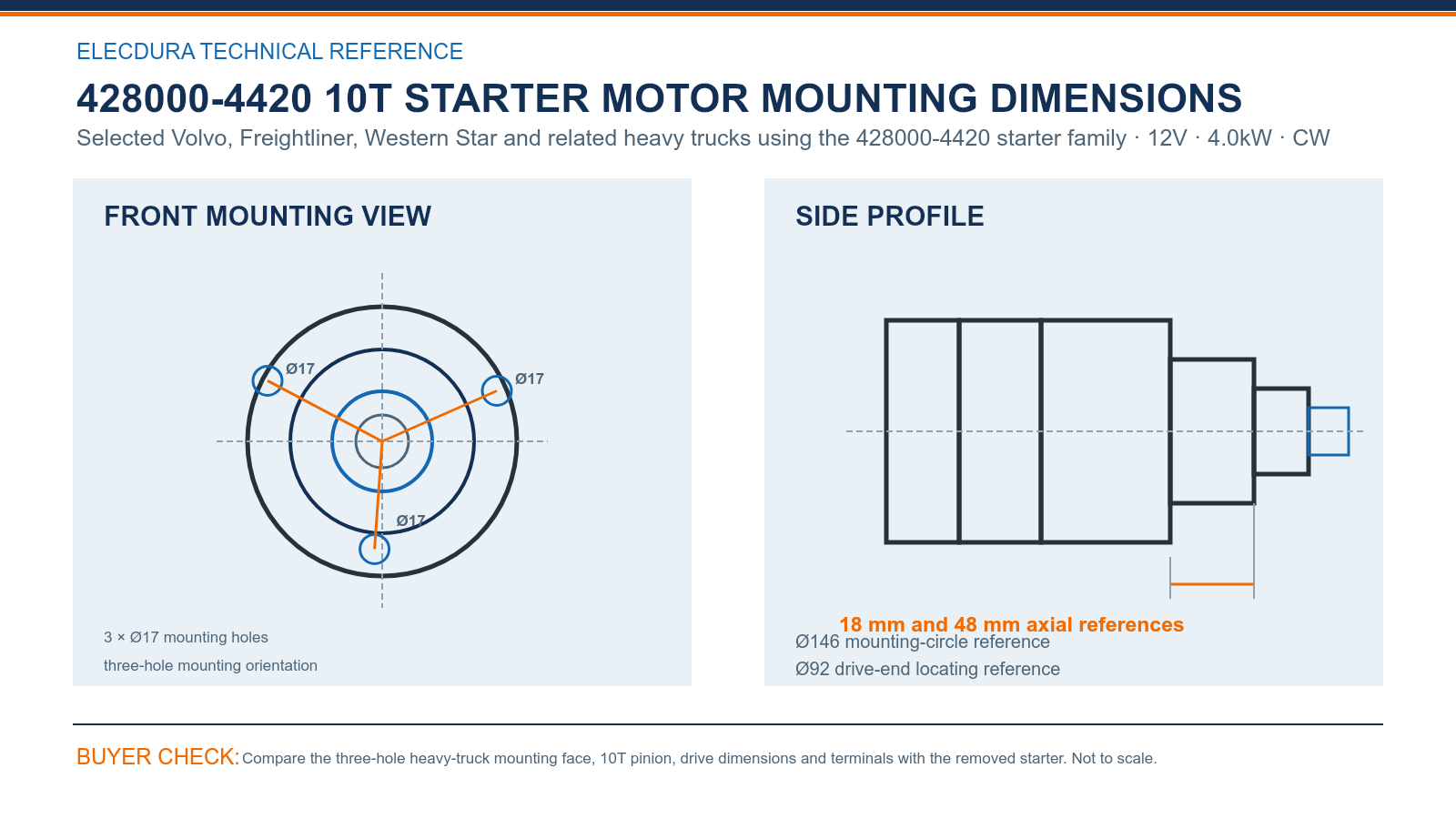

428000-4420 10T starter motor mounting and drive-end dimensions for buyer-side comparison.

The 428000-4420 drive end uses three Ø17 mounting holes on an Ø146 circle, with an Ø92 locating reference and 18 mm and 48 mm axial points. These measurements help fleet buyers compare the heavy-truck nose before a unit is assigned to a particular engine and chassis.

Use the drawing with the VIN, engine plate and a direct view of the 10-tooth pinion. Check terminal clearance on the first truck, then retain the confirmed details for depot replenishment and receiving.

428000-4420 Starter Motor Reference Checks for Fleet Buyers

The reference trail may include 428000-4430, 428000-4440, 428000-5730, Volvo 1909052, 19501N and several 228xx numbers. Preserve the exact starter label and engine identity on the inquiry.

• Vehicle: state make, model, VIN and engine.

• Drive: confirm 10 teeth, module 4.1 and clockwise rotation.

• Mounting: compare three Ø17 holes, locator and pinion position.

428000-4420 Starter Motor Supply for Multi-Depot Operations

Fleets can confirm the product on an identified truck, retain the installation details and use them to organize depot demand by engine. Elecdura can discuss neutral cartons, durable customer labels and scheduled deliveries for stable commercial programs.

At receiving, sample the 10T pinion, three-hole casting, full OE, solenoid orientation and terminal caps. Keep different engine applications on separate fleet lines even when they share 428000-4420 as a purchasing reference.

The video introduces Elecdura starter-motor assembly and electrical testing. Send the truck VIN, engine plate, old-unit reference, mounting images, quantity by depot and destination for a focused wholesale response.

428000-4420 Starter Motor Wholesale FAQ

Which truck information should accompany a 428000-4420 inquiry?

Provide make, model, VIN, production year and the complete engine plate, plus every number on the removed starter. Add front, side, pinion and terminal photographs. A multi-brand application list is useful for finding the family, but the VIN, engine and physical unit give the distributor the detail needed for one fleet line.

How should Volvo 1909052 be used with 428000-4420?

Use 1909052 as a Volvo purchasing reference within the wider 428000-4420 family. Preserve the complete old-unit label and verify the truck engine, 12V, 4.0kW, 10 teeth, module 4.1 and clockwise rotation. Then compare the three-hole face so the cross-reference does not replace the vehicle and mounting checks.

What electrical data help with a heavy-truck starter request?

State the 12V system, battery arrangement, engine, cable condition and measured voltage drop during cranking. Confirm the 4.0kW requirement from the identified product. Heavy cables and multiple batteries can hide poor connections, so measured supply information helps a fleet distinguish a starter need from a circuit problem before ordering.

Which mounting dimensions identify the 428000-4420 nose?

Compare three Ø17 holes on the Ø146 circle, the Ø92 locating reference and 18 mm and 48 mm axial points. Measure the removed starter directly and photograph the face square. These values support the 10T module 4.1 identity and reveal a different mounting nose even when the motor body is similar.

How can a fleet plan depot quantities?

Group active trucks by engine and confirmed starter reference, then review prior usage, towing exposure and replenishment time for each depot. Keep 428000-4420 stock tied to the verified vehicle and engine range. A central reserve can cover irregular demand while high-use locations hold quantities that reflect their actual truck population.

What should be tested on a no-crank heavy truck?

Check battery state, master switches, starter relay command, cable voltage drop, grounds and engine freedom before replacing the unit. Record the voltage at the main and signal terminals during the attempt. If the starter is still required, those readings help the supplier understand the failure context and support the first installation.

How should 428000-4420 be packed for export?

Support the heavy unit so it cannot move, protect the 10T drive, cap every exposed terminal and reinforce the carton for consolidated freight. Keep the full OE and engine-related item description visible. Receiving teams should inspect mounting ears, solenoid and terminal condition before allocating units to distant depots.

What belongs in a 428000-4420 fleet quotation?

Send the complete OE, truck VIN and engine, old-unit label, pinion, face and terminal photographs, required quantity by depot, delivery country, target date and branding needs. Elecdura can then state the specified 12V 4.0kW 10T configuration, MOQ, normal lead time, warranty and feasible shipment arrangement.

Request a 428000-4420 Starter Motor Wholesale Quote

Send 428000-4420 or the complete Volvo, Denso or aftermarket number, truck VIN, engine plate, old-unit label, mounting and terminal photographs, quantity by depot, destination and packing request. Elecdura will quote the 12V 4.0kW 10T starter.

For mixed fleets, separate quantities by truck and engine family so each warehouse location receives a clearly identified configuration.
