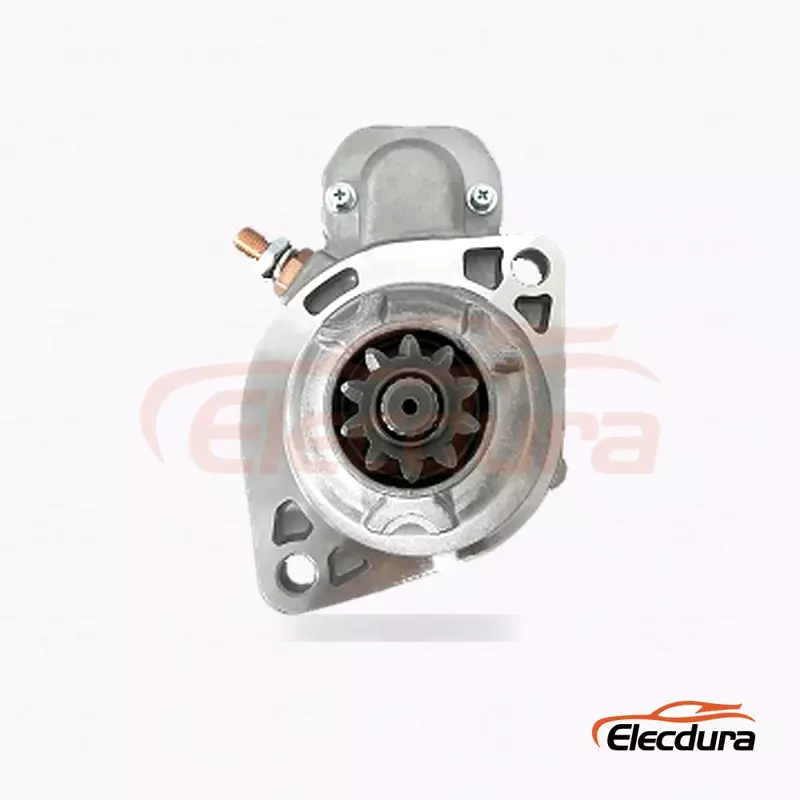

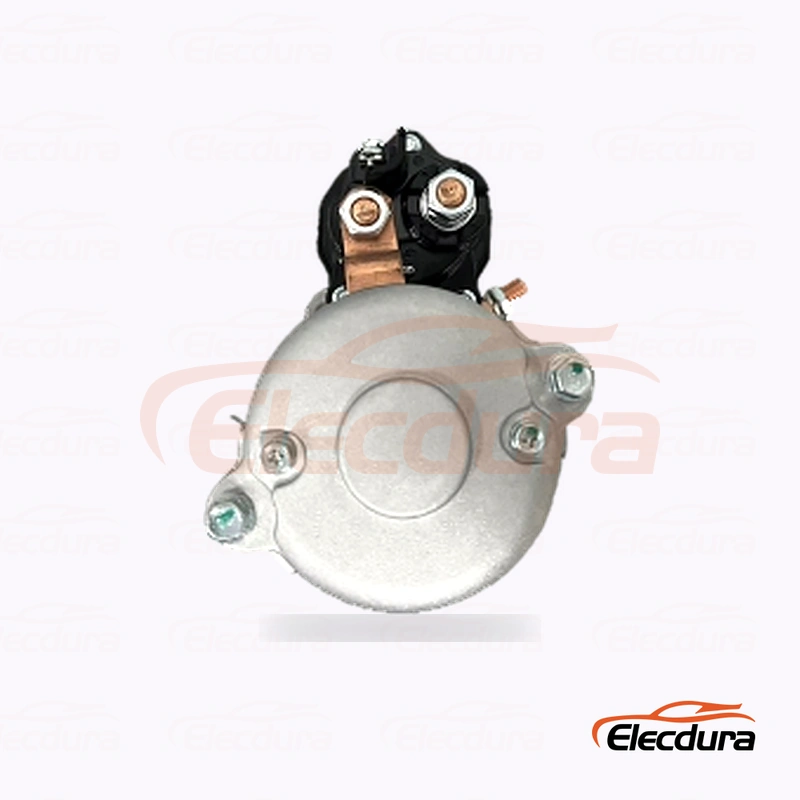

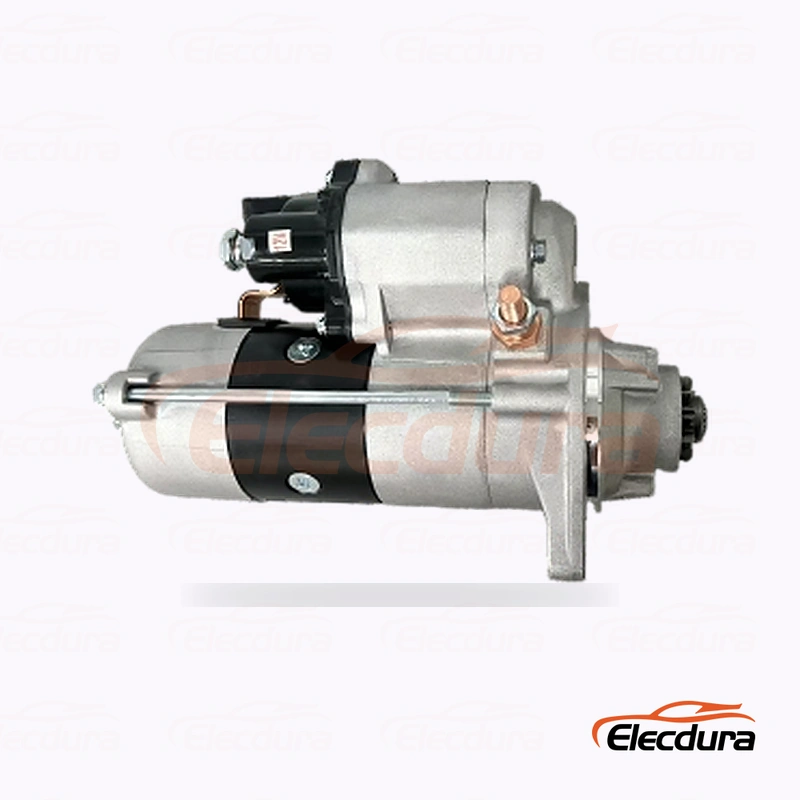

428000-7100 Cummins QSB6.7 Engine Starter Motor 24V 4.8kW 10T

428000-7100 Cummins QSB6.7 Engine Starter Motor B2B Supply for Aftermarket Buyers

428000-7100 gives aftermarket buyers a defined 24V, 4.8kW, 10-tooth clockwise configuration for Cummins QSB6.7 engines in Hyundai R275 excavators and related heavy construction equipment. Link the complete reference group to the buyer’s machine or engine record, then approve the mounting geometry, pinion position and terminal layout before releasing distributor stock.

428000-7100 Starter Motor B2B Production and Test Video for Wholesale Supply

This video introduces Elecdura starter-motor production and supply capabilities. Use the specification, cross-reference details and fitment checks on this page when evaluating 428000-7100.

428000-7100 Starter Motor Distributor Specifications for Distributor Sourcing

428000-7100 Starter Motor OE Cross-Reference Review for Bulk Procurement

Use 428000-7100 as the primary purchasing reference and cross-check 4996707. These numbers identify the candidate starter family, but approval still requires the exact suffix, electrical rating, drive end, mounting geometry, pinion and terminal layout to match the removed unit or signed sample.

428000-7100 Starter Motor Bulk Fitment Approval for B2B Supply

Before accepting 428000-7100 as a replacement, obtain the full vehicle, machine or engine record and compare machine serial range, engine plate, mounting nose, pinion position, terminal clocking and installed clearance. Cross-reference overlap is useful for finding the family, but it cannot replace a physical match. Store the approved label and four-angle photo set with the account so later orders use the same configuration.

428000-7100 Starter Motor Wholesale Receiving Inspection for Aftermarket Buyers

Receiving control should link the carton, unit label and inspection sample to 428000-7100. Verify electrical rating, drive-end geometry, mounting bores, terminal position, housing protection and lot identity; photograph deviations and keep affected units separate while the supplier responds. Batch evidence makes repeat purchases more predictable and gives warranty teams a clear record if field feedback appears.

428000-7100 Starter Motor MOQ and Private-Label Supply for Fleet Replacement

428000-7100 Starter Motor Distributor FAQ for Wholesale Supply

What should be diagnosed before replacing a 428000-7100 starter motor?

Inspect battery bank balance, cranking voltage, cable and ground drop, control relay, ring gear and engine drag before condemning the starter. Record battery voltage at rest and during the start command, then measure voltage drop under load; a weak supply or poor ground can imitate starter failure. Inspect the mounting surface and gear engagement as well. Attach these results, the old-unit label and failure symptoms to the claim so the supplier can distinguish a product defect from an upstream electrical or mechanical problem.

How should a distributor request B2B pricing for 428000-7100?

Send 428000-7100 and all visible OE numbers, the full application or engine record, required quantity, destination and target delivery date. Add clear photos of the label, drive end, mounting face and terminals, plus any dimensional drawing available. State packaging, private-label, sample and inspection requirements at the start. A technically complete RFQ lets the supplier quote one verified configuration and reduces clarification delays after price approval.

What approval sequence is recommended for 428000-7100 procurement?

The standard MOQ is 20 pieces, subject to final order confirmation, and a sample or pre-production approval should precede volume release when fitment evidence is incomplete. Mark the approved sample with 428000-7100, buyer application and revision date. Repeat orders should reference that same approval plus any packaging specification. If the supplier, suffix or physical design changes, treat it as a new approval rather than assuming the previous decision still applies.

What packaging options are available for 428000-7100 distributors?

Neutral packaging and private-label review are available for qualified orders. The carton and inner protection should prevent movement, terminal damage and contamination while keeping the product reference, lot identity and quantity readable. Private-label artwork must not remove the technical identifiers used for fitment and claims. Agree label content, barcode needs, carton strength and destination handling prior to production so the packaging supports both sales presentation and receiving control.

What records support a fair 428000-7100 warranty review?

The standard warranty is 18 months under agreed sales terms, but a claim still needs traceable supporting evidence. Record the invoice or lot, installed application, old and supplied references, installation date, symptoms and electrical test results. Include photographs of the unit, terminals, mounting and pinion. Do not dismantle or discard the product before instructions are agreed. Complete supporting evidence speeds technical review and prevents a battery, wiring or ring-gear problem from being misclassified.

Which reference numbers should buyers confirm for 428000-7100?

Use 428000-7100 as the control reference and cross-check 4996707. Retain the complete old-unit label plus drive-end, mounting-face and rear-terminal photos with the quotation and purchase line so repeat orders remain tied to the approved unit.

Which applications should buyers confirm for the 428000-7100 starter motor?

The specified application is Cummins QSB6.7 engines in Hyundai R275 excavators and related heavy construction equipment. Because a model or engine family can include production changes, confirm the machine, vehicle or engine record and the complete old-unit suffix before promising fitment. Keep the approved record tied to one physical starter configuration.

Which electrical and drive specifications define 428000-7100?

The specified configuration is 24V, 4.8kW, 10-tooth clockwise configuration. Voltage must match the electrical system, while power, tooth count and rotation affect cranking performance and ring-gear engagement. Put all four values on the sample-approval sheet and verify the physical pinion before releasing a distributor quantity.

Why is suffix-level verification important for 428000-7100?

428000-7100-family variants can differ in rating, tooth count, rotation or drive-end details. Confirm the complete label and suffix, the 24V, 4.8kW, 10-tooth clockwise configuration and the physical geometry against the removed unit. Keep the accepted sample and photos with the purchase record before repeat supply.

Request a B2B Quote for 428000-7100 Starter Motors

Send the complete reference, Cummins QSB6.7 engines in Hyundai R275 excavators and related heavy construction equipment, old-unit photos, quantity, destination and packaging or inspection requirements. Elecdura will use that evidence to review one defined aftermarket starter configuration for your quotation.
