4900574 Doosan Cummins A2300 Starter Motor B2B Supplier

4900574 Starter Motor Selection for Professional B2B Buyers

4900574 supports Doosan D15S-5 and D20S-5 forklifts plus industrial equipment using the Cummins A2300 starter arrangement. It is positioned for professional replacement supply where the buyer needs the correct unit to arrive, install and remain repeatable across later orders; the fixed electrical release is 12V, 2.0kW, 15T and CW.

The A2300 starter is sold through Cummins, Doosan and Daewoo references; a mixed-number purchase can still fail if the 15T drive or flange arrangement is not stated. A reliable order file should state exactly how the unit was separated from its neighbors: Confirm the A2300 and Doosan machine record, 15 teeth and full 4900574 interchange, then compare the 105 mm face, two Ø13 mm bores, Ø82 mm drive end and 26/39 mm references.

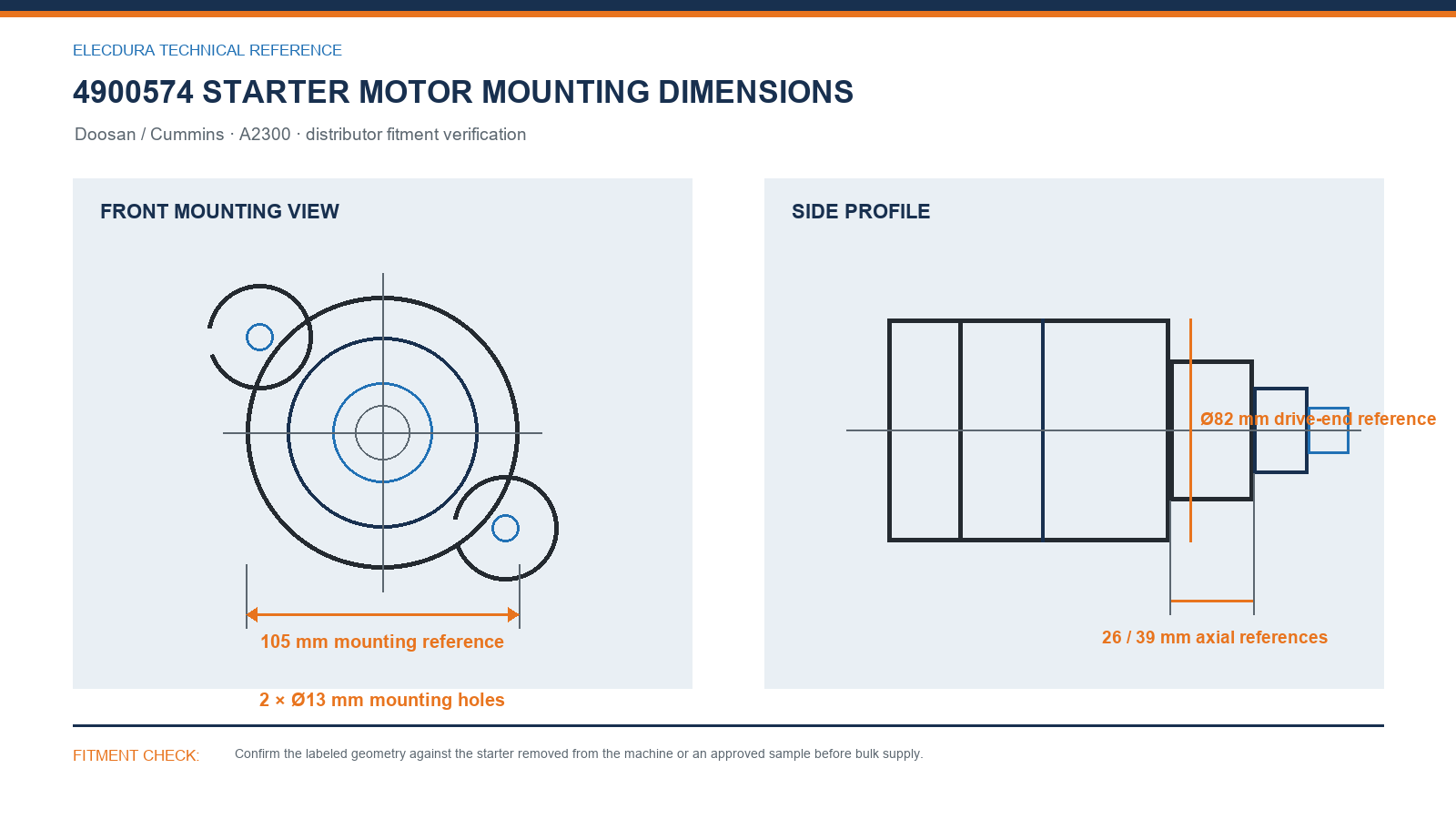

4900574 Starter Motor Specification Matrix and Technical Drawing

For purchasing and arrival inspection staff, the key geometry is summarized in a single reference image below.

Confirm the A2300 and Doosan machine record, 15 teeth and full 4900574 interchange, then compare the 105 mm face, two Ø13 mm bores, Ø82 mm drive end and 26/39 mm references. The image is a fitment reference and should be checked against the customer-retained customer-retained old unit or documented comparison sample rather than scaled from the screen.

4900574 Doosan / Cummins Application Control for Wholesale Supply

Cross-reference breadth is useful only when it does not erase the version boundary. For 4900574, the principal buying identifiers include 4900574, 03101-3180, S9450S, 115968, LRS03955, while Doosan D15S-5 and D20S-5 forklifts plus industrial equipment using the Cummins A2300 starter arrangement defines the working application scope.

Confirm the A2300 and Doosan machine record, 15 teeth and full 4900574 interchange, then compare the 105 mm face, two Ø13 mm bores, Ø82 mm drive end and 26/39 mm references. If any of those points disagree, quote the alternatives separately instead of presenting a broad universal-fit claim.

• Application limit: Doosan D15S-5 and D20S-5 forklifts plus industrial equipment using the Cummins A2300 starter arrangement.

• Mismatch control: The A2300 starter is sold through Cummins, Doosan and Daewoo references; a mixed-number purchase can still fail if the 15T drive or flange arrangement is not stated. Confirm the A2300 and Doosan machine record, 15 teeth and full 4900574 interchange, then compare the 105 mm face, two Ø13 mm bores, Ø82 mm drive end and 26/39 mm references.

• Distributor traceability: forklift-parts importers and Cummins compact-industrial engine distributors should retain 4900574, 03101-3180, S9450S, 115968, LRS03955 with the accepted physical comparison and customer requirement.

For Doosan / Cummins A2300 sourcing, the retained geometry combines 2 × Ø13 mm mounting holes, 105 mm mounting reference, Ø82 mm drive-end reference and 26 / 39 mm axial references. Additional service identifiers include LRS3955, 19188N, A298007, K1019334, STR85400. A quotation for this line should arrive with Doosan model and serial, A2300 engine record, 4900574 or A298007 reference, drive-end image, terminal image and packaging requirement; that information lets forklift-parts importers and Cummins compact-industrial engine distributors distinguish this configuration before stock is committed.

4900574 Starter Motor Warehouse Release and Order Support

Count all fifteen teeth and check the compact solenoid position before accepted starters enter the D15S-5 or D20S-5 warehouse bin. Add carton condition, terminal protection and pinion protection to the receiving record because transit damage can create the same customer downtime as a wrong fitment.

Commercial preparation includes sample confirmation, 20-piece starting MOQ, order-specific lead-time review and neutral or qualified private-label packing. The carton label should carry the exact OE and 15T configuration, not a broad brand-only description.

The embedded production video supports supplier qualification for wholesale programs. The commercial release for this item remains tied to 4900574, 12V, 2.0kW, 15T and the confirmed mounting arrangement.

4900574 Starter Motor FAQ for B2B Procurement

For A2300, which machine record should accompany 4900574?

In the A2300 4900574 identity file, use the application record for Doosan D15S-5 and D20S-5 forklifts plus industrial equipment using the Cummins A2300 starter arrangement, including the engine designation A2300 and serial or production information when available. For this Doosan / Cummins number set, add the fully stated old-starter number and photographs. Within the 4900574 sourcing record, this allows the manufacturer to separate a machine-family description from the actual starter version and gives the importer a repeatable reference after the first approval unit is accepted. For the Doosan / Cummins A2300 item, the usable identity chain is 4900574, 03101-3180, S9450S, 115968.

For A2300, why can the OE group not be approved by number matching alone?

For the A2300 fitment, references such as 4900574, 03101-3180, S9450S, 115968 guide the search, but they do not show every physical revision or a wrongly labeled original starter. In this Doosan / Cummins application, check 12V, 2.0kW, 15T and CW, then use the mounting and cable point checks. For the defined 4900574 scope, the A2300 starter is sold through Cummins, Doosan and Daewoo references; a mixed-number purchase can still fail if the 15T drive or flange arrangement is not stated. For the A2300 fitment, a controlled cross-reference is a conclusion from those checks, not the only input. For A2300, the version boundary is 15T, 2.0kW, 105 mm mounting reference and the complete OE group.

For A2300, what should be photographed on the removed Doosan / Cummins starter?

At the 15T drive check, take a square image of the drive end, a side view showing nose depth and solenoid clocking, a clear label photograph, and a rear view of the battery and switch cable points. For the 4900574 pinion review, include a ruler when the OE is unreadable. Within the A2300 drive record, these views support the physical release described for this product without forcing sales staff to guess from one angled photo. The Doosan / Cummins release uses 15T with CW rotation, so both details belong on the sample and carton checks.

For A2300, how is the 2.0kW version kept separate in stock?

During mounting review for 4900574, put 2.0kW, 15T and the primary 4900574 reference on the internal label and receiving checklist. At the A2300 flange check, do not rely on the outer casting color or a broad application name. For the Doosan / Cummins installation comparison, when a manufacturer or customer proposes a supersession, compare a physical approval unit and update the approved cross-reference list before the alternate enters the same bin. For A2300, the drawing controls are 2 × Ø13 mm mounting holes, 105 mm mounting reference, Ø82 mm drive-end reference and 26 / 39 mm axial references.

For A2300, what dimensions should be checked before a trade shipment?

Within the Doosan / Cummins interchange group, check the A2300 and Doosan machine record, 15 teeth and full 4900574 interchange, then compare the 105 mm face, two Ø13 mm bores, Ø82 mm drive end and 26/39 mm references. For the 4900574 cross-reference decision, measure from the flange face rather than an irregular housing edge and note whether holes are threaded or unthreaded. In the A2300 stocking boundary, compare cable point clearances as well as the front geometry. Within the Doosan / Cummins interchange group, a signed old-unit or approval unit check protects both the importer and end user from a starter that is electrically correct but cannot be installed. The working scope is Doosan D15S-5 and D20S-5 forklifts plus industrial equipment using the Cummins A2300 starter arrangement; it is not a universal statement for every Doosan / Cummins machine.

For A2300, how should mixed-reference RFQs be presented?

For this forklift-parts importers and Cummins compact-industrial engine distributors inquiry, place each fully stated OE on its own line with the associated A2300 or machine record, even when several numbers may cross to 4900574. When quoting 4900574, add quantity and photographs to each line. For the Doosan / Cummins commercial request, the manufacturer can then check which lines share the 15T physical version and which require separate approval units, prices or packaging labels. A practical A2300 inquiry includes Doosan model and serial, A2300 engine record, 4900574 or A298007 reference, drive-end image, terminal image and packaging requirement.

For A2300, what is the receiving release for this product?

At incoming inspection for 4900574, count all fifteen teeth and check the compact solenoid position before accepted starters enter the D15S-5 or D20S-5 warehouse bin. During the A2300 lot release, extend the check to product labels, cable points, pinion protection and carton integrity. For Doosan / Cummins warehouse acceptance, inspect cartons from different pallet positions rather than only the top carton. At incoming inspection for 4900574, once the lot agrees with the signed unit, save photographs and inspection results with the 4900574 SKU before stock is made available to sales branches. The receiving release for this Doosan / Cummins starter is the combined 15T, 2 × Ø13 mm mounting holes and terminal check.

For A2300, what information speeds up a 4900574 quotation?

For the 4900574 supply program, provide Doosan model and serial, A2300 engine record, 4900574 or A298007 reference, drive-end image, cable point image and packaging requirement, required quantity, destination, delivery target and packaging request. When preparing the A2300 order, if the machine is immobilized, state whether an urgent approval unit is needed. For this Doosan / Cummins distributor line, clear application and physical data at the start lets Elecdura review the correct 12V, 2.0kW, 15T product instead of sending a low-confidence price for a broad cross-reference family. The A2300 commercial request should retain 4900574, 12V, 2.0kW, 15T, quantity, destination and packaging preference on one line.

Discuss 4900574 Starter Motor Samples and trade shipment

Send Doosan model and serial, A2300 engine record, 4900574 or A298007 reference, drive-end image, terminal image and packaging requirement, required quantity, destination and packaging preference. Elecdura will review the 12V, 2.0kW, 15T 4900574 configuration and confirm sample, lead-time and wholesale-supply details before the order is released.
