4995641 Cummins 8.3L 24V 7.8kW 10T Starter Motor Wholesale

4995641 Cummins 8.3L Starter Motor for Heavy-Duty Supply

Cummins 8.3L parts specialists can identify this product through 4995641 or 428000-7140, then add the host truck, bus or equipment model. This connects a recognized reference to the buyer's actual duty cycle and delivery requirement.

A large 24V starter can look interchangeable across Cummins engine families. This unit requires the 7.8kW rating, 10T module-3.175 pinion, three Ø13 holes, Ø146 face and Ø96 locating diameter shown in the drawing.

4995641 24V 7.8kW Starter Motor Technical Specifications

The specified platform is 24V, 7.8kW, 10T, module 3.175 and clockwise rotation. The output supports heavy-diesel cranking, while the tooth and module values define the gear interface that must agree with the old starter.

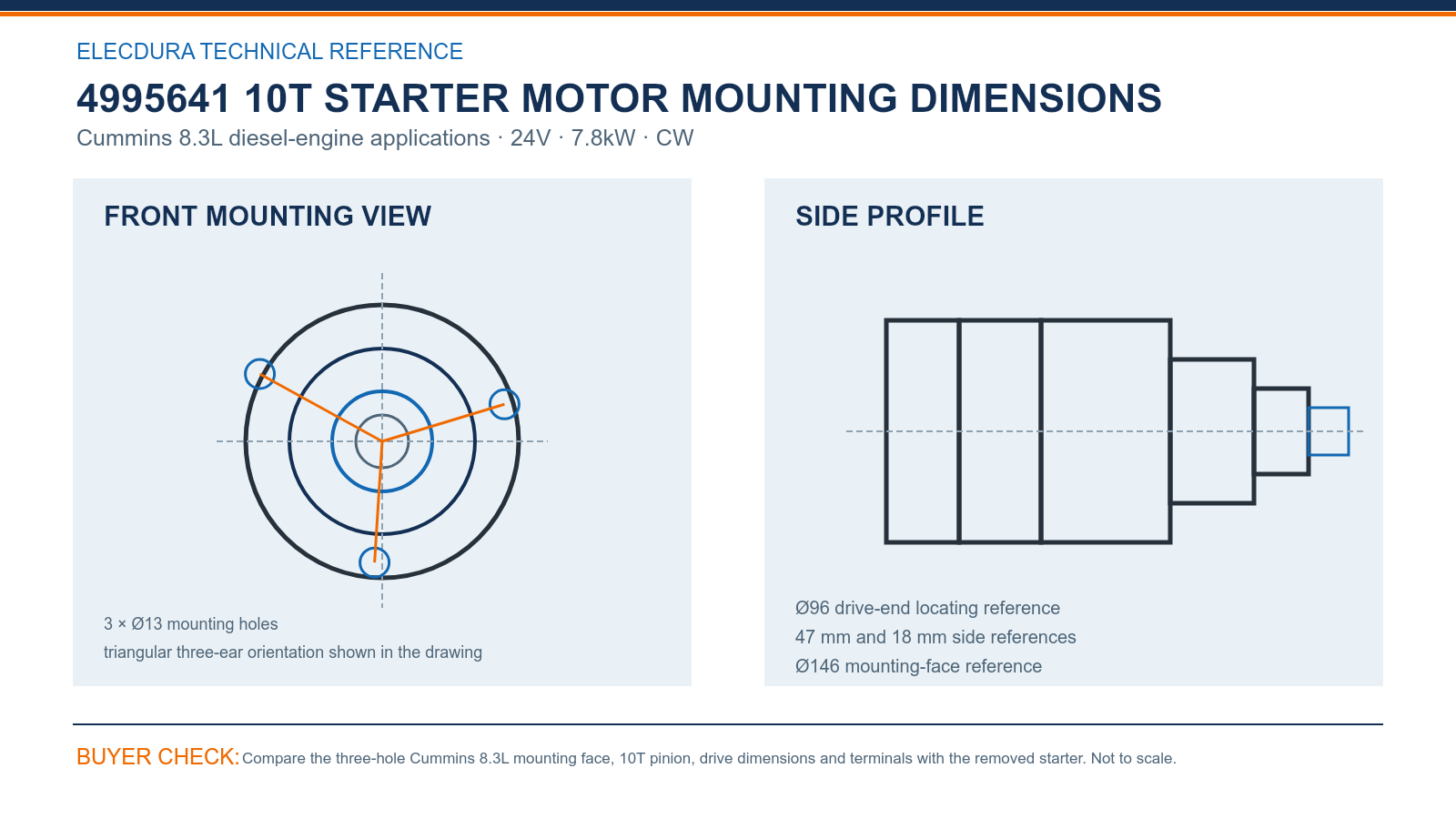

4995641 Cummins 8.3L Starter Motor Dimensions for Heavy-Duty Buyers — compare the drawing with the removed starter before placing a volume order.

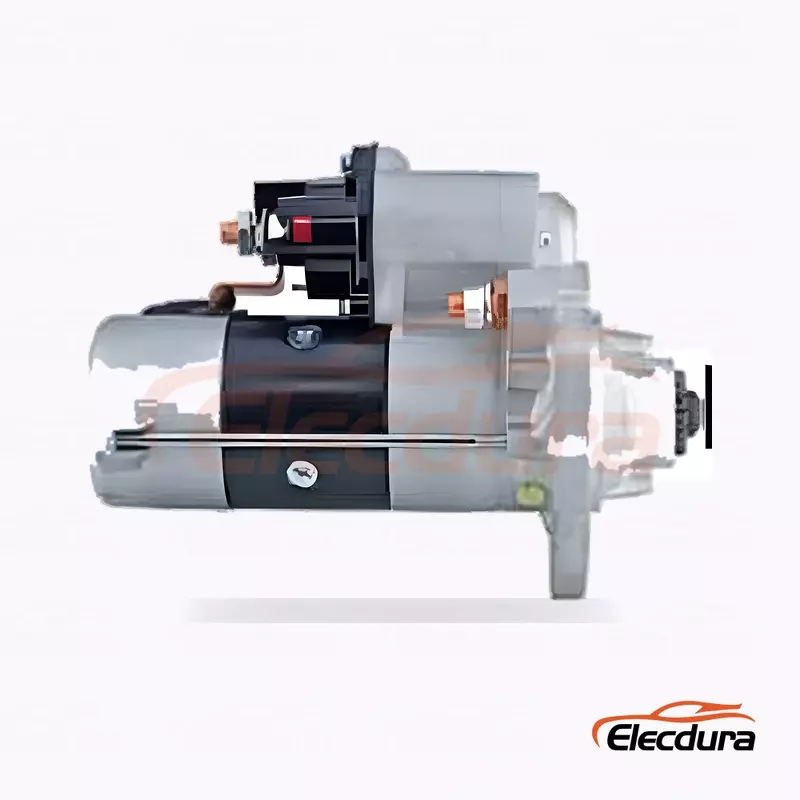

Compare three Ø13 holes around the Ø146 face, the Ø96 locating reference and the 47 mm and 18 mm side positions. Because the body is large, one full side view should include the solenoid, cable links and drive end without cropping.

4995641 and 428000-7140 Drive-End Matching for Buyers

Use 4995641 with 428000-7140, 438000-3740, S6339S, UD90425S or 30419N as supporting references. Retain the Cummins 8.3L engine and exact host equipment so a high-output starter from another family is not assigned by appearance.

Fleet operators can separate truck, bus and equipment demand in their forecast while maintaining one confirmed 4995641 product. Vehicle-level quantities help Elecdura plan delivery splits, and the shared drive-end definition keeps warehouse picking consistent.

4995641 Starter Motor Supply Planning for Heavy Fleets

First-lot receiving should count ten teeth, inspect the three mounting ears and check terminal protection and shipment damage. Strong inner supports are important for this high-output starter so the drive housing cannot strike the carton during export handling.

Elecdura's production video presents starter assembly and electrical testing for international B2B supply. Cummins 8.3L buyers can use it when discussing sample reports, lot marking, packing strength and scheduled fleet replenishment.

4995641 Starter Motor FAQs for B2B Buyers

Which Cummins 8.3L details should accompany 4995641?

State the engine designation and the truck, bus or equipment model, then add any build or serial information available. Include the complete starter number and full side and flange photographs. These details keep 4995641 tied to the buyer's actual 8.3L installation and help sales address delivery priority and fleet quantities in the same response.

Can 428000-7140 be used to request a 4995641 starter?

Yes. Use 4995641 with complete Denso 428000-7140 or 438000-3740 markings, and add S6339S, UD90425S or 30419N where relevant. Keep the Cummins 8.3L host, 24V 7.8kW rating and 10T drive on the same RFQ. The physical three-ear match remains important despite agreement between cross references, especially for a mixed heavy-equipment order.

What drive-end checks matter on the high-output 4995641?

Compare the 10T module-3.175 pinion, three Ø13 mounting holes, Ø146 face, Ø96 locating diameter and 47 mm and 18 mm side references. The centered front view should show all three ears, while the side image should include the full body and terminals. These checks separate the product from other large 24V starters.

Why should the truck, bus or equipment use be stated for 4995641?

The host application indicates operating duty, service urgency and how the buyer plans stock. Record whether demand comes from road fleets, passenger vehicles or construction equipment, while keeping the Cummins 8.3L engine and physical starter match unchanged. This lets Elecdura discuss quantity splits and delivery timing without making a broad fitment claim.

What packing protects the 4995641 high-output starter?

Use strong shaped supports beneath the body and drive end, prevent movement inside the carton and protect the 10T pinion and terminal studs separately. Keep the three-ear flange away from hard edges. A label showing 4995641, Cummins 8.3L and 24V 7.8kW helps branches identify the heavy unit before unpacking.

How should the first 4995641 shipment be inspected?

Select samples from several carton positions, count ten teeth and compare the three Ø13 ears, locating surface and terminal arrangement with the confirmed product views. Inspect for transport damage and record the agreed electrical test by lot. Retaining these results gives receiving and after-sales teams a practical benchmark for later 4995641 deliveries.

What evidence is useful when reporting a 4995641 field issue?

Provide the engine and equipment identity, shipment lot, installation date, symptom and operating history. Add battery load voltage, cable voltage-drop readings, start-signal information and photographs of the pinion, ring gear contact, flange and terminals. This evidence lets technical staff consider the heavy-duty electrical system, installation and starter without relying on a brief return note.

What will help Elecdura quote 4995641 for a heavy fleet?

Send the Cummins 8.3L engine and host model, complete 4995641 or 428000-7140 number, mounting, pinion and terminal photographs, quantity by site, annual forecast, destination and packing request. Elecdura can compare the 7.8kW three-ear product and provide matching feedback, wholesale pricing, lead time and delivery planning for the fleet.

Request 4995641 Cummins 8.3L Wholesale Pricing

Email the Cummins 8.3L engine and equipment model, complete 4995641 or 428000-7140 reference, pinion, mounting and terminal photographs, quantity, annual demand and destination to info@elecdurauto.com. Elecdura will review the 7.8kW three-ear starter and return wholesale pricing and delivery terms.
