4996709 Cummins ISB4.5 ISD6.7 24V 7.8kW Starter Motor Wholesale

4996709 Cummins ISB4.5 ISD6.7 Starter for Wholesale Buyers

Cummins distributors can search by 4996709 or 428000-7120 and then state whether demand comes from ISB4.5 or ISD6.7 equipment. Keeping engine-level quantities visible helps the quotation address both product matching and stock allocation.

Cummins B-series and related engines use several starter outputs and flanges. This product requires 24V, 7.8kW, a 10T module-3.175 drive, two Ø11 holes, an Ø127 face and Ø89 locating reference.

4996709 24V 7.8kW Starter Motor Ratings and Dimensions

The complete specification is 24V, 7.8kW, 10T, module 3.175 and clockwise rotation. The high output and compact two-ear mounting must remain on one product line so a nearby 4.8kW starter is not selected from the same engine family.

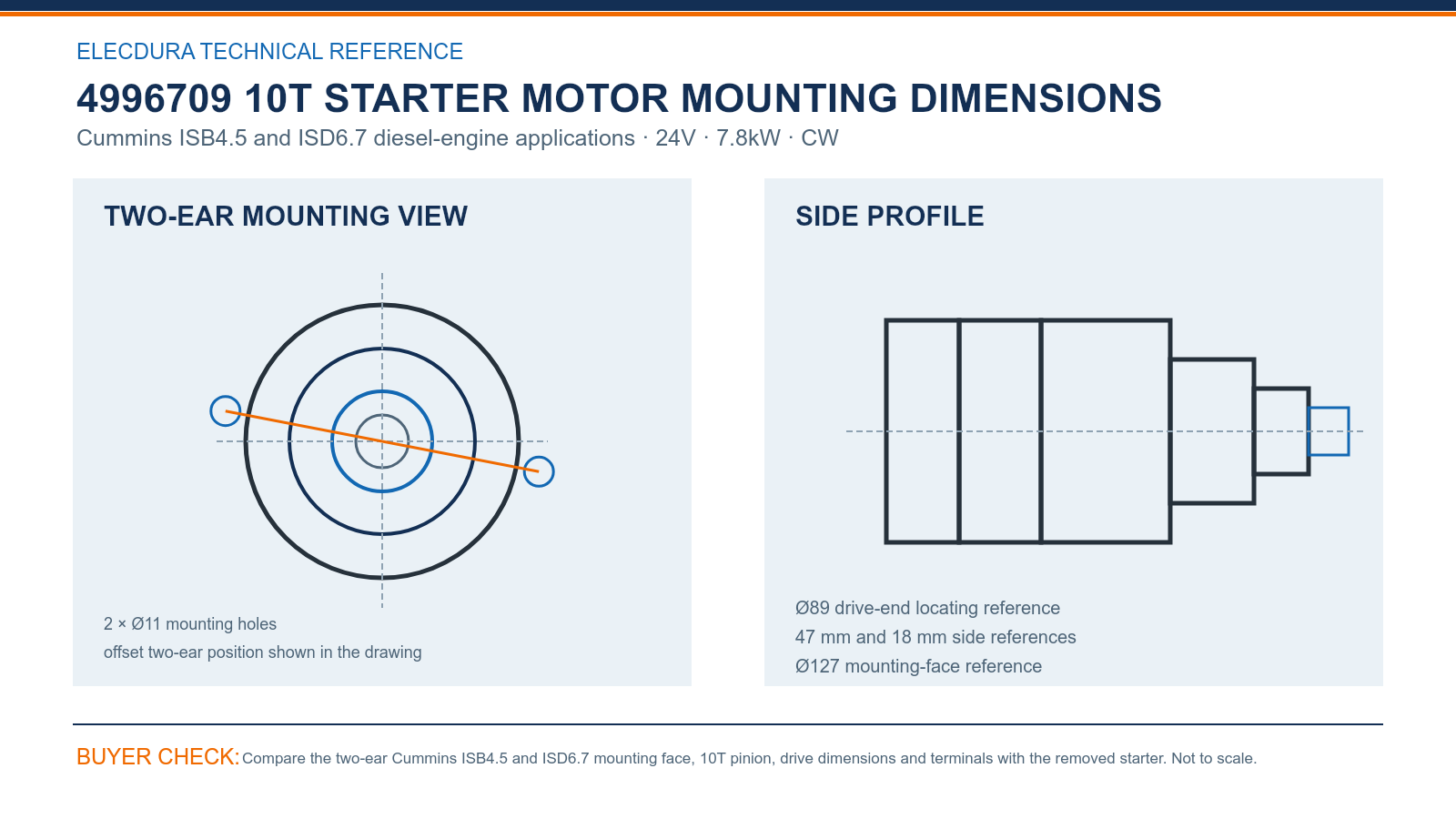

4996709 Cummins ISB4.5 ISD6.7 Starter Motor Dimensions — compare the drawing with the removed starter before placing a volume order.

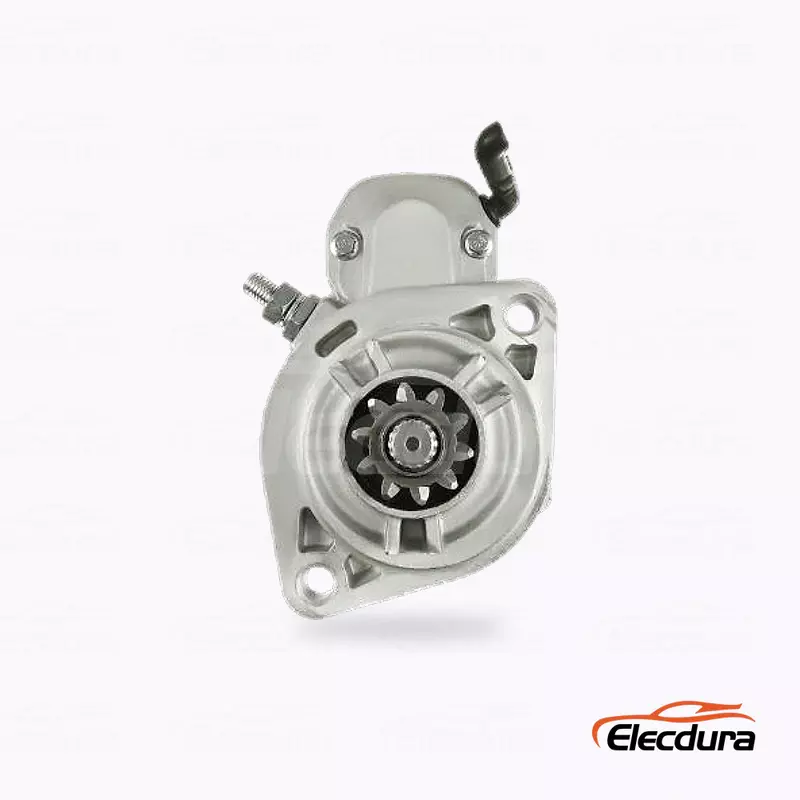

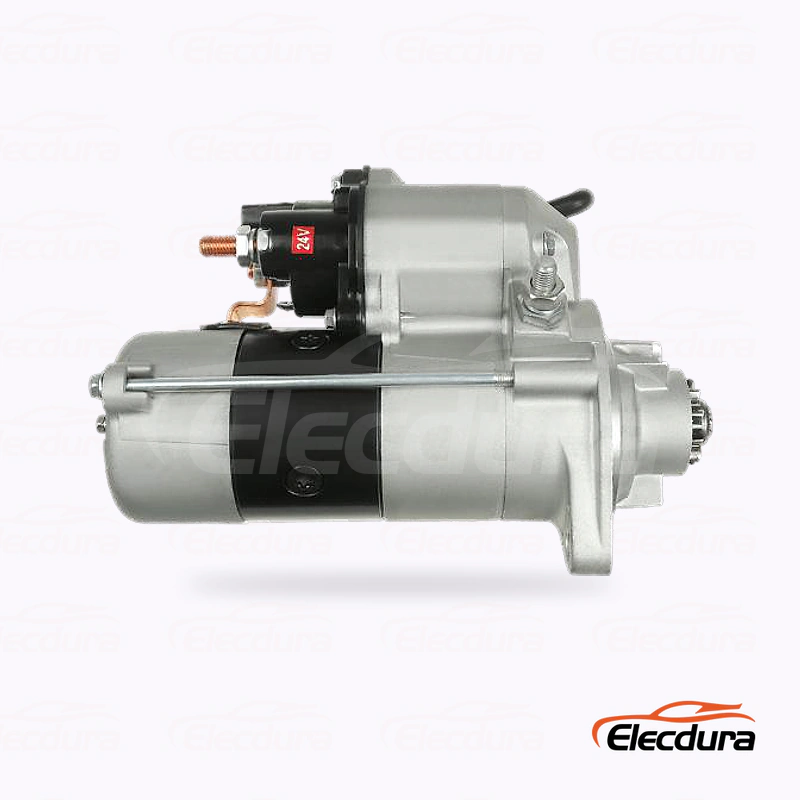

Compare the two Ø11 mounting holes, Ø127 face, Ø89 locating diameter and the 47 mm and 18 mm side references. A centered front image should show both ears, while the side image should include the pinion and all terminals.

4996709 and 428000-7120 Fitment Checks for Distributors

The number group includes 4996709, 428000-7120, 438000-3730, S-80573, 246-31202, 16020 and 30693. Keep ISB4.5 or ISD6.7 on the same order line so the reference does not become detached from the buyer's engine.

A wholesaler can combine ISB4.5 and ISD6.7 demand after the old units share the 7.8kW two-ear product. Preserve engine-specific forecasts and customer notes so reserve quantities and later branch issues remain visible.

4996709 Starter Motor Stock Planning for Mixed Cummins Fleets

Receiving should verify the 10T pinion, compact flange, locating surface and terminal protection on samples from the first lot. Clear 4996709, 7.8kW and engine-family labels reduce confusion with lower-output Cummins stock.

Elecdura's production video introduces starter assembly and electrical testing for export programs. Cummins buyers can use it while planning sample checks, private-label or neutral packing, destination splits and replenishment frequency.

4996709 Starter Motor FAQs for B2B Buyers

Why should ISB4.5 and ISD6.7 demand be listed separately?

Separate engine-level quantities show where 4996709 will be used and help a wholesaler plan reserve stock by customer or branch. The purchase can still be consolidated after the old units share the 24V 7.8kW 10T product and two-ear flange. Preserving the engine split also makes later consumption and replenishment decisions more useful.

Which cross references belong with Cummins 4996709?

Use 4996709 with Denso 428000-7120 and 438000-3730, then add S-80573, 246-31202, 16020 or 30693 when those numbers appear. Write complete references and keep ISB4.5 or ISD6.7, 24V 7.8kW and 10T on the same line. The engine and physical match remain necessary for wholesale supply and later branch replenishment.

What dimensions should be checked on the 4996709 two-ear face?

Measure the two Ø11 mounting holes, Ø127 face, Ø89 locating diameter and the 47 mm and 18 mm side positions. Take a centered front image and a side view that includes the pinion and terminals. These points distinguish the high-output compact flange from Cummins starters using another mounting pattern or output.

How is 4996709 kept separate from lower-output Cummins starters?

Keep 24V 7.8kW with the 10T module-3.175 drive and two-ear geometry on the product name, RFQ and warehouse label. A Cummins engine family or 10T count alone is not enough. Comparing the Ø127 face and Ø89 locating diameter prevents a nearby 4.8kW starter from being selected by appearance.

How should a wholesaler label stock for ISB4.5 and ISD6.7?

Show 4996709, 24V 7.8kW, 10T and the two-ear identity on the bin and carton, then retain ISB4.5 and ISD6.7 demand in the inventory notes. This allows one confirmed product to serve both engine groups while preserving customer-level consumption and avoiding confusion with lower-output Cummins lines.

What belongs in the first-lot inspection for 4996709?

Select samples from several cartons, count ten teeth and compare the two mounting ears, locating surface and terminal side with the confirmed photographs. Inspect the pinion and flange for impact and record the agreed electrical test. Keep the results by shipment lot so receiving can compare later high-output Cummins deliveries consistently.

How should 4996709 be protected for export delivery?

Use shaped supports around the starter body and drive end, keep the pinion and terminals isolated and prevent movement inside the carton. Protect the compact flange from hard edges. An outer label showing 4996709, 7.8kW and the relevant Cummins engine group helps destination receiving place units into the correct stock location.

What information will produce a useful 4996709 quotation?

Email the Cummins ISB4.5 or ISD6.7 engine and equipment details, full 4996709 or 428000-7120 marking, straight mounting, pinion and terminal photographs, quantity by engine group, forecast, destination and packing request. Elecdura can compare the 7.8kW two-ear product and return wholesale pricing, lead time and shipment options for the planned order.

Request 4996709 Cummins Starter Motor Wholesale Pricing

Email the Cummins ISB4.5 or ISD6.7 engine and equipment details, full 4996709 or 428000-7120 reference, front, pinion and terminal photographs, quantity, forecast and destination to info@elecdurauto.com. Elecdura will review the 7.8kW two-ear starter and return wholesale terms.
