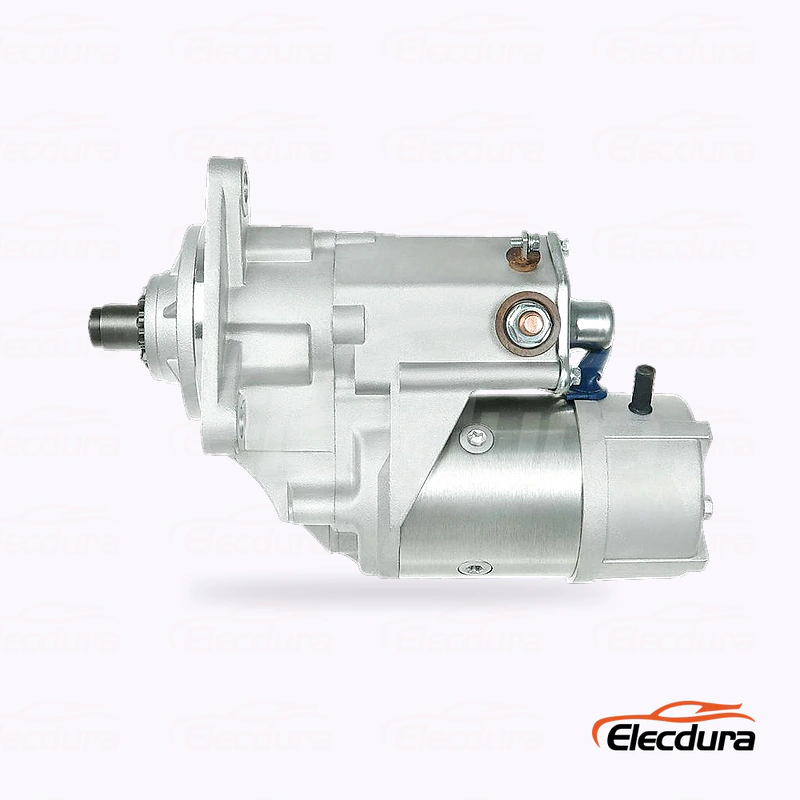

5811000710 Isuzu 4BD1 Starter Motor for Equipment Importers

5811000710 Isuzu 4BD1 Starter Motor for Mixed Equipment Importers

Importers may receive 4BD1 inquiries from forklift dealers, industrial-service companies and equipment fleets. The host machine determines the available space and service reference, while the 11T drive and large three-hole nose identify the 5811000710 starter itself.

Provide the equipment make, model and serial, 4BD1 engine information and old-unit photographs. Elecdura compares the mounting face and terminal side, helping the buyer prepare an offer that makes sense for the actual machine rather than every application using the same engine family.

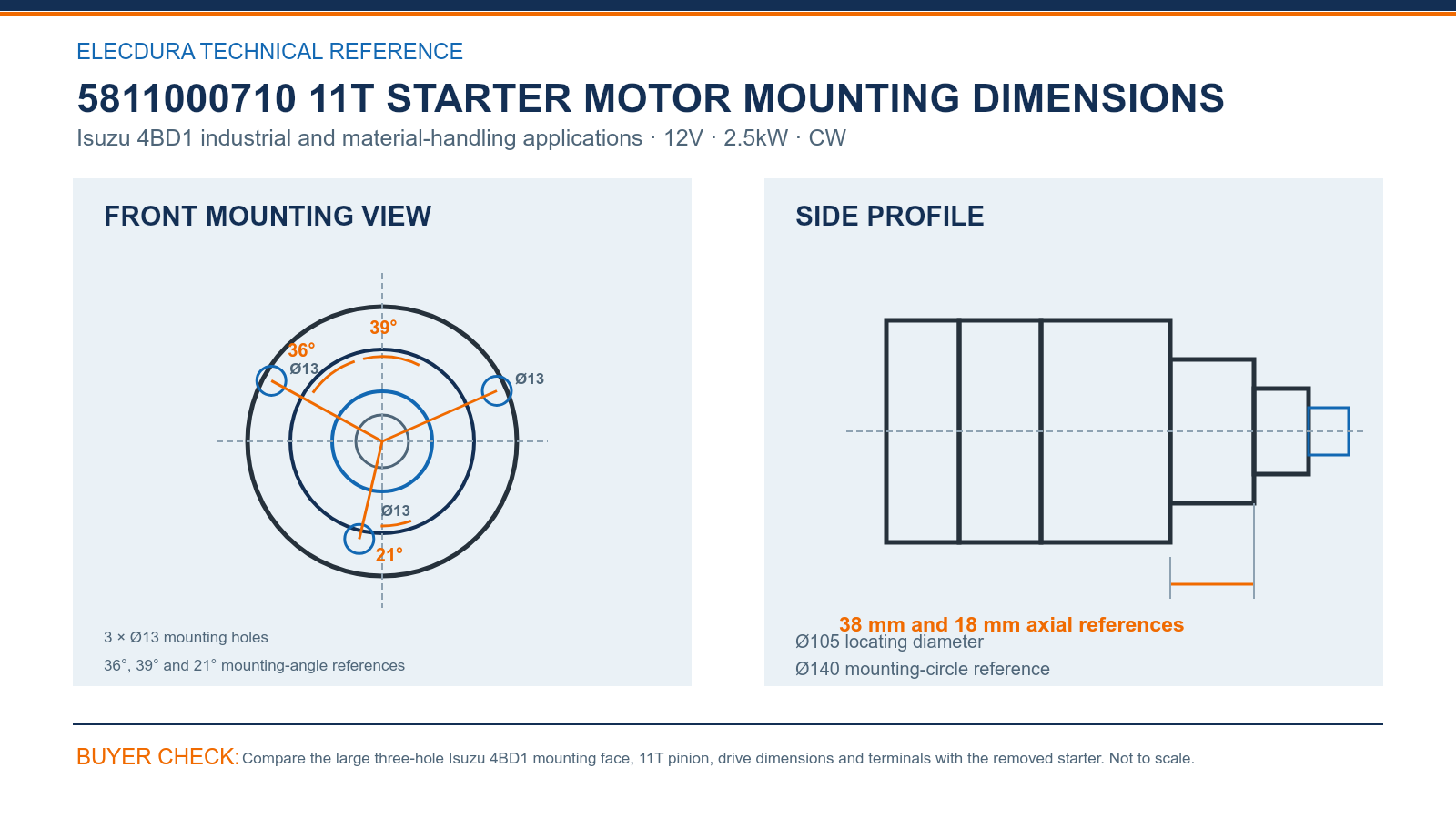

5811000710 Starter Motor Specifications and B2B Fitment Drawing

5811000710 11T starter motor mounting and drive-end dimensions for buyer-side comparison.

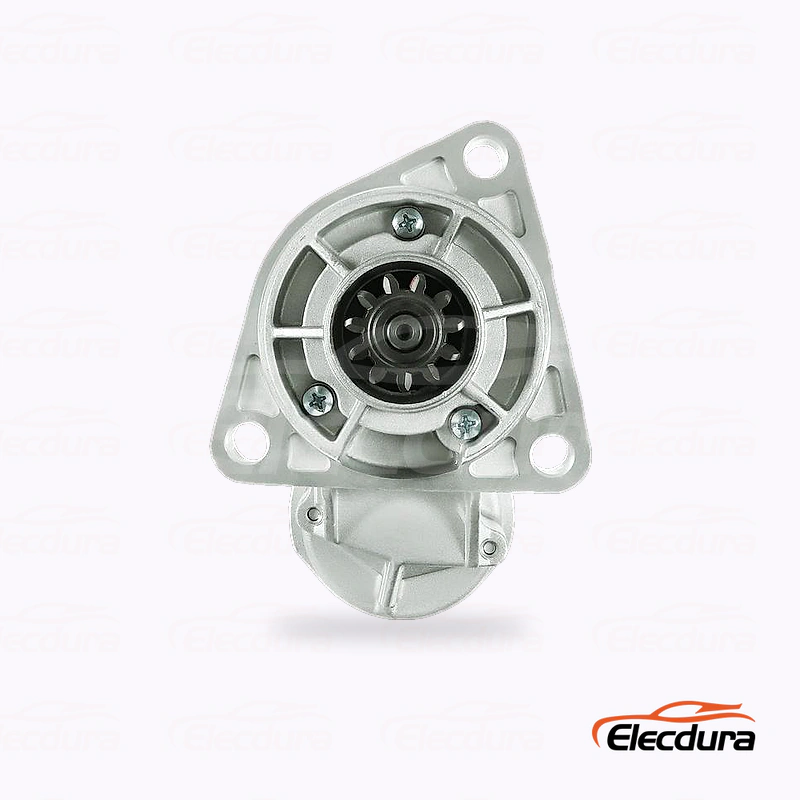

The 5811000710 face is defined by three Ø13 holes on the Ø140 circle, an Ø105 locator, 38 mm and 18 mm axial references and 36°, 39° and 21° angles. This larger asymmetric nose is a strong identifier for the 11T Isuzu 4BD1 configuration.

Measure the removed unit and photograph the installed terminal side because forklifts and other 4BD1-powered equipment can use different surrounding structures. The drawing confirms the starter, while the host machine information confirms that cables and access suit the intended installation.

5811000710 Starter Motor Denso References and Large-Face Checks for Wholesalers

028000-4870, 028000-5490, 028000-6560, 16649, 17301 and 17302 can be retained beside 5811000710. The equipment and physical face should remain attached to those numbers.

1. Match three Ø13 holes on the Ø140 circle.

2. Check the Ø105 locator and 38 mm and 18 mm axial points.

3. Confirm the 36°, 39° and 21° orientation and terminal clearance.

This large geometry separates the starter more effectively than motor color, body diameter or a shortened Isuzu reference.

5811000710 Starter Motor Multi-Customer Packing for Isuzu Equipment Importers

An importer can consolidate production for several 4BD1 equipment customers while keeping machine groups visible on carton or destination labels. Elecdura can review terminal protection, face protection and separated marks for forklift, industrial-engine or dealer quantities.

Share the quantity by customer or equipment family, destination, target date and packaging format. The video below shows production and electrical testing, supporting supplier assessment for repeat mixed-equipment orders.

The video supports review of Elecdura manufacturing and test capability for recurring 4BD1 equipment programs.

5811000710 Starter Motor Wholesale FAQ

Why does a 5811000710 inquiry need the host machine as well as 4BD1?

The 4BD1 engine can be installed in forklifts and other industrial equipment, where cable routing, access and service references may differ. Provide the machine make, model and serial together with the engine identity. This lets Elecdura connect the 5811000710 starter to the actual equipment instead of treating the engine name as complete fitment information.

How should the 028000-4870, 028000-5490 and 028000-6560 numbers be used?

Keep the exact Denso number found on the old starter or customer document and place it beside 5811000710 in the inquiry. Confirm the 11T drive, large three-hole face and terminal position. The reference group supports purchasing traceability, while the equipment and measured unit decide whether the offered starter is appropriate.

Which features make the 5811000710 mounting face distinctive?

Look for three Ø13 holes on the Ø140 circle, an Ø105 locator, 38 mm and 18 mm axial points and the 36°, 39° and 21° orientation. This is a large, asymmetric face. A square photograph and direct measurements provide a stronger identity than comparing paint, solenoid finish or motor-body shape.

Why should terminal clearance be checked for each equipment type?

Forklifts and industrial machines can place guards, hoses, frames or service panels differently around the same engine. Photograph the installed cable side before removal and show the nearby structure. Elecdura can compare terminal direction and cable reach so a mechanically correct starter does not create strain or access problems in the host machine.

Is the Isuzu 4BD1 engine name enough to release stock?

No. Keep the complete old starter number, 11T drive, large face and host equipment with the warehouse description. Another machine using a 4BD1 engine may have different installation constraints or service history. Counter staff should compare the removed unit before moving an existing carton into a new equipment application.

Can several 4BD1 equipment customers share one production order?

Yes, after each customer's installed starter and quantity have been identified. Use separate purchase-order lines or carton marks for the equipment groups, while production and freight may be consolidated for matching 5811000710 units. This preserves customer-specific traceability without losing the commercial benefit of combined volume.

What packaging protects the large 5811000710 face?

Use internal support that prevents the Ø140 mounting face, pinion and terminals from striking the carton during transport. Add moisture and dirt protection for longer storage. The technical label should show 5811000710, 12V, 11T and a traceable lot, with customer or destination marks added as required.

What should an importer include in a 5811000710 quotation request?

Send the complete Isuzu and Denso number group, 4BD1 engine, equipment make and model, old-unit photographs, quantity by customer, destination, target date and packaging needs. Elecdura can then return fitment questions, pricing, labeling and delivery terms for the identified 12V 2.5kW 11T configuration in each stated equipment family.

Request a 5811000710 Starter Motor Wholesale Quote

Send 5811000710 or the complete Denso and WAI number, Isuzu 4BD1 engine and host-equipment details, face, pinion and terminal photographs, quantity by customer and destination. Elecdura will quote the 12V 2.5kW 11T CW starter with fitment, packing and delivery terms.

For mixed equipment orders, keep forklift, industrial and dealer quantities on separate lines so carton marks and delivery plans remain clear even when production is consolidated.
