5811001180 Isuzu 6BD1 5.5kW Starter Motor Wholesale

5811001180 Isuzu 6BD1 5.5kW Starter Motor for Distributors

Isuzu 6BD1 workshops may send 5811001180 or 028000-6200 without explaining which old unit they hold. For this 5.5kW product, request the engine application, full label, measured drive end and photographs. That information keeps the quotation tied to the actual variant instead of an OE-only assumption.

A related 6BD1 starter may share the number family while using another power definition and mounting drawing. Do not merge them from the OE alone. Keep 5.5kW, 11T module 3, three Ø14 holes, Ø139.5 face and 41 mm drive reference together on this product line.

5811001180 24V 5.5kW Starter Motor Specifications for B2B Orders

The stated configuration is 24V, 5.5kW, 11T, module 3 and clockwise rotation. A distributor should carry those values from enquiry to carton label so staff can identify the intended variant even when the old starter bears one of several Denso or Isuzu cross references.

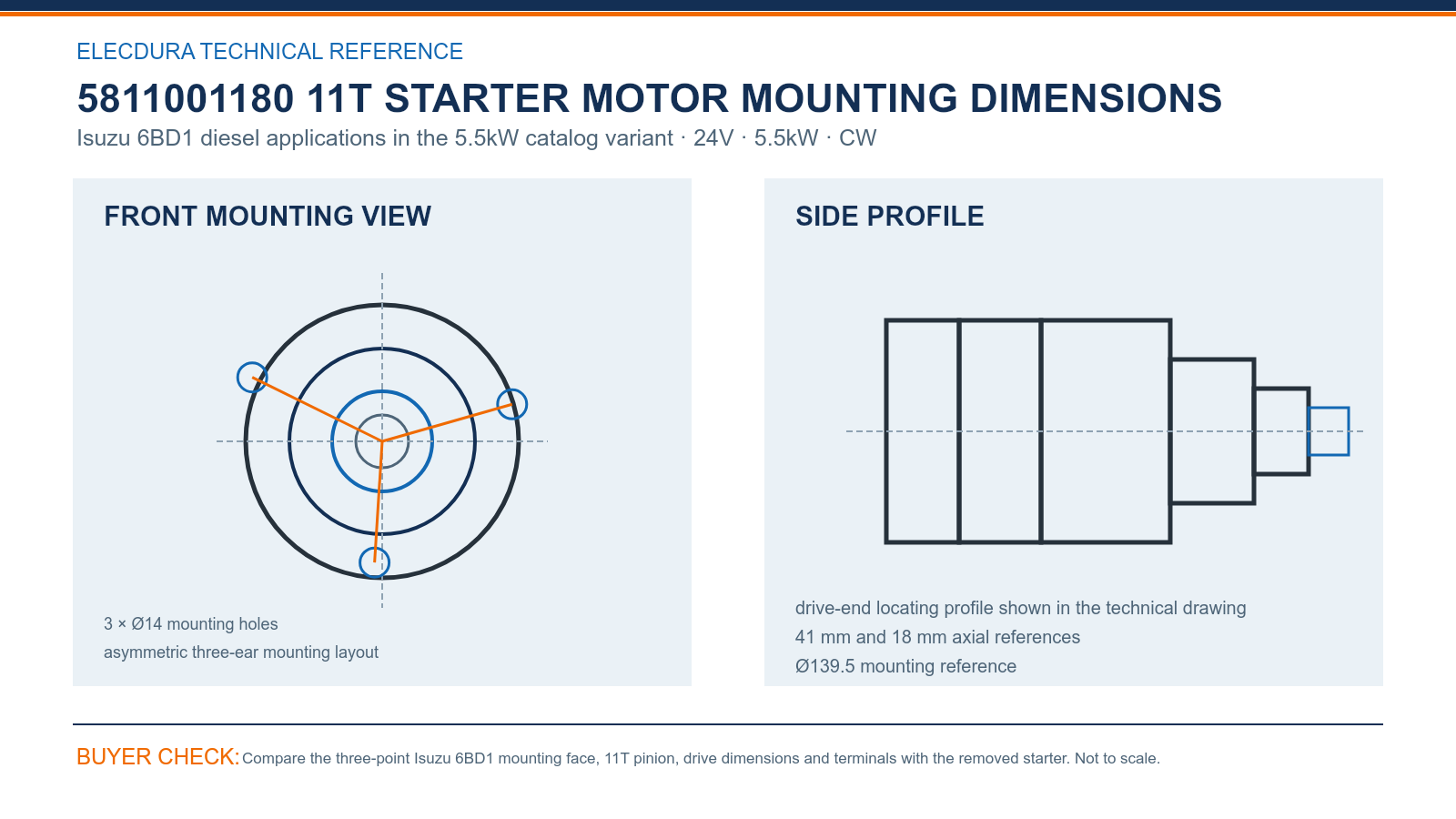

5811001180 Isuzu 6BD1 Starter Dimensions for the 5.5kW Variant — compare the drawing with the removed starter before placing a volume order.

Compare the three Ø14 mounting points around the Ø139.5 reference and the uneven ear positions from a centred photograph. Then check the 41 mm and 18 mm axial references and include a close pinion view. These measurements make the product useful for sample-based comparison rather than number-only selection.

5811001180 Isuzu Starter Motor Variant and Mounting Checks

5811001180 connects with 028000-6200/6202, 1811001410, 8811002531, Lester 18190/19752 and S6027. List all visible numbers, but retain 5.5kW and the measured three-ear mounting face beside them so the cross-reference group does not erase this product's version identity.

An industrial-engine distributor can keep the 5.5kW unit as a separate item and attach accepted photographs to the customer account. If a new 6BD1 enquiry shows another output or flange, route it to a different product rather than editing the existing item description or mixing the warehouse bins.

5811001180 Starter Motor Support for Industrial Engine Stock

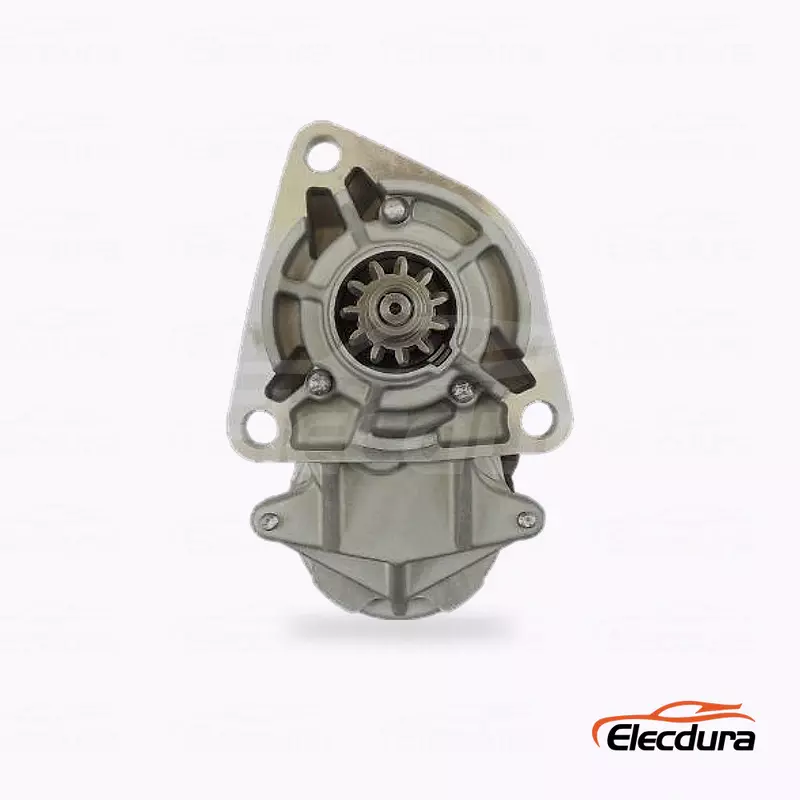

Receiving teams should compare several units with the accepted 5.5kW sample, count eleven teeth and inspect the three ears, locating surfaces and cable studs. Mark the output and primary Isuzu number clearly, then quarantine any carton whose drive end or label belongs to the neighboring variant.

The Elecdura production video shows starter assembly and electrical testing for wholesale supply. Isuzu buyers can use it to assess manufacturing support while defining variant-specific carton labels, sample inspection, packing and replenishment timing for their 5811001180 orders.

5811001180 Starter Motor FAQs for B2B Buyers

How is this 5.5kW Isuzu 6BD1 variant identified?

Identify the product as 5811001180 for the Isuzu 6BD1 application with the 24V 5.5kW 11T clockwise definition. Add the old starter label and drawing-matched face photographs. Keeping the power, pinion and Ø139.5 mounting reference together prevents this line from being merged with another 6BD1 starter carrying a related number.

Can the shared 028000-6200 number group define this product alone?

No. The 028000-6200 family is a useful search route, but it does not replace the full product definition. Keep 5811001180, 5.5kW, 11T module 3, three Ø14 holes and the 41 mm drive reference on the same RFQ. A number-family match without those checks can combine different 6BD1 variants.

Which drive details should remain on the 5811001180 item line?

The item line should show 24V, 5.5kW, 11T, module 3 and clockwise rotation. Add the Isuzu 6BD1 application and complete 5811001180 reference. This combination gives purchasing and receiving one consistent description and makes it harder for another 028000-6200-family starter with a different output or drive end to enter the order.

What measurements should be retained for the 6BD1 three-ear face?

Retain three Ø14 mounting holes, the Ø139.5 face reference, and the 41 mm and 18 mm axial positions in the comparison record. Use square front and side photographs to show the asymmetric ears. These measurements support later receiving checks and distinguish the 5.5kW unit when labels are dirty or partly unreadable.

How should the confirmed Isuzu variant become a repeat-order record?

After a sample is accepted, create the repeat-order entry from the full 5811001180 identity, not only 6BD1 or 028000-6200. Store the 5.5kW rating, 11T module-3 drive, mounting drawing and reference photographs with the item. Future orders can then repeat a verified product rather than reopening the same ambiguity.

How can a warehouse keep this 5.5kW unit separate?

Give the 5.5kW unit its own bin, item code and face photograph. Put 5811001180, 11T and Ø139.5 on the pick label, and do not shelve it under a general 6BD1 heading. Receiving should compare the power label and 41 mm drive position before merging incoming units with accepted stock.

What should receiving verify on the first 5811001180 delivery?

Sample several cartons for the 11T pinion, three Ø14 holes, Ø139.5 mounting face, 41 mm drive position and terminal protection. Record the supplier lot and accepted images. If a unit shows another power marking, ear arrangement or drive depth, isolate it until the 5811001180 configuration is confirmed.

What information is needed for the 5.5kW 6BD1 quotation?

Send the 6BD1 engine and machine details, complete 5811001180 and readable cross references, old-unit photographs, quantity, destination, required date and packing needs. Make the 5.5kW 11T requirement explicit. Elecdura can then quote the defined variant and avoid pricing a related 6BD1 starter under an incomplete number alone.

Request 5811001180 Isuzu 6BD1 Starter Motor Wholesale Terms

Send the Isuzu 6BD1 engine and equipment model, complete 5811001180 or Denso markings, clear 11T pinion, three-ear, side and terminal photographs, measured drive position, quantity and destination to info@elecdurauto.com. Elecdura will compare the 5.5kW variant and return B2B terms.
