600-813-1420 Komatsu FD20 Starter Motor Wholesale Supply

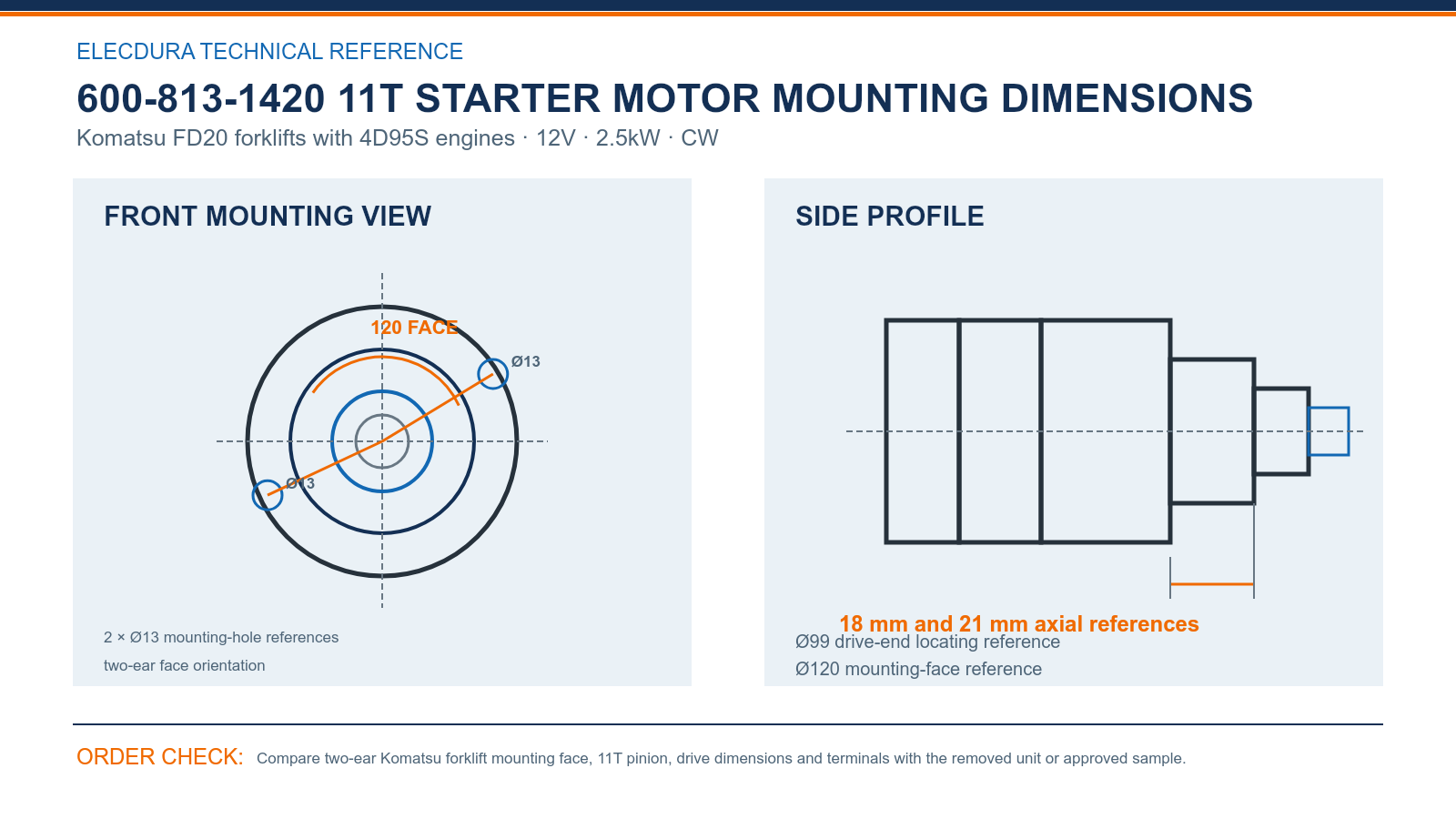

600-813-1420 Starter Motor Specifications and B2B Fitment Drawing

600-813-1420 11T starter motor mounting and drive-end dimensions for buyer sample comparison.

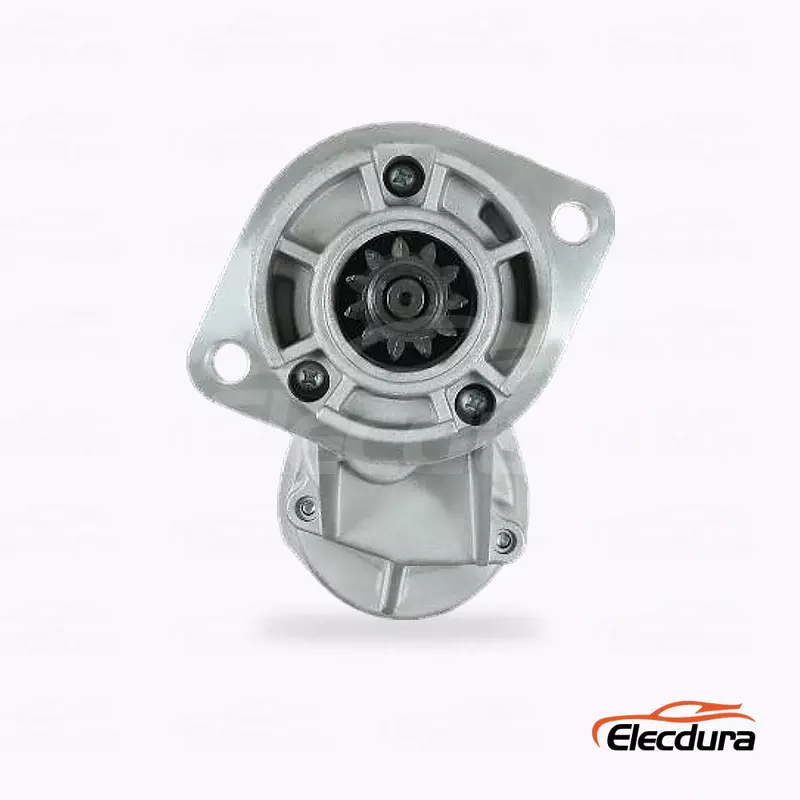

Komatsu FD20 service teams can identify this starter quickly from its two-ear face rather than a triangular three-hole pattern. The Ø120 face, Ø99 locating reference and 18/21 mm axial points are useful for checking the 4D95S application before warehouse-fleet stock is ordered.

Measure both Ø13 holes and capture the pinion and terminal sides in the same sample set. These records help a forklift-parts distributor distinguish the 11-tooth 600-813-1420 unit during mixed Komatsu replenishment orders.

600-813-1420 Starter Motor Supply for Forklift Service and Warehouse Fleets

Warehouse fleets can trial one unit on a documented FD20, record installation and cranking performance, and use that result for the planned stocking order. Elecdura offers neutral packaging and can review private-label cartons for qualified distributor programs.

• Protect the pinion and terminals in transit.

• Mark cartons with the full Komatsu/Denso reference.

• Inspect the two-ear casting before parts are issued to service vans.

The video demonstrates Elecdura starter-motor assembly and testing. Include the FD20 serial, 4D95S engine and old-unit images with the inquiry so the reply can state the correct product, sample procedure, carton option and delivery terms.

600-813-1420 Komatsu FD20 Starter Motor Help for Forklift Buyers

600-813-1420 is intended for Komatsu FD20 forklift applications with the 4D95S engine. For warehouse-equipment fleets, the machine and engine identity matter as much as the 12V, 2.5kW and 11-tooth specification, because the long Denso family includes nearby versions.

Send the forklift model, serial, engine plate and photographs of the two-ear face and terminals. Elecdura will compare the Ø120 face, 18/21 mm axial points and 11T drive before quoting, helping the service team avoid a fitment trial with the wrong Komatsu starter.

600-813-1420 Komatsu Starter Motor References for FD20 Distributor Stock

The OE group includes 600-813-1420, 600-813-1430 and Denso 128000-9960, -9962, -9970, -9971 and -9972, plus 228000-0190 and -0191. Preserve the complete suffix found on the old unit.

Use the FD20/4D95S record to narrow the group, then compare the two Ø13 ears, Ø120 face, Ø99 locating reference and terminal position. This sequence gives the buyer a clearly defined SKU without excluding useful cross-reference history.

600-813-1420 Starter Motor Wholesale FAQ

Why should the FD20 and 4D95S records stay with 600-813-1420?

The Komatsu number appears alongside several Denso references, and not every 128000-99xx starter serves the same machine. The FD20 model, 4D95S engine and serial record narrow the application. Keeping those details with the order lets the supplier compare the correct mounting face and terminals instead of selecting a product from the number family alone.

Which Denso numbers may help identify this Komatsu starter?

Useful references include 128000-9960, 128000-9962, 128000-9970, 128000-9971, 128000-9972, 228000-0190 and 228000-0191. Record the complete number on the removed unit. Then confirm 12V, 2.5kW, 11 teeth and the two-ear geometry, because a shared prefix cannot prove that the drive depth or terminal side is identical before the sample is accepted.

How are the Ø120 and Ø99 references used?

The Ø120 face and Ø99 drive-end locating reference help a buyer compare the nose and mounting interface. Measure the actual removed starter and sample; do not scale the image. A difference at the locating diameter can prevent seating even when the two mounting holes appear to align, making these measurements valuable before an export shipment.

What do the 18 mm and 21 mm axial points confirm?

They describe drive-end positions that affect pinion location and engagement. Compare both points with the removed unit and note the resting position of the 11-tooth pinion. If the sample places the gear nearer or farther from the face, stop the trial before cranking. Correct mounting ears do not compensate for an incorrect drive depth.

What should a forklift service team photograph?

Provide the machine plate, engine plate, full starter label, clean pinion, two-ear mounting face and rear terminal area. Photograph the face straight on and include a side view with a ruler where possible. These images let Elecdura compare the exact 4D95S installation and give the distributor a repeatable record for service vans and later branch orders.

How should an FD20 sample be tested?

Check battery capacity, cable voltage drop and mounting surfaces before installation. Fit the starter without forcing the ears, confirm terminal clearance and perform repeated starts while noting engagement sound and cranking voltage. Record the result against the forklift serial. A planned trial prevents an upstream battery or cable fault from being blamed on the supplied starter.

What receiving checks protect a 600-813-1420 stocking order?

Sample several cartons and verify full references, 11-tooth drives, two-ear castings, locating surfaces, terminals and packing. Compare one unit with the approved FD20 sample and record the lot. Quarantine any different 128000 suffix or face before it is placed in a service-van bin, where similar starters are difficult to separate later.

What should be included in a Komatsu forklift wholesale RFQ?

Send the complete Komatsu or Denso number, FD20 model, 4D95S engine and serial information, old-unit photos, quantity, destination and required date. Add packaging, barcode and sample requirements. Elecdura can then quote the exact 12V 2.5kW 11T configuration and explain the MOQ, normal lead time, warranty and receiving support.

Request a 600-813-1420 Starter Motor Wholesale Quote

Send 600-813-1420 or the full Denso reference, Komatsu FD20 and 4D95S details, two-ear mounting and terminal photographs, quantity, destination and packaging needs. Elecdura will return a 12V 2.5kW 11T quotation with sample and delivery information.

If the stock will support several warehouse sites, provide the FD20 or 4D95S machine records used at each location. Elecdura can organize the sample review and carton labeling so service teams receive the same two-ear 11-tooth configuration.
