600-813-4671 Komatsu S6D170 Starter Motor Distributor

600-813-4671 S6D170 Starter Supply for Engine Rebuilders

Engine rebuilders can use the Komatsu OE 600-813-4671 as the principal purchasing identity, then attach the S6D170 plate and accepted drive-end photographs. This approach is more useful than a generic 11kW Komatsu description.

A separate supplier row carries the linked Nikko number and the same headline specification. Preserve this OE-led product by checking the 25/46 mm drawing, upper harness orientation and exact old-unit marking rather than merging both entries automatically.

600-813-4671 11T Drive and Ø146 Mounting Dimensions

The product combines 24V, 11.0kW, 11T, module 4.233 and clockwise rotation. These values define both heavy cranking output and the coarse gear interface expected by the S6D170 installation.

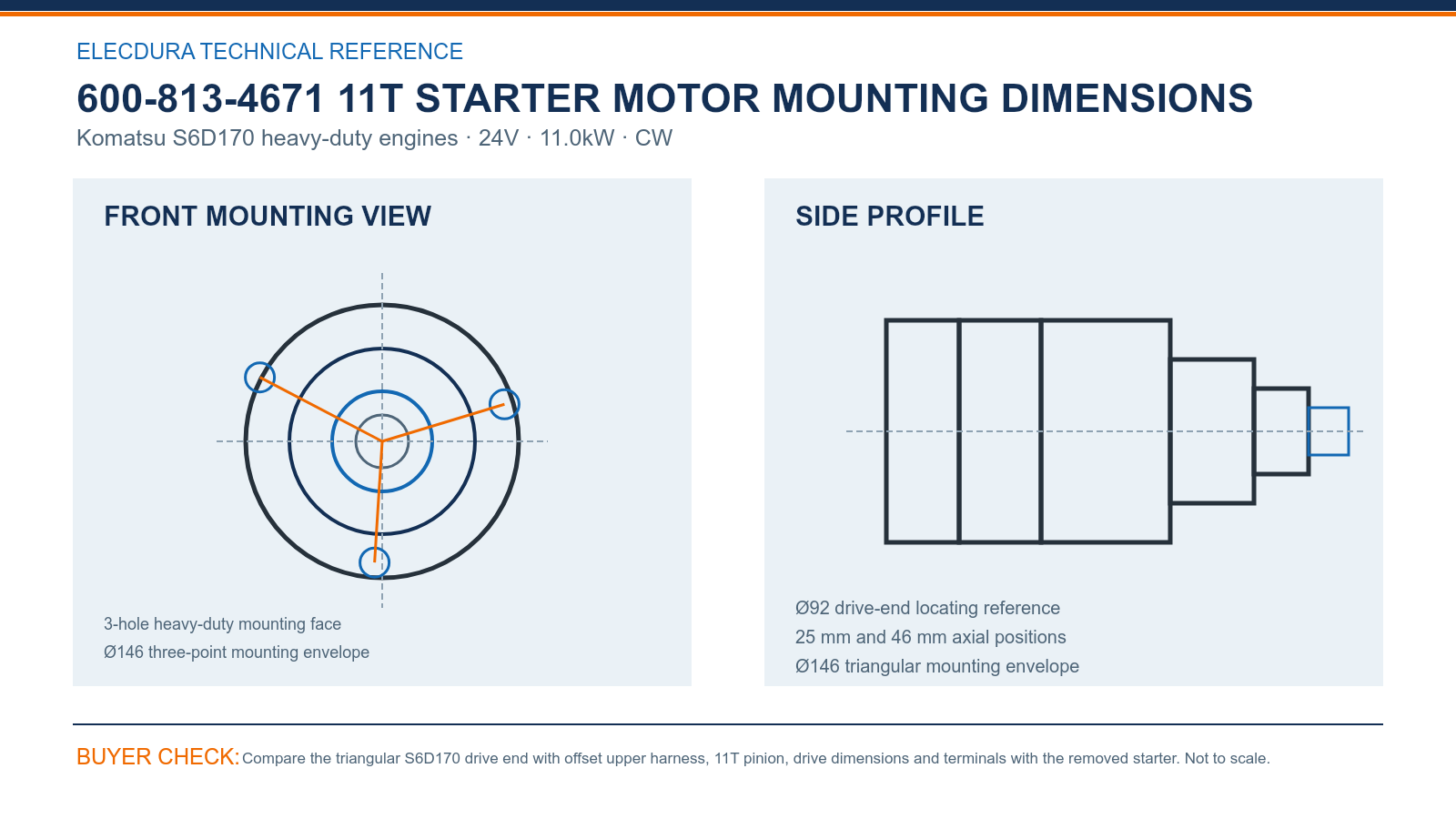

600-813-4671 Komatsu S6D170 Starter Dimensions for Engine Rebuilders — compare the drawing with the removed starter before placing a volume order.

Compare the Ø92 locating reference, 25 mm and 46 mm axial positions and Ø146 three-point envelope. A terminal-side image should show the offset upper harness and available clearance around the solenoid.

600-813-4671 Komatsu OE Matching for Industrial Buyers

600-813-4671 and 600-813-7221 link to Nikko 0-23000-7022/7492 and AS-PL S9266. Keep the old Komatsu OE, accepted cable view and engine identity on the order even when another reference finds the product.

Rebuilders can attach the accepted physical version to each S6D170 customer account. If an enquiry starts from 0-23000-7022, compare it with the separate Nikko-led row before deciding whether both requirements share stock.

600-813-4671 Heavy Starter Protection and Testing Video

Use heavy-body supports, a guarded drive end and insulated terminal covers. Sample the first lot for 11T gear, face geometry, upper harness, solenoid studs, label and electrical-test documentation.

The Elecdura video presents starter assembly and electrical testing for wholesale programs. Komatsu engine buyers can review production capability while setting 600-813-4671-specific packing, labeling and receiving checks.

600-813-4671 Starter Motor FAQs for Komatsu S6D170 Rebuilders

Why use 600-813-4671 as the main purchasing identity?

It is the Komatsu OE starting point for this supplier row and makes the product recognizable to engine rebuilders. Keep the S6D170 plate, 11T module-4.233 drive and accepted 25/46 mm version beside it. Nikko references can support lookup without replacing the chosen OE identity on the order.

How is this row separated from the 0-23000-7022 product?

Both rows share a reference family and headline specification, but the supplier presents distinct photographed products and primary numbers. This row uses 600-813-4671 and the 25/46 mm drawing. Compare its offset upper harness and old-unit marking with the separate Nikko-led version before deciding whether they can share stock.

Which mounting details should an S6D170 rebuilder measure?

Check the Ø92 locating section, 25 mm and 46 mm axial positions and Ø146 triangular envelope. Add straight front and terminal-side images so the upper harness and solenoid clearance are visible. Pair those measurements with the 11T module-4.233 pinion rather than relying on the engine name alone.

Can 0-23000-7492 help locate 600-813-4671?

Yes, 0-23000-7492 is a useful linked Nikko reference. Confirm that the proposed product retains 24V, 11kW, 11T, module 4.233 and the same 25/46 mm drive end. The S6D170 application and accepted cable-side photograph should remain attached to the Komatsu OE request through purchasing and receiving.

What should be compared when an old starter is dismantled?

Before discarding the core, photograph the label, pinion, locating surface, mounting holes, solenoid and cable route. Measure the axial positions and note any spacer. These details give the rebuilder a durable baseline for 600-813-4671 even when the returned core is later stripped for parts or components.

Why does upper-harness clearance matter on 600-813-4671?

The heavy starter sits in an installation where cable reach and surrounding components can limit space. A different lead route may fit the flange but interfere during installation. Compare the upper harness, solenoid studs and nearby machine clearance before volume supply, then keep the accepted side view with repeat orders.

Which features should be sampled on the first shipment?

Inspect units from several cartons for the 11T pinion, Ø92 locating area, triangular face, upper harness, terminal protection and rating label. Check that body supports carry the weight and no cable rubs against metal. Save the sample images with the 600-813-4671 delivery lot for receiving reference.

What should a rebuilder send for 600-813-4671 pricing?

Provide the S6D170 engine plate, host machine, complete Komatsu and Nikko numbers, front, pinion and harness-side photographs, required quantity, packing preference and destination. Mention whether the order supports planned rebuilds or emergency spares. Elecdura will review the physical version and return distributor pricing for the stated demand.

Request 600-813-4671 Starter Motor Distributor Pricing

Send the Komatsu S6D170 engine plate, complete 600-813 and Nikko numbers, straight front, cable-side and terminal photographs, quantity and destination to info@elecdurauto.com. Elecdura will compare 600-813-4671 and quote distributor supply.
