600-813-9321 Komatsu PC360-7 Starter Motor Wholesale

600-813-9321 PC360-7 Starter Supply for Fleet Wholesalers

PC360-7 service demand often requires a high-output starter quickly, but 11kW Komatsu products cover several machines. Pairing 600-813-9321 with the PC360-7 serial and 12T drive gives fleet purchasing a defensible stock line.

A PC500 or wheel-loader reference may appear in the same market family. Compare the 45/70 mm drive positions, Ø92 locating section, triangular 126 mm pattern and cable arrangement before moving stock between machine groups.

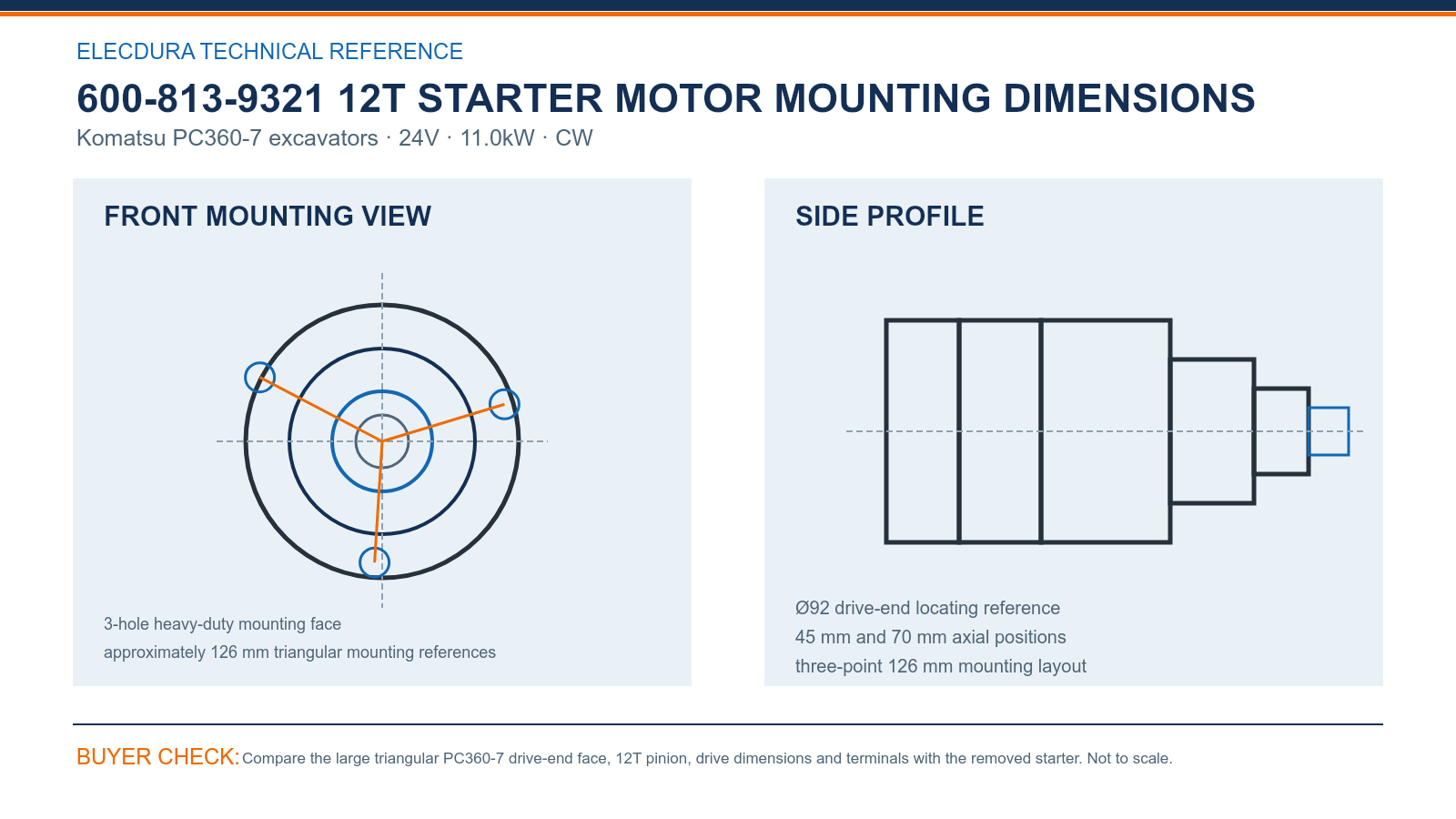

600-813-9321 11kW Specification and 126 mm Face Drawing

The product definition is 24V, 11.0kW, 12T, module 3.175 and CW. High power alone is not enough; the 12T module-3.175 gear and the heavy mounting face must remain part of the purchase description.

600-813-9321 Komatsu PC360-7 Starter Dimensions for Fleet Buyers — compare the drawing with the removed starter before placing a volume order.

Use the technical drawing for the Ø92 locating reference, 45 mm and 70 mm axial positions and three-point 126 mm layout. Add a straight side image so the nose length, solenoid height and terminal protection can be reviewed.

600-813-9321 Reference Matching for Excavator Stock

600-813-9321/9322 and Nikko 0-23000-7731 through 7735 support parts searches. Keep the PC360-7 machine and accepted face beside them because the reference family extends beyond one excavator model.

Fleet branches can reserve this line for confirmed PC360-7 demand and screen other 11kW requests separately. Machine serial, engine details and the buyer-confirmed physical view should follow each emergency transfer.

600-813-9321 Heavy-Unit Logistics and Starter Test Video

The heavy motor needs reinforced body supports, protected terminals and a guarded nose. On the first lot, sample the 12T pinion, face geometry, cable bridge, solenoid studs and label before the units enter breakdown stock.

Elecdura's video shows starter assembly and electrical testing for wholesale supply. Excavator distributors can evaluate production capability while specifying 600-813-9321 carton strength, lot sampling, identification and delivery timing.

600-813-9321 Starter Motor FAQs for Komatsu PC360-7 Fleets

Why should a 600-813-9321 enquiry include the PC360-7 serial?

The 11kW Komatsu starter family serves several heavy machines, so the PC360-7 serial preserves the exact equipment context. Pair it with the engine plate and old starter number. This gives purchasing, receiving and after-sales teams one traceable basis when a unit is shipped for an urgent excavator repair.

How does the 12T module-3.175 drive separate this starter?

It distinguishes the gear interface from 11T Komatsu starters that can share the same 24V and 11kW headline. Confirm both 12T and module 3.175, then compare the Ø92 locating section and mounting face. The complete combination should appear on the 600-813-9321 stock label and quotation.

Which 600-813-9321 dimensions help remote matching?

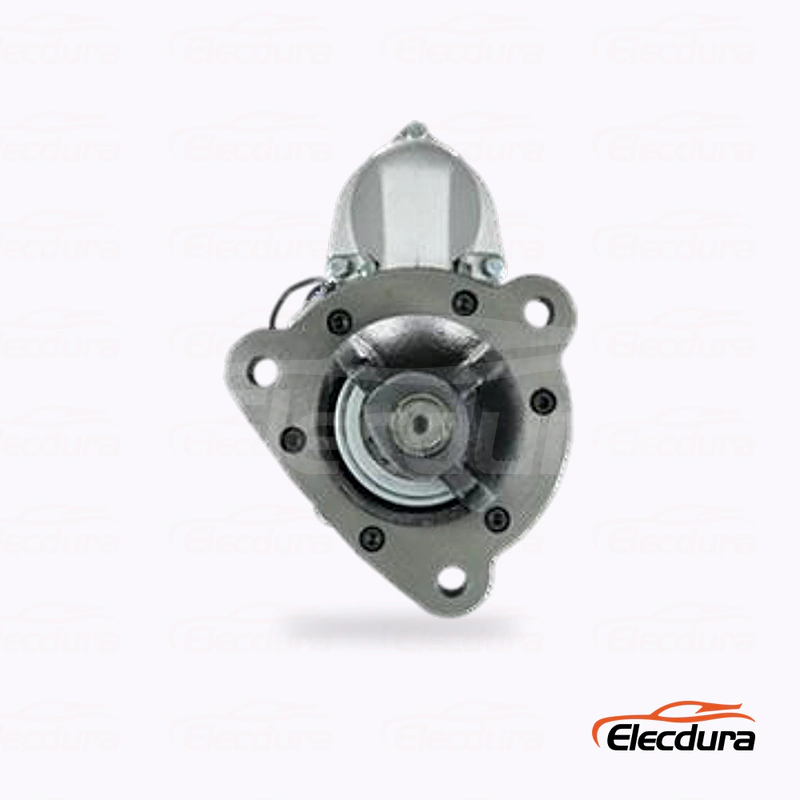

Use the Ø92 locating reference, 45 mm and 70 mm axial positions and the three-point layout of about 126 mm. A straight front image helps judge the triangular face, while a side photograph shows nose length, solenoid height and cable clearance. Compare all of them with the removed starter.

Can 0-23000-7731 support a PC360-7 sourcing request?

Yes. 0-23000-7731 is a recognized lookup number in the 600-813-9321 group, but it also appears in broader Komatsu listings. Keep the PC360-7 serial, 12T module-3.175 drive and 45/70 mm drawing beside it so the cross-reference does not redirect the order to another machine family unintentionally.

Why should PC500 demand be screened separately?

PC500 enquiries can share Nikko numbers with the wider 11kW family while using another OE, application or physical version. Compare the machine, engine, pinion and axial dimensions before combining stock. This protects high-value emergency inventory from being transferred between PC360-7 and PC500 on reference similarity alone.

How should branches prepare 600-813-9321 breakdown stock?

Label the bin with PC360-7, 24V 11kW, 12T module 3.175 and the complete OE. Store the accepted face and side images with the item. Heavy starters should remain in reinforced cartons with covered terminals so emergency units can move between branches without damage or identity loss.

What should be sampled on the first 11kW shipment?

Check units from different cartons for the 12T pinion, Ø92 locating area, triangular face, cable bridge, solenoid studs and rating label. Review packing supports and moisture protection at the same time. Photograph the sampled units and keep those images with the 600-813-9321 delivery lot for traceable receiving.

What should a fleet buyer email for 600-813-9321 pricing?

Send the PC360-7 model and serial, engine plate, complete starter references, straight mounting and terminal views, order quantity, required date, destination and forecast. Include any remote-site or emergency-stock packing needs. Elecdura will review the 600-813-9321 configuration and return a practical wholesale proposal for your supply plan.

Request 600-813-9321 PC360-7 Starter Wholesale Pricing

Email the Komatsu PC360-7 model and serial, engine plate, complete starter numbers, front, side and terminal photographs, quantity, required date and destination to info@elecdurauto.com. Elecdura will review 600-813-9321 and return wholesale pricing.
