600-813-9321 Komatsu WA500 Starter Motor Sourcing for Distributors

600-813-9321 serves Komatsu WA500 wheel-loader and PC360-7 excavator demand where distributors need a high-output 24V starter identified beyond the OE number. The 12-tooth drive, long nose and upper harness arrangement help separate this version from similar Komatsu starters used in other heavy-equipment programs.

For a quotation, provide the machine model and serial number, engine identification, complete OE group and straight photographs of the removed starter from the mounting, drive and cable sides. Elecdura can compare the 12T pinion, three-point face, axial references and cable position before returning a product-specific distributor offer.

600-813-9321 24V 11.0kW Starter Motor Geometry Checks

The electrical and drive specification is 24V, 11.0kW, 12T, module 3.175 and CW rotation. Keeping those values together on the enquiry helps purchasing teams avoid mixing this WA500-oriented unit with an 11T starter that may have a similar body size but a different pinion arrangement.

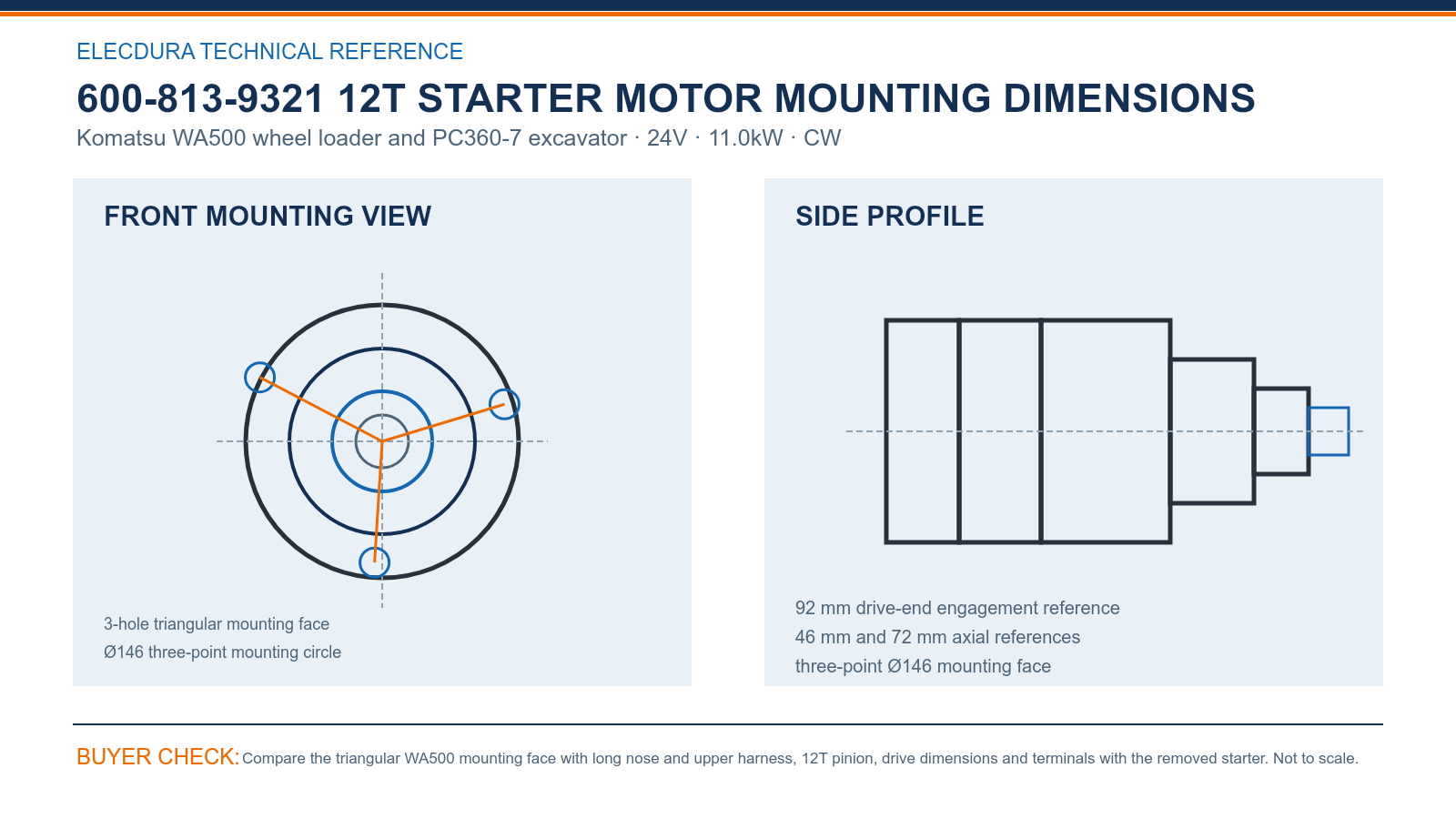

600-813-9321 Komatsu WA500 Starter Dimensions for Loader Parts Buyers — compare the drawing with the removed starter before placing a volume order.

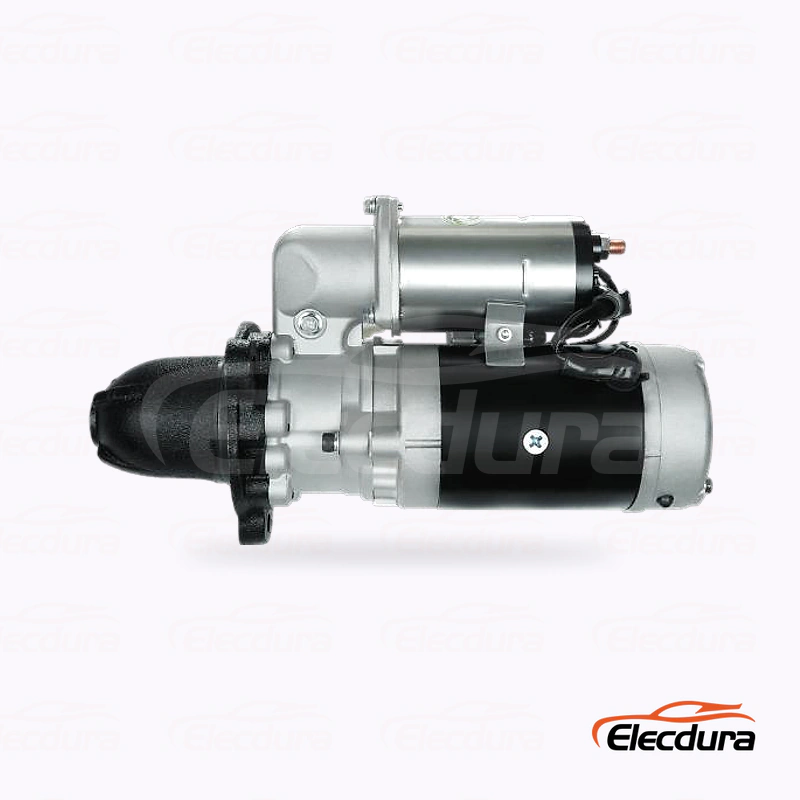

Use the drawing to compare the 92 mm engagement reference, 46 mm drive position, 72 mm outer axial reference and the three-point Ø146 mounting face. A square side photograph should also show the long drive housing and upper cable route, because those visible features help confirm clearance and connection layout.

600-813-9321 and Nikko References for Komatsu Starter Orders

The reference group includes 600-813-9321, 600-813-9322 and Nikko 0-23000-7731, 0-23000-7732, 0-23000-7733 and 0-23000-7735. These numbers support sourcing, but the purchase line should also state WA500 or PC360-7, the 12T module-3.175 drive and the required cable-side appearance.

When the same OE is used for more than one Komatsu application, keep the machine assignment and photographed configuration on the enquiry, carton label and replenishment request. This gives loader and excavator branches a clear way to separate stock without treating every 600-813-9321 reference as physically interchangeable.

600-813-9321 WA500 Starter Motor Wholesale Supply

For an initial distributor order, agree the machine application, required label information, packing method and destination before production planning. Receiving teams can sample the 12T pinion, three-point face, axial outline, harness clamps and terminal protection across several cartons, then route the verified units to the intended WA500 or PC360-7 branch.

Elecdura's production video introduces starter assembly and electrical testing. Buyers can use that factory overview alongside the product-specific drawing, removed-unit photographs and shipment checks for this configuration. The result is a clearer quotation basis for mixed Komatsu orders, fleet replenishment and repeat purchases of the same physical version.

600-813-9321 Starter Motor FAQs for Komatsu WA500 Buyers

How should a buyer distinguish the WA500 and PC360-7 demand for 600-813-9321?

Start with the exact machine model, serial number and engine identification rather than the OE alone. Add mounting-side and cable-side photographs of the removed starter. Elecdura can then compare the 12T drive, long nose, three-point mounting face and upper harness arrangement so the quotation reflects the physical unit required for that Komatsu application.

Why is the 12T drive important on this Komatsu starter motor?

This product is specified as 24V, 11.0kW, 12T, module 3.175 and CW. A similar high-output Komatsu starter may use an 11T pinion, so voltage and power alone are not enough. Counting the pinion teeth and comparing tooth form with the removed unit helps prevent drive mismatch at installation.

What do the 46 mm and 72 mm references show on the drawing?

The 46 mm value identifies the drive position from the flange reference, while 72 mm describes the outer axial outline shown for this version. Compare both values with the removed starter and include a straight side photograph. Together they help confirm drive projection and available clearance around the WA500 or PC360-7 mounting area.

How should the three-point Ø146 mounting face be checked?

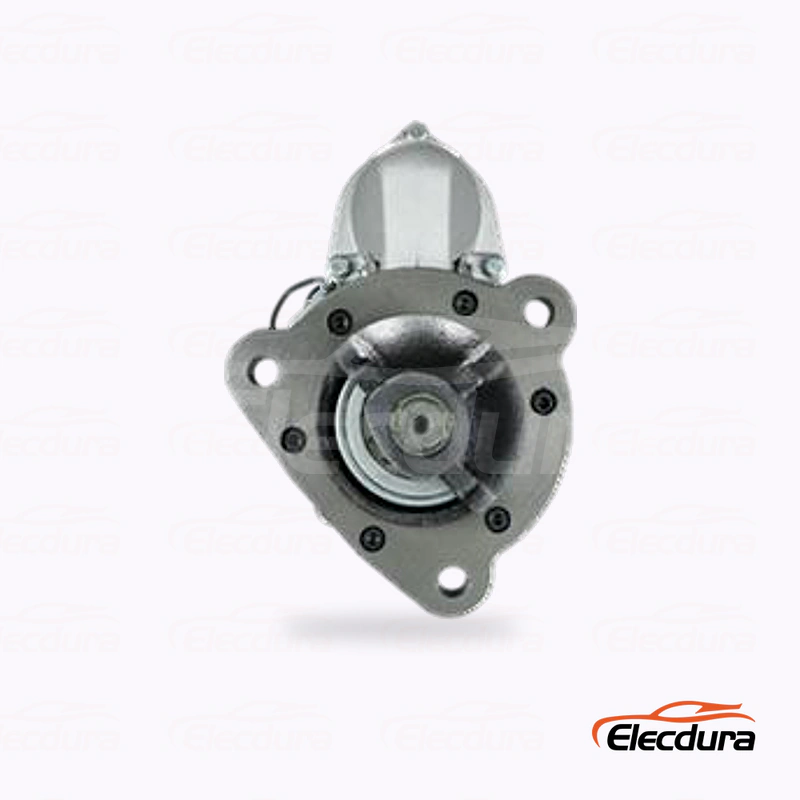

Measure the three-point circle and compare the flange shape, bolt positions and 92 mm engagement reference with the removed unit. The photograph should be taken square to the mounting face so perspective does not distort the comparison. This check helps a distributor identify a physically different Komatsu starter before a volume order is packed.

How can Nikko 0-23000-7731 be used with 600-813-9321?

Use 0-23000-7731 as part of the cross-reference group, not as the only ordering detail. The enquiry should still include 600-813-9321, the Komatsu machine, 24V 11.0kW 12T CW specification and cable-side photograph. That combination lets the reference widen sourcing while keeping the quoted physical configuration clear.

Which photographs best confirm the upper harness arrangement?

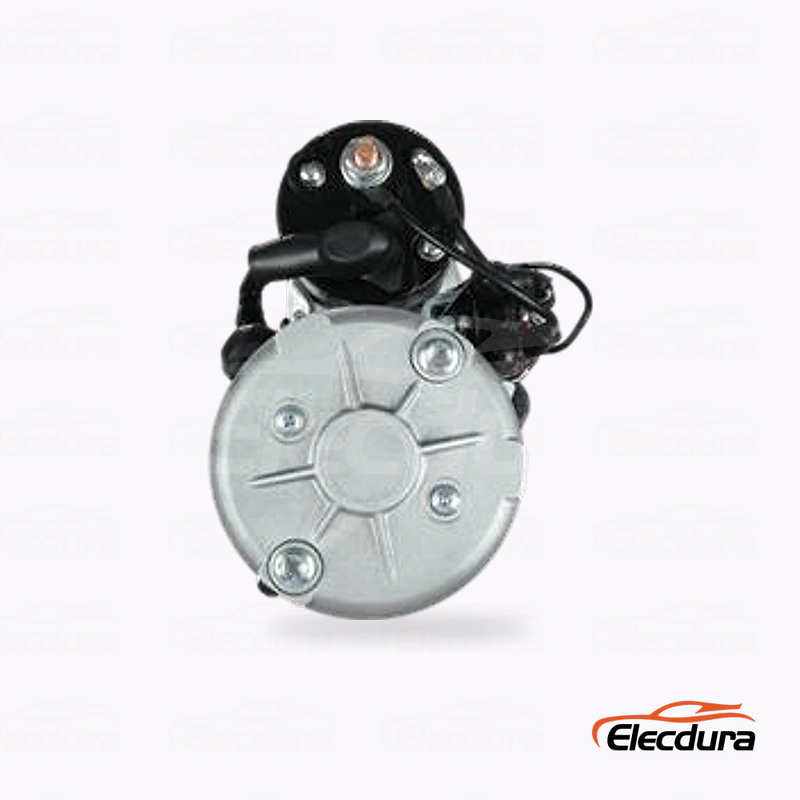

Send one straight image of the mounting face, one full side view and one cable-side close-up that shows the upper clamps, solenoid studs and terminal orientation. Include the rating label when readable. These views allow Elecdura to compare the connection layout without relying on a short OE that may cover more than one physical version.

Which features should a WA500 distributor sample when the first cartons arrive?

Check the 12T pinion, three-point Ø146 face, 46 mm and 72 mm axial references, upper cable clamps, solenoid studs and rating markings on units from several cartons. Also inspect drive-end protection and body support inside the packaging. Consistent photographs can then support branch allocation and later replenishment of the same configuration.

What information is needed for 600-813-9321 distributor pricing?

Provide the WA500 or PC360-7 model and serial number, engine identification, complete OE and Nikko references, mounting and cable-side photographs, quantity, annual forecast, destination and delivery target. If cartons need a fleet or branch label, include that requirement. Elecdura will review the product configuration and return a distributor quotation.

Request 600-813-9321 Komatsu WA500 Starter Motor Pricing

Email the WA500 or PC360-7 machine details, complete OE group, removed-unit mounting and cable photographs, quantity, forecast and destination to info@elecdurauto.com. Elecdura will compare the 12T drive and 46/72 mm geometry, then return a distributor quotation for the identified Komatsu starter.
