600-863-3220 Komatsu PC130-7 Starter Motor Wholesale

600-863-3220 Starter Motor Wholesale for Komatsu PC130 Excavators

Komatsu dealers, rental fleets and construction-site service teams can use 600-863-3220 for PC130-7 and PC130-8 starter demand. The machine serial, 11T drive and 21 mm axial reference should be confirmed before dispatch to a remote excavator.

Send the exact PC130 model and serial, 4D95 or S4D95-family engine details, complete old-unit label, drive-end and terminal photographs, urgent quantity, reserve quantity and jobsite deadline. Elecdura can quote the unit, packing and delivery route together.

600-863-3220 Starter Motor Dimensions for PC130-7 and PC130-8

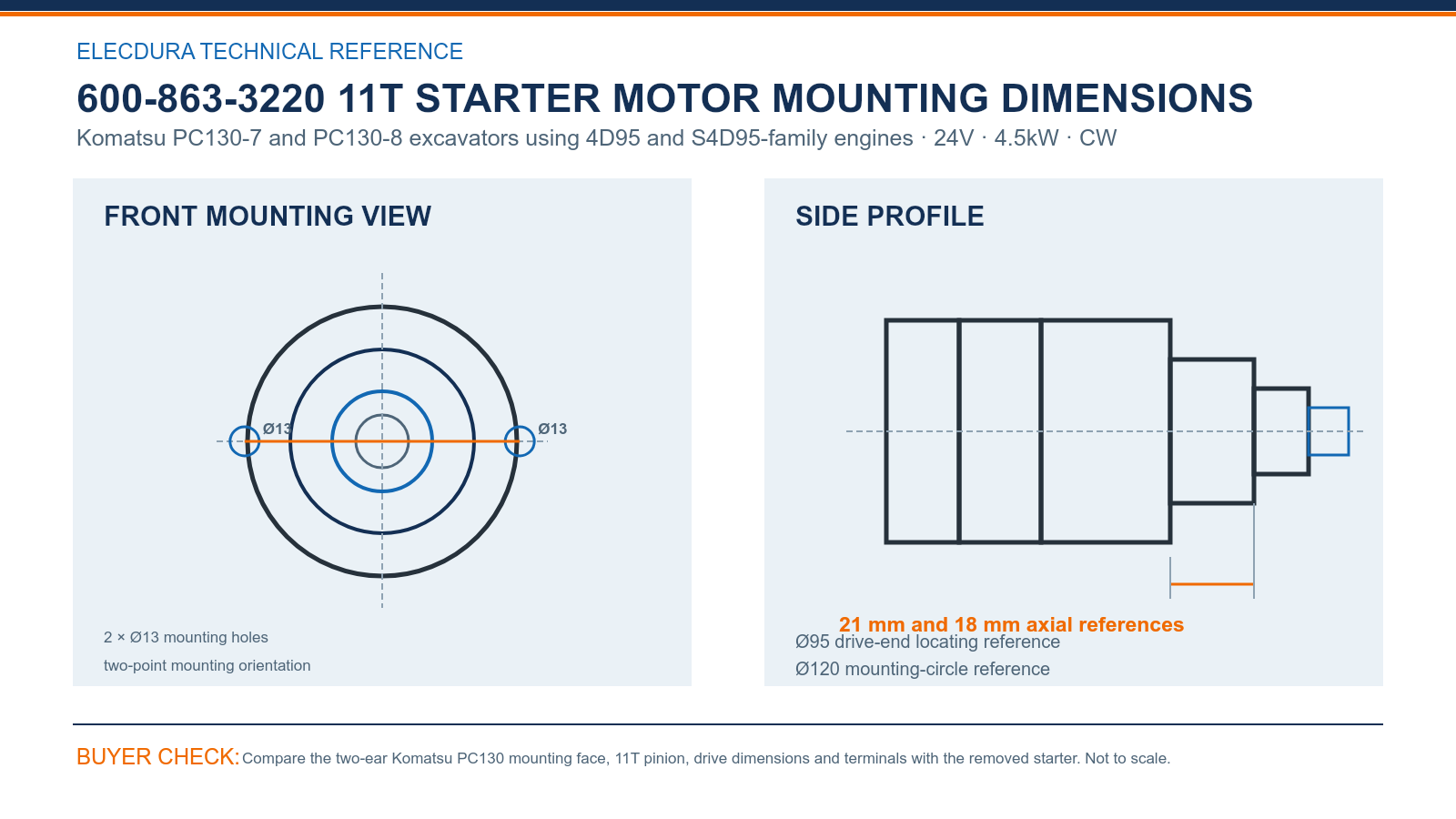

600-863-3220 Komatsu PC130-7 24V 4.5kW 11T starter mounting dimensions.

Compare the two Ø13 mounting holes, Ø95 locating reference and Ø120 mounting circle. The 21 mm and 18 mm axial dimensions identify the drive position on this PC130 two-ear mounting face.

Count the 11T module-3 pinion, confirm CW rotation and inspect terminal orientation. A starter with a deeper drive position or different cable side should be stopped before it enters a rental fleet or travels to the jobsite.

600-863-3220 Komatsu Starter Motor References for PC130 Buyers

1. Reference group: 600-863-3220, 600-863-3110, 600-863-3210, 024000-0030, 024000-0040, S9121, UD02108S, 115954, S-80511 and STR75225 can support the search.

2. Machine match: Require the PC130 model and serial, 24V 4.5kW 11T CW specification, two Ø13 holes, 21 mm drive position, Ø120 face and matching terminals before supply.

600-863-3220 Starter Motor Supply for Rental Fleets and Jobsites

Elecdura supports B2B orders from 20 pieces, normally with 7–15 days after order confirmation and an 18-month warranty under agreed terms. Buyers can split an urgent PC130 repair from the quantity intended for regional fleet reserve.

For rental fleets, identify the machine or branch on the carton and retain the inspected drive-end photograph with the stock item. This gives field technicians a useful reference when the replacement travels independently of the removed starter.

The video introduces Elecdura starter-motor assembly and electrical testing. It supports supplier qualification, while 600-863-3220 selection remains based on the PC130 machine, 11T drive, 21 mm position, two-ear face and terminal side.

600-863-3220 Starter Motor Questions from PC130 Equipment Buyers

Which PC130 details should be sent with a 600-863-3220 request?

Provide the PC130-7 or PC130-8 model, machine serial and 4D95 or S4D95-family engine information. Add the complete old-unit number, drive-end and terminal photographs, urgent quantity, reserve quantity and delivery site. These details connect the starter to the exact excavator and its service deadline for sourcing.

How does the 21 mm axial reference affect product matching?

It identifies the drive position relative to the mounting face. Compare it with the 18 mm companion dimension, Ø95 locating reference and Ø120 circle. A nearby two-ear starter may bolt up but place the pinion differently, so the axial geometry should be checked before dispatch.

Can 600-863-3110 or S9121 confirm the complete starter?

Those references help locate the PC130 family, but final selection still requires 24V, 4.5kW, 11T, CW rotation, two Ø13 holes, the 21 mm drive position and matching terminals. Keep the machine serial with the cross-reference so another physical configuration is not accepted without comparison.

How can a rental fleet separate urgent and reserve quantities?

List the disabled machine, jobsite and required date for the urgent unit, then show the desired reserve by branch for the later quantity. Elecdura can quote available stock, production, packing and freight separately while preserving the same verified 600-863-3220 starter specification for both delivery portions.

What should be checked before sending this starter to a jobsite?

Confirm the carton and product labels, count eleven teeth and compare both Ø13 holes, Ø120 face and terminal side with the accepted reference. Check pinion and terminal protection before onward transport. A final photograph gives the field team a useful record if the removed unit remains on site.

Which warehouse description works best for 600-863-3220?

Use the full OE, PC130-7/PC130-8, 11T and the two-ear 21 mm drive reference. Keep the machine serial in the sales note rather than creating a broad Komatsu starter bin. This gives counter staff enough information to distinguish the unit during a downtime-driven service request.

What diagnostic readings should a PC130 workshop collect?

Measure loaded battery voltage, positive and ground circuit voltage drop and start-signal voltage while cranking. Inspect cables, grounds and ring-gear condition. These readings help determine whether the complaint involves the starter or another electrical or mechanical issue before a replacement is fitted at the jobsite.

What records support a 600-863-3220 after-sales case?

Provide the shipment lot, PC130 machine serial, installation date, operating hours, symptom and electrical test results. Add photographs of the label, pinion, two-ear face and terminals. This information connects the returned starter to its machine history and helps separate product condition from installation or transport factors.

Request 600-863-3220 Komatsu PC130 Starter Motor Pricing

Email the PC130 model and serial, 4D95 or S4D95-family engine details, complete old-unit reference, mounting and terminal photographs, urgent and reserve quantities, destination and jobsite deadline to info@elecdurauto.com. Elecdura will quote the 24V, 4.5kW, 11T CW starter with MOQ, packing, lead time, warranty and freight.
