600-863-4150 Komatsu PC130 24V 4.8kW 11T Starter Motor Wholesale

600-863-4150 Komatsu PC130 Starter for Excavator Parts Dealers

Excavator downtime makes machine identity and delivery timing important buying inputs. Linking 600-863-4150 to the PC130 or PC138 model, machine serial and required date gives dealers a practical basis for both urgent replacement and scheduled reserve stock.

The 600-863 number family should not be treated as a universal Komatsu starter. Confirm 4.8kW, the 11T module-3 drive, two Ø13 mounting holes, Ø120 face, Ø95 locating diameter and terminal side before dispatch.

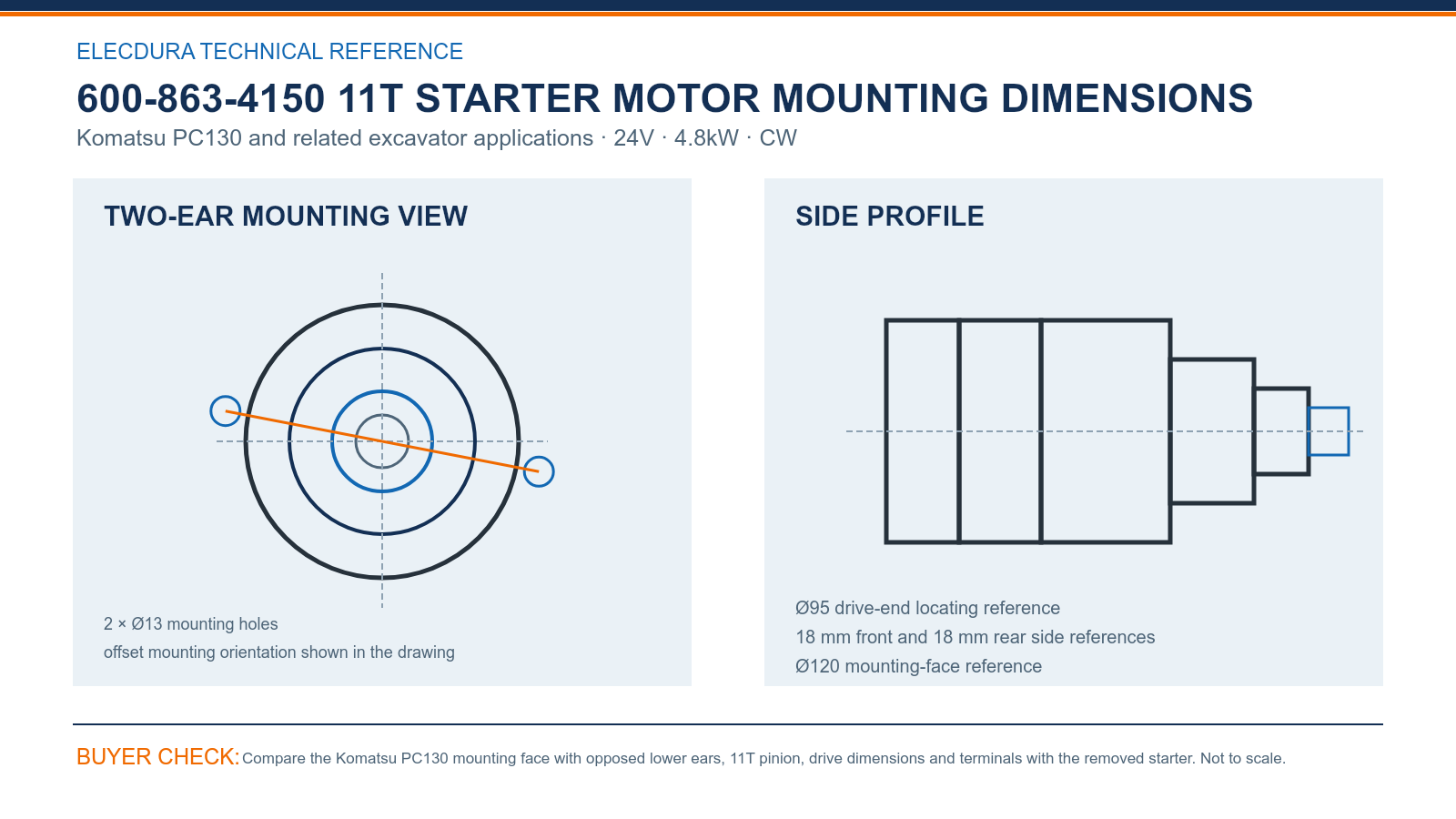

600-863-4150 24V 4.8kW Starter Motor Drawing and Ratings

This Komatsu product uses 24V, 4.8kW, 11T, module 3 and clockwise rotation. The complete electrical and pinion data should remain on the order because the excavator model alone does not describe the drive interface.

600-863-4150 Komatsu PC130 Starter Motor Dimensions for Dealers — compare the drawing with the removed starter before placing a volume order.

Measure both Ø13 mounting holes on the Ø120 face, compare the Ø95 locating reference and check the 18 mm front and 18 mm rear side positions. A parallel flange photograph clearly shows the opposed lower-ear arrangement.

600-863-4150 Komatsu OE and Two-Hole Fitment Checks

600-863-4150, 600-863-4151 and STN2894ML are useful numbers for this product. Keep the PC130 or related PC138 machine and full suffix on the enquiry so parts staff do not merge different Komatsu starter families.

Dealers can maintain separate PC130 and PC138 demand by customer or branch while buying one matched unit where dimensions agree. Machine-level notes improve emergency transfers and reveal which excavator group drives normal replenishment.

600-863-4150 Starter Support for Excavator Uptime Programs

Incoming inspection should include the eleven-tooth pinion, opposed mounting ears, locating surface, terminal protection and sampled electrical test. Jobsite-bound cartons need firm inner support so the drive housing cannot strike the package during rough transport.

The Elecdura video below presents starter assembly and electrical testing for export orders. Komatsu dealers can review supply capability while setting their own sampling, heavy-unit packing, branch marking and delivery requirements for 600-863-4150.

600-863-4150 Starter Motor FAQs for B2B Buyers

Can 600-863-4150 cover both PC130 and PC138 demand?

It can be purchased as one line after both machine groups show the same 24V 4.8kW 11T product, opposed two-hole face and terminals. Keep PC130 and PC138 quantities separated in the enquiry and stock history. That preserves actual excavator demand while allowing matched units to share a wholesale shipment.

How should 600-863-4150 and 600-863-4151 be used together?

Treat the two complete Komatsu numbers as a reference pair and add STN2894ML when it is readable. Keep the excavator model and old-unit photographs beside them. The shared number family helps parts searching, while the 11T module-3 pinion and two-hole drive end remain the physical basis for supply.

Which gear details belong on a 600-863-4150 purchase order?

Write 11T, module 3 and clockwise rotation together with 24V 4.8kW. The excavator model or 600-863 number alone does not describe the pinion interface. Keeping the complete rating on the order and receiving sheet helps workshop staff compare the replacement before it is carried to a PC130 or PC138.

What dimensions identify the Komatsu opposed-ear mounting face?

Measure the two Ø13 holes on the Ø120 face, check the Ø95 locating diameter and compare the 18 mm front and 18 mm rear side positions. Take the old starter photograph parallel to the flange. The opposed lower-ear layout is then visible enough for dealer and destination branch comparison.

How can dealers balance emergency and planned Komatsu stock?

Use machine population, previous PC130 and PC138 consumption, branch distance and supplier lead time to set reserve quantities. Keep breakdown stock visible separately from normal replenishment. A confirmed 600-863-4150 line can serve both machine groups, while model-level data shows where urgent support is most likely to be needed.

Which checks should precede branch dispatch of 600-863-4150?

Count eleven teeth, compare the two mounting ears and Ø95 locating surface, inspect terminals and look for pinion or housing impact. Sample units across the delivery and record the lot. These checks help prevent a damaged or different Komatsu starter from being sent directly to an excavator jobsite.

What packing is appropriate for a PC130 starter shipment?

Fit strong inner supports beneath the body and drive housing, isolate the eleven-tooth pinion and terminal studs, and stop the unit moving inside the carton. Add 600-863-4150 and the excavator allocation outside. Heavy jobsite-bound starters need packing that protects the mounting face through warehouse and last-mile handling.

What should a Komatsu dealer include in a 600-863-4150 RFQ?

Send the PC130 or PC138 model and serial, complete 600-863-4150 or 600-863-4151 marking, front, pinion and terminal photographs, quantity, required delivery date, destination and packing need. Elecdura can compare the 11T two-hole configuration and return wholesale price breaks, lead time and delivery choices for the excavator fleet.

Request 600-863-4150 Komatsu Starter Motor Wholesale Terms

Email the Komatsu PC130 or PC138 model and serial details, full 600-863-4150 or 600-863-4151 marking, square drive-end, pinion and terminal photographs, quantity and required date to info@elecdurauto.com. Elecdura will review the two-hole starter and return wholesale pricing and delivery options.
