6008130232 Komatsu PC500 WA500 Starter Motor Wholesale

6008130232 Starter Supply for Komatsu PC500 and WA500 Distributors

A PC500 repair request and a WA500 branch-stock order may use different reference numbers even when they point to the same heavy starter family. Using 6008130232 with the machine model, 12T drive and three-hole face gives purchasing teams a clearer quotation line.

The 600813932x and 0-23000-773x references also appear across several Komatsu machines. A number match therefore needs the 92/46 mm drive end, Ø146 mounting circle and upper cable arrangement before stock is allocated to a specific fleet.

6008130232 24V 11kW 12T Specifications and Mounting Dimensions

The 24V 11.0kW rating supports large diesel starting loads, while the 12T module-3.175 pinion defines the ring-gear interface. Keep those four values together on quotations, cartons and receiving sheets so a visually similar 11T unit is not substituted.

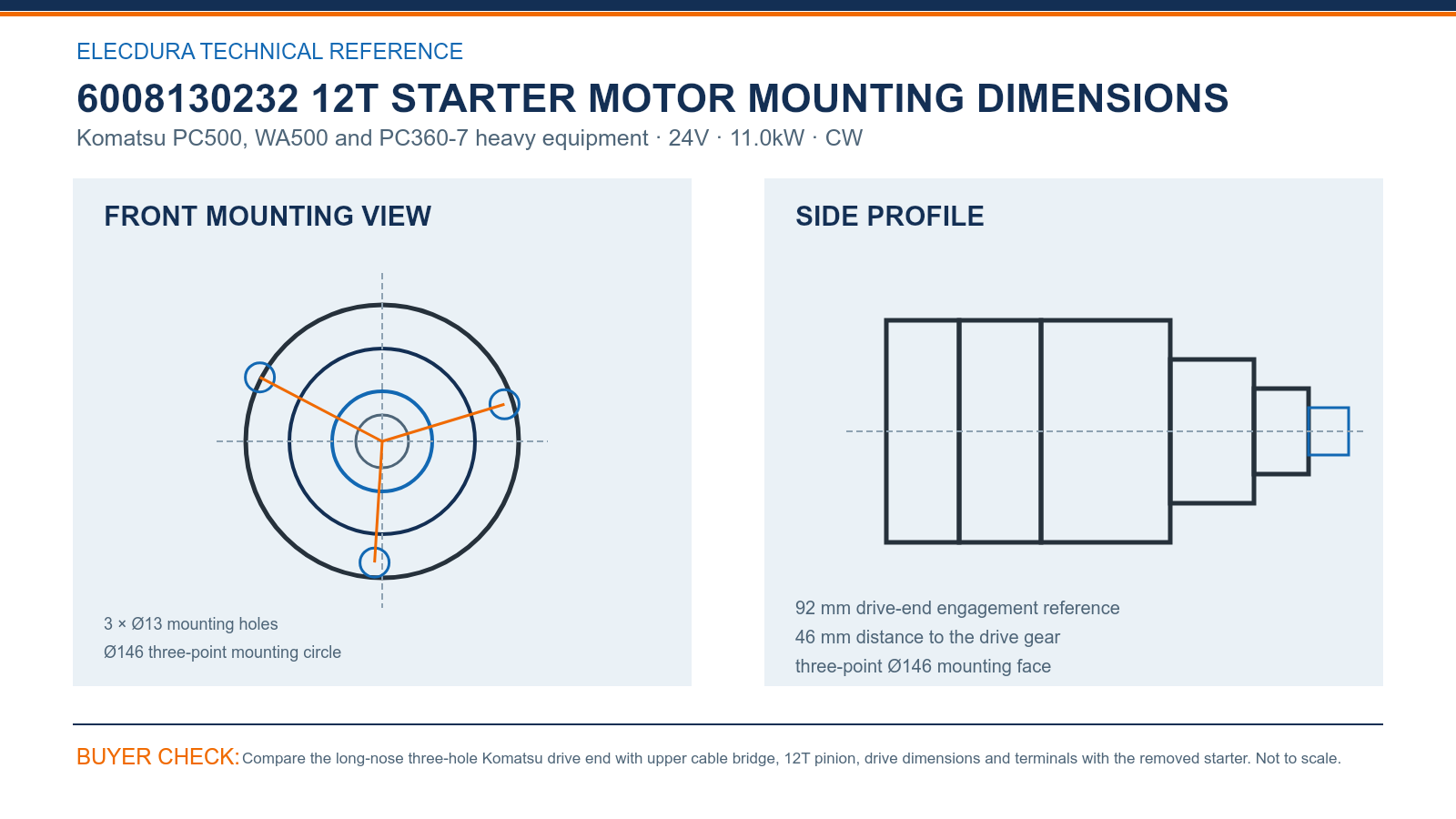

6008130232 Komatsu PC500 WA500 Starter Dimensions for Equipment Buyers — compare the drawing with the removed starter before placing a volume order.

Compare all three Ø13 holes, the Ø146 circle, 92 mm engagement reference and 46 mm distance to the drive gear. Side photographs should also show the long nose, solenoid position and cable bridge because these features affect installation clearance.

6008130232 Cross-References for PC500 WA500 Purchasing

6008130232, the 600813932x group, D275A5 and Nikko 0230007671/7731/7733/7735/8021 are useful search references. The final order should retain the Komatsu machine identity and the accepted 12T three-hole version rather than one number alone.

PC500, WA500 and PC360-7 demand can share this stock only after each supported machine group has a matching sample or removed-unit comparison. Record the machine serial and accepted flange view on replenishment orders so emergency transfers do not lose the fitment detail.

6008130232 Heavy Starter Packing and First-Lot Inspection

For the first shipment, sample pinion count, flange dimensions, cable protection, label and body support from more than one carton. Heavy 11kW starters should rest on the motor body during transport, with the nose and terminals isolated from carton impact.

Elecdura's production video shows starter assembly and electrical testing for B2B supply. Buyers can use it to discuss sampling, packing, labeling and shipment requirements for the specific 6008130232 configuration.

6008130232 Starter Motor FAQs for Komatsu Fleet Buyers

What should identify a 6008130232 PC500 enquiry?

Provide the PC500 model and serial, engine plate, every readable starter number and straight photographs of the flange, pinion and terminals. State whether the machine is operating, under repair or being stocked remotely. These details let the seller connect 6008130232 to the actual heavy-equipment requirement before discussing quantity and delivery.

Can WA500 and PC360-7 demand share 6008130232 stock?

They can share stock after the accepted unit has been compared for each supported machine group. Keep the machine serial, 12T drive, Ø146 face and cable-side photograph with branch records. If a later WA500 or PC360-7 sample differs in axial outline or terminals, give it a separate item definition.

Why must 12T and module 3.175 stay together?

The tooth count shows how many pinion teeth engage, while module 3.175 defines their size and form. Both must suit the ring gear. Recording only 12T can admit another heavy Komatsu starter with a different gear profile, even when voltage and power appear suitable for the same machine family.

Which mounting dimensions matter most for 6008130232?

Check the 92 mm engagement reference, 46 mm distance to the drive gear, all three Ø13 holes and the Ø146 circle. Use a square front photograph to verify hole orientation. Add a side view showing the long nose and upper cable bridge, because those features affect clearance during installation.

How should buyers use the 600813932x references?

Use 6008139320/9321/9322/9323 and related Nikko numbers to widen a parts search, then return to the 6008130232 product definition. The machine identity, 12T module-3.175 drive, three-hole face and accepted cable view should accompany the cross-reference on the quotation and purchase order for traceable sourcing and receiving.

What belongs in first-lot inspection for this 11kW starter?

Sample units from more than one carton for pinion count, mounting face, cable restraint, solenoid studs, rating label and body support. Photograph the inspected units from consistent angles. Check that terminals are capped and the heavy motor body, rather than the nose or wiring, carries transport loads.

How should a fleet plan 6008130232 emergency stock?

Separate workshop replacement, site reserve and distributor inventory, then estimate demand from supported machine population, recent withdrawals and transfer time. Put the accepted PC500, WA500 or PC360-7 application on each bin. Rotate older cartons first and recheck terminal protection after long storage or branch movement.

Which details improve a 6008130232 wholesale quotation?

Send machine and engine identifiers, complete OE numbers, flange and terminal photographs, required quantity, annual forecast, destination, packing preference and delivery target. Mention whether units serve urgent repairs or planned reserve. Elecdura can then discuss the specific 12T version, shipment schedule and replenishment terms without guessing the application.

Request 6008130232 Komatsu Starter Motor Wholesale Pricing

Email the machine model and serial, engine plate, complete references, flange and terminal photographs, quantity, forecast, destination and delivery target to info@elecdurauto.com. Elecdura will review the 6008130232 version and return a practical wholesale proposal.
