6008132711 Komatsu 6D155 11kW Starter Motor Distributor

6008132711 11kW Starter Supply for Komatsu 6D155 Distributors

D150, D155 and other 6D155 enquiries may arrive under Komatsu, Nikko or Sawafuji numbers. A 6008132711-led quotation should also state the 11.0kW rating and large triangular drive end because the same primary number appears elsewhere with another supplier-defined version.

This 11.0kW product must not be merged with a 7.5kW unit simply because both carry 6008132711 in the supplier brochure. Power, mounting geometry and the exact photographed product are separate purchasing fields and must stay visible on the order.

6008132711 Module-4.233 Pinion and 136 mm Drive-End Data

The electrical and drive set is 24V, 11.0kW, 11T, module 4.233 and CW. The coarse module works with a particular ring-gear interface, so a supplier or rebuilder cannot replace it with an 11T pinion of another module.

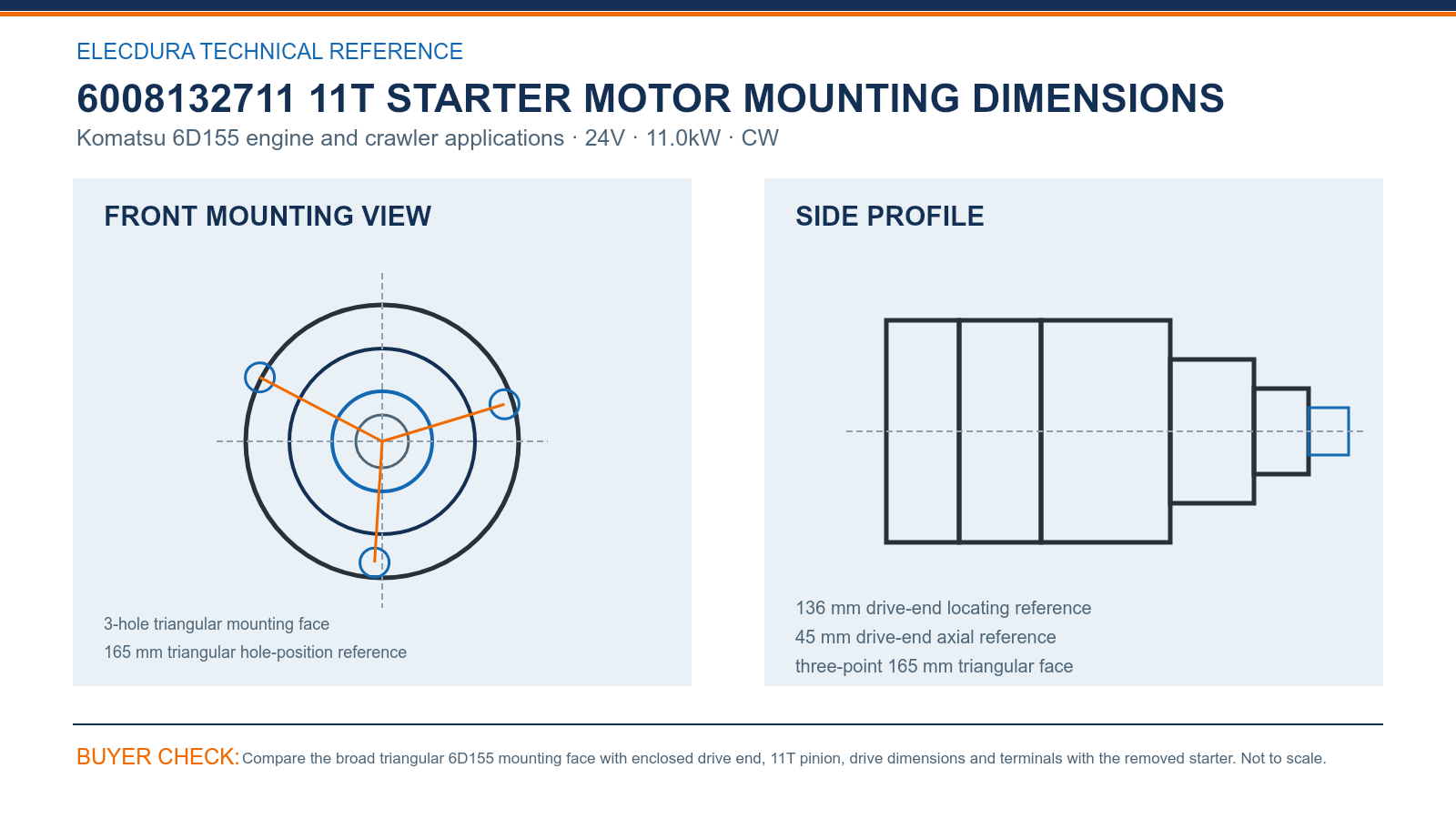

6008132711 Komatsu 6D155 11kW Starter Dimensions for Crawler Buyers — compare the drawing with the removed starter before placing a volume order.

The drive end uses a 136 mm locating reference, 45 mm axial distance and broad triangular three-hole face with 165 mm position references. Compare the cast nose, hole angles and terminal arrangement with the removed crawler starter before ordering.

6008132711 Nikko Sawafuji References for Crawler Purchasing

Komatsu 60081327xx/48xx, Nikko 021000231x/2570/3790/4420 and Sawafuji 03517020xxx references define the useful search group. Preserve the 6008132711 primary identity, 11.0kW rating and accepted large-face sample on quotations and cartons.

Crawler fleet suppliers should separate emergency replacements, workshop rebuild support and planned reserve stock. Each demand type should carry the machine model, 6D155 engine identity and accepted drive-end view so the warehouse can replenish the correct heavy version.

6008132711 Heavy Crawler Starter Packing and Rebuild Support

Pack the 11kW unit with support beneath the motor body, guards around the large nose and caps over the terminals. Rebuilders should photograph the returned core before dismantling and retain the 136 mm face and pinion comparison for future orders.

The Elecdura video shows starter assembly and electrical testing for B2B supply. Crawler-parts buyers can use it when defining sample inspection, rebuild-program packaging, export documentation and delivery timing for 6008132711.

6008132711 11kW Starter FAQs for Komatsu Crawler Buyers

How should buyers identify the 11kW 6008132711 product?

State 6008132711, the Komatsu 6D155 engine, 24V 11.0kW, 11T module 4.233 and CW rotation. Add square photographs of the large triangular drive end and terminals. The explicit power rating prevents this product from being confused with a separate 7.5kW supplier entry using the same primary number.

Can the 11.0kW and 7.5kW versions share one stock line?

No. They use the same primary reference in the supplier source but carry different power values and mounting geometry. Create separate item records, photographs and bin labels. A purchase order for this product should state 11.0kW and the 136/45 mm large-face version, not 6008132711 alone.

What does an 11T module-4.233 pinion tell the buyer?

The 11T count identifies tooth quantity, while module 4.233 describes the coarse tooth form that engages the ring gear. Both values should match the removed drive. A visually similar 11T starter with module 3.5 can have a different gear interface and should not enter the same crawler order.

Which drive-end measurements should a rebuild shop retain?

Record the 136 mm locating reference, 45 mm axial distance and the three-hole triangular face with 165 mm position references. Photograph the old pinion and cast nose before dismantling the core. Those measurements remain useful after individual components have been removed or the original label becomes unreadable.

How should Nikko and Sawafuji references support sourcing?

Use 021000231x/2570/3790/4420 and the 03517020xxx group to locate possible suppliers, then return to the 6008132711 product definition. Keep 6D155, 11.0kW, 11T module 4.233 and the accepted large-face image on the quotation so a broad reference search does not alter the required product specification for receiving.

What information should follow a returned 6008132711 core?

Attach the crawler model, engine plate, running hours, fault symptoms and supply lot. Photograph the label, pinion, mounting face, solenoid and cable path before teardown. These details help the rebuilder distinguish product condition from battery, cable, installation or ring-gear problems and preserve a reliable baseline for the next order.

How should an 11kW crawler starter be packed?

Place supports beneath the motor body, protect the large drive end and isolate the terminals from the carton. Restrain any external lead without bending it against the housing. Add moisture protection for long storage, and mark the 11.0kW version prominently so warehouses do not select the 7.5kW product.

Which RFQ details matter for the 11kW version?

Provide the crawler model and serial, 6D155 plate, complete OE group, straight drive-end and terminal photographs, quantity, annual forecast, destination and required date. State 11.0kW explicitly. Elecdura can then evaluate the large-face configuration and quote distributor supply without relying on the duplicated primary number alone.

Request 6008132711 Komatsu 6D155 Starter Distributor Pricing

Send the crawler model and serial, 6D155 plate, complete Komatsu and Nikko references, drive-end and terminal photos, required quantity and destination to info@elecdurauto.com. Elecdura will quote the specified 11.0kW version for distributor supply.
