6008132711 Komatsu D150 6D155 7.5kW Starter Motor Wholesale

6008132711 7.5kW Starter Supply for Komatsu D150 Distributors

The supplier brochure contains two 6008132711 products with different power and geometry. This D150 line is defined by 24V 7.5kW, an Ø196 mounting circle and three Ø17.5 holes, giving buyers a clear basis for a separate quotation.

A reference-only search will often return the 11.0kW version. Do not merge that product with this row: the D150 application, 7.5kW rating, 136/46 mm drive end and Ø196 face must all agree with the proposed unit.

6008132711 Ø196 Mounting Face and 11T Module-4.233 Drive

This product uses 24V, 7.5kW, 11T, module 4.233 and CW rotation. Keeping the power value beside the tooth count and module is essential because another 6008132711 product shares the same nominal drive data.

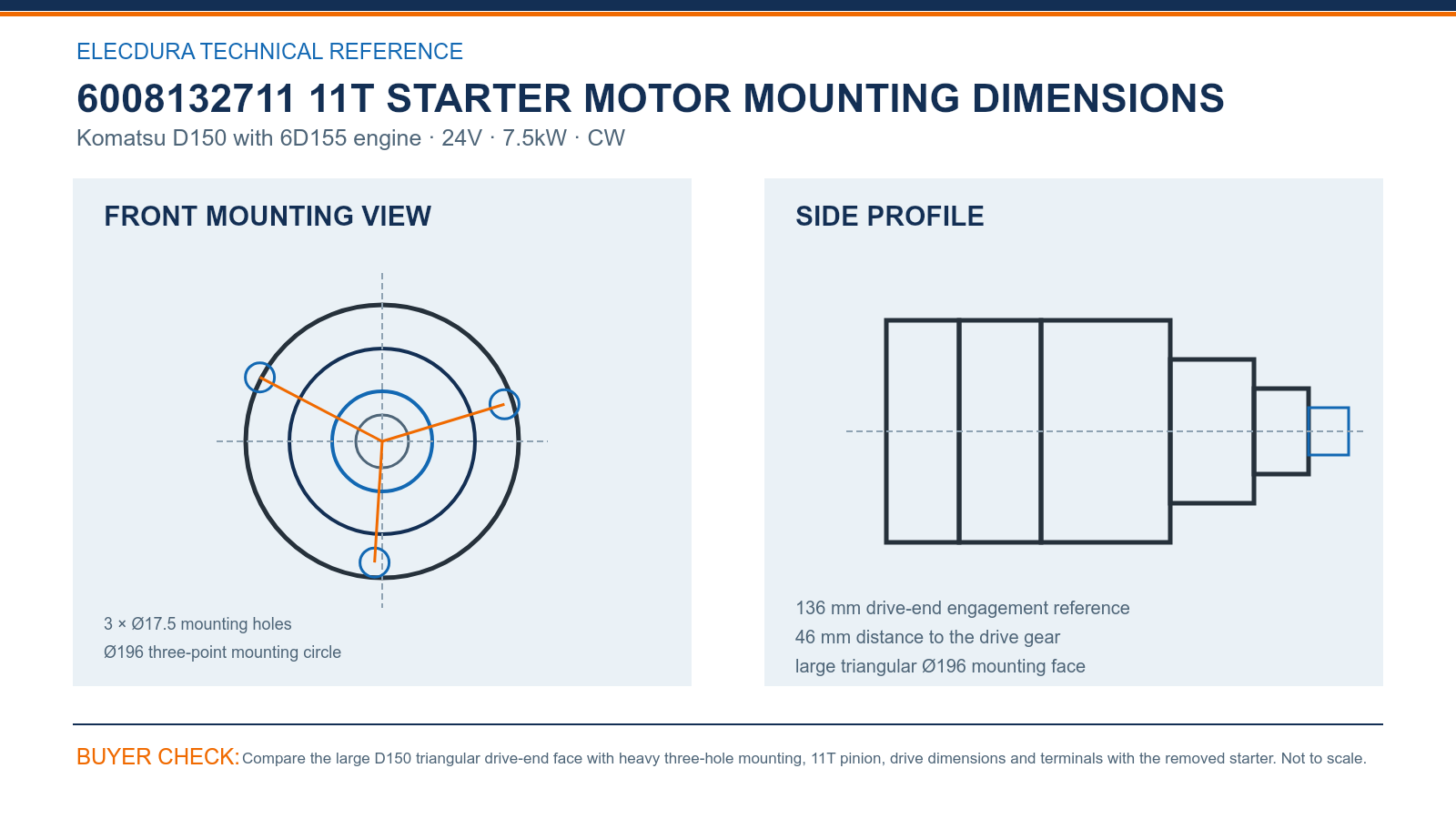

6008132711 Komatsu D150 6D155 7.5kW Starter Dimensions for Fleet Supply — compare the drawing with the removed starter before placing a volume order.

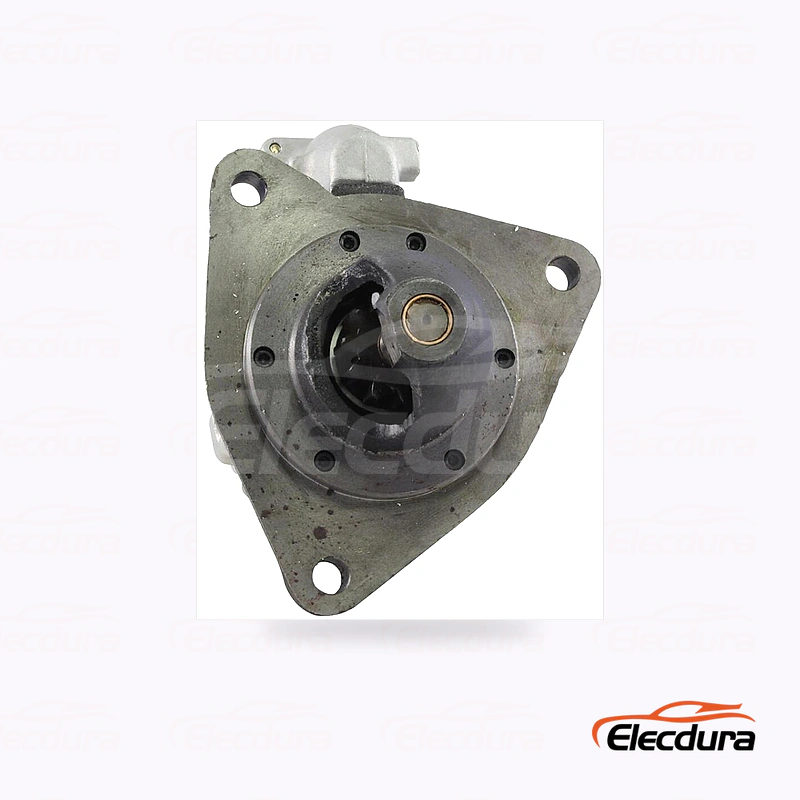

Measure the 136 mm engagement reference, 46 mm distance to the drive gear, three Ø17.5 holes and Ø196 circle. The large triangular face and heavy nose provide the strongest visual separation from the 11.0kW version.

6008132711 Reference Separation for the D150 7.5kW Version

The Komatsu 60081327xx/48xx, Nikko 02100023xx and Sawafuji 03517020xxx numbers help locate the family. For this product, retain D150, 6D155, 7.5kW and the Ø196 face on every enquiry and purchase order.

Bulldozer fleets should attach a straight front image and measured old unit to the first supported D150 machine group. Warehouses should use a distinct bin label that states 7.5kW and Ø196 rather than relying on 6008132711 alone.

6008132711 Bulldozer Spare Packing and Receiving Inspection

Protect the large drive end, support the motor body, cover the studs and use moisture-resistant wrapping for long-term fleet reserve. Receiving staff should sample the Ø17.5 holes, power label and pinion before stock is transferred.

Elecdura uses the video to present starter assembly and electrical test work. D150 buyers can use it when discussing large-unit carton support, receiving samples, product-specific labels and replenishment timing for the 7.5kW version.

6008132711 7.5kW Starter FAQs for Komatsu D150 Buyers

How should buyers identify the 7.5kW 6008132711?

Write 6008132711 with Komatsu D150, 6D155, 24V 7.5kW, 11T module 4.233 and CW rotation. Add a square photograph of the large Ø196 face and the old rating label. Those details separate this supplier-defined product from an 11.0kW version using the same primary number in purchasing.

Why must the 7.5kW product remain separate from 11.0kW?

Power and mounting geometry are product-defining fields, not optional variations. The 7.5kW unit uses a 136/46 mm drive end, three Ø17.5 holes and Ø196 circle. Give it a separate URL, stock item, photograph and carton label so purchasing cannot merge the two 6008132711 products during replenishment.

Which measurements define the large D150 mounting face?

Measure the 136 mm engagement reference, 46 mm distance to the drive gear, all three Ø17.5 holes and the Ø196 circle. Photograph the face square-on and include the heavy nose in a side view. These features provide stronger identification than paint color or motor diameter.

How should shared Komatsu and Nikko references be handled?

Use the 60081327xx/48xx, 02100023xx and Sawafuji numbers to locate the family, then apply the product-specific filters. For this offer, D150, 6D155, 7.5kW and the Ø196 face must remain beside 6008132711. Any candidate showing 11.0kW belongs to a separate physical and commercial comparison before supplier selection.

What should appear on the warehouse bin label?

Mark 6008132711, D150 6D155, 24V 7.5kW, 11T module 4.233 and Ø196 face. Add the accepted front photograph to the digital item. This makes the power and mounting version visible during urgent picking, branch transfer and replenishment without relying on the duplicated OE number alone during restocking.

How should the Ø196 starter be protected in transit?

Support the motor body at several stable points, guard the large triangular drive end and cover all exposed studs. Prevent the nose from bearing against the carton and add moisture protection for reserve stock. The outer package should state 7.5kW so receiving can identify the correct version before opening.

Which receiving checks protect against a wrong-power shipment?

Read the rating label on units from multiple cartons, then compare the 11T pinion, Ø17.5 holes, 136/46 mm drive end and cable layout. Photograph the samples beside the carton label. Isolate any unit marked 11.0kW or showing a smaller mounting face before final warehouse allocation.

What should accompany a 7.5kW D150 RFQ?

Send the D150 model and serial, 6D155 plate, old rating label, square Ø196 face photograph, complete references, quantity, forecast, destination and required date. State 7.5kW in the subject and purchase line. Elecdura can then review the correct supplier-defined version and return wholesale pricing for the requested volume.

Request 6008132711 Komatsu D150 7.5kW Starter Pricing

Send the D150 model and serial, 6D155 plate, old starter photographs, measured Ø196 face, complete references, quantity and destination to info@elecdurauto.com. Elecdura will review the supplier-defined 7.5kW version and return wholesale pricing.
