6008133752 Kubota 6D125 Starter Motor Distributor

6008133752 Kubota 6D125 Starter Supply for Engine Distributors

Engine distributors often receive a 6D125 request without a complete machine identity. Starting with 6008133752, the engine plate and straight drive-end photographs lets the seller build a usable product definition instead of relying on a broad 6D125 label.

Several Komatsu, Cummins, Nikko and Sawafuji numbers sit in the same search group, and public listings may attach them to different equipment. The supplier row identifies Kubota 6D125, so the published application and 24V 11kW 12T specification remain the purchasing basis.

6008133752 24V 11kW 12T Drive and Ø146 Mounting Data

The 12T module-3.175 pinion is as important as the 24V 11.0kW electrical rating. A receiving team should read all four values together and reject any unrecorded change in tooth count, module, rotation or power before the starter enters branch inventory.

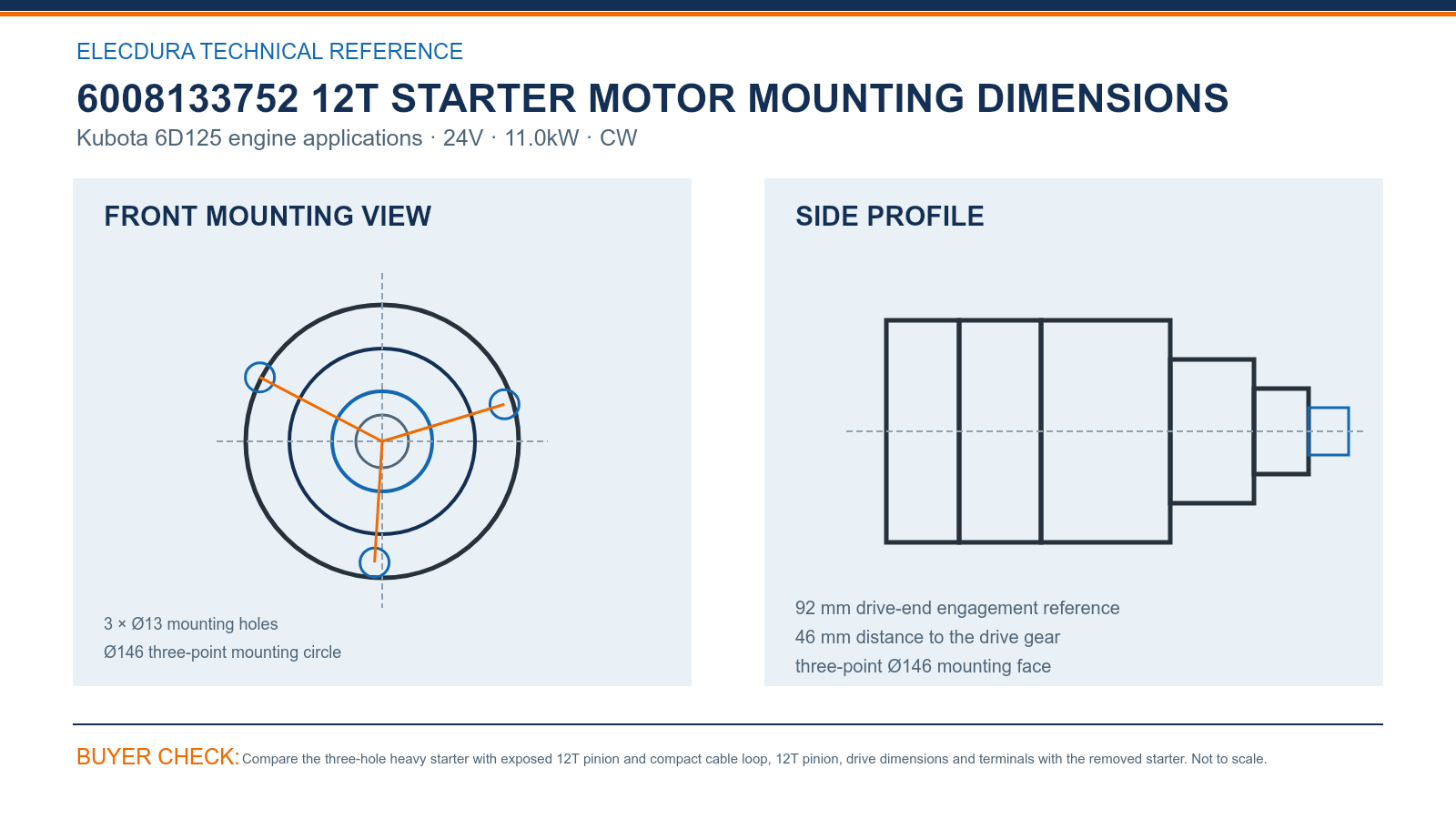

6008133752 Kubota 6D125 Starter Dimensions for Distributor Sourcing — compare the drawing with the removed starter before placing a volume order.

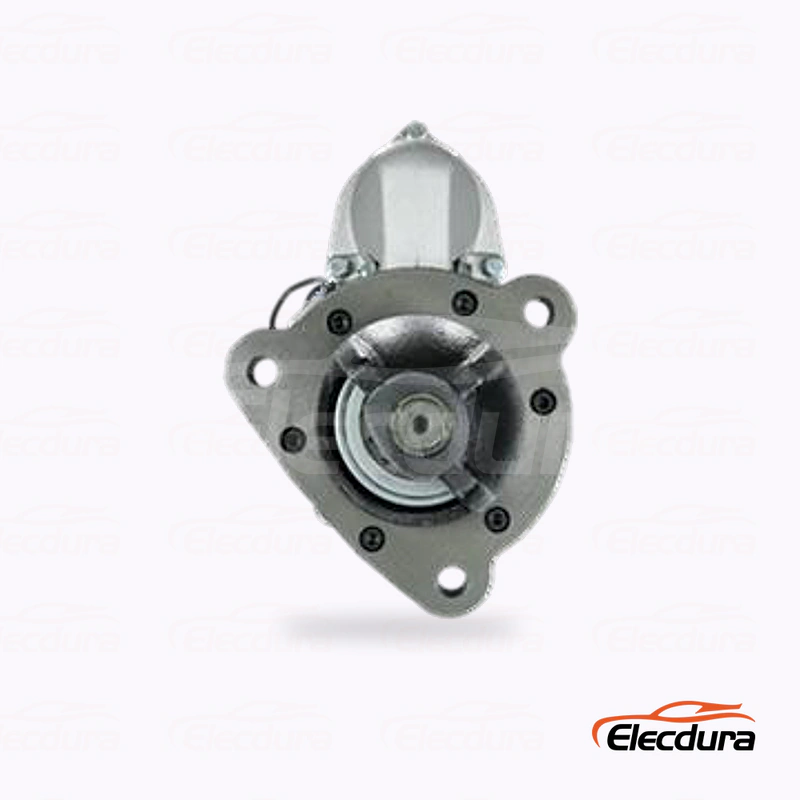

The drive end uses three Ø13 holes on a Ø146 circle with 92 mm engagement and a 46 mm gear-distance reference. Compare the front view and the compact cable loop because another heavy starter can share the basic dimensions yet differ at the terminals.

6008133752 Cross-Reference Group for 6D125 Sourcing

6008133752/3791/3922/3970/4211/4212/4221/4222/4230, Cummins 4980283 and the Nikko 023000806x group support reference searches. Keep the complete 6008133752-led set beside the 6D125 engine details and physical comparison on every purchase order.

Distributors serving several 6D125-powered machines should create supported application notes only after one unit has been compared by flange, pinion and terminals. This preserves a single warehouse item while preventing an unverified machine name from expanding the stock definition.

6008133752 Receiving Checks for Industrial Starter Stock

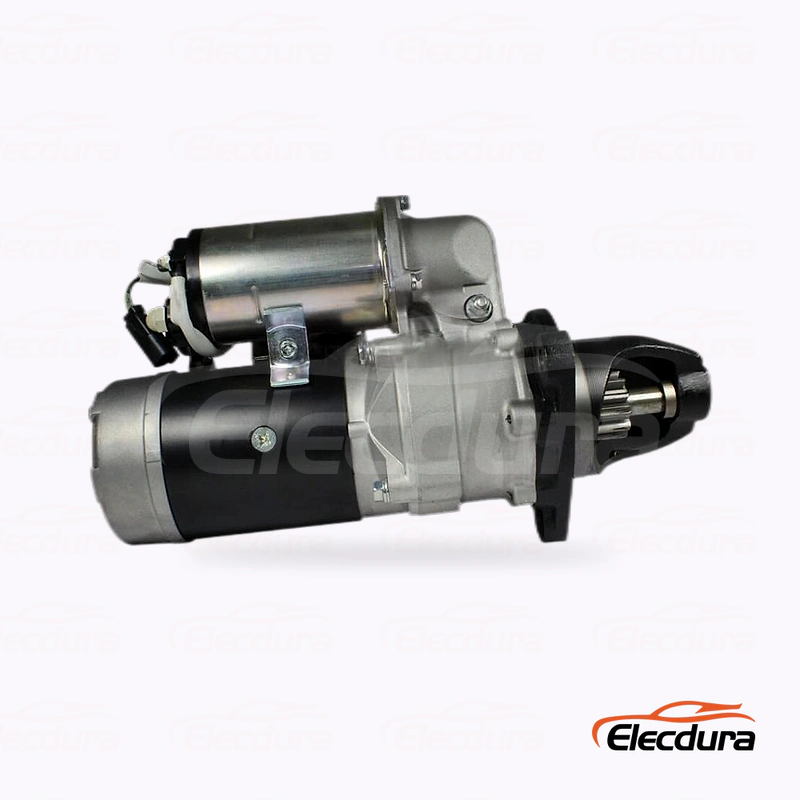

First-lot inspection should cover the exposed pinion, three-hole face, harness clamp, solenoid studs and rating label. Pack the long starter on stable body supports and protect the upper wiring so transfer between branches does not create hidden cable damage.

The Elecdura video presents starter assembly and electrical testing. Kubota engine-parts buyers can pair that manufacturing overview with product-specific sampling, neutral packing, shipment labeling and forecast discussions for 6008133752.

6008133752 Starter Motor FAQs for Kubota Engine Distributors

What information should accompany a Kubota 6D125 request?

Share the 6D125 engine plate, equipment model, old starter label and clear views of the pinion, mounting face and terminals. State the battery voltage and required quantity. That combination gives the distributor a usable 6008133752 definition when the enquiry does not include a familiar machine number.

Why is the Kubota 6D125 application stated for 6008133752?

The supplier source identifies Kubota 6D125 for this photographed product, so that application remains the published basis even when external listings attach the reference group to other equipment. Buyers should still compare the engine plate, 12T drive, mounting face and terminals before adding a machine to supported stock.

How can a buyer verify the 12T module-3.175 drive?

Count the twelve pinion teeth and compare tooth form with the removed starter or accepted sample. Module 3.175 should remain on the technical record beside the tooth count. A straight close-up helps the supplier distinguish this drive from a coarse 11T pinion used on another 11kW starter.

Which physical details separate the 6008133752 version?

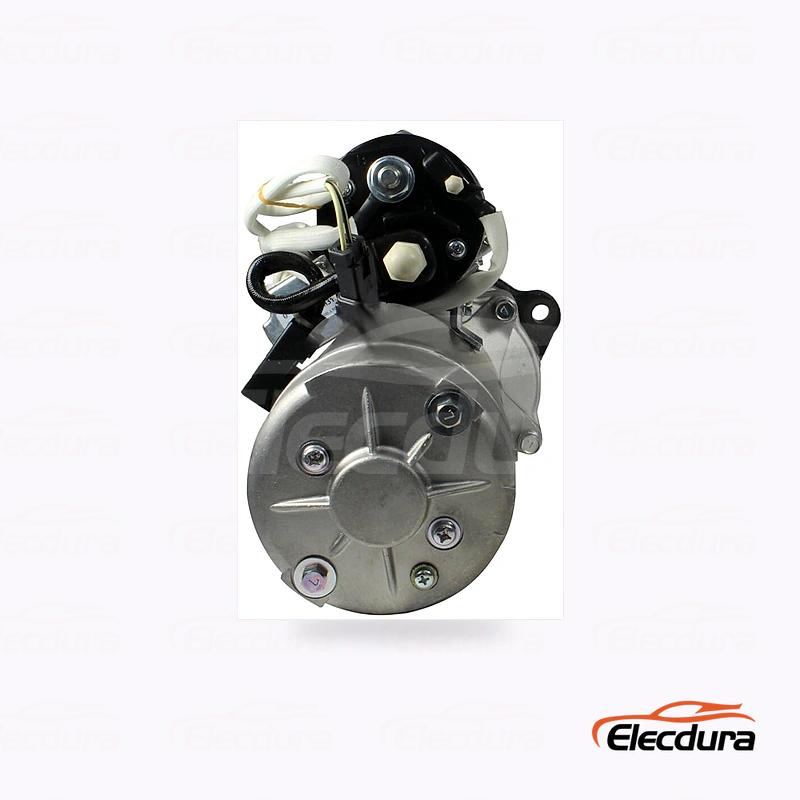

Compare the 92 mm engagement reference, 46 mm gear distance, three Ø13 holes and Ø146 circle. Then inspect the compact cable loop and terminal positions from the side. These combined features describe the photographed version more reliably than a motor-body color or one cross-reference number.

Can Cummins 4980283 be used to find this starter family?

Yes, 4980283 appears in the reference group and can start a search. It should be paired with 6008133752, the supplier-stated 6D125 application and the complete 24V 11kW 12T specification. The mounting face and cable photograph still need to match before a distributor accepts the product.

How should 6008133752 be labeled in a distributor warehouse?

Mark the bin with 6008133752, Kubota 6D125, 24V 11kW, 12T module 3.175 and the Ø146 face. Add the accepted terminal-side image to the digital item. This prevents a transfer clerk from merging it with another heavy 6D125 or Komatsu-referenced starter during branch replenishment and transfers.

What packing protects this long heavy starter?

Support the motor body at stable points, guard the long drive end and keep the cable loop away from the casting and carton wall. Cover exposed studs and add moisture protection for sea freight or site storage. The package should not place the starter's weight on the solenoid, nose or wiring.

What should a 6008133752 distributor RFQ contain?

Include the 6D125 engine plate, host equipment, full reference group, front and connector photographs, quantity, forecast, requested date, destination and packing needs. If stock will serve several branches, identify that plan. Elecdura can then price the specified product and discuss labeling, shipping and repeat supply together.

Request 6008133752 Kubota Starter Motor Distributor Pricing

Send the 6D125 engine plate, equipment identity, complete old-starter numbers, front and terminal photographs, order quantity, annual demand and destination to info@elecdurauto.com. Elecdura will assess the 6008133752 requirement and quote distributor supply terms.
