6008138110 Komatsu PC125-7 Starter Motor Wholesale

6008138110 Starter Supply for Komatsu PC125-7 Wholesale Programs

PC125-7 enquiries can surface under 6008138110, 6008139510 or Nikko 023000811x numbers. Using 6008138110 with the pictured cable cover and 46/72 mm drive end creates a distinct wholesale line instead of a broad SA6D170 description.

The linked reference family is wide enough to contain several photographed variants. A buyer should keep the PC125-7 machine record, accepted terminal-side image and exact axial drawing together before treating two 811x or 951x products as interchangeable.

6008138110 11T Module-4.233 Drive and 46/72 mm Dimensions

This 24V 11.0kW starter uses an 11T module-4.233 pinion and CW rotation. The module distinguishes its coarse drive from 12T module-3.175 products, while the 11kW output defines its heavy-duty electrical class.

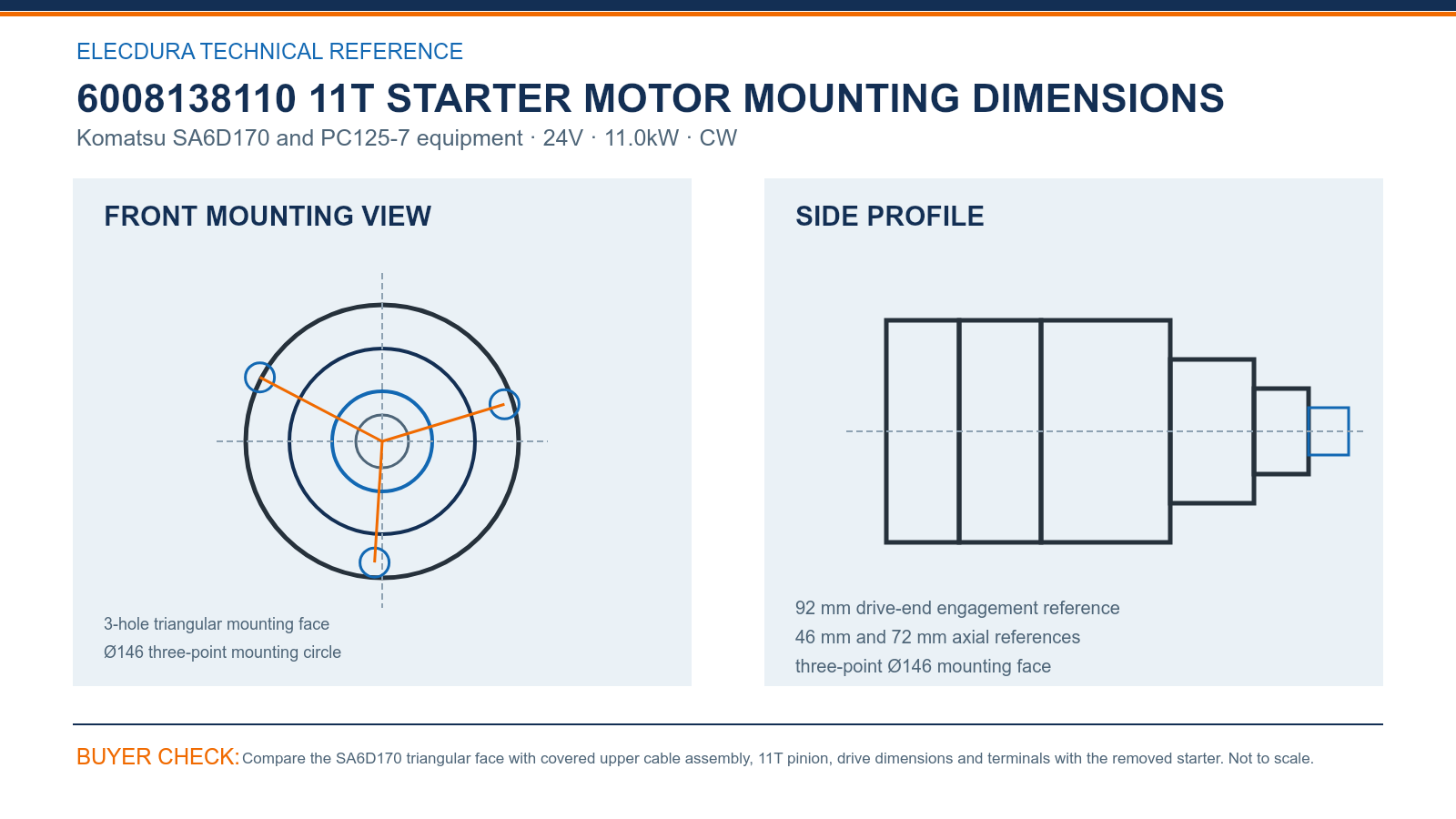

6008138110 Komatsu PC125-7 Starter Dimensions for Wholesale Supply — compare the drawing with the removed starter before placing a volume order.

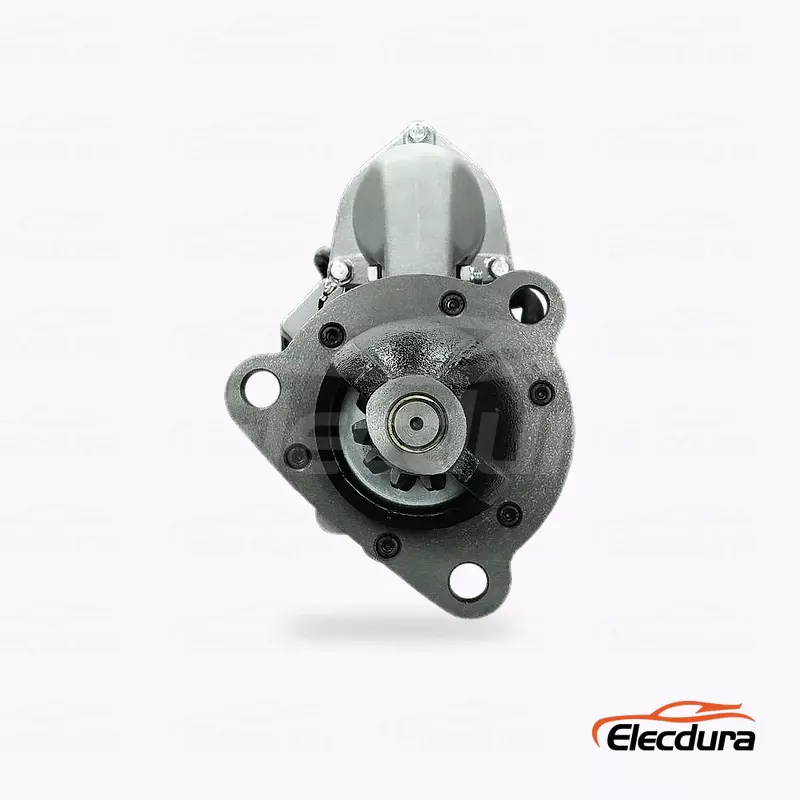

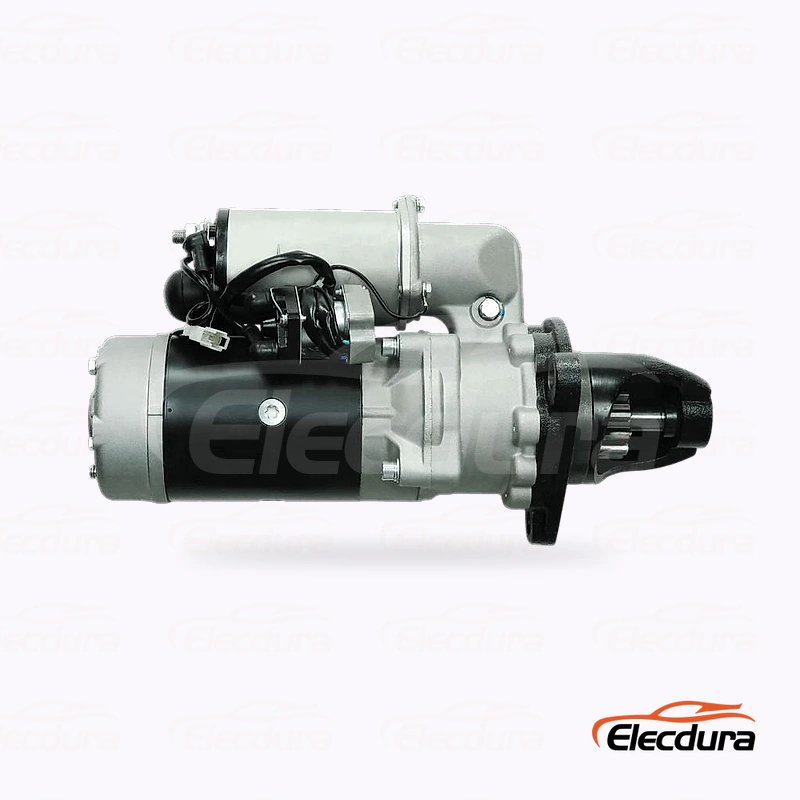

Inspect the 92 mm engagement reference, 46/72 mm axial positions and Ø146 triangular face. The upper cable cover, terminal orientation and long nose should agree with the accepted photographs because those features affect clearance and service access.

6008138110 and 6008139510 References for SA6D170 Sourcing

6008138110/8130, 6008139510/9511/9512/9540 and Nikko 0230008110/8111/8112/8115/8490 provide the search set. Keep 6008138110 as the primary inventory identity for this PC125-7 photographed version through quotation and receiving records.

Remote-site fleets should record the supported PC125-7 serial range and first accepted unit before transferring stock between machines. Any different cable arrangement or drive-end outline needs a separate comparison even when the reference family overlaps.

6008138110 Remote-Site Packing and Incoming Quality Checks

Protect the 11T pinion, upper cable assembly and solenoid studs during transport, and use stable body supports inside the carton. Incoming staff should sample rating labels, axial outlines and harness clamps before placing units into remote-site reserve.

Elecdura demonstrates starter assembly and end-of-line electrical testing in the manufacturing video. PC125-7 buyers can use it when discussing first-lot samples, remote-site packing, cable protection, neutral branding and forecast-based supply for 6008138110.

6008138110 Starter FAQs for Komatsu PC125-7 Buyers

Which PC125-7 details belong on a 6008138110 enquiry?

Include the PC125-7 model and serial, SA6D170 engine plate, every old-starter marking and straight images of the drive end, cable cover and terminals. State quantity and site location. This information defines the photographed 6008138110 version for purchasing, warehouse receipt and later remote-site replenishment planning records.

Why should module 4.233 appear beside 11T?

The 11T count alone cannot describe the coarse pinion used by this heavy starter. Module 4.233 defines the tooth form and separates it from 12T module-3.175 Komatsu products. Carry both values through the quotation, carton label and inspection sheet so substitutions are visible before installation.

What should the cable-side photograph show?

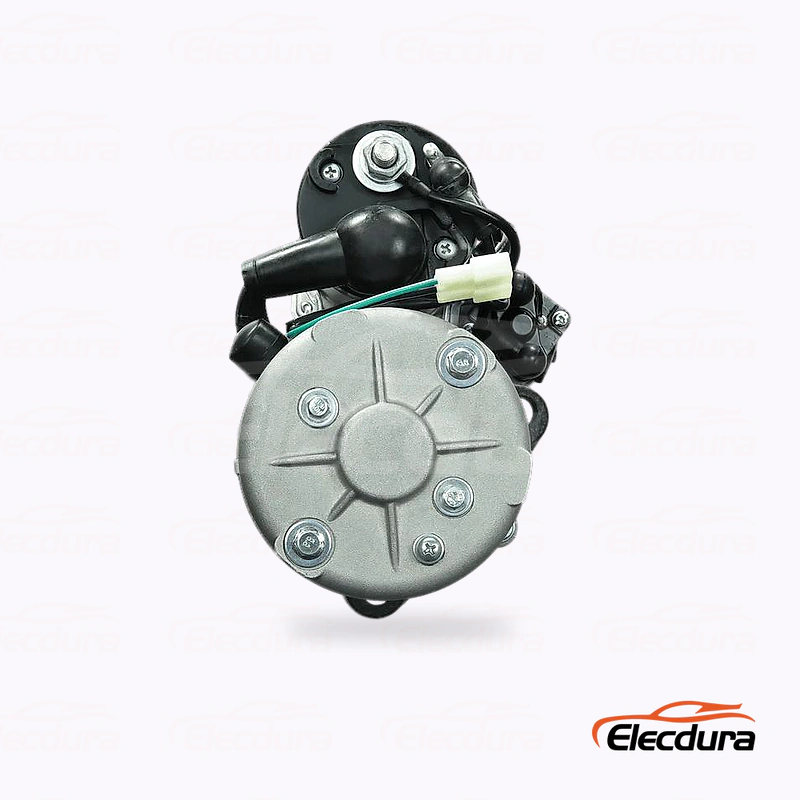

Capture the covered upper cable assembly, solenoid studs, smaller connection, lead attachment points and clearance to the motor housing. The image should include the full side profile, not only a terminal close-up. Compare it with the accepted product before dispatching a unit to a remote PC125-7 site.

How should 6008139510 support a 6008138110 search?

Use 6008139510/9511/9512/9540 and Nikko 023000811x as linked search references. Keep 6008138110 primary for this photographed PC125-7 version. The 46/72 mm drive end, 11T module-4.233 pinion and cable cover should remain on the order when another reference starts the enquiry for remote-site supply and branch distribution.

What packing is suitable for a remote-site spare?

Support the starter under the motor body, guard the long nose, cover the studs and keep the cable assembly from rubbing against metal. Add moisture protection and a clear PC125-7 label. Before storage, photograph the sealed carton and note the delivery lot for future service enquiries.

Which first-lot checks reduce PC125-7 supply risk?

Inspect units from several cartons for the 11T pinion, 92 mm locating area, 46/72 mm outline, triangular face, cable cover and rating label. Confirm caps and clamps are intact. Save sample images with the delivery lot so later branches compare against the same physical version.

Can another SA6D170 machine be added to this stock line?

It can be added after the machine serial, old starter and installation space have been compared with the accepted 6008138110 unit. Do not extend the item from engine name alone. Record the supported application and photographs so sales staff can explain why it shares the PC125-7 inventory line.

What should buyers send for a 6008138110 quotation?

Provide PC125-7 and SA6D170 identifiers, complete Komatsu and Nikko numbers, front and cable-side photographs, required quantity, annual demand, destination, packing preference and delivery date. Elecdura will review the photographed 11T module-4.233 version and return wholesale terms suited to remote-site or distributor stock planning and timing.

Request 6008138110 Komatsu PC125-7 Starter Wholesale Pricing

Send the PC125-7 serial, SA6D170 plate, full reference set, straight drive-end and cable photographs, quantity, destination and required date to info@elecdurauto.com. Elecdura will assess the photographed 6008138110 version and prepare wholesale terms.
