701540103 Cummins Starter Motor Wholesale 24V 10T

701540103 Wholesale Starter Motor for Cummins-powered construction and industrial equipment

construction-equipment suppliers purchasing Cummins starters for planned maintenance and site breakdowns should match 701540103 through the 701540103 10T module-2.54 drive rather than a similar module-3.175 pinion. That check matters because matching voltage, power and tooth count still leaves a damaging pinion-module mismatch.

Send engine CPL or serial, machine make and model, old label, measured pinion details, mounting face, quantity by destination and required arrival date. Elecdura can compare the 701540103 10T request with the specified drive end before preparing pricing, packing, lead-time and freight terms.

701540103 Starter Motor Dimensions for Cummins Equipment Wholesalers

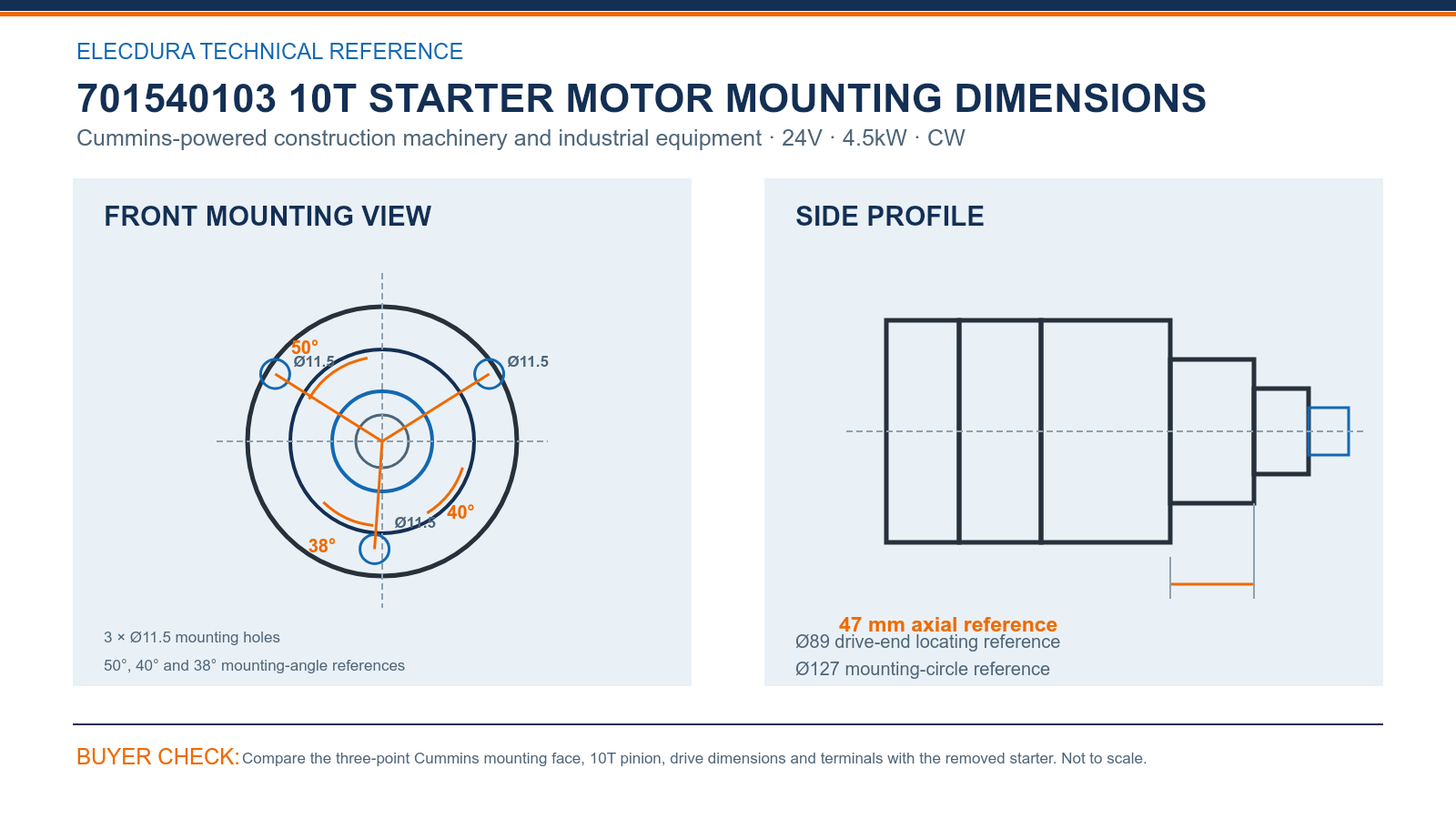

701540103 Cummins 24V 4.5kW 10T starter mounting dimensions.

Start the 701540103 10T drive-end comparison with Ø89 drive-end locating reference, 47 mm axial reference and Ø127 mounting-circle reference. A straight old-unit photograph helps reveal a different pilot, offset or pinion position for Cummins-powered construction and industrial equipment.

Count the 10T pinion and verify CW rotation before checking the cable side for Cummins-powered construction and industrial equipment. For 701540103 10T, inspect the 10T module-2.54 pinion, three Ø11.5 holes, Ø89 pilot and cable terminals against the accepted drawing; resolve any disagreement before stock release.

701540103 Starter Motor Cross-References and Fitment Checks

1. Reference group: Begin with 701540103 10T and record every complete number on the removed unit. Related references help locate 701540103 10T, but buyers must still confirm the 701540103 10T module-2.54 drive rather than a similar module-3.175 pinion.

2. Alternative review: Compare any 701540103 10T substitute with the same application, 24V, 4.5kW, 10T, module 2.54, CW, drive-end image and connection side. A change in one of those points identifies another product for Cummins-powered construction and industrial equipment.

701540103 Starter Motor MOQ, Lead Time and Export Supply

701540103 10T is available for distributor orders from 20 pieces, normally within 7–15 days after confirmation, with an 18-month warranty under agreed terms. A practical stock approach is to store the module value beside the OE reference and allocate emergency units by jobsite before routine replenishment.

Before releasing 701540103 10T, inspect the 10T module-2.54 pinion, three Ø11.5 holes, Ø89 pilot and cable terminals against the accepted drawing. Shipping damage to 701540103 10T or a changed construction should stay outside saleable inventory until the difference is resolved.

The 701540103 10T video below shows Elecdura starter-motor assembly and electrical testing. Buyers can use the footage to review supply capability; final selection for Cummins-powered construction and industrial equipment still depends on the confirmed drive end and terminals.

701540103 Starter Motor FAQs for Cummins Parts Buyers

How can buyers distinguish 701540103 10T from a similar starter?

Matching voltage, power and tooth count still leaves a damaging pinion-module mismatch. Confirm 701540103 10T by comparing the 701540103 10T module-2.54 drive rather than a similar module-3.175 pinion against the old unit's label, pinion and terminals. Keep Cummins-powered construction and industrial equipment on the enquiry; a matching rating or housing is not enough.

Which details are needed for a 701540103 10T wholesale quotation?

Send engine CPL or serial, machine make and model, old label, measured pinion details, mounting face, quantity, destination and target date for 701540103 10T. For Cummins-powered construction and industrial equipment, split breakdown demand from scheduled purchasing and identify any branch-specific packing. Elecdura can then price 24V, 4.5kW, 10T, module 2.54, CW with MOQ, timing, warranty and freight options for 701540103.

What drive-end dimensions should be compared for 701540103 10T?

For 701540103 10T, compare 3 × Ø11.5 mounting holes, Ø89 drive-end locating reference and 47 mm axial reference. Relate those dimensions to Ø127 mounting-circle reference and the 10T pinion for Cummins-powered construction and industrial equipment. Compare a direct drive-end photograph, because an oblique view may misrepresent hole position, pilot diameter or pinion depth for Cummins-powered construction and industrial equipment.

How should distributors plan stock for 701540103 10T?

Store the module value beside the OE reference and allocate emergency units by jobsite before routine replenishment. Build the 701540103 10T reserve from supported machines, recent withdrawals and transfer time. Keeping the Cummins-powered construction and industrial equipment and drive description on the bin helps branches avoid issuing another Cummins starter during an urgent repair.

Which electrical checks should precede starter replacement on Cummins-powered construction and industrial equipment?

Check battery state, cable voltage loss and ring-gear wear so engagement damage is not assigned to the replacement alone. After removing the old starter from Cummins-powered construction and industrial equipment, review the mounting face, pinion wear and ring-gear engagement. Those readings on Cummins-powered construction and industrial equipment distinguish starter condition from weak batteries, cable resistance, poor grounding, a start-control fault or mechanical resistance.

What belongs in receiving inspection for this Cummins starter?

Inspect the 10T module-2.54 pinion, three Ø11.5 holes, Ø89 pilot and cable terminals against the accepted drawing. Match the 701540103 10T label and 24V, 4.5kW, 10T, module 2.54, CW specification to the order, photograph the confirmed construction and retain the shipment lot. Isolate damaged connections, changed flanges or different pinions before releasing stock for Cummins-powered construction and industrial equipment.

What should remain on a repeat order for Cummins-powered construction and industrial equipment?

Keep 701540103 10T, Cummins-powered construction and industrial equipment, the confirmed product photographs and the previous shipment result on the repeat order. Add new quantity, destination, target date and packing instructions. This helps prevent expensive site returns caused by treating all ten-tooth Cummins starters as interchangeable.

Which records support an after-sales review for Cummins buyers?

Provide jobsite, machine hours, failure timing, shipment lot, installation photographs and close views of the pinion and ring gear for a 701540103 10T review. For Cummins-powered construction and industrial equipment, add the working conditions and pre-removal test values, with comparable images of the original and returned starters. This helps Cummins buyers separate product condition from installation, electrical-system, transport or application causes for Cummins-powered construction and industrial equipment.

Request 701540103 Starter Motor Wholesale Pricing

Email engine CPL or serial, machine make and model, old label, measured pinion details, mounting face, quantity, destination and arrival date to info@elecdurauto.com. Elecdura will quote 701540103 with MOQ, packing, lead time, warranty and freight options for the specified 24V, 4.5kW, 10T, module 2.54, CW unit.
