701542103 Cummins Starter Motor Wholesale 24V 10T

701542103 Wholesale Starter Motor for Cummins-powered industrial and mobile equipment

For industrial-engine and mobile-equipment distributors managing mixed Cummins replacement programs, confirm the 701542103 product identity, module-2.54 pinion and photographed terminal layout before quoting 701542103. 701542103 and nearby Cummins products share basic ratings, so a label-only or outline-only decision can select the wrong construction.

A workable 701542103 10T enquiry combines engine serial, equipment purpose, every readable reference, drive-end photo, terminal-side photo, order volume, receiving location and delivery deadline. State whether the need for Cummins-powered industrial and mobile equipment is routine replenishment, a branch transfer or equipment already out of service.

701542103 Starter Motor Dimensions for Industrial Equipment Buyers

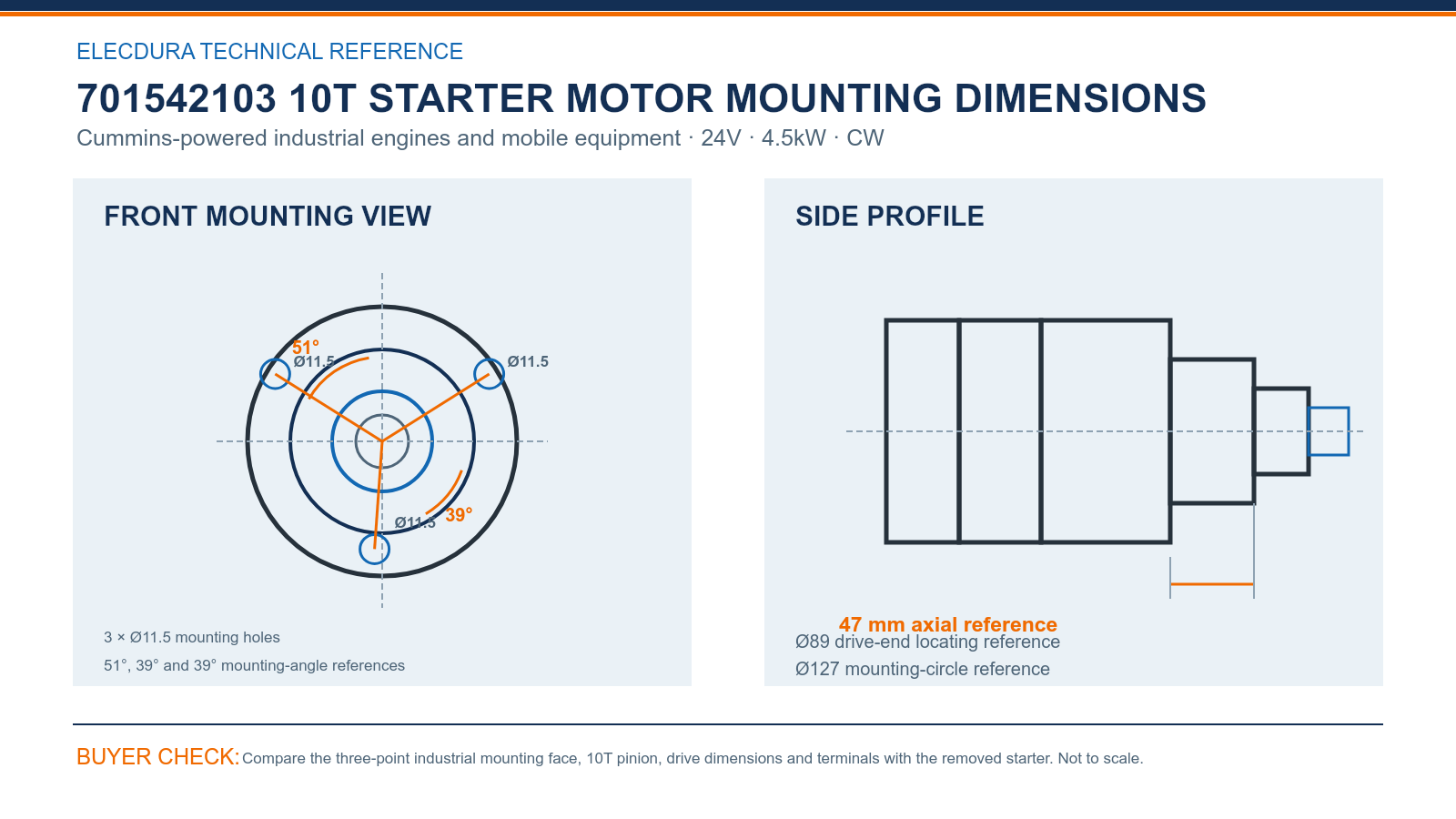

701542103 Cummins 24V 4.5kW 10T starter mounting dimensions.

Start the 701542103 10T drive-end comparison with Ø89 drive-end locating reference, 47 mm axial reference and Ø127 mounting-circle reference. A straight old-unit photograph helps reveal a different pilot, offset or pinion position for Cummins-powered industrial and mobile equipment.

Bench comparison for 701542103 10T should retain 24V, 4.5kW, 10T, module 2.54, CW. Receiving staff should match the label, module-2.54 drive, Ø127 mounting circle, 47 mm reference and connection positions, using the old unit or confirmed sample for the final physical check.

701542103 Starter Motor Cross-References and Fitment Checks

1. Reference group: Begin with 701542103 10T and record every complete number on the removed unit. Related references help locate 701542103 10T, but buyers must still confirm the 701542103 product identity, module-2.54 pinion and photographed terminal layout.

2. Fitment check: Keep Cummins-powered industrial engines and mobile equipment, 24V, 4.5kW, 10T, module 2.54, CW and the confirmed product photographs together on the 701542103 10T quotation. A different pinion, flange, rotation or cable position requires a separate comparison for Cummins-powered industrial and mobile equipment.

701542103 Starter Motor MOQ, Lead Time and Export Supply

Distributor terms for 701542103 10T are MOQ 20 pieces, normally 7–15 days after order confirmation and an 18-month warranty under agreed sales terms. Buyers should attach the confirmed image set to the item master and keep site allocations visible when cartons move between warehouses.

At 701542103 10T receiving, match the label, module-2.54 drive, Ø127 mounting circle, 47 mm reference and connection positions. Photograph the confirmed sample and keep the shipment lot with the warehouse record for Cummins-powered industrial and mobile equipment before cartons move to customers or branches.

Use the 701542103 10T video to review Elecdura's starter production and testing process. The footage complements, but does not replace, comparison of 701542103 10T with the removed starter and target equipment.

701542103 Starter Motor FAQs for Cummins Parts Buyers

How can buyers distinguish 701542103 10T from a similar starter?

701542103 and nearby Cummins products share basic ratings, so a label-only or outline-only decision can select the wrong construction. Confirm 701542103 10T by comparing the 701542103 product identity, module-2.54 pinion and photographed terminal layout against the old unit's label, pinion and terminals. Keep Cummins-powered industrial and mobile equipment on the enquiry; a matching rating or housing is not enough.

Which details are needed for a 701542103 10T wholesale quotation?

Send engine serial, equipment purpose, every readable reference, drive-end photo, terminal-side photo, quantity, destination and target date for 701542103 10T. For Cummins-powered industrial and mobile equipment, separate urgent service from forecast stock and note packing or branch-allocation needs. Elecdura can then price 24V, 4.5kW, 10T, module 2.54, CW with MOQ, timing, warranty and freight options for 701542103.

What drive-end dimensions should be compared for 701542103 10T?

For 701542103 10T, compare 3 × Ø11.5 mounting holes, Ø89 drive-end locating reference and 47 mm axial reference. Relate those dimensions to Ø127 mounting-circle reference and the 10T pinion for Cummins-powered industrial and mobile equipment. Work from a front-facing drive-end photograph, because an angled image can disguise hole position, pilot diameter or pinion depth for Cummins-powered industrial and mobile equipment.

How should distributors plan stock for 701542103 10T?

Attach the confirmed image set to the item master and keep site allocations visible when cartons move between warehouses. Set the 701542103 10T reserve from supported machines, recent withdrawals and transfer time. Keeping the Cummins-powered industrial and mobile equipment and drive description on the bin helps branches avoid issuing another Cummins starter during an urgent repair.

Which electrical checks should precede starter replacement on Cummins-powered industrial and mobile equipment?

Record cranking voltage, ground drop and control-terminal voltage before removal from industrial power or mobile equipment. After removing the old starter from Cummins-powered industrial and mobile equipment, examine the installed face, drive gear and ring gear for damage. Those readings on Cummins-powered industrial and mobile equipment distinguish starter condition from weak batteries, cable resistance, poor grounding, a start-control fault or mechanical resistance.

What belongs in receiving inspection for this Cummins starter?

Match the label, module-2.54 drive, Ø127 mounting circle, 47 mm reference and connection positions. Match the 701542103 10T label and 24V, 4.5kW, 10T, module 2.54, CW specification to the order, photograph the confirmed construction and retain the shipment lot. Isolate damaged connections, changed flanges or different pinions before releasing stock for Cummins-powered industrial and mobile equipment.

What should remain on a repeat order for Cummins-powered industrial and mobile equipment?

Keep 701542103 10T, Cummins-powered industrial and mobile equipment, the confirmed product photographs and the previous shipment result on the repeat order. Add new quantity, destination, target date and packing instructions. This helps make repeat supply reliable even when another Cummins starter shares the same 24V 4.5kW 10T headline.

Which records support an after-sales review for Cummins buyers?

Provide equipment duty cycle, fitted date, hours run, fault description, lot trace and electrical measurements for a 701542103 10T review. For Cummins-powered industrial and mobile equipment, record when the fault occurred and attach cranking measurements plus matched views of both units. This helps Cummins buyers separate product condition from installation, electrical-system, transport or application causes for Cummins-powered industrial and mobile equipment.

Request 701542103 Starter Motor Wholesale Pricing

Email engine serial, equipment purpose, every readable reference, drive-end photo, terminal-side photo, quantity, destination and arrival date to info@elecdurauto.com. Elecdura will quote 701542103 with MOQ, packing, lead time, warranty and freight options for the specified 24V, 4.5kW, 10T, module 2.54, CW unit.
