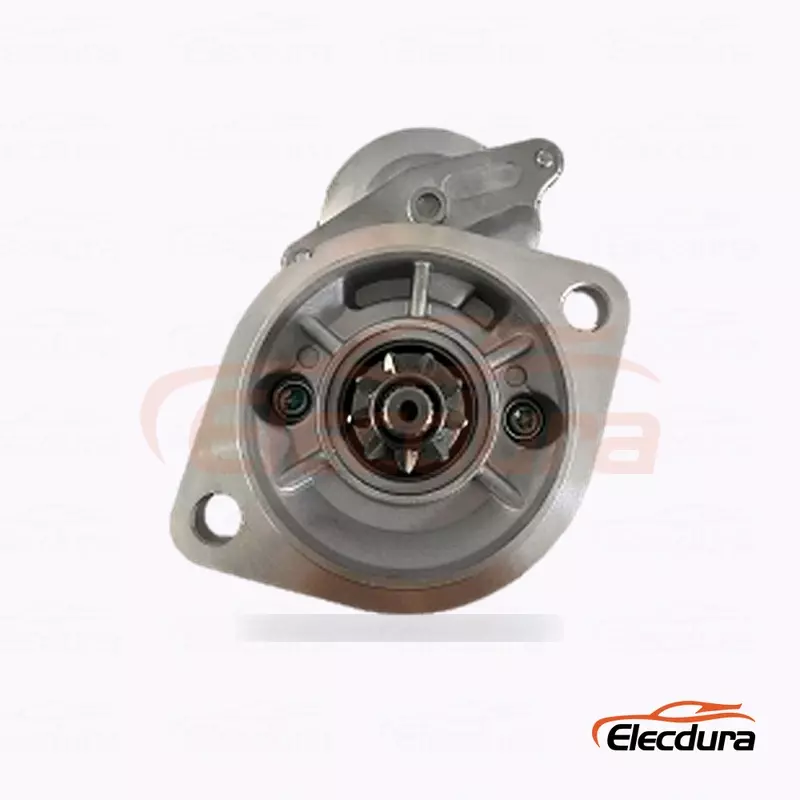

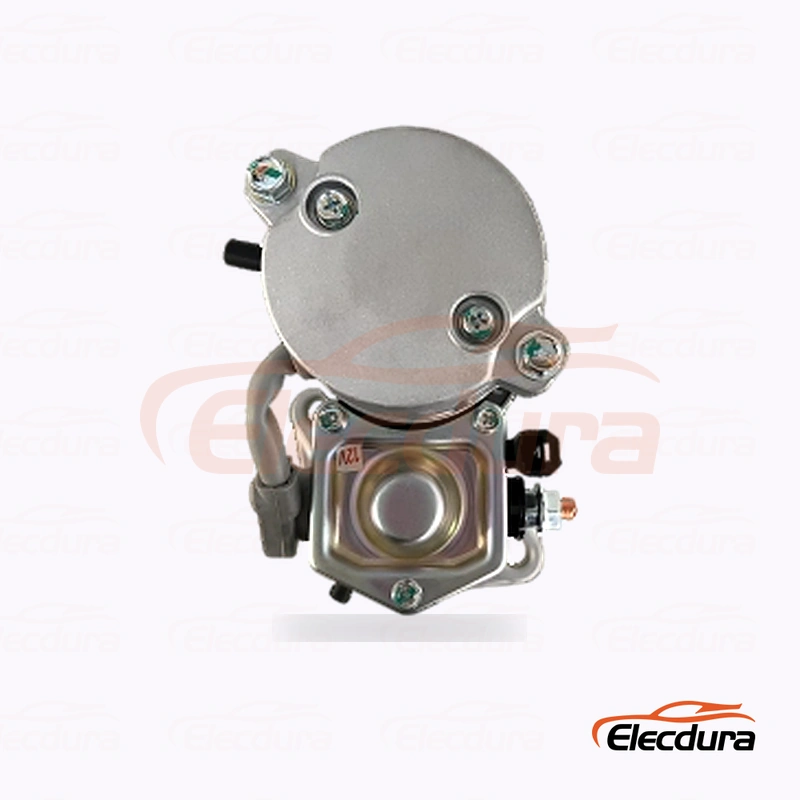

8-97112-865-2 Isuzu C240 and 4JB1 Diesel Starter Motor 12V 2.0kW 9T

8-97112-865-2 Isuzu C240 and 4JB1 Diesel Starter Motor Bulk Supply for Fleet and Equipment Parts Buyers

When sourcing 8-97112-865-2 for Isuzu C240 and 4JB1 diesel engines used in forklifts and compact industrial equipment, control the order by the complete reference and the 12V, 2.0kW, 9-tooth clockwise configuration. A visual match is not enough: compare the old-unit label, drive end, mounting face, pinion reach and cable or terminal arrangement with the supplied sample.

8-97112-865-2 Starter Motor B2B Production and Test Video for B2B Supply

This video introduces Elecdura starter-motor production and supply capabilities. Use the specification, cross-reference details and fitment checks on this page when evaluating 8-97112-865-2.

8-97112-865-2 Starter Motor Distributor Specifications for Aftermarket Buyers

8-97112-865-2 Starter Motor OE Cross-Reference Review for Fleet Replacement

Use 8-97112-865-2 as the primary purchasing reference and cross-check 8971128652. These numbers identify the candidate starter family, but approval still requires the exact suffix, electrical rating, drive end, mounting geometry, pinion and terminal layout to match the removed unit or signed sample.

8-97112-865-2 Starter Motor Bulk Fitment Approval for Wholesale Supply

Before accepting 8-97112-865-2 as a replacement, obtain the full vehicle, machine or engine record and compare truck model, engine plate, flange, pinion projection and cable clearance. Cross-reference overlap is useful for finding the family, but it cannot replace a physical match. Store the approved label and four-angle photo set with the account so later orders use the same configuration.

8-97112-865-2 Starter Motor Wholesale Receiving Inspection for Distributor Sourcing

Receiving control should link the carton, unit label and inspection sample to 8-97112-865-2. Verify voltage, pinion identity, mounting clocking, solenoid terminals and carton traceability; photograph deviations and keep affected units separate while the supplier responds. Batch evidence makes repeat purchases more predictable and gives warranty teams a clear record if field feedback appears.

8-97112-865-2 Starter Motor MOQ and Private-Label Supply for Bulk Procurement

8-97112-865-2 Starter Motor Distributor FAQ for B2B Supply

What physical fitment checks are required for 8-97112-865-2?

Compare the truck model, engine plate, flange, pinion projection and cable clearance with the removed starter. Check bolt-hole spacing, locating diameter, starter clocking, pinion rest position and rear-terminal clearance instead of judging from the outer housing alone. Never pull a misaligned unit into place with mounting bolts. A measured or photographed fitment record is especially valuable when nearby references share the same voltage and tooth count but use another drive-end or solenoid orientation.

What receiving checks protect a 8-97112-865-2 bulk order?

Tie every carton and sampled unit to 8-97112-865-2, the approved cross-reference set and the supplier lot. Inspect voltage, pinion identity, mounting clocking, solenoid terminals and carton traceability, then measure and compare the sampled unit with the signed photos or dimensional record. Record pass and fail quantities before the stock is mixed. Quarantine any different rating, pinion, mounting face or terminal layout, because a non-starting truck can interrupt loading schedules and force an emergency service call. This receiving discipline is cheaper than sorting returns after distribution.

Should a visually similar starter be sold as 8-97112-865-2?

A substitute is acceptable only when its complete OE relationship, 12V system, 2.0kW rating, 9T, rotation and mounting geometry agree with the approved unit. Similar appearance or a shared partial number is not enough. Ask for application and old-unit details, then test or approve a sample before changing the purchase line. Keep materially different versions separate in inventory so warehouse staff cannot fulfil one inquiry with the wrong variant.

What should be diagnosed before replacing a 8-97112-865-2 starter motor?

Check battery condition, interlock circuit, cable voltage drop, grounds and ring-gear engagement before condemning the starter. Record battery voltage at rest and during the start command, then measure voltage drop under load; a weak supply or poor ground can imitate starter failure. Inspect the mounting surface and gear engagement as well. Attach these results, the old-unit label and failure symptoms to the claim so the supplier can distinguish a product defect from an upstream electrical or mechanical problem.

How should a distributor request B2B pricing for 8-97112-865-2?

Send 8-97112-865-2 and all visible OE numbers, the full application or engine record, required quantity, destination and target delivery date. Add clear photos of the label, drive end, mounting face and terminals, plus any dimensional drawing available. State packaging, private-label, sample and inspection requirements at the start. A technically complete RFQ lets the supplier quote one verified configuration and reduces clarification delays after price approval.

What approval sequence is recommended for 8-97112-865-2 procurement?

The standard MOQ is 20 pieces, subject to final order confirmation, and a sample or pre-production approval should precede volume release when fitment evidence is incomplete. Mark the signed-off sample with 8-97112-865-2, buyer application and revision date. Repeat orders should reference that same approval plus any packaging specification. If the supplier, suffix or physical design changes, treat it as a new approval rather than assuming the previous decision still applies.

What packaging options are available for 8-97112-865-2 distributors?

Neutral packaging and private-label review are available for qualified orders. The carton and inner protection should prevent movement, terminal damage and contamination while keeping the product reference, lot identity and quantity readable. Private-label artwork must not remove the technical identifiers used for fitment and claims. Agree label content, barcode needs, carton strength and destination handling before production so the packaging supports both sales presentation and receiving control.

What records support a fair 8-97112-865-2 warranty review?

The standard warranty is 18 months under agreed sales terms, but a claim still needs traceable evidence. Record the invoice or lot, installed application, old and supplied references, installation date, symptoms and electrical test results. Include photographs of the unit, terminals, mounting and pinion. Do not dismantle or discard the product before instructions are agreed. Complete evidence speeds technical review and prevents a battery, wiring or ring-gear problem from being misclassified.

Which reference numbers should buyers confirm for 8-97112-865-2?

Use 8-97112-865-2 as the control reference and cross-check 8971128652. Retain the complete old-unit label plus drive-end, mounting-face and rear-terminal photos with the quotation and purchase line so repeat orders remain tied to the approved unit.

Request a B2B Quote for 8-97112-865-2 Starter Motors

Send the complete reference, Isuzu C240 and 4JB1 diesel engines used in forklifts and compact industrial equipment, old-unit photos, quantity, destination and packaging or inspection requirements. Elecdura will use that evidence to review one defined aftermarket starter configuration for your quotation.
