87593436 New Holland MX240 Starter Motor Wholesale Supply

87593436 Starter Motor Planning for MX240 Parts Distributors

An MX240 starter failure during field work can create a high downtime cost, so the buying decision should be made before the season begins. Keep 87593436, the 4.0kW output, 10T drive and three-hole face together when preparing central and branch quantities.

Request the tractor serial, old label, mounting-face photograph and cable layout from a confirmed machine. Elecdura uses those details to compare the 92 mm engagement and 47 mm drive-gear distance before discussing volume and delivery timing.

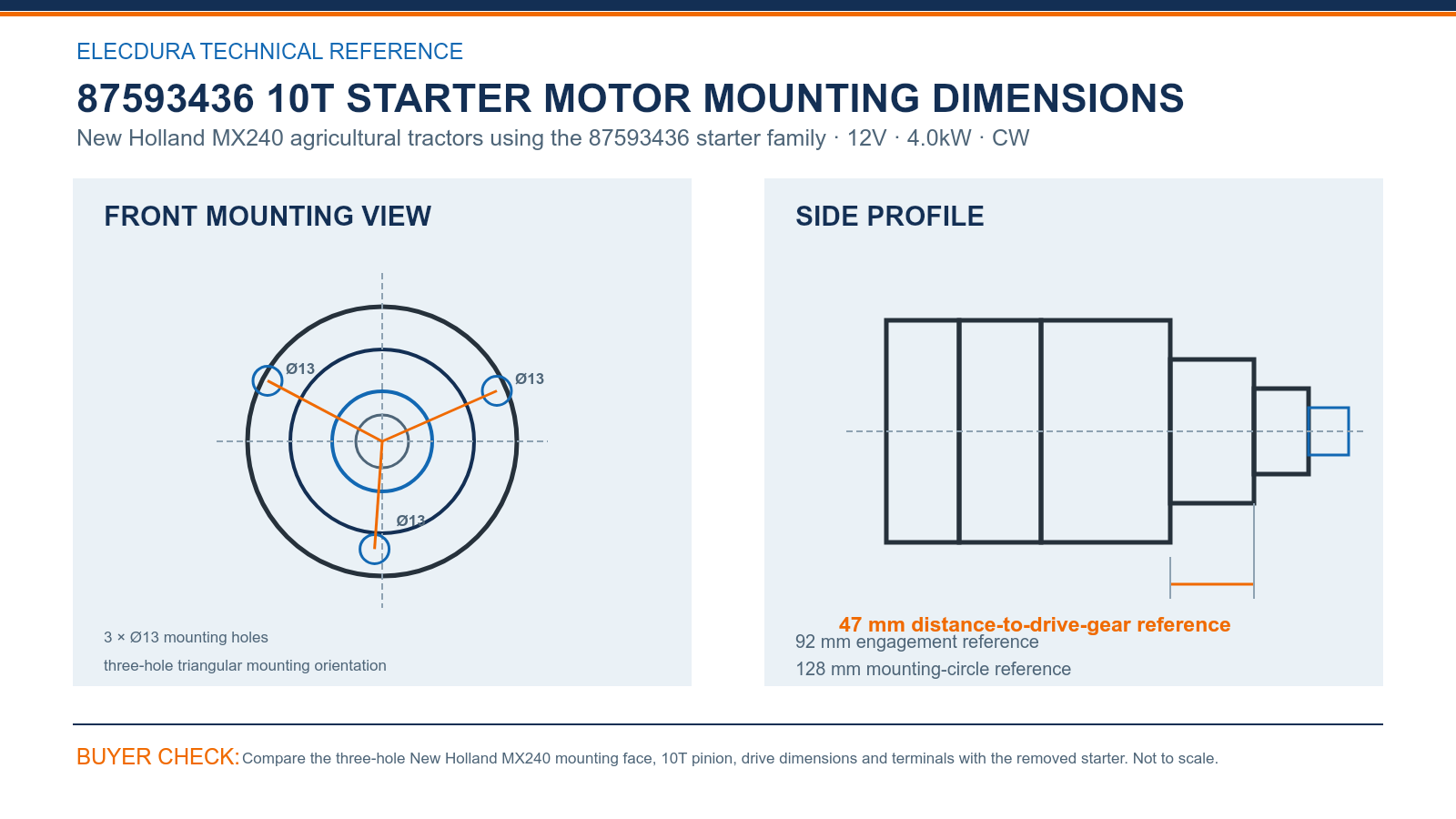

87593436 Starter Motor Fitment Drawing for MX240 Dealers

87593436 10T starter motor mounting and drive-end dimensions for buyer-side comparison.

The 87593436 mounting face uses three Ø13 holes on a 128 mm circle, with a 92 mm engagement reference and 47 mm distance to the drive gear. These points help tractor-parts buyers compare the heavy-duty nose before stock is distributed to remote service areas.

Confirm the 10-tooth pinion, module 3.175 and terminal side on the identified MX240. Retain the direct measurements and first-installation photographs so replenishment can be checked without relying on a tractor model name alone.

87593436 Starter Motor OE and Fitment Checks for Tractor Stock

Denso 428000-5850, DSN2031 and STN1478 references may support sourcing for 87593436. The exact old-unit number and MX240 serial should remain on the commercial line so a related tractor starter is not substituted by appearance.

• Electrical: confirm 12V and 4.0kW.

• Drive: verify 10 teeth, module 3.175 and clockwise rotation.

• Mounting: compare three Ø13 holes, engagement and drive depth.

87593436 Starter Motor Seasonal Supply for Farm Service Fleets

A distributor can confirm one starter on an identified MX240, retain the installation result and use it for pre-season replenishment. Elecdura can discuss neutral cartons, customer labels and scheduled deliveries for established farm-service programs.

For an incoming lot, check the 10T pinion, three-hole nose, full reference, terminal protection and carton support across several pallet positions. Allocate units to branches only after the sampled configuration matches the retained MX240 details.

The video shows Elecdura starter-motor assembly and electrical testing. Send the MX240 serial, complete old-unit number, face and terminal photographs, quantity by service area and target delivery date for a detailed quotation.

87593436 Starter Motor Wholesale FAQ

How should 428000-5850 be used with 87593436?

Use 428000-5850 as a Denso cross-reference for the MX240 purchasing trail while preserving the full number on the removed starter. Confirm 12V, 4.0kW, 10 teeth, module 3.175 and clockwise rotation, then compare the three-hole geometry. The OE connection supports sourcing, while the tractor and physical checks define the supplied version.

Why is the MX240 serial important for a starter order?

A tractor model can span production changes, regional builds and prior service replacements. The serial identifies the exact machine behind the request and gives the distributor a stronger fitment history. Send it with the old label, pinion and mounting photographs so Elecdura can compare the specified 87593436 configuration with the actual tractor.

Which measurements identify the 87593436 mounting face?

Compare three Ø13 mounting holes on the 128 mm circle, the 92 mm engagement reference and 47 mm distance to the drive gear. Measure the removed starter directly and photograph the face square. Together with the 10T drive, these values help reveal a different heavy-duty nose before the unit reaches a field machine.

What should a technician test before a field replacement?

Check batteries under load, positive and ground cable voltage drop, switch signal and engine mechanical freedom. A large agricultural starter depends on a healthy supply circuit. If replacement is required, retain the measured values with the tractor serial and old-unit label so the new 87593436 installation can be evaluated against the original symptom.

How can an agricultural distributor allocate seasonal stock?

Use active MX240 counts, prior sales, branch distance and replenishment lead time to set quantities. Keep a central reserve for urgent demand and send smaller lots to service areas with confirmed machines. Each warehouse line should display 87593436, 10T and the three-hole face so a related tractor starter is not mixed into the seasonal plan.

What should be retained from the first MX240 installation?

Photograph the old and new labels, mounting face, final cable routing and installed clearance. Note bolt alignment, cranking voltage, engagement sound and release after start. Link these details to the tractor serial and shipment lot. A successful first fit gives purchasing, workshop and receiving teams a practical reference for later 87593436 orders.

How should a large incoming lot be checked?

Sample cartons from the top, center and lower pallet positions. Verify full labels, 10-tooth pinions, three Ø13 mounting holes, terminal caps and freight condition. Compare selected units with the retained MX240 measurements and isolate any different nose, drive or output before the shipment is divided among branches or service vehicles.

What belongs in an 87593436 wholesale quotation request?

Send the complete New Holland, Case or Denso number, MX240 serial, old-unit label, 10T drive and mounting photographs, requested quantity by location, delivery country, target date and packing preference. Elecdura can then state the specified 12V 4.0kW configuration, MOQ, normal lead time, warranty and available labeling.

Request a 87593436 Starter Motor Wholesale Quote

Send 87593436 or the complete Denso or Case number, New Holland MX240 serial, old-unit label, 10T pinion, face and terminal photographs, quantity by branch, destination and required date. Elecdura will quote the 12V 4.0kW starter with supply terms.

For harvest-season planning, include current branch stock and expected usage so the requested delivery schedule can be evaluated with the technical configuration.
