87750408 New Holland T8.360 4.0kW Starter Motor Wholesale

87750408 Starter Motor Selection for T8.360 Parts Buyers

T8-series references can cover several tractor models and service channels. For this product, keep the T8.360, 4.0kW output, 10T drive and measured three-hole geometry on one purchasing line so a broader 504357253 search does not blur the required configuration.

Provide the tractor serial, engine information, old-unit label and clear flange photographs. Elecdura compares the 92 mm engagement, 48 mm drive-gear distance and 127 mm circle before preparing distributor pricing.

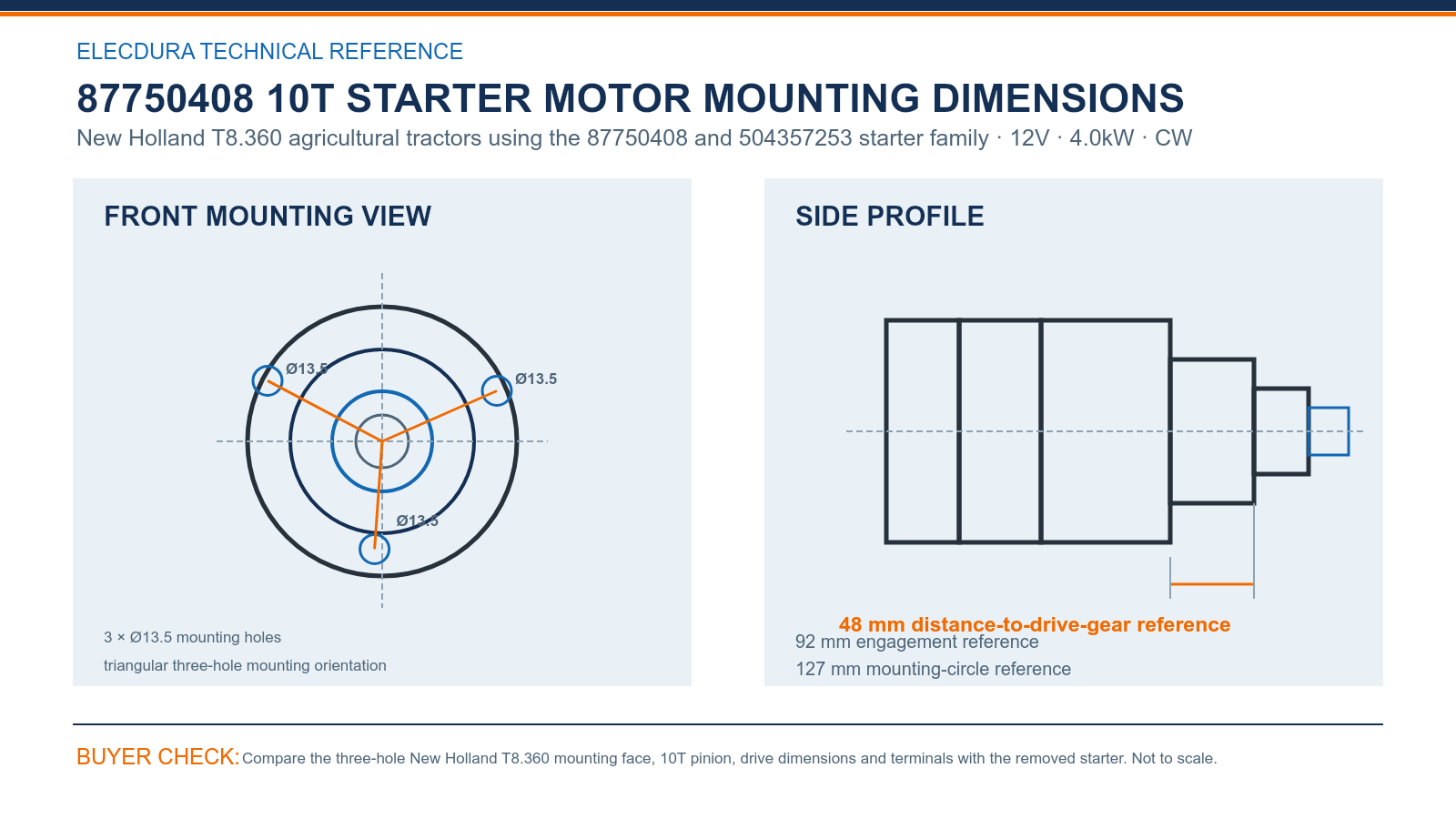

87750408 Starter Motor Dimensions for T8.360 Wholesalers

87750408 10T starter motor mounting and drive-end dimensions for buyer-side comparison.

The 87750408 drive end uses three Ø13.5 mounting holes on a 127 mm circle, with a 92 mm engagement reference and 48 mm distance to the drive gear. These measured points help tractor-parts buyers confirm the 10T nose before stocking a reference family used across several T8 models.

Count the pinion and confirm module 3.175 and clockwise rotation on the removed unit. Retain the T8.360 serial, terminal photographs and first-fit result so later replenishment remains tied to the same 4.0kW configuration.

87750408 Starter Motor OE Matching for New Holland Stock

504357253, Denso 428000-7360 or 428000-736 and Lester 19994 may appear in purchasing systems. Preserve the complete old reference and T8.360 details on the order.

• Electrical: retain 12V and 4.0kW.

• Drive: confirm 10 teeth, module 3.175 and clockwise rotation.

• Face: compare three Ø13.5 holes, engagement and terminal orientation.

87750408 Starter Motor Supply for T8 Tractor Service Programs

A tractor-parts group can confirm one unit on an identified T8.360 and use the photographs and installation result for branch replenishment. Elecdura can discuss neutral cartons, customer labels and scheduled shipping for repeat agricultural demand.

Incoming units should be sampled for full labels, 10T pinions, three-hole faces, solenoid positions and terminal protection. Keep this 4.0kW line separate from any different T8-series starter carried by the same distributor.

The video presents Elecdura starter-motor assembly and electrical testing. Send the T8.360 serial, engine details, complete old-unit number, face images, quantity by branch and destination for a configuration-specific quotation.

87750408 Starter Motor Wholesale FAQ

Which T8 applications should be included with 87750408?

This product is written for an identified New Holland T8.360 using the 87750408 and 504357253 family. If a buyer also supports T8.325 or T8.390 tractors, provide each model and serial separately. Shared cross-references can help sourcing, but the exact tractor and physical starter should define every commercial line.

Which dimensions identify the T8.360 drive end?

Compare three Ø13.5 holes on the 127 mm circle, the 92 mm engagement reference and 48 mm distance to the drive gear. Measure the removed starter directly and photograph the face square. These values, together with the 10T pinion, give a distributor practical checks for the nose before a branch order is placed.

How should 504357253 and 428000-7360 be used?

Use them as the main Case or New Holland and Denso references within the purchasing family, while retaining the exact old-unit number and T8.360 serial. Confirm 12V, 4.0kW, 10 teeth, module 3.175, clockwise rotation and the three-hole face. The cross-reference chain supports searching but not blind substitution.

How can branches manage 87750408 inventory?

Group demand by confirmed tractor model and serial, then review prior sales and replenishment time. Label this line with T8.360, 4.0kW, 10T and the three Ø13.5 holes. Keep any different T8-series starter on a separate item so branch staff do not select solely from the shared 504357253 reference.

What should be checked on the first T8.360 installation?

Confirm all three mounting holes align, the face seats evenly and cables reach the correct terminals without strain. Check clean 10-tooth engagement, normal release and cranking voltage. Retain the tractor serial, old and new labels, mounting photographs and shipment lot so later 87750408 deliveries have a practical fitment reference.

Which electrical details improve a T8 starter inquiry?

State the 12V system and 4.0kW requirement, then include battery condition, ground integrity, cable voltage drop and start-signal measurements if the tractor has a no-crank or slow-crank symptom. This information helps the supplier distinguish a starter requirement from a circuit problem and supports a cleaner installation follow-up.

How should 87750408 be protected in transport?

Use internal support that keeps the heavy starter from moving, protect the 10T pinion and cap exposed terminals. Mark the carton with the full reference and T8.360 description. Receiving teams should inspect the mounting ears, solenoid, face and label before units are distributed to branches or loaded into service vehicles.

What is required for an 87750408 wholesale quotation?

Send the complete New Holland, Case or Denso number, T8.360 model and serial, engine details, old-unit label, pinion and face photographs, quantity by branch, delivery country, target date and packaging preference. Elecdura can then state the specified configuration, MOQ, normal lead time, warranty and available labeling.

Request a 87750408 Starter Motor Wholesale Quote

Send 87750408 or the full 504357253 or 428000-7360 reference, New Holland T8.360 serial, engine details, old-unit label, 10T pinion, face and terminal photographs, quantity by branch, destination and packing request. Elecdura will quote the 12V 4.0kW starter.

If the order includes other T8 models, separate quantities and tractor serial ranges so each requested starter retains its own fitment and output identity.
