8975003580 Isuzu 6HK1 GMC Starter Motor Wholesale

8975003580 Starter Motor Wholesale Supply for GMC And Isuzu Truck Parts Distributors

For GMC and Isuzu truck parts distributors, the cost of an incorrect unit includes workshop time, freight, a second removal and combining legitimate cross-brand demand without merging a different two-ear housing. A useful enquiry should therefore begin with 8975003580 and GMC medium-duty vehicles and Isuzu 6HK1 trucks, then add the complete physical and electrical identity rather than relying on a broad vehicle label.

Send vehicle brand, VIN or chassis, 6HK1 engine confirmation, all old numbers, full nose and terminal photographs, quantities by label brand. Elecdura can compare the catalog-defined 12V, 3.0kW, 11T and CW specification with the illustrated drive end, then return product availability and B2B terms suitable for cross-brand inventory accuracy.

8975003580 Starter Motor Dimensions and Drive-End Checks

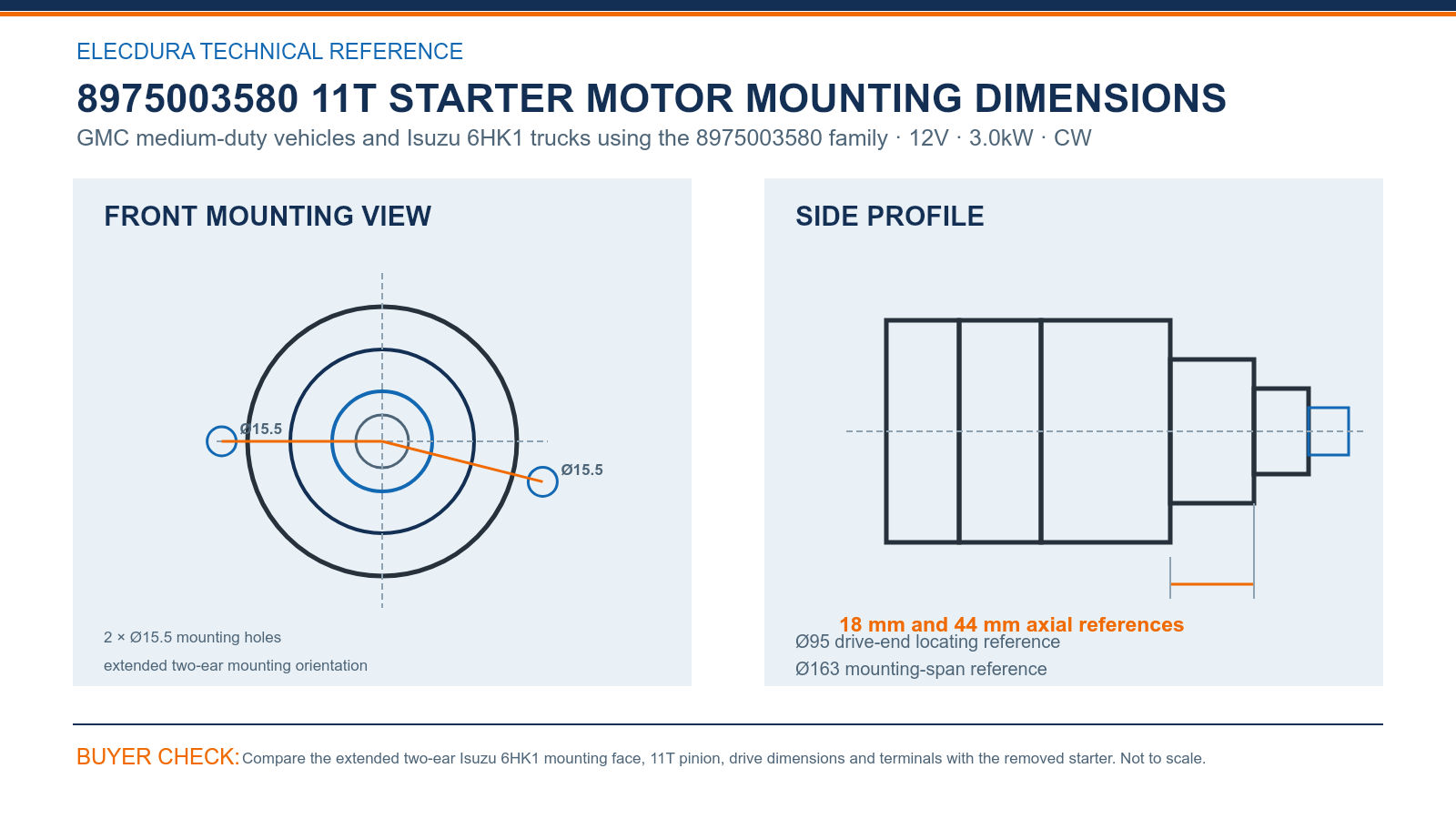

8975003580 Isuzu 12V 3.0kW 11T starter mounting dimensions for buyer-side comparison.

For cross-brand inventory accuracy, the drawing identifies 2 × Ø15.5 mounting holes in a extended two-ear mounting orientation. Its Ø95 drive-end locating reference, 18 mm and 44 mm axial references and Ø163 mounting-span reference give GMC and Isuzu truck parts distributors practical bench measurements when the old starter and replacement have similar cylindrical bodies.

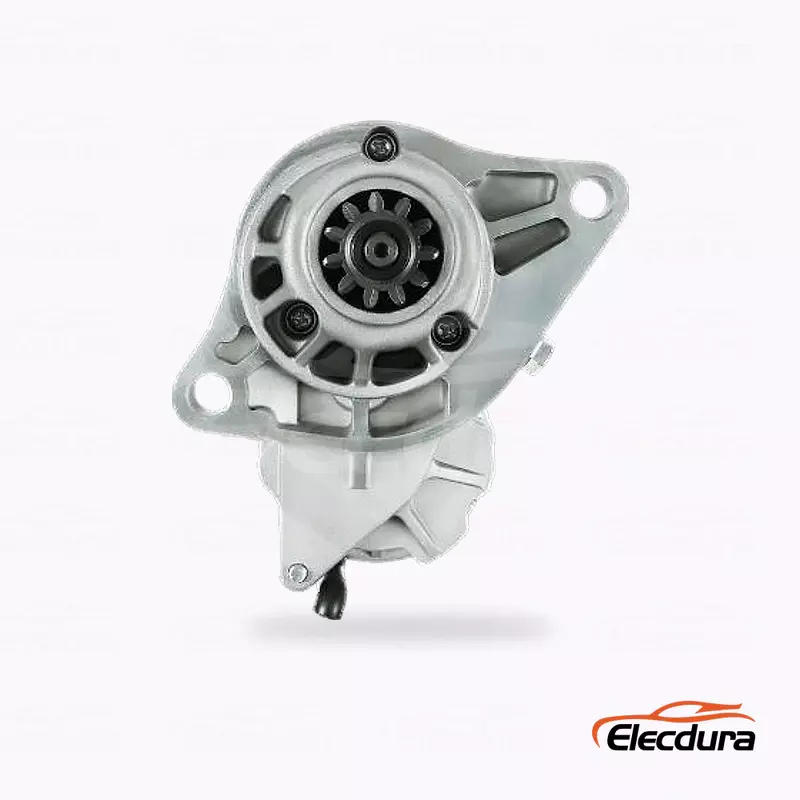

Before GMC medium-duty vehicles and Isuzu 6HK1 trucks returns to service, count the 11-tooth pinion and confirm module 3 with CW rotation. Keep the flange square to the camera and show the terminal side so cross-brand medium-duty fleet supply can detect a cable-position or mounting-ear mismatch that a label-only search misses.

8975003580 Starter Motor OE References and Sales-Line Boundaries

8975003580 reference use: 8975003581/3582, 8975002310, 2911234200 and 228000-2800/2804/2805/2807 identify the family across GMC and Isuzu catalogs.

For the purchase order: vehicle brand, VIN or chassis, 6HK1 engine confirmation, all old numbers, full nose and terminal photographs, quantities by label brand.

8975003580 Starter Motor Stock, Receiving and Service Support

A shared physical line can reduce duplicate inventory, but carton and ERP aliases should preserve the GMC or Isuzu sales channel for picking accuracy.

Measure the Ø163 span, inspect both Ø15.5 ears and compare the 44 mm axial point. Confirm that the label supports the branch that will sell the unit. For later cross-brand inventory accuracy replenishment, retain the carton identity and shipment lot with the cross-brand medium-duty fleet supply record so a buyer can repeat the correct 8975003580 configuration without losing the application context.

For cross-brand inventory accuracy, the video presents Elecdura starter-motor assembly and electrical testing as one part of supplier assessment. A 8975003580 purchase still depends on the 6HK1 engine, Ø163 mounting span, two Ø15.5 ears and 11T drive, together with the quantity, destination and delivery requirement supplied by GMC and Isuzu truck parts distributors.

8975003580 Starter Motor Questions from B2B Buyers

Which 8975003580 drive-end checks matter to a GMC and Isuzu distributor?

Use the 6HK1 engine, Ø163 mounting span, two Ø15.5 ears and 11T drive as the main geometry test. The drawing adds Ø95 drive-end locating reference, 18 mm and 44 mm axial references, Ø163 mounting-span reference and 2 × Ø15.5 mounting holes. Measure the long nose rather than comparing motor length only, and photograph both ears plus the terminal side for the 6HK1 installation. That record also supports cross-brand inventory accuracy across cross-brand medium-duty fleet supply.

How can a GMC and Isuzu distributor use the 8975003580 cross-reference group?

8975003581/3582, 8975002310, 2911234200 and 228000-2800/2804/2805/2807 identify the family across GMC and Isuzu catalogs. Those numbers explain why the same unit may arrive through different brand catalogs. Keep vehicle brand, VIN and 6HK1 engine attached to the order so an unrelated two-ear starter is not folded into 8975003580 solely on visual similarity. That record also supports cross-brand inventory accuracy across cross-brand medium-duty fleet supply.

What diagnostic evidence should a GMC and Isuzu distributor collect before ordering 8975003580?

Test batteries, grounds and cable voltage drop under cranking load. Keep the symptom, vehicle identity and removed-unit photos with any after-sales case. Add ring-gear condition and the hot-or-cold pattern of the complaint. A consistent evidence set lets a distributor compare cases across both brand channels and avoids treating poor cables or grounds as repeat failures of the shared starter family. That record also supports cross-brand inventory accuracy across cross-brand medium-duty fleet supply.

How should a GMC and Isuzu distributor set the opening stock for 8975003580?

A shared physical line can reduce duplicate inventory, but carton and ERP aliases should preserve the GMC or Isuzu sales channel for picking accuracy. Reconcile physical stock once, but report demand by label channel and branch. Elecdura can support cross-brand inventory accuracy with neutral or differentiated cartons, shipment timing and replenishment data that preserve sales accuracy while limiting unnecessary duplicate inventory. That record also supports cross-brand inventory accuracy across cross-brand medium-duty fleet supply.

Which receiving points protect 8975003580 inventory at a GMC and Isuzu distributor?

Measure the Ø163 span, inspect both Ø15.5 ears and compare the 44 mm axial point. Confirm that the label supports the branch that will sell the unit. Record which channel receives each carton and retain an accepted reference photograph. A different span, damaged ear or inconsistent suffix should stay outside available stock until the cross-brand order and delivered unit have been reconciled. That record also supports cross-brand inventory accuracy across cross-brand medium-duty fleet supply.

What makes a useful 8975003580 after-sales report from a GMC and Isuzu distributor?

An after-sales submission should identify GMC or Isuzu channel, VIN, 6HK1 engine, shipment code, installation date and exact symptom. Attach battery, cable and start-command measurements with views of the two ears, pinion, terminals and label. This makes the review meaningful across a shared physical item. That record also supports cross-brand inventory accuracy across cross-brand medium-duty fleet supply.

What business outcome should 8975003580 deliver for a GMC and Isuzu distributor?

combining legitimate cross-brand demand without merging a different two-ear housing is the central inventory question for GMC and Isuzu truck parts distributors. Correctly combining demand can improve availability, but only when geometry, labels and branch records remain clear. 8975003580 tied to GMC medium-duty vehicles and Isuzu 6HK1 trucks gives both channels a traceable product rather than a vague common-housing entry. That record also supports cross-brand inventory accuracy across cross-brand medium-duty fleet supply.

How should a GMC and Isuzu distributor prepare a 8975003580 price request?

A cross-brand order should list vehicle brand, VIN or chassis, 6HK1 engine confirmation, all old numbers, full nose and terminal photographs, quantities by label brand. Elecdura can then verify the 12V, 3.0kW, 11T CW specification and prepare quantities by sales channel. State whether one neutral carton or separate channel labels are needed, plus the quantity and destination for each distribution route. This keeps one physical family commercially usable without losing GMC or Isuzu identification. That record also supports cross-brand inventory accuracy across cross-brand medium-duty fleet supply.

Request 8975003580 Starter Motor Wholesale Pricing

For 8975003580 pricing in cross-brand medium-duty fleet supply, send vehicle brand, VIN or chassis, 6HK1 engine confirmation, all old numbers, full nose and terminal photographs, quantities by label brand. Elecdura will quote the catalog-specified 12V, 3.0kW, 11T CW starter motor with MOQ, lead time, packing, warranty and shipment terms suited to cross-brand inventory accuracy.

State whether one neutral carton or separate channel labels are needed, plus the quantity and destination for each distribution route. For GMC and Isuzu truck parts distributors, any urgent field-down unit should be stated separately so the reply can distinguish immediate availability from scheduled replenishment for cross-brand inventory accuracy.
