9702809500 Kubota V4000 V4300 Starter Motor for Distributors

9702809500 Kubota Starter Motor Supply for V4000 V4300 Fleets

Mixed Kubota tractor fleets may present 9702809500 together with Denso or 1545163010-series numbers already known to the parts department. The engine model and measured drive end decide whether the requirement belongs to the V4000/V4300 configuration shown here.

Send the tractor model, engine identity, complete old number and photographs of the pinion, face and terminals. Elecdura compares the 9T drive and two axial references, giving the distributor a technical description that supports both immediate repair and repeat fleet stock.

9702809500 Starter Motor Specifications and B2B Fitment Drawing

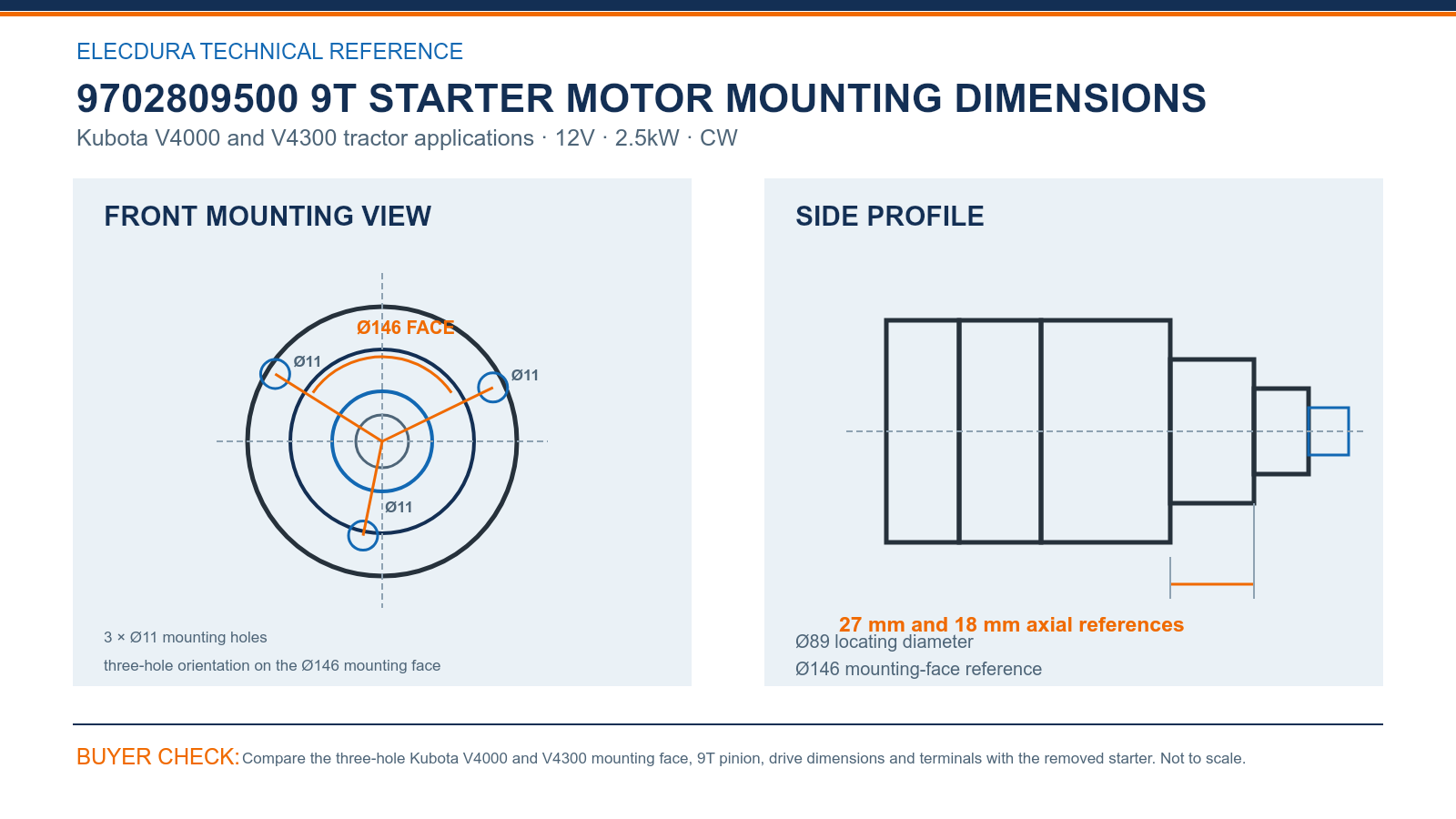

9702809500 9T starter motor mounting and drive-end dimensions for buyer-side comparison.

The 9702809500 drive end uses three Ø11 holes on the Ø146 face, an Ø89 locating diameter and two axial references of 27 mm and 18 mm. Recording both axial points is useful when a buyer is separating overlapping Kubota reference groups that share 12V, 2.5kW and 9T specifications.

Measure the removed starter and keep the V4000 or V4300 engine identity with the drawing comparison. The full face and pinion position give purchasing a stronger basis than an interchangeable number alone and help receiving retain the correct tractor application on the carton description.

9702809500 Starter Motor OE Family Boundaries for Kubota Importers

028000-5000 through 028000-5004, the 1545163010-series references, 7000063555 and 7000073470 can be useful in a 9702809500 inquiry. They should remain attached to the engine and old-unit information supplied by the customer.

1. Confirm 12V, 2.5kW, 9 teeth, module 3 and CW.

2. Compare the Ø89 locator, Ø146 face and three Ø11 holes.

3. Check both 27 mm and 18 mm axial references.

If another Kubota item in the warehouse has different engine coverage or geometry, keep its demand separate until the physical comparison is complete.

9702809500 Starter Motor Mixed-Fleet Stock Planning for Agricultural Distributors

Distributors serving both V4000 and V4300 customers can plan quantity by engine group while using a common 9702809500 technical label for units that pass the same physical checks. Branch or customer barcodes may be added without removing the 9T and face information.

Provide active fleet counts, prior demand, opening quantity, destinations and target dates. Elecdura can review neutral or private-label packaging and staged delivery. The video below shows assembly and electrical testing for buyers evaluating repeat agricultural supply.

The production video supports factory review for distributors building V4000 and V4300 replenishment stock.

9702809500 Starter Motor Wholesale FAQ

When is 9702809500 the most useful number for a tractor inquiry?

Use 9702809500 when it appears on the old unit or customer document and the requirement serves an identified V4000 or V4300 application. Keep any accompanying Denso or Kubota numbers as cross references. The primary number, engine identity, 9T drive and three-hole geometry together provide a clear basis for the quotation.

What V4300 information should accompany 9702809500?

Provide the tractor or machine model, V4300 engine identity, serial information where available and the complete old starter label. Add straight photographs of the 9T pinion, face and terminals. These details show whether the installed unit agrees with the 9702809500 configuration rather than assuming every V4300 starter is identical.

How should 028000-5000 be treated within this OE family?

Keep it as a traceable cross reference when it appears with the old unit, but do not let the number replace the engine and physical comparison. Confirm V4000 or V4300 coverage, 12V 2.5kW 9T specifications, mounting face and terminals. Separate any warehouse item whose application or measured geometry differs.

Why does the drawing show both 27 mm and 18 mm axial references?

The two dimensions describe different points along the drive end and help show the pinion and nose position more completely. Compare both with the removed starter rather than selecting only the easier measurement. This is valuable when related Kubota starters share the same tooth count and a similar triangular flange.

Are matching voltage, power and tooth count enough for 9702809500?

No. Those values narrow the choice, but the module 3 gear, three Ø11 holes, Ø89 locator, Ø146 face, axial references and terminal direction must also agree. A unit can share 12V, 2.5kW and 9T yet use another mounting or pinion position that does not suit the identified tractor.

How should a distributor divide V4000 and V4300 quantities?

List the active machines, prior demand and required quantity for each engine group. Where the installed starters agree with the same 9702809500 configuration, production and freight may be combined. Keeping the application split visible still helps the buyer understand consumption and set more accurate branch replenishment levels.

Can customer barcodes be added to 9702809500 cartons?

Yes, when the buyer provides the data format, carton text, quantities and destination marks. The technical identity should continue to show 9702809500, 12V, 9T and a traceable lot. This allows the customer's barcode system to support its own stock process without removing the fitment information used during sourcing.

What produces a useful V4000 V4300 stock proposal?

Send the complete reference group, engine and tractor details, old-unit photographs, opening quantity, estimated annual demand, destinations, target dates and packaging preference. Elecdura can then address physical comparison, price, labeling and delivery for the confirmed 12V 2.5kW 9T starter across the stated fleet and seasonal agricultural demand.

Request a 9702809500 Starter Motor Wholesale Quote

Send 9702809500 or the complete Denso and Kubota number, V4000 or V4300 engine and tractor details, face, pinion and terminal photographs, quantity by application and destination. Elecdura will quote the 12V 2.5kW 9T CW starter with OE comparison, packaging and delivery terms.

If another warehouse item carries an overlapping Denso number, include its engine coverage and drive-end measurements so the two requirements can be compared before quantities are combined.
