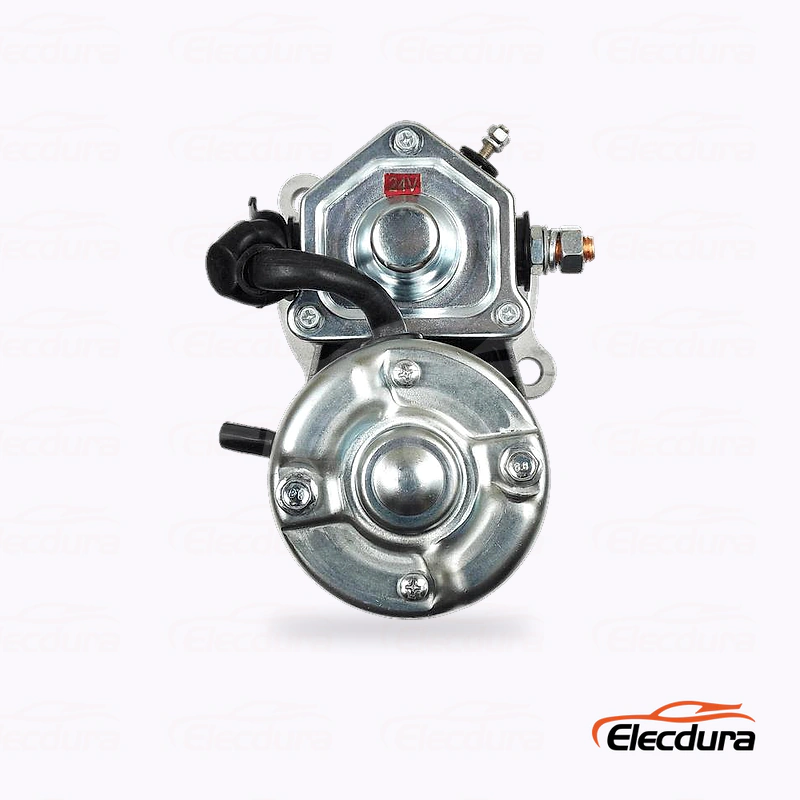

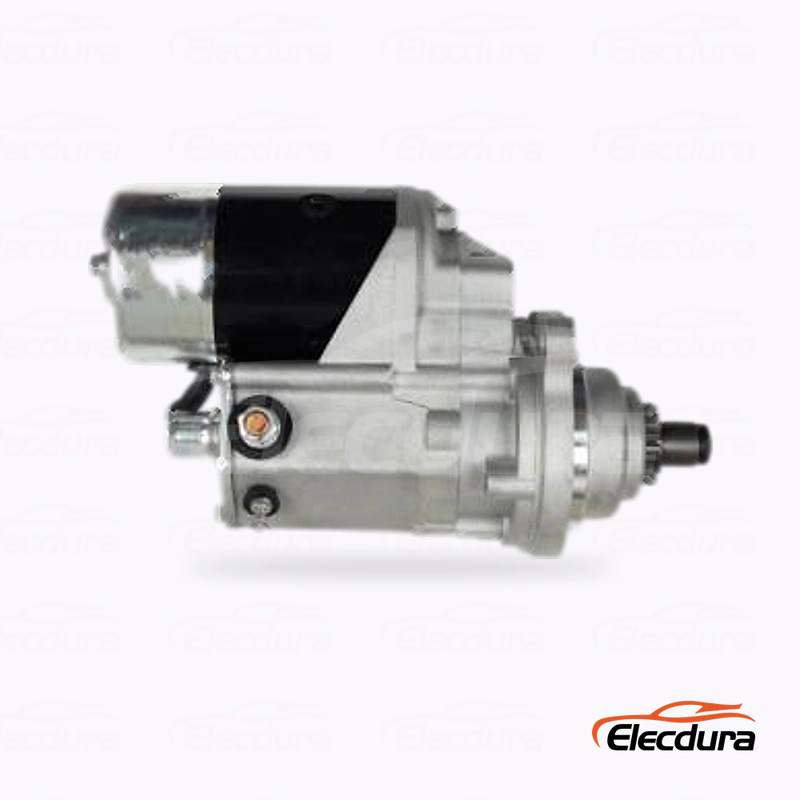

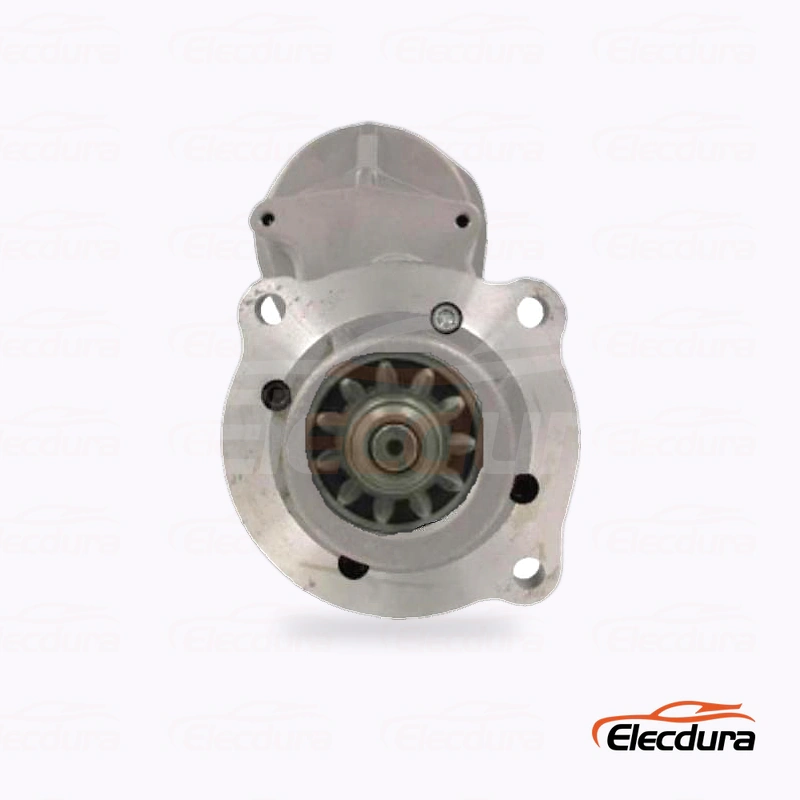

D13E101 Volvo TD100B Starter Motor Wholesale 24V

D13E101 Wholesale Starter Motor for Volvo TD100B-powered F10 trucks

For Volvo F10 specialists maintaining TD100B trucks and planning stock for older commercial fleets, confirm D13E101 with an 11T module-3 drive and the TD100B application before quoting D13E101. Legacy Volvo references circulate across markets, while output and housing assumptions can vary between sellers.

Include F10 chassis, TD100B engine data, all old-unit markings, nose and terminal photographs, first-order quantity and shipment timing for D13E101 11T. This gives sales and technical teams enough information to quote the correct starter for Volvo TD100B-powered F10 trucks without relying on a broad application name.

D13E101 Starter Motor Dimensions for Volvo TD100B Distributors

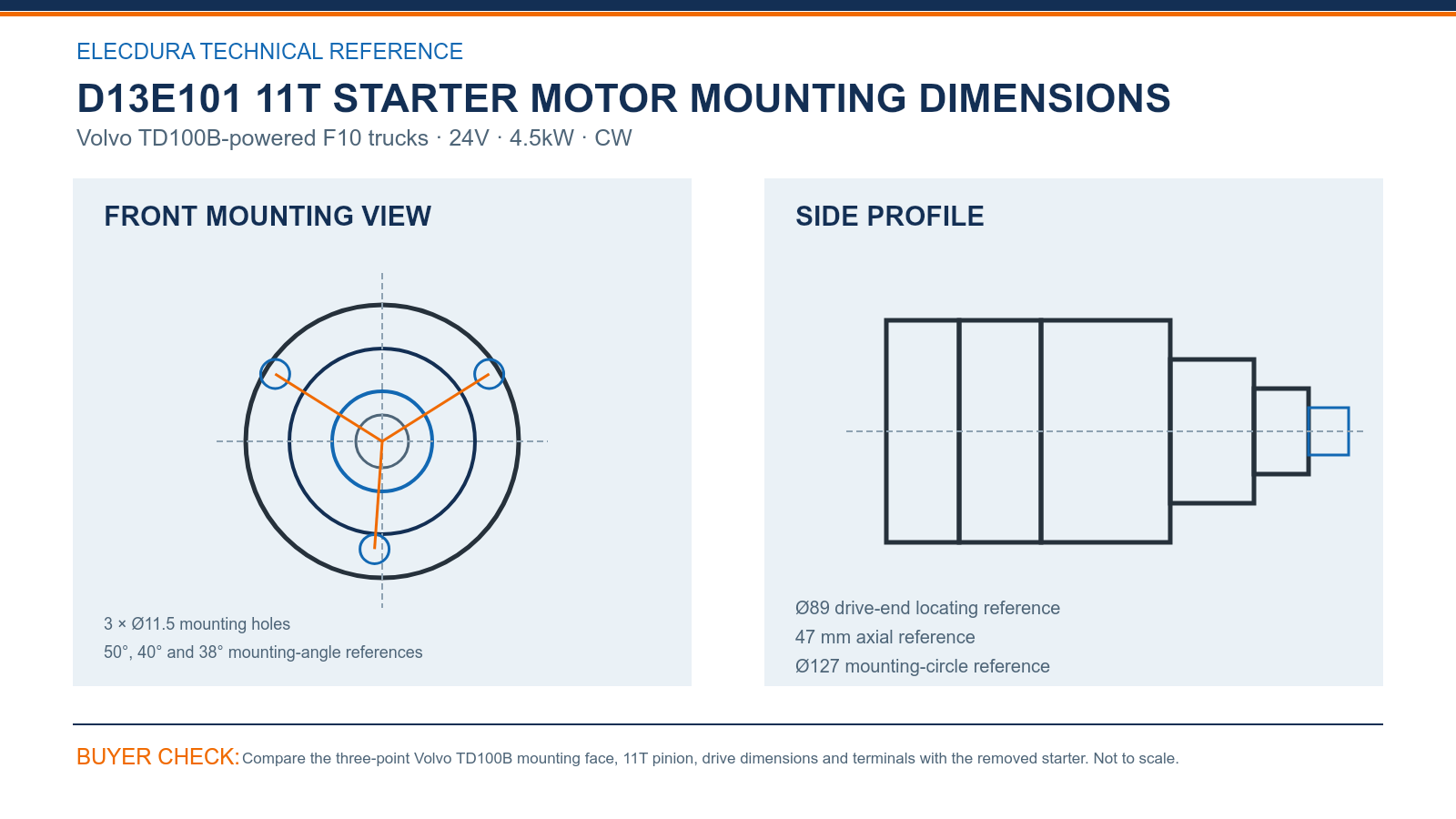

D13E101 Volvo TD100B 24V 4.5kW 11T starter mounting dimensions.

The D13E101 11T drawing highlights 3 × Ø11.5 mounting holes together with Ø127 mounting-circle reference. Those fixed points are more useful than overall motor shape when checking Volvo TD100B-powered F10 trucks.

Keep the D13E101 11T dimensions together with 24V, 4.5kW, 11T, module 3, CW. Before warehouse entry, compare the 11T pinion, three Ø11.5 holes, Ø89 location, 47 mm axial reference and solenoid side; isolate any changed construction or shipping damage.

D13E101 Starter Motor Cross-References and Fitment Checks

1. Reference group: Begin with D13E101 11T and record every complete number on the removed unit. Related references help locate D13E101 11T, but buyers must still confirm D13E101 with an 11T module-3 drive and the TD100B application.

2. Physical confirmation: Cross-references narrow the D13E101 11T search; they do not replace the 11T pinion, mounting face and terminal check. Record those physical points on the purchase order.

D13E101 Starter Motor MOQ, Lead Time and Export Supply

D13E101 11T is available for distributor orders from 20 pieces, normally within 7–15 days after confirmation, with an 18-month warranty under agreed terms. A practical stock approach is to forecast from the active F10 fleet, workshop withdrawals and lead time rather than general Volvo starter sales.

Before releasing D13E101 11T, compare the 11T pinion, three Ø11.5 holes, Ø89 location, 47 mm axial reference and solenoid side. Shipping damage to D13E101 11T or a changed construction should stay outside saleable inventory until the difference is resolved.

The following video introduces Elecdura manufacturing and electrical test capability. For D13E101 11T, product selection still follows the complete reference, physical checks, quantity and delivery requirement.

D13E101 Starter Motor FAQs for Volvo Parts Buyers

How can buyers distinguish D13E101 11T from a similar starter?

Legacy Volvo references circulate across markets, while output and housing assumptions can vary between sellers. Confirm D13E101 11T by comparing D13E101 with an 11T module-3 drive and the TD100B application against the old unit's label, pinion and terminals. Keep Volvo TD100B-powered F10 trucks on the enquiry; a matching rating or housing is not enough.

Which details are needed for a D13E101 11T wholesale quotation?

Send F10 chassis, TD100B engine data, all old-unit markings, nose and terminal photographs, quantity, destination and target date for D13E101 11T. For Volvo TD100B-powered F10 trucks, separate urgent service from forecast stock and note packing or branch-allocation needs. Elecdura can then price 24V, 4.5kW, 11T, module 3, CW with MOQ, timing, warranty and freight options for D13E101.

What drive-end dimensions should be compared for D13E101 11T?

For D13E101 11T, compare 3 × Ø11.5 mounting holes, Ø89 drive-end locating reference and 47 mm axial reference. Relate those dimensions to Ø127 mounting-circle reference and the 11T pinion for Volvo TD100B-powered F10 trucks. Request a square-on drive-end photograph, because an oblique view may misrepresent hole position, pilot diameter or pinion depth for Volvo TD100B-powered F10 trucks.

How should distributors plan stock for D13E101 11T?

Forecast from the active F10 fleet, workshop withdrawals and lead time rather than general Volvo starter sales. Plan the D13E101 11T reserve from supported machines, recent withdrawals and transfer time. Keeping the Volvo TD100B-powered F10 trucks and drive description on the bin helps branches avoid issuing another Volvo starter during an urgent repair.

Which electrical checks should precede starter replacement on Volvo TD100B-powered F10 trucks?

Verify the battery bank, ground path and start-control signal on the truck before replacing D13E101. After removing the old starter from Volvo TD100B-powered F10 trucks, examine the installed face, drive gear and ring gear for damage. Those readings on Volvo TD100B-powered F10 trucks distinguish starter condition from weak batteries, cable resistance, poor grounding, a start-control fault or mechanical resistance.

What belongs in receiving inspection for this Volvo starter?

Compare the 11T pinion, three Ø11.5 holes, Ø89 location, 47 mm axial reference and solenoid side. Match the D13E101 11T label and 24V, 4.5kW, 11T, module 3, CW specification to the order, photograph the confirmed construction and retain the shipment lot. Isolate damaged connections, changed flanges or different pinions before releasing stock for Volvo TD100B-powered F10 trucks.

What should remain on a repeat order for Volvo TD100B-powered F10 trucks?

Keep D13E101 11T, Volvo TD100B-powered F10 trucks, the confirmed product photographs and the previous shipment result on the repeat order. Add new quantity, destination, target date and packing instructions. This helps support aging F10 fleets with a product definition that remains stable across repeat wholesale orders.

Which records support an after-sales review for Volvo buyers?

Provide vehicle mileage, complaint conditions, delivery batch, installation date, cranking readings and returned-unit images for a D13E101 11T review. For Volvo TD100B-powered F10 trucks, record when the fault occurred and attach cranking measurements plus matched views of both units. This helps Volvo buyers separate product condition from installation, electrical-system, transport or application causes for Volvo TD100B-powered F10 trucks.

Request D13E101 Starter Motor Wholesale Pricing

Email F10 chassis, TD100B engine data, all old-unit markings, nose and terminal photographs, quantity, destination and arrival date to info@elecdurauto.com. Elecdura will quote D13E101 with MOQ, packing, lead time, warranty and freight options for the specified 24V, 4.5kW, 11T, module 3, CW unit.
