M003T90071 Ford E350 7.3L 13T Starter Motor Wholesale

M003T90071 Ford E350 Starter Motor Sourcing for Mixed Fleet Buyers

Ford van fleets, Bobcat service companies and Cummins equipment distributors can all present numbers from this family, but their installed starters should not be pooled before the drive is checked. This offer is the 13T M003T90071 configuration.

Send the host vehicle or machine, engine details, complete old label and straight photographs of the pinion, mounting face and terminals. Elecdura can then prepare one clear commercial offer for the matching units and keep any different pinion demand on a separate line.

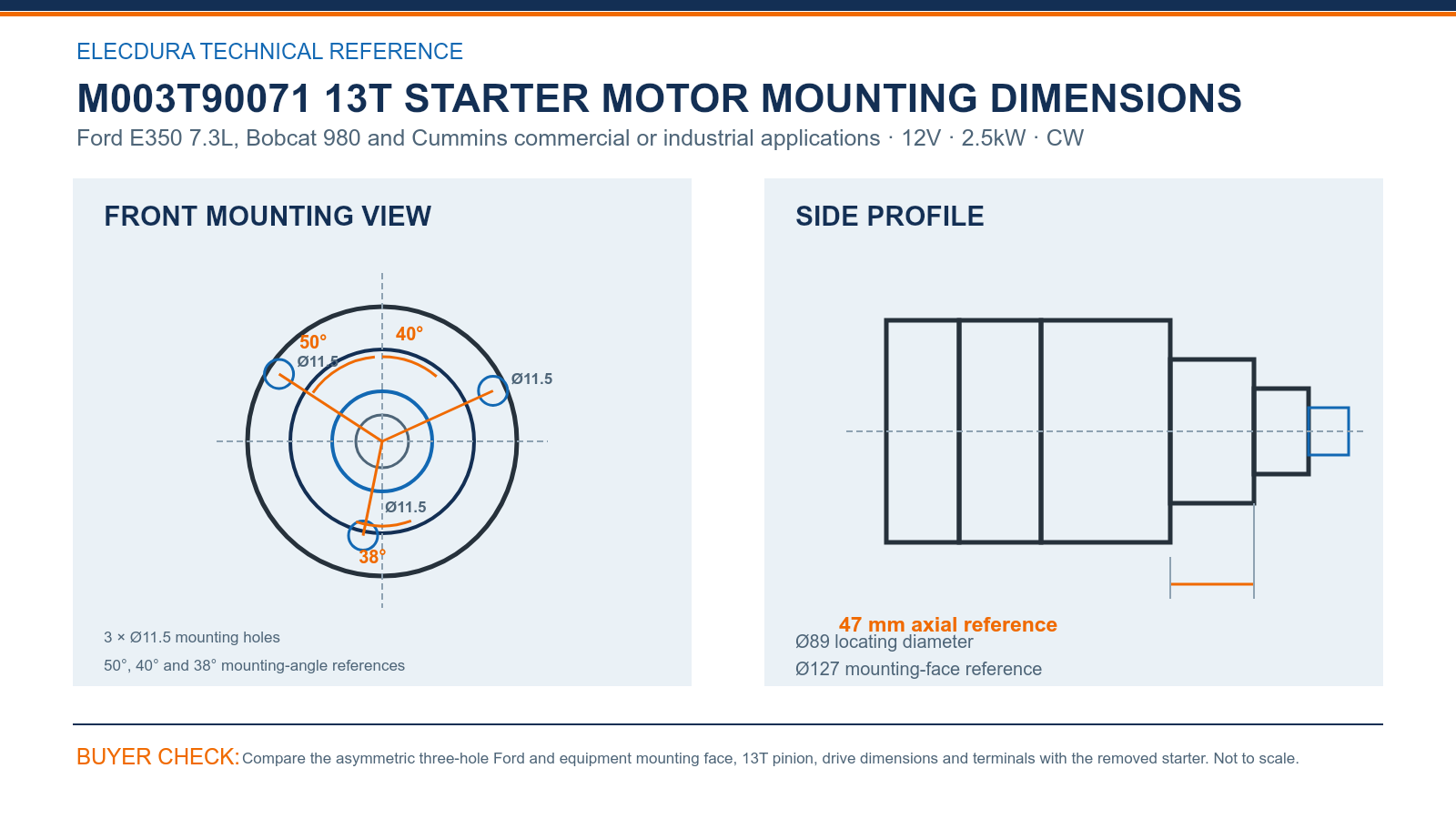

M003T90071 Ford E350 13T Starter Motor Specifications and Fleet Fitment Drawing

M003T90071 13T starter motor mounting and drive-end dimensions for buyer-side comparison.

The M003T90071 drive end uses three Ø11.5 holes at 50°, 40° and 38°, an Ø89 locator, Ø127 mounting face and 47 mm axial reference. These dimensions belong to the 13T module 2.54 version and give workshops a direct way to separate it from related starters with another pinion.

Keep the drawing beside the Ford E350, Bobcat 980 or Cummins application details. A square face photograph and end-on pinion image let purchasing and receiving teams compare the same physical points before mixed-customer cartons are released.

M003T90071 Starter Motor Cross-Reference Checks for Ford Parts Importers

M003T90072, M3T90071, M3T90072, 17037N and the Ford E3TF, E3TZ, E4TF and E4TZ numbers are useful purchasing references. The Delco, Cummins, Case and Cargo numbers can also appear in this broad family.

1. Retain the full prefix and suffix from the removed unit.

2. Confirm 12V, 2.5kW, 13 teeth, module 2.54 and CW.

3. Compare the three-hole face and terminal side before combining quantities.

This gives buyers a usable interchange group without treating the shared numbers as proof that every pinion version is identical.

M003T90071 Starter Motor Wholesale Packing for Ford and Equipment Channels

A distributor may consolidate matching M003T90071 units while marking cartons by Ford E350, Bobcat or Cummins customer group. Elecdura can review neutral packing, private labels, barcodes and destination marks after the technical identity and quantities are clear.

Provide the volume for each channel, delivery country, target date and expected reorder cycle. The video below shows starter assembly and electrical testing for buyers evaluating a long-term mixed-fleet supply program.

The production video helps vehicle and equipment distributors assess Elecdura manufacturing and test capability before discussing the first M003T90071 order.

M003T90071 Starter Motor Wholesale FAQ

How should Ford E3TF and E3TZ references be supplied?

Copy the complete prefix, digits and suffix from the removed starter or service document rather than shortening the Ford number. Add M003T90071, the vehicle year and 7.3L engine details, then confirm the 13T drive and mounting face. Complete Ford numbers give the supplier and buyer a traceable route back to the original inquiry.

Can Bobcat 980 and Cummins quantities share one order?

They can share production and freight after each installed unit agrees with the 13T M003T90071 configuration. Keep the Bobcat machine serial or Cummins engine identity beside each quantity, and use separate carton marks when customers or destinations differ. This preserves application clarity while still allowing a distributor to use combined buying volume.

Which mounting dimensions identify the M003T90071 version?

Compare three Ø11.5 mounting holes, the 50°, 40° and 38° angle references, the Ø89 locating diameter, Ø127 mounting face and 47 mm axial point. Measure the removed starter and photograph the face squarely. The complete geometry is more useful than comparing paint, solenoid finish or the general motor-body shape.

Why must M003T90071 be separated from other pinion versions?

Several cross references can appear around different drive versions, while this product is the 13-tooth configuration. Clean and count the old pinion, photograph it from the end and keep any different requirement on another RFQ line. That distinction prevents a purchasing team from receiving two mechanically different starters under one family description.

Can M003T90071 cartons be marked for different customer channels?

Yes. Supply the Ford, Bobcat and Cummins customer quantities, barcode format, carton wording and destination marks. The technical label should retain M003T90071, 12V, 13T and a traceable shipment lot. Channel-specific marks can then direct matching units to the correct customer without weakening the starter identity.

Which starting symptoms should accompany an M003T90071 inquiry?

Describe whether the engine cranks slowly, the solenoid clicks without rotation, the pinion fails to engage, or the starter remains engaged after the engine starts. Add battery voltage and cable-condition findings from the Ford, Bobcat or Cummins application. These details help separate a starter request from a battery, cable or ring-gear problem before parts and freight are committed.

What evidence helps with an M003T90071 warranty review?

Keep the carton label, shipment lot, installation date and the application assigned to the unit. If a problem occurs, record battery voltage during cranking and provide clear views of the pinion, mounting face and terminals before disassembly. This gives Elecdura enough product and operating context to assess the claim without mixing another pinion version or differently mounted starter into the case.

How should a mixed-fleet M003T90071 quotation be separated?

List Ford E350, Bobcat 980 and Cummins demand on separate lines with the full reference, engine or machine identity, quantity, destination and packing mark. Identify any different pinion as another line. Elecdura can then return pricing, fitment comments, labeling choices and delivery timing for each confirmed 13T requirement while still combining compatible quantities for production and freight.

Request a M003T90071 Starter Motor Wholesale Quote

Send M003T90071 or the complete Ford, Cummins, Delco, Case, Cargo or CAS number, the E350, Bobcat or engine details, pinion and face photographs, quantity by application and destination. Elecdura will quote the 12V 2.5kW 13T CW starter with fitment, packing and delivery terms.

If the inquiry also includes a unit with another pinion, list it separately with its own images and quantity so both configurations remain clear through quotation, labeling and receiving.
