M00A0301 Daewoo DH220-3 Starter Motor Wholesale 24V

M00A0301 Daewoo DH220-3 Starter Motor for Excavator Supply

Excavator service orders often arrive with an engine name but incomplete machine information. Adding DH220-3, D1146, machine serial and the full old-starter marking helps the response address the actual installation, expected quantity and delivery urgency instead of offering a generic Doosan-engine starter.

M00A0301 may be written as M000A0301 or TM000A0301, but spelling variation does not remove the need for physical comparison. Confirm the 11T pinion, three Ø13 holes, nose length and solenoid side before assigning the unit to a repaired or repowered machine.



M00A0301 Doosan D1146 24V Starter Motor Specifications

The defined electrical and drive set is 24V, 6.0kW, 11T, module 3 and clockwise rotation. Its 6.0kW output suits heavy diesel cranking, while the pinion and flange determine whether that output can be delivered through the intended D1146 installation.

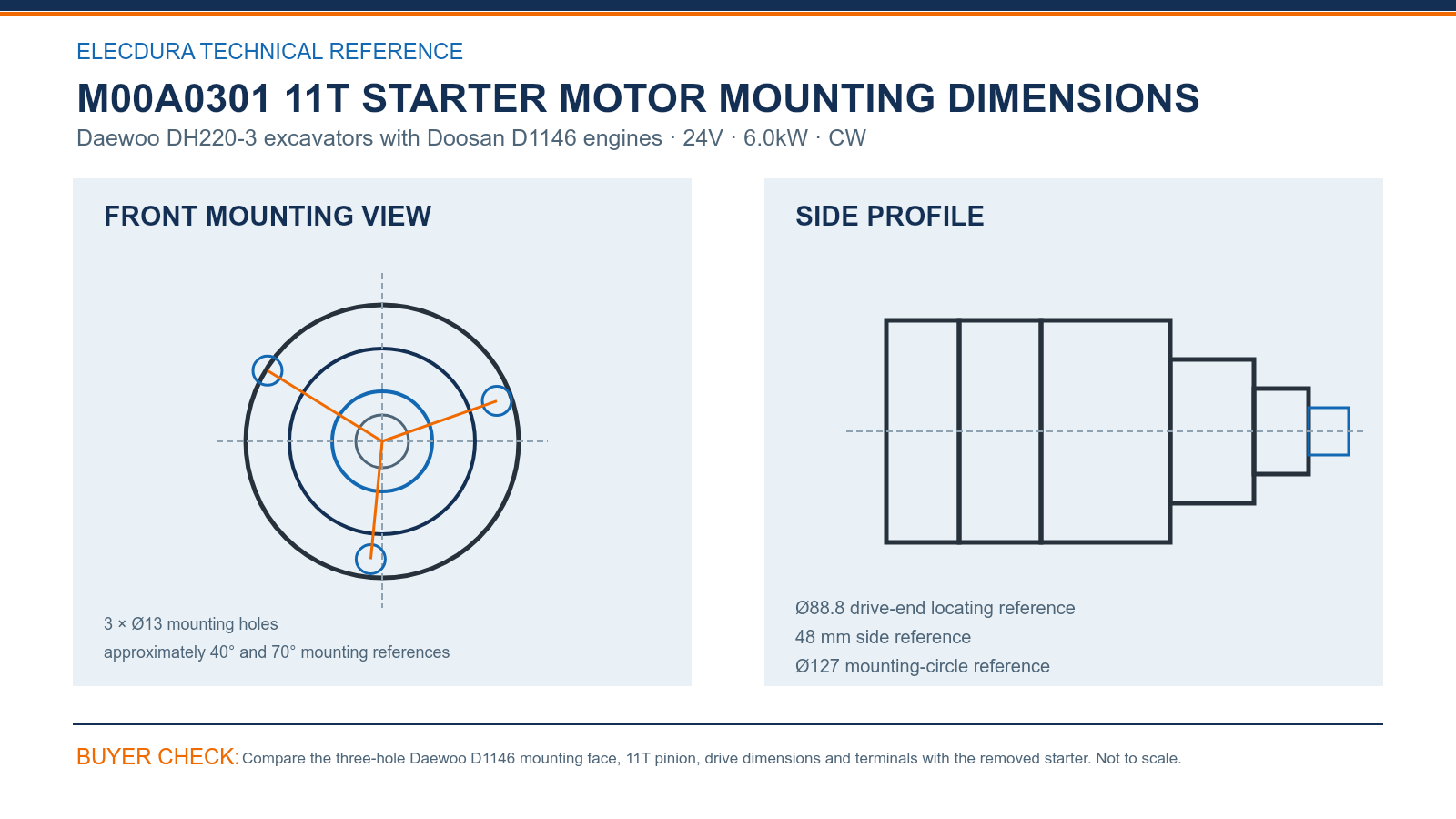

M00A0301 Daewoo DH220-3 Starter Motor Dimensions for B2B Supply — compare the drawing with the removed starter before placing a volume order.

Use the Ø127 mounting circle, three Ø13 holes, Ø88.8 locating reference and 48 mm side dimension as the main drawing checks. The roughly 40° and 70° ear positions should be compared from a straight front view rather than estimated from an angled product photograph.



M00A0301 Daewoo Starter Motor Fitment and OE Checks

Useful search numbers include M00A0301, M000A0301, TM000A0301, 526-201-7124, 26201-7049, M35017 and S9211. Keep Daewoo DH220-3 and Doosan D1146 on the same request so similar Mitsubishi-style units are not combined only because their numbers look related.

An excavator-parts importer can separate demand by machine customer while using one supply line where the D1146 starters agree. Photograph repaired housings individually; welding, changed terminals or non-original nose pieces can make one old sample unsuitable as the reference for the whole fleet.



M00A0301 Starter Motor Support for Excavator Service

For incoming units, inspect the nose casting, 11T pinion, three ears and terminal insulation before sampled electrical testing. Export cartons should prevent the heavy starter from shifting and should identify M00A0301 and D1146 clearly for warehouse staff who may receive several excavator starter families together.

Elecdura's video presents starter production and electrical testing for wholesale buyers. Excavator distributors can combine that factory review with machine-specific matching, first-lot checks, protected packing and delivery planning for field-service and branch-stock requirements.



M00A0301 Starter Motor FAQs for B2B Buyers

How should Daewoo and Doosan names be used in an M00A0301 request?

Use Daewoo DH220-3 for the excavator and Doosan D1146 for the engine, then add the complete starter number and machine serial. The two brands describe different parts of the application. Keeping both with the 11T photographs gives Elecdura a clearer basis than a request that says only Doosan starter or Daewoo excavator.



Are M00A0301 and M000A0301 treated as the same search route?

They can be reviewed within the same reference family, along with TM000A0301 and 526-201-7124. Copy the number exactly as printed and attach the D1146 engine and physical views. This prevents a spelling variation from hiding a different starter while still allowing purchasing to search the common Mitsubishi-style number group efficiently.



Which drive details should a DH220-3 workshop photograph?

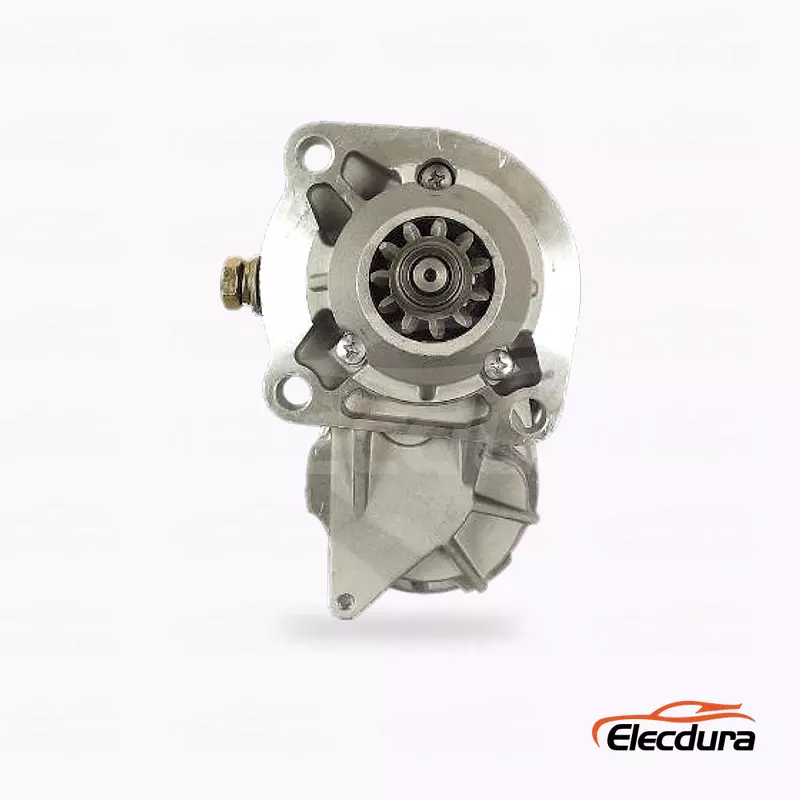

Take a close, centred image showing all eleven teeth and a side view of the pinion at rest. Record module 3 and clockwise rotation with the 24V 6.0kW specification. These checks keep the actual gear interface visible when the old label is worn or the excavator has received a replacement starter before.



What dimensions help confirm the M00A0301 mounting face?

Compare the three Ø13 holes on the Ø127 circle, the Ø88.8 locating diameter and the 48 mm side reference. Check the approximate 40° and 70° ear positions from a square front photograph. Measure a trusted old starter or sample rather than scaling the illustration from a screen.



How should a repaired old starter be used for product matching?

Photograph repairs, welded ears, replacement nose pieces and changed terminals separately. A repaired starter can still provide useful pinion and application evidence, but one altered feature should not define the new product. Compare it with another trusted unit or measured machine interface before consolidating a larger M00A0301 order.



What diagnostic information is useful before replacing the D1146 starter?

Test the 24V battery bank under load, record positive and ground voltage drop, and confirm the solenoid start signal. Note whether the starter clicks, turns slowly or grinds. Sharing these observations with the M00A0301 enquiry helps separate machine wiring and ring-gear problems from a starter-related fault and reduces avoidable returns.



What should an excavator-parts importer inspect on arrival?

Check carton support before removing samples, then inspect the nose casting, eleven-tooth pinion, three ears and terminal insulation for transport damage. Compare labels and photographs across several cartons and record the lot. Hold any unit with a different flange or connector side until purchasing reviews it against the D1146 product description.



What information produces an actionable M00A0301 wholesale response?

Send the DH220-3 model and serial, D1146 engine, every readable reference, square flange, pinion and terminal photographs, required quantity, target date, packing request and destination. Elecdura will compare the specified M00A0301 unit and return product feedback, wholesale pricing, lead time and export-delivery choices for the excavator-parts order.



Request M00A0301 Daewoo DH220-3 Starter Motor Pricing

Email the DH220-3 machine and D1146 engine details, every old-starter number, clear drive-end, side and terminal photographs, quantity, target date and destination to info@elecdurauto.com. Elecdura will compare M00A0301 and respond with wholesale pricing, lead time and packing options.
