New Holland 12V 2.5kW 10T
New Holland application / 12V / 2.5kW / 10T / module 3.175 / CW / large three-hole mounting
Elecdura
Available for wholesale supply
20 pcs
7 - 15 Days
Neutral packing or customized packing after confirmation
18 Months
New Holland application / 12V / 2.5kW / 10T / module 3.175 / CW / large three-hole mounting
New Holland agricultural or industrial application to be matched by host model and removed unit
New Holland agricultural or industrial application to be matched by host model and removed unit
| Quantity: | |
|---|---|
New Holland service inquiries may arrive with a faded label or only the machine description. This configuration becomes useful for purchasing when the host model, engine, 10T pinion and large Ø16-hole mounting face are recorded together.
Send the machine and engine plates, every readable old-unit character, plus installed and bench photographs. Elecdura can then quote the measured configuration for the intended agricultural service channel with clear fitment, packing and delivery information.
Primary product identity | New Holland 12V 2.5kW 10T |
Target application | New Holland agricultural or industrial application to be matched by host model and removed unit |
Voltage and output | 12V / 2.5kW |
Pinion, module and rotation | 10 teeth / module 3.175 / CW |
Mounting-hole reference | 3 × Ø16 mounting holes; 46°, 74° and 14° mounting-angle references |
Drive-end reference | Ø99 locating diameter; 43 mm axial reference; Ø146 mounting-face reference |
Product identification basis | New Holland application / 12V / 2.5kW / 10T / module 3.175 / CW / large three-hole mounting |
Wholesale terms | MOQ 20 pcs / normally 7–15 days after order confirmation |
Warranty | 18 months under agreed sales terms |

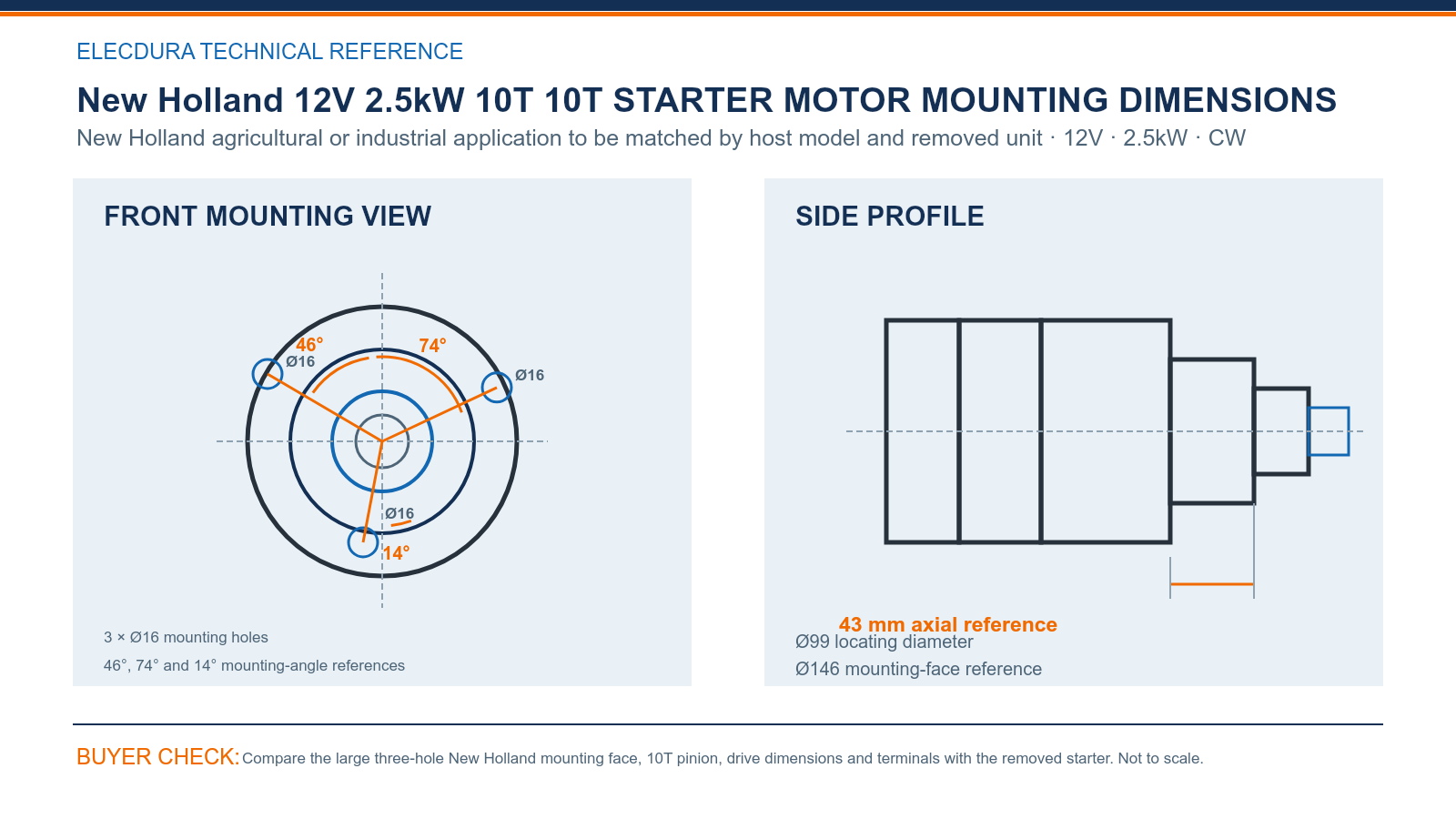

New Holland 12V 2.5kW 10T starter motor mounting and drive-end dimensions for buyer-side comparison.
This New Holland starter uses three Ø16 holes at 46°, 74° and 14°, an Ø99 locating diameter, Ø146 mounting face and 43 mm axial reference. The large mounting ears provide an immediate difference from common New Holland starters with smaller bolt holes.
The 10T module 3.175 pinion, installed cable side and host machine should all agree with the removed unit. Keeping these measurements with the customer inquiry gives the distributor a repeatable purchasing identity for later quotation, receiving and replenishment.
For a reliable quotation, combine 12V, 2.5kW, 10 teeth, module 3.175 and CW with the measured three-hole drive end. Keep the customer's machine details attached to the request.
Measure three Ø16 mounting holes.
Compare 46°, 74° and 14° angle references.
Check the Ø99 locator, Ø146 face, 43 mm axial point and terminals.
Another New Holland starter with smaller holes or a different face should remain a separate purchasing line.
Agricultural-parts distributors can base the opening quantity on confirmed machines that share the same face and electrical specification, then retain installed results from the first service jobs. Elecdura can review protective packing for the large mounting ears and clear carton descriptions.
Provide machine counts, seasonal demand, initial quantity, destination and expected reorder interval. The video below shows starter assembly and electrical testing for buyers assessing factory support before introducing a new New Holland stock line.
The production video helps New Holland parts distributors evaluate Elecdura manufacturing and testing while host-equipment and old-unit checks remain central to fitment.
The large mounting holes are an immediate physical checkpoint and help separate this unit from New Holland starters using smaller bolts or another face. Compare all three holes, the 46°, 74° and 14° references, Ø99 locator and Ø146 face. One matching dimension alone is not enough to identify the complete drive end.
Provide the machine model and serial, engine model and serial, year when known, complete workshop description and photographs of the installed starter. Add the old-unit markings, 10T pinion, mounting face and terminal images after removal. These details connect the measured starter configuration to the intended machine and give Elecdura enough context for useful fitment and commercial guidance.
Use the machine model and serial, engine details, every readable old-unit marking and the complete 12V 2.5kW 10T CW configuration. The three Ø16 holes, Ø99 locator, Ø146 face and 43 mm axial reference add measurable identity. Together, these details let Elecdura quote the required starter without relying on a broad New Holland application description.
Photograph every readable digit and symbol under even lighting before and after cleaning the surface gently. Include the label's position on the unit and add pinion, mounting-face and terminal views. Partial characters can still help when combined with the New Holland host and exact dimensions, so they should not be replaced by a guessed number.
Use internal support that prevents the three ears, 10T pinion and cable studs from striking the carton. The starter should not move under normal handling, and moisture protection may be added for longer storage. Label the carton with New Holland, 12V, 2.5kW, 10T and a traceable shipment lot.
Separate machines needed for planting or harvest from workshop replenishment and slower-moving reserve stock. Confirm that each machine uses the same 10T large-hole configuration before quantities are combined. Share the operating season, destination and required date with Elecdura so urgent agricultural demand and normal consolidated delivery can be compared in one practical purchasing plan.
Send the machine, engine and serial information, all readable old-unit markings, 10T pinion, three Ø16 holes, locator and face measurements, terminal view, quantity, destination, required date and packing preference. Elecdura can return a clearly identified quotation for the measured configuration and state any further fitment information needed before the order is confirmed.
Record the machine and engine, installation date, cable position, cranking response and whether the pinion engages and releases correctly. Keep the carton label and the measured large-face details with the repair. This gives the distributor a dependable reference for later replenishment and provides Elecdura with useful context if the customer raises a technical or after-sales question.
Send the New Holland machine model and serial, engine details, every readable old-unit number, installed and drive-end views, large-face measurements, quantity, destination and target date. Elecdura will compare the 12V 2.5kW 10T CW configuration and return a matched quotation with fitment, packing and delivery information.
Keep any New Holland starter with smaller mounting holes, a different locator or another tooth count on a separate RFQ line even when the machine description appears similar.
