RE40595 John Deere 4039 Starter Motor Wholesale 24V

RE40595 John Deere 4039 Starter Motor Value for Wholesale Buyers

John Deere 4039 equipment can remain in service across agricultural, industrial and construction fleets. RE40595 gives parts counters a recognized reference, while the engine, machine and removed starter establish the exact demand behind each order.

The RE and TY reference family supports product search but does not replace a physical comparison. Confirm the ten-tooth module-3.175 drive, two-ear flange, locating position and terminal layout before sending the starter to a remote machine.

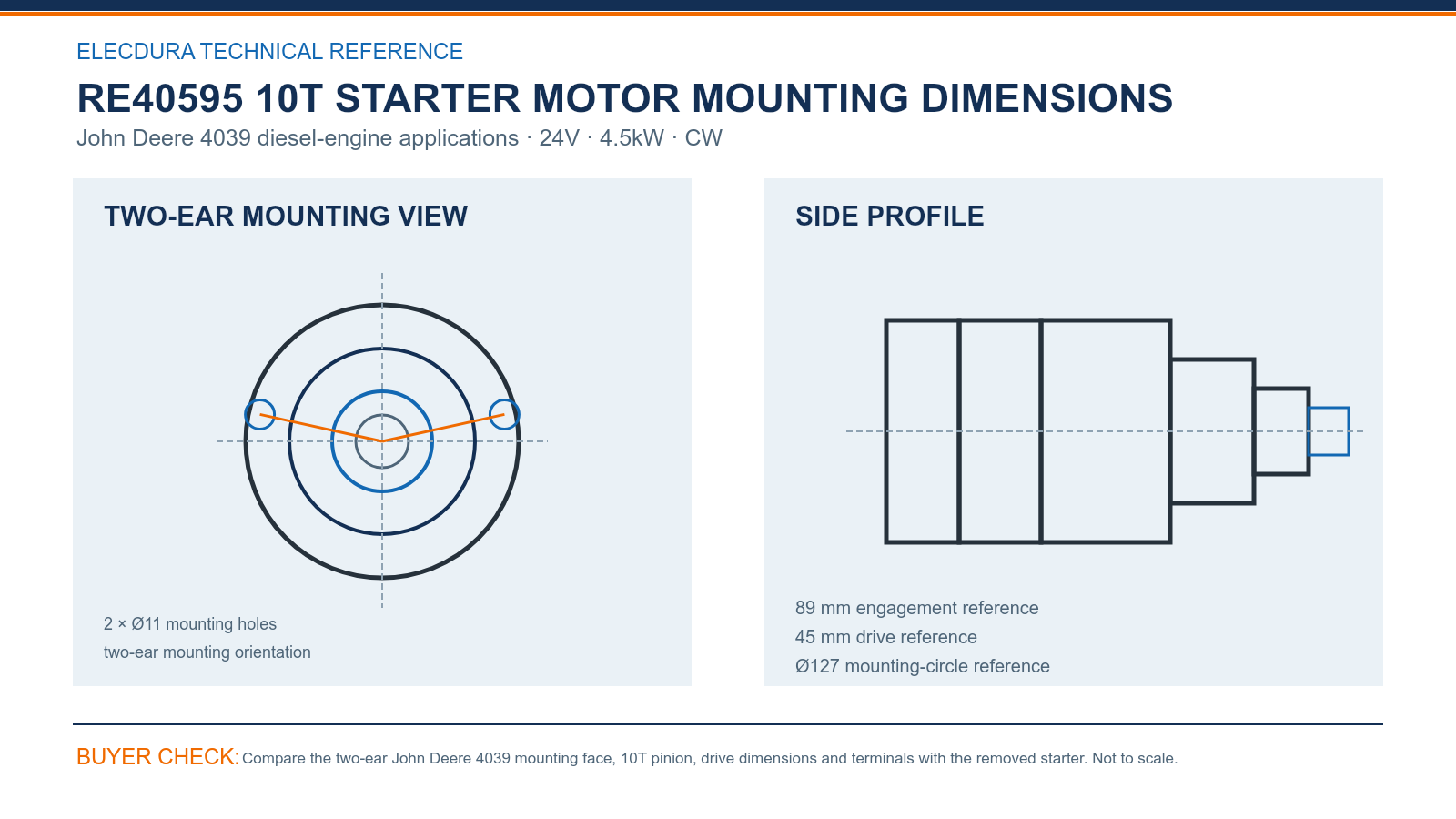

RE40595 Starter Motor Technical Drawing for Equipment Parts Matching

The specified configuration is 24V, 4.5kW, 10T, module 3.175 and clockwise rotation. These values should remain unchanged across the product table, drawing, quotation and receiving sheet so another John Deere starter is not substituted.

RE40595 Starter Motor Dimensions for John Deere 4039 Orders — compare the drawing with the removed starter before placing a volume order.

The drawing highlights two Ø11 mounting holes, a Ø127 mounting circle, 89 mm engagement reference and 45 mm drive position. A square front image of the old unit provides a direct check of the two-ear mounting relationship.

RE40595 Starter Motor OE Cross-Reference Checks for Distributors

RE40595, RE48827, RE527363, TY24442, TY25973 and the 128000-8300 family form a practical search group. Keep the 4039 engine and machine data on the enquiry to avoid widening the application beyond verified equipment.

Dealers serving farm and construction customers can allocate stock by machine population and seasonal exposure. Retaining the engine serial and accepted product image on the customer record improves picking speed during high-demand periods.

RE40595 Starter Motor Stock Planning and Factory Test Video

On the first shipment, sample the pinion, two-ear face, locating dimensions, terminal protection and electrical-test identification. Confirmed receiving records can then support branch replenishment and investigation without repeating the original selection work.

The video below introduces Elecdura starter assembly and electrical testing for B2B programs. John Deere distributors can review factory capability while defining seasonal quantities, carton labels, packing, delivery schedule and service-stock allocation.

RE40595 Starter Motor FAQs for B2B Buyers

What equipment information should identify an RE40595 enquiry?

State machine model and serial, 4039 engine details and removed-starter number on the enquiry before discussing quantity. Link that information to RE40595 and photographs showing the 10T module-3.175 drive, two-ear face, 4039 identity and terminal side. This keeps a recognized John Deere reference tied to the actual installation Retain the accepted 4039 machine and mounting comparison in the RE40595 reorder history.

Which numbers can procurement search with RE40595?

Cross-reference review should begin with RE40595, RE48827, RE527363, TY24442, TY25973 and 128000-8300 family. Keep the numbers attached to John Deere 4039 diesel-engine applications and verify the 10T module-3.175 drive, two-ear face, 4039 identity and terminal side before purchasing. This broadens search coverage without replacing application verification Attach the confirmed RE40595 comparison to the quotation so receiving can check the same product.

Which values define the RE40595 two-ear flange?

Measure 2 × Ø11 holes, Ø127 mounting circle, 89 mm engagement and 45 mm drive reference on the removed starter or a trusted sample. For RE40595, keep square front and side photographs showing the 10T module-3.175 drive, two-ear face, 4039 identity and terminal side. This confirms the exact drive end before field supply Keep the matched RE40595 images with branch stock details for future replenishment.

Why should 10T and module 3.175 stay together?

Keep 10 teeth, module 3.175 and clockwise rotation together in the RE40595 product description and purchase order. Compare the RE40595 pinion details, CW rotation and measured mounting interface rather than relying on one headline value. This separates the required gear form from another 24V John Deere unit Use the confirmed RE40595 combination on the purchase order and receiving sheet.

How can dealers plan RE40595 stock before peak field work?

Plan and label RE40595 stock from active 4039 equipment, seasonal workshop demand, rural delivery time and replenishment schedule. Keep the 10T module-3.175 drive, two-ear face, 4039 identity and terminal side visible on cartons, bin cards and branch transfers so urgent demand does not create a wrong substitution. This supports uptime without overstocking an undefined John Deere line

What packaging matters when the starter travels to a remote machine?

For long-distance delivery, give special protection to protected pinion, two-ear flange, solenoid studs, strong carton and clear product label. Photograph those areas when RE40595 arrives and check them against the 10T module-3.175 drive, two-ear face, 4039 identity and terminal side before installation. This reduces damage to the critical fitment areas during delivery Carry the agreed RE40595 identity through packing and branch-transfer documents.

Which evidence helps investigate a field return?

Before replacing the starter, check machine and engine serial, installation date, circuit readings, fitted-unit photographs and shipment lot. Keep the readings with the RE40595 request for John Deere 4039 diesel-engine applications so the circuit, ring gear and starter can be considered separately. This separates fitment, electrical-system and handling causes Retain the RE40595 comparison photographs with the delivery lot for after-sales review.

What commercial details improve an RE40595 supply proposal?

A quotation request should include quantity, seasonal forecast, branch split, packing or labels, required date and destination. Keeping those details with RE40595 lets sales address the product match and commercial terms in one response. This lets Elecdura propose terms suited to the dealer's actual program Include the confirmed RE40595 configuration in later forecasts and repeat purchases.

Request RE40595 John Deere Starter Motor B2B Pricing

Email the John Deere machine, 4039 engine and serial details, complete old-unit reference and photographs, quantity, required date and destination to info@elecdurauto.com. Elecdura will review RE40595 and prepare a wholesale supply proposal.
