RE525468 John Deere S680 Starter Motor Wholesale

RE525468 John Deere S680 Starter Motor Supply for Combine Distributors

A combine parts distributor normally needs two answers before adding RE525468 to stock: whether it is the 4.0kW S680 version and whether replacement units can reach the service network before harvest pressure begins. The complete John Deere reference and 11T drive should therefore lead the enquiry.

Send the S680 machine details, all numbers from the removed starter and photographs that show the mounting face, drive and cable side. Elecdura can compare the 92 mm engagement reference, three Ø13.5 holes and electrical data, then quote the required quantity with delivery and packing information.

RE525468 Starter Motor Fitment Data for Harvest Service Teams

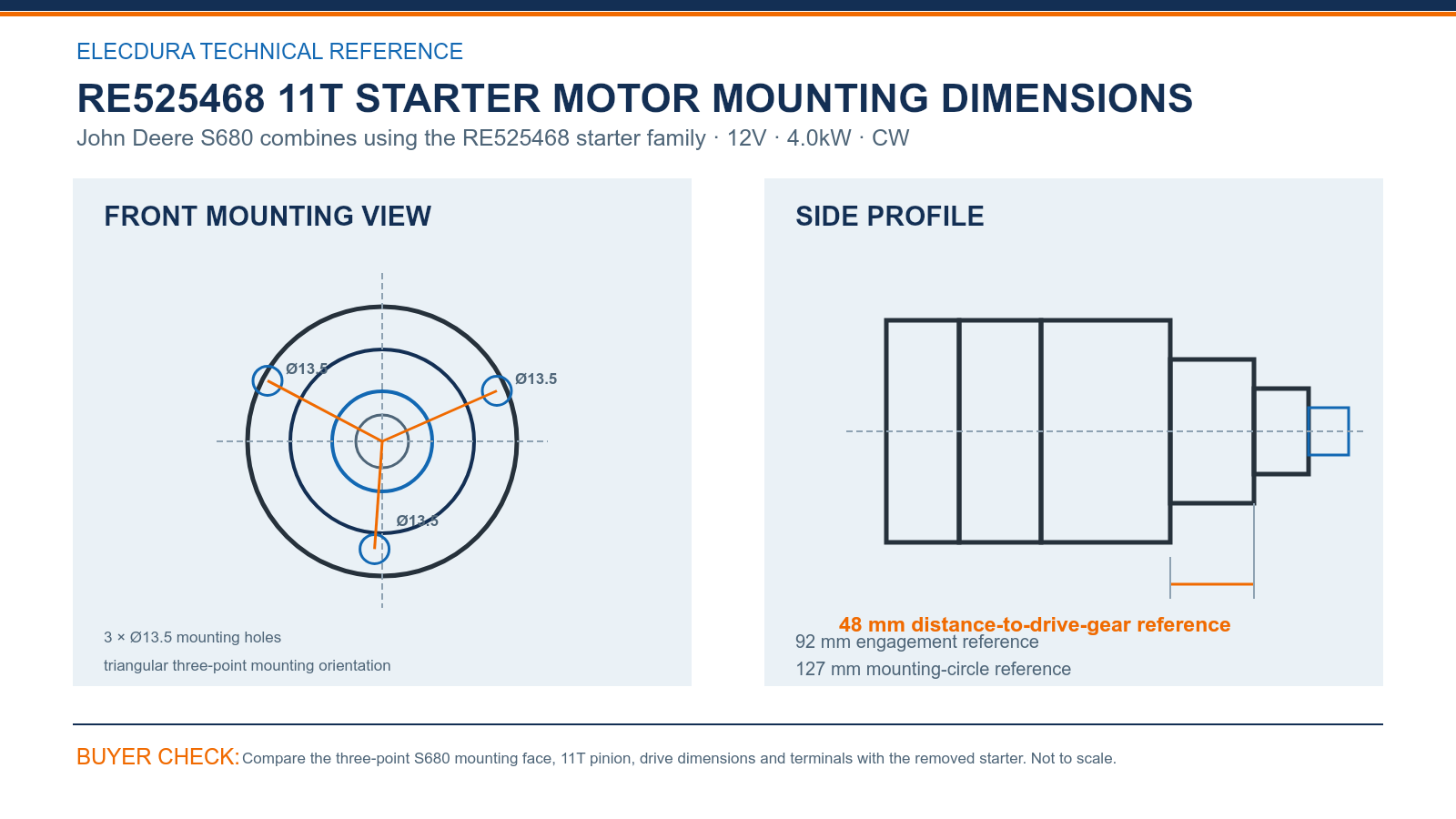

RE525468 John Deere 12V 4.0kW 11T starter mounting dimensions for buyer-side comparison.

The three-point face uses three Ø13.5 mounting holes on a 127 mm mounting-circle reference. A 92 mm engagement reference and 48 mm distance-to-drive-gear reference describe the drive-end position that service teams can compare before a machine is scheduled for work.

Photograph the old unit from directly in front of the flange as well as from the terminal side. Confirm 11T, module 3 and CW rotation with the 12V, 4.0kW specification; a neighbouring John Deere number with a different output rating should be quoted separately rather than assumed equivalent.

RE525468 Starter Motor Reference Checks for S680 Parts Orders

Use RE525468 / 428000-5530 / 428000-5531 / DSN2019 / 19853N as the searchable reference group. The strongest order description still combines RE525468, John Deere S680, 11T and the measured three-point face.

Harvest-service checkpoint: if the existing unit or quotation carries a different power rating, do not collapse it into this line. Return to the machine information and drive-end comparison before allocating stock.

RE525468 Starter Motor Stock Planning for Harvest Support

Pre-season stock should reflect the number of S680 combines served, distance between branches and the time required to move an emergency unit. Elecdura can discuss an opening quantity, later call-offs, neutral packing or customer labels after the exact RE525468 configuration is confirmed.

At arrival, compare the 11T pinion, mounting holes, cable position and full shipment label. Keeping the carton lot with the branch transfer record helps a distributor locate matching units quickly when a combine is waiting and also gives useful information for an after-sales review.

The following video presents Elecdura assembly and electrical-test capability for starter motors. For RE525468 supply, combine identity, fitment photographs, the specified 12V 4.0kW 11T data and delivery deadline remain the key quotation inputs.

RE525468 Starter Motor Questions from B2B Buyers

What makes RE525468 a harvest-critical purchasing item?

An S680 starter failure can stop a high-value machine during a narrow operating window, so price alone does not describe the purchasing risk. A distributor also needs a confirmed 11T configuration, realistic lead time and branch availability. Sharing the combine population and required date helps Elecdura prepare a supply response around uptime.

How should an S680 service team photograph the starter before removal?

Capture the installed cable routing first, then photograph every visible number. After removal, add a front-facing image of the three-point flange, a pinion close-up and a side view of the solenoid. This sequence preserves information that can otherwise disappear once the unit reaches a workshop bench or core collection area.

Why is the output rating important when ordering RE525468?

The supplier specification for this product is 12V and 4.0kW with an 11T CW drive. Nearby John Deere and Denso references may look related, but a different rating should remain outside this quotation. Stating the exact machine and sending the old label prevents an apparently similar unit from entering harvest stock.

Which drawing measurements help confirm the RE525468 drive end?

Use the 92 mm engagement reference together with the 48 mm distance-to-drive-gear reference, then compare the 127 mm mounting-circle reference and three Ø13.5 holes. These measurements describe how the unit meets the bell housing and ring gear, providing more useful confirmation than comparing only the body diameter.

How can a distributor set an opening stock quantity before harvest?

Review the S680 population by service territory, last season's failure history and the longest transfer time between branches. Reserve emergency coverage where machines cannot wait for a central shipment. When requesting RE525468, provide the opening quantity and likely call-off schedule so lead time and packing can be planned together.

What should the receiving team record for RE525468 shipments?

Record the shipment lot, carton label and quantity at each destination. Inspect representative units for the 11T drive, three Ø13.5 holes, correct terminal side and undamaged nose. A photographed sample from the delivery gives sales and service staff a dependable visual reference without opening every carton unnecessarily.

Can 428000-5530 or 19853N be used to request this starter motor?

Yes, those numbers belong to the recognized cross-reference group, but include RE525468 and the John Deere S680 application in the same message. Cross-references make the product easier to find; the combine details, 4.0kW rating, 11T drive and measured flange determine whether the quotation belongs to this exact product line.

What information is needed for an urgent RE525468 quotation?

State the machine model, location and deadline, then attach the old starter label and clear face, pinion and terminal photographs. Add the quantity, destination, packing preference and preferred shipping method. Elecdura can then return the configured product, stock or production timing, MOQ, warranty and transport basis without a second basic-information round.

Get an RE525468 John Deere Starter Motor Wholesale Quote

For RE525468 pricing, send the John Deere S680 machine details, all old-unit numbers, three-point flange and terminal photographs, required quantity, destination and delivery deadline. Elecdura will confirm the quoted 12V, 4.0kW, 11T CW configuration and available wholesale terms.

If the order supports several harvest regions, list the quantity and date for each branch. This allows packing, production timing and shipping choices to be matched to the service plan.
