RE534934 John Deere 9870 Combine Starter Motor Wholesale

RE534934 Starter Motor Stock Planning for Combine Distributors

A combine starter has a much higher service value during a narrow harvest window than during off-season storage. RE534934 should be prepared as the specified 11T, 4.0kW unit for the identified 9870 and 6135 engine, with enough machine detail for rapid branch dispatch.

Collect the combine serial, engine plate, old-unit label and mounting photographs before season. Elecdura can compare the three-hole face and drive position, then discuss quantities and delivery timing for the service areas carrying the greatest downtime risk.

RE534934 Starter Motor Geometry for Combine Parts Wholesalers

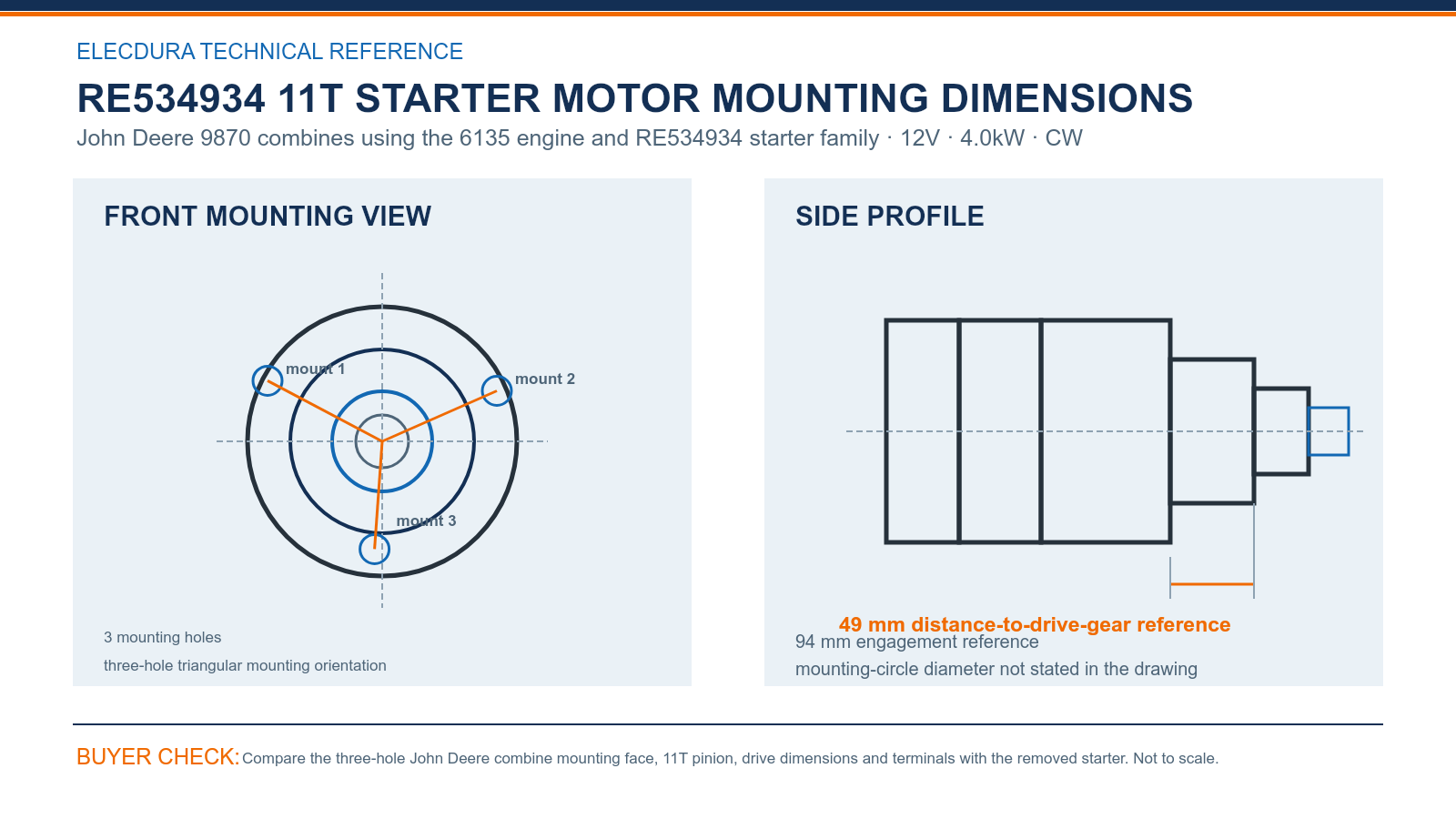

RE534934 11T starter motor mounting and drive-end dimensions for buyer-side comparison.

The RE534934 drive end uses a three-hole mounting face with a 94 mm engagement reference and 49 mm distance to the drive gear. Because the drawing does not state hole diameters or a circle value, buyers should measure those points directly on the removed combine starter.

Confirm the 11-tooth pinion, terminal side and cable clearance on the identified 9870. Retain straight photographs and direct measurements with the machine serial so emergency harvest stock can be dispatched with clear fitment information.

RE534934 Starter Motor OE Matching for 9870 Service Stock

Denso 428000-5750 and 428000-5751, DSN2036 and STN1479ML support the reference trail. Preserve RE534934 and the complete Denso number on branch documents so the combine application remains clear.

• Machine: identify the 9870 serial and 6135 engine.

• Drive: confirm 11 teeth, module 3 and clockwise rotation.

• Nose: compare the three-hole face, engagement and drive-gear distance.

RE534934 Starter Motor Harvest Supply for Dealer Networks

Dealer groups can hold a central emergency quantity and place additional units near high-density harvest areas. Elecdura can discuss neutral cartons, durable branch labels and staged shipping for a confirmed RE534934 program.

Inspect the full label, 11T pinion, mounting ears, terminal protection and carton support on receipt. Keep the shipment lot with the identified 9870 serial range so a service counter can dispatch the starter quickly without losing the product identity.

The video presents Elecdura starter-motor assembly and electrical testing. Send the 9870 serial, 6135 engine details, complete old reference, quantity by branch and harvest delivery date for a supply quotation.

RE534934 Starter Motor Wholesale FAQ

How much RE534934 stock should be held before harvest?

Use active 9870 counts, prior field failures, branch distance and replenishment time to set the reserve. A central emergency quantity can support several locations, while high-density areas may justify local units. Keep every position labeled RE534934, 11T and 4.0kW so the stock remains distinct from other John Deere combine starters.

Which machine details should accompany a 9870 inquiry?

Provide the full combine model, serial number and 6135 engine plate, plus every number on the removed starter. Add a square mounting-face image, pinion count, side profile and terminal photograph. These details let Elecdura compare the specified RE534934 configuration and give the dealer useful information for later field dispatch.

How are RE534934 and 428000-5750 connected?

They form the main John Deere and Denso reference pair for this product, with 428000-5751, DSN2036 and STN1479ML supporting additional searches. Preserve the exact old-unit number and confirm 12V, 4.0kW, 11 teeth, module 3, clockwise rotation and the three-hole face before using the reference group in one order.

What electrical checks are useful on a combine?

Test batteries under load, clean and tighten the grounds, measure cable voltage drop and confirm the start signal reaches the solenoid. Note whether the engine turns freely. These checks help a field technician avoid consuming scarce harvest stock for a cable or battery problem and provide better information if the starter still requires replacement.

How should buyers handle dimensions not stated in the drawing?

Use the stated 94 mm engagement and 49 mm drive-gear distance, then measure the hole diameters and mounting circle directly on the removed starter. Photograph the measuring points and the full face. Do not estimate missing values from an image, because perspective and print scale cannot provide reliable manufacturing dimensions.

What should be documented after the first RE534934 installation?

Retain the old and new labels, machine serial, engine plate, face photographs, terminal routing and shipment lot. Note bolt alignment, cranking voltage, engagement sound and release. A successful installation gives dealer branches a practical fitment reference and improves confidence when emergency stock is later dispatched to another 9870 combine.

How should RE534934 units be packed for branch transfer?

Protect the pinion and terminals, support the heavy unit inside the carton and keep the full OE visible on two sides. For urgent transfers, include the 11T and 4.0kW description on the packing line. The receiving branch should inspect the mounting ears and label before sending the starter farther to a field technician.

What is needed for an RE534934 wholesale quotation?

Send the complete John Deere or Denso number, 9870 serial, 6135 engine details, old-unit label, face and terminal photographs, required quantity by service area, destination, harvest deadline and packing preference. Elecdura can then state the specified configuration, MOQ, normal lead time, warranty and feasible delivery arrangement.

Request a RE534934 Starter Motor Wholesale Quote

Send RE534934 or the full Denso reference, John Deere 9870 serial, 6135 engine plate, old-unit label, pinion, face and terminal photographs, quantity by branch, destination and harvest deadline. Elecdura will quote the 12V 4.0kW 11T starter.

If the request covers several combine locations, state active machine counts and the preferred emergency-stock split so delivery and labeling can be planned around field use.
