RE61406 John Deere Fabtek Starter Motor B2B Supply

RE61406 John Deere Starter Motor Supply for Forestry and Ag Dealers

A forestry yard may need a fast replacement for equipment working in debris and moisture, while an agricultural dealer may plan RE61406 around seasonal workshop demand. Both enquiries should name the exact machine and retain the 10T configuration so the shared reference trail does not erase the operating context.

Send machine identification, every old-unit number and photographs that show the flange, pinion, solenoid and installed cable direction. Elecdura can compare the 47 mm axial position and Ø127 face before proposing quantities, packing and delivery.

RE61406 Starter Motor Dimensions for Field Equipment Verification

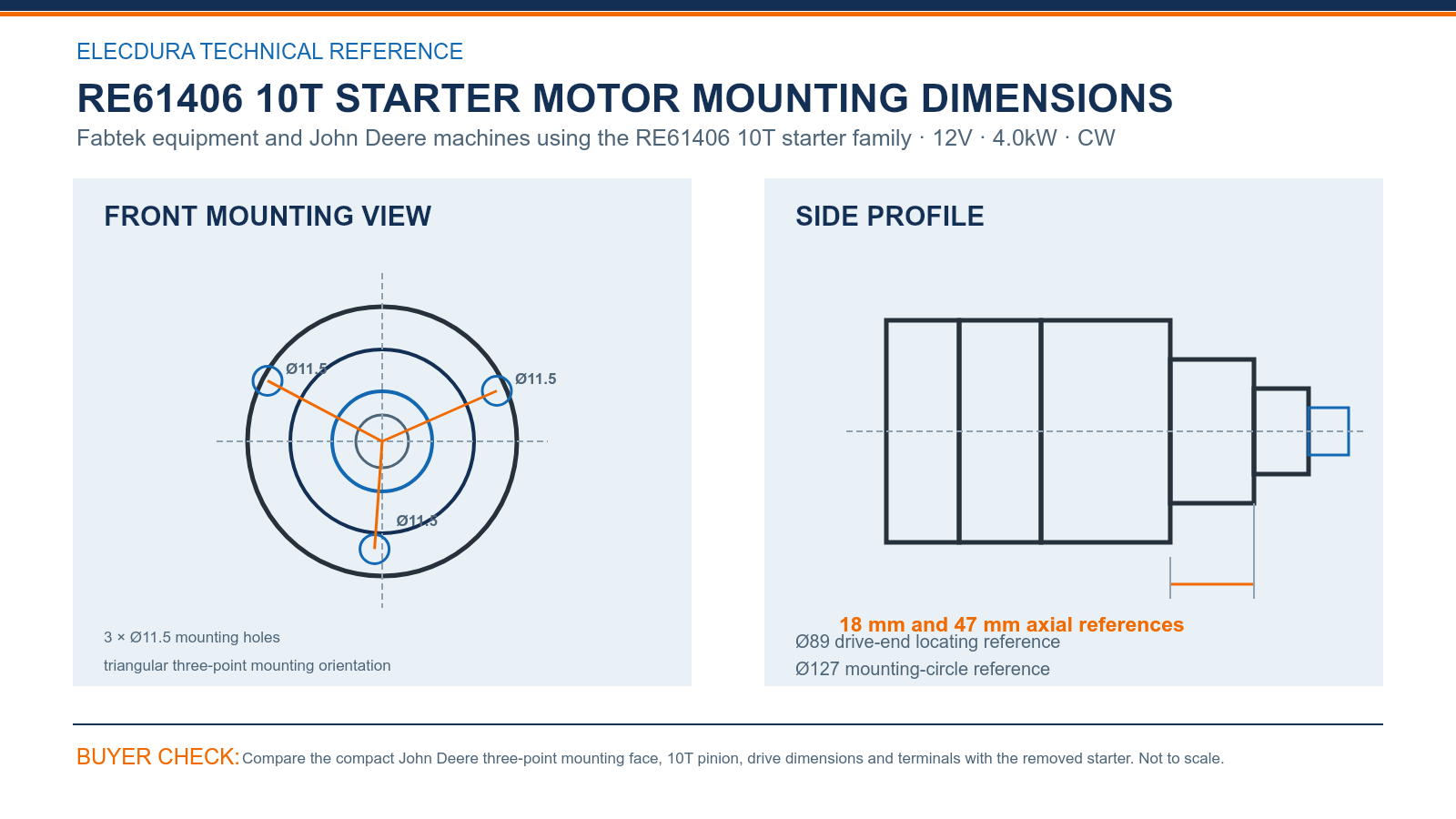

RE61406 John Deere 12V 4.0kW 10T starter mounting dimensions for buyer-side comparison.

Three Ø11.5 mounting holes form the compact three-point face around an Ø127 mounting-circle reference. The Ø89 drive-end locating reference is combined with 18 mm and 47 mm axial references for the pinion position.

The product specification is 12V, 4.0kW, 10T, module 3.175 and CW. Pay particular attention to the 10-tooth drive because a nearby larger-pinion John Deere family should remain a separate product and a separate quotation.

RE61406 Starter Motor 10T Reference Group and Version Separation

Reference routes include RE61406 / 228000-5281 / 228000-5460 / 228000-5461 / 228000-5462 / 228000-5463 / 246-30121 / STN0024 / STN9024.

Version separator: keep RE61406 with the 10T pinion, Ø127 face and 47 mm axial position. Send any larger-pinion or different-face unit as a separate request.

RE61406 Starter Motor Replenishment for Forestry and Farm Service

Forestry service may justify closer emergency stock because transport and machine downtime can be costly, while farm dealers may prefer planned seasonal replenishment. Split the quantity by service environment and destination so Elecdura can respond with the same confirmed product but a suitable shipment plan.

At receiving, count 10 teeth, inspect the cable side and look for damage at the nose and terminals. Match the external label to the intended Fabtek or John Deere branch before shelving. Recording environmental duty on later claims also helps distinguish product questions from corrosion, wiring or contamination issues.

The video presents Elecdura starter-motor assembly and electrical-test capability. RE61406 purchasing remains product-specific: confirm the machine, 10T drive, Ø127 face, cable orientation, service environment and required delivery before finalizing supply.

RE61406 Starter Motor Questions from B2B Buyers

Why should RE61406 remain separate from a larger-pinion John Deere starter?

The 10T drive is a defining feature of the RE61406 configuration. A larger pinion changes the engagement relationship even if the housing or some references appear related. Keeping the versions separate protects distributor stock accuracy and prevents field technicians from discovering the difference only after removing the old unit.

What machine information is needed for a Fabtek or John Deere enquiry?

Name the manufacturer, machine model and serial information, and identify whether the equipment works in forestry, agricultural or another service. Include all starter references and installed photographs. This context helps Elecdura review cable routing and physical fitment while the RE61406 number and 10T drive anchor the product family.

Which dimensions identify the RE61406 drive-end position?

Use the Ø89 locating reference and the two axial references of 18 mm and 47 mm, then compare the Ø127 mounting-circle reference and three Ø11.5 holes. A straight flange view and side photograph with a ruler give the supplier and field technician a common picture of the drive position.

How should forestry operating conditions influence starter inspection?

Before replacement, inspect for moisture, debris, damaged cable insulation and poor ground connections around the installation. Clean the mounting surface and test voltage drop under load. When a returned unit is reviewed, note contamination and storage conditions. This evidence helps separate environmental or wiring causes from a RE61406 product concern.

How can an agricultural dealer forecast RE61406 demand?

Review active machines, seasonal workshop bookings and the time needed to move stock between branches. Keep the confirmed 10T version separate in the sales history. Send Elecdura the opening quantity, planned replenishment window and destinations so delivery terms reflect field demand instead of one unsupported annual number.

What labels are helpful when the same starter serves different channels?

The carton should retain RE61406, 10T and the relevant machine application, while a branch or customer label can show the intended destination. Do not replace the OE and specification with only a local code. Complete labels make cross-reference sales easier and reduce accidental transfer to a larger-pinion stock line.

What should receiving staff inspect on an RE61406 delivery?

Open samples from separate pallet locations and confirm the 10T pinion, three Ø11.5 holes, cable-side orientation and undamaged drive-end casting. Compare the full label with the order and record the lot. Hold any unit with different pinion geometry or terminal damage before it reaches forestry or farm-service stock.

What should be sent for an RE61406 warranty or technical question?

Include the shipment lot, installation date, exact machine identity, supplied and removed starter labels, operating environment and failure symptom. Add battery, cable and start-signal readings plus photographs of the pinion, flange and terminals. This gives Elecdura enough context to review fitment, electrical supply, handling and product condition professionally.

Request RE61406 John Deere Starter Motor B2B Pricing

Send RE61406, the Fabtek or John Deere machine model and serial details, old starter references, 10T pinion, flange and cable-side photographs, service environment, quantity by destination and required date. The commercial response will cover the 12V, 4.0kW, 10T CW unit plus wholesale availability and shipment options.

Separate forestry emergency stock from agricultural seasonal demand if applicable, and include packing or label requirements for a complete B2B supply proposal.
