S0170 Foton Perkins Caterpillar Starter Motor Wholesale

S0170 Starter Motor Wholesale Application Support for Foton 1049, 1069 or 1099 and Caterpillar 312B

For Foton 1049, 1069 or 1099 and Caterpillar 312B, S0170 gives distributors a focused starting point for quotation and branch inventory. Confirm 24V, 4.0kW, 10T and CW, with particular attention to 24V 4.0kW 10T module-3.175 catalog configuration, before combining demand from different fleets or workshops.

A useful enquiry pairs S0170 with the equipment record, old-starter label and clear front, side and terminal images. Add the order quantity, destination and required date so technical selection, sample planning, carton marking and freight options can be addressed in one response.

S0170 Starter Motor Mounting Dimensions for Distributor Approval

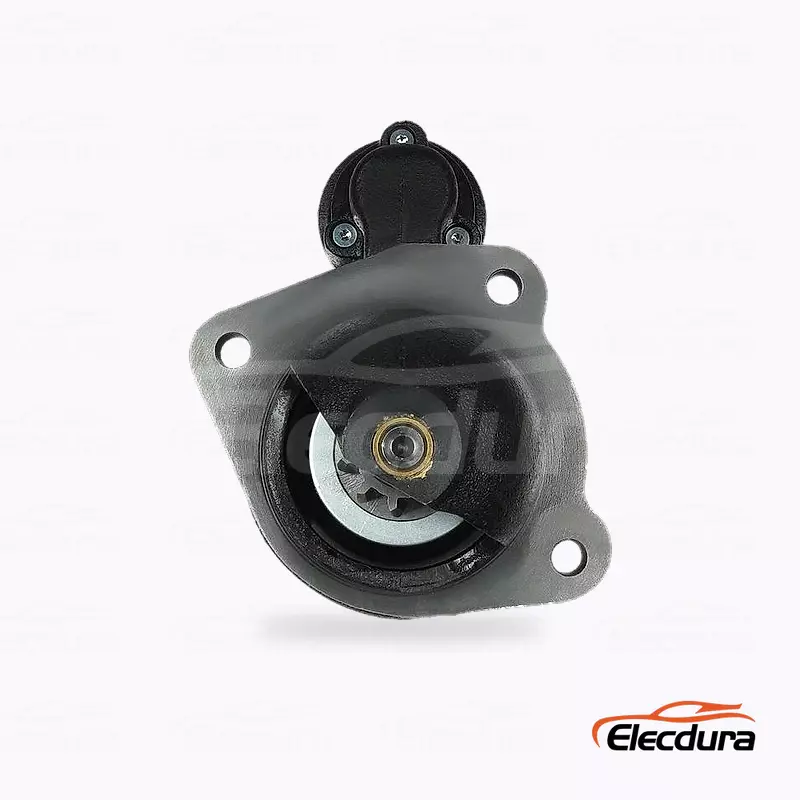

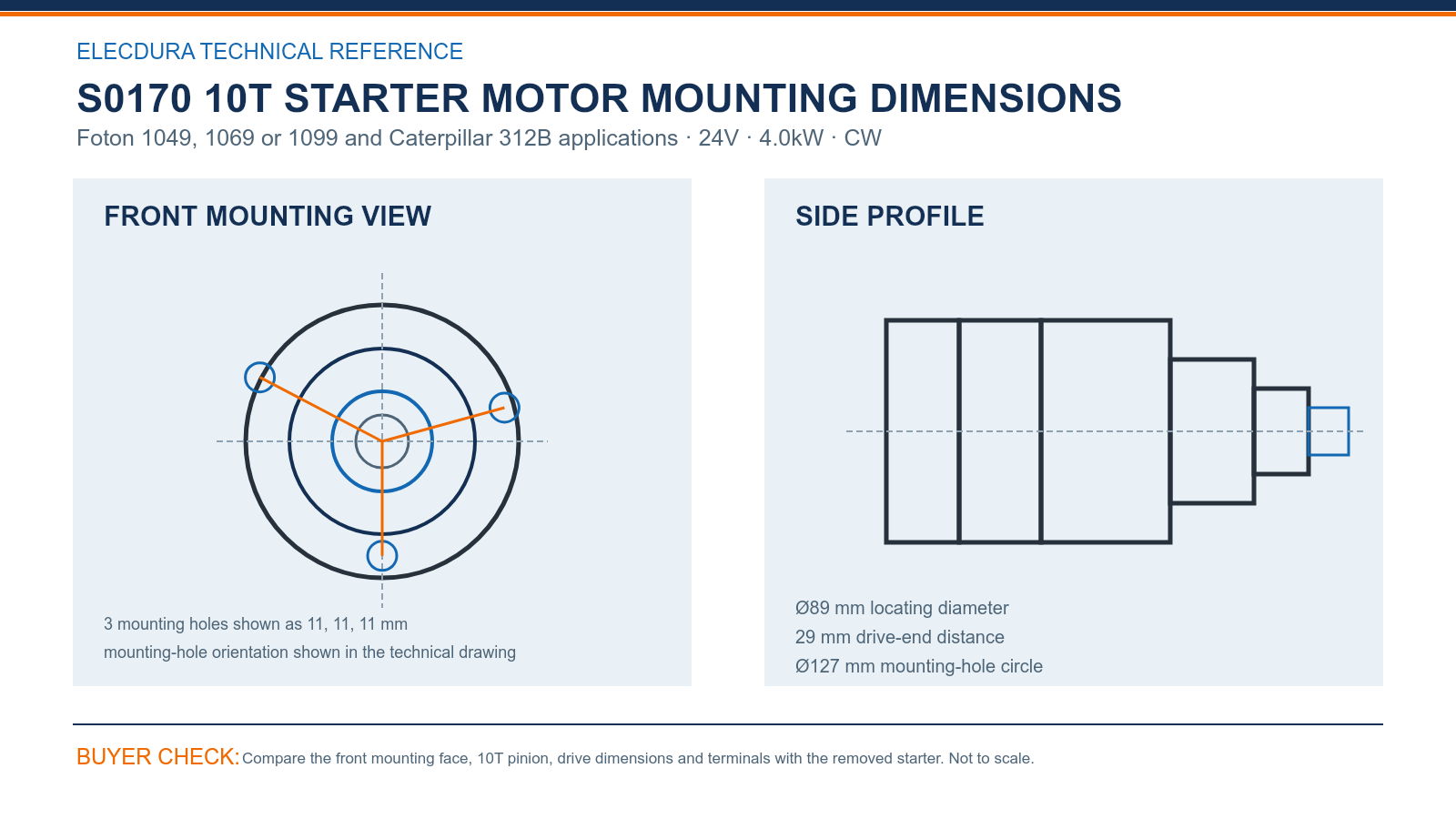

Compare S0170 at the 3 mounting holes shown as 11, 11, 11 mm, Ø127 mm mounting-hole circle and Ø89 mm locating diameter. The 29 mm drive-end distance helps verify where the pinion sits relative to the flange, while a straight terminal-side photograph confirms whether the main and control connections remain accessible after installation.

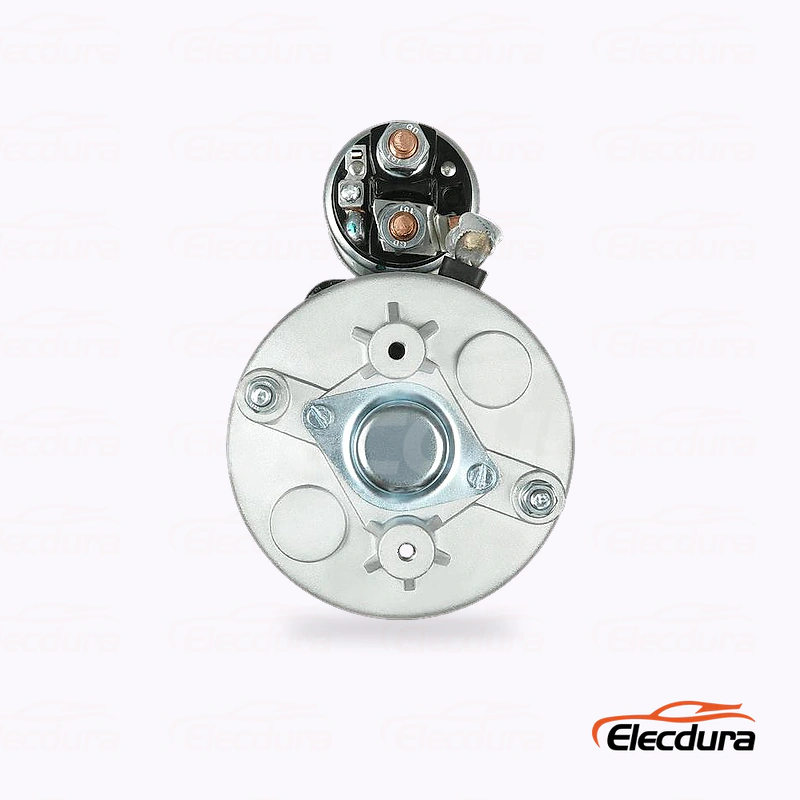

For S0170, electrical and mechanical identity must agree: 24V, 4.0kW, 10T, module 3.175 and CW. Check the terminals and solenoid position before installation. If the old unit differs at one of these points, keep it outside the defined stock line.

S0170 Starter Motor Reference Group for Wholesale Sourcing

The S0170 cross-reference group includes S0170, 112037, 112670, 0001368026, 0001368040, 0001368051, 0001368065. Use these numbers to search supplier systems, then confirm 24V, 4.0kW, 10T, CW, mounting geometry and terminals.

For S0170, list and photograph each complete reference when pinions, drive positions or connectors differ. Elecdura can quote each physical starter independently.

S0170 Starter Motor Bulk Order Packing and Lead-Time Support

Elecdura can prepare S0170 orders for regional inventory, fleet workshops or industrial service demand. The standard starting point is 20 pieces, normally 7–15 days after order confirmation, with an 18-month warranty under agreed terms and packing selected for the destination and shipment method.

For multi-branch supply, show which quantity is needed immediately and which can follow as planned replenishment. The accepted S0170 sample, dimensional record and terminal photographs can then support carton marking, receiving checks and repeat orders across the customer’s network.

The production video gives importers and fleet buyers a view of Elecdura starter assembly and electrical checks. For S0170, use it alongside the product-specific reference, application and physical controls on this page, rather than treating a general factory presentation as evidence of fitment.

S0170 Starter Motor Questions from Commercial Buyers

Why is a straight mounting-face photo useful for confirming S0170 during a Foton Perkins Caterpillar service-network inspection?

Align the removed starter and S0170 at the mounting face. Compare Ø89 mm locating diameter, Ø127 mm mounting-hole circle, 3 mounting holes shown as 11, 11, 11 mm and 29 mm drive-end distance. Use the drawing for dimensions, measure with suitable tools and check terminals separately.

When does a cross-reference related to S0170 need a separate quotation in a Foton Perkins Caterpillar service-network sourcing program?

Use the complete alternate number, not a shortened series, and attach photographs of the removed unit. The S0170 group is acceptable only when 24V, 4.0kW, 10T, CW and the physical interface agree. A reference conflict should be clarified before samples or bulk quantities are released.

Why does S0170 require a physical comparison for Foton applications during service-network sourcing?

For S0170, ask the workshop for the removed starter label and the exact equipment record. Match 24V, 4.0kW, 10T and CW, then compare the locating diameter, mounting holes and terminals. If one of those items changes, request another quotation instead of accepting the similar housing.

Which cranking-circuit tests should precede replacement of S0170 during a Foton Perkins Caterpillar service-network electrical check?

Load-test the battery set and measure voltage drop on the positive and ground circuits while cranking. Inspect cable lugs, chassis grounds, the start-control signal and ring-gear condition before replacing S0170. These checks distinguish a starter fault from low battery capacity, resistance or a control-circuit problem.

Which operating factors should guide a fleet's S0170 reserve quantity in a Foton Perkins Caterpillar service-network program?

Review workshop consumption by the stated Foton 1049, 1069 or 1099 and Caterpillar 312B population instead of pooling every visually similar starter. Record monthly issues, lead-time exposure and the reserve required at each branch. That information supports a practical S0170 reorder point and avoids holding the wrong drive-end version as emergency stock.

What carton-to-product checks are appropriate for S0170 during a Foton Perkins Caterpillar service-network receiving check?

Use a first-lot sample to confirm S0170, 24V, 4.0kW, 10T and CW. Inspect the mounting face, terminals and protective packing, then retain the lot reference and images. This gives warehouse and sales teams a shared record before units are distributed to branches or workshops.

Which details allow Elecdura to quote S0170 without delay in a Foton Perkins Caterpillar service-network sourcing program?

List S0170 together with the supported equipment record, 24V, 4.0kW, 10T and CW. Send old-unit photos, order volume, destination and requested timing, plus any private-label or staged-delivery requirement. This keeps the technical selection and the commercial offer aligned from the first response.

How can a distributor prepare a complete claim file for S0170 in a Foton Perkins Caterpillar service-network review?

For S0170, provide the delivery lot, installation date, operating hours and a clear fault description. Include photographs of the label, pinion, mounting face and terminals, together with battery and voltage-drop results under cranking load. These records help separate product condition from application, installation, electrical-system or transport-related causes.

S0170 Ask for Starter Motor Export Pricing

Send the complete S0170 reference, Foton 1049, 1069 or 1099 and Caterpillar 312B details, removed-unit label and photographs, quantity, destination and required arrival date. Email info@elecdurauto.com to discuss the specified 24V, 4.0kW, 10T CW starter, MOQ, packing, lead time, warranty and freight.
