S0600 Perkins 6-354 Starter Motor Wholesale

S0600 Starter Motor Wholesale Fitment for Perkins 6-354 industrial and equipment

Perkins engine distributors, industrial fleets and heavy-duty electrical wholesalers use S0600 to keep Perkins 6-354 industrial and equipment demand tied to one 12V, 3.0kW, 10T CW configuration. The practical distinction is the 12V 3.0kW 10T catalog configuration for the Perkins 6-354 group, which should be checked before a similar heavy-duty housing is accepted.

Send the full S0600 application and old-unit identification rather than only a truck or engine brand. With mounting and terminal photos, quantity, destination and arrival target, Elecdura can discuss the correct starter, MOQ, packing, warranty and shipping route without unnecessary follow-up.

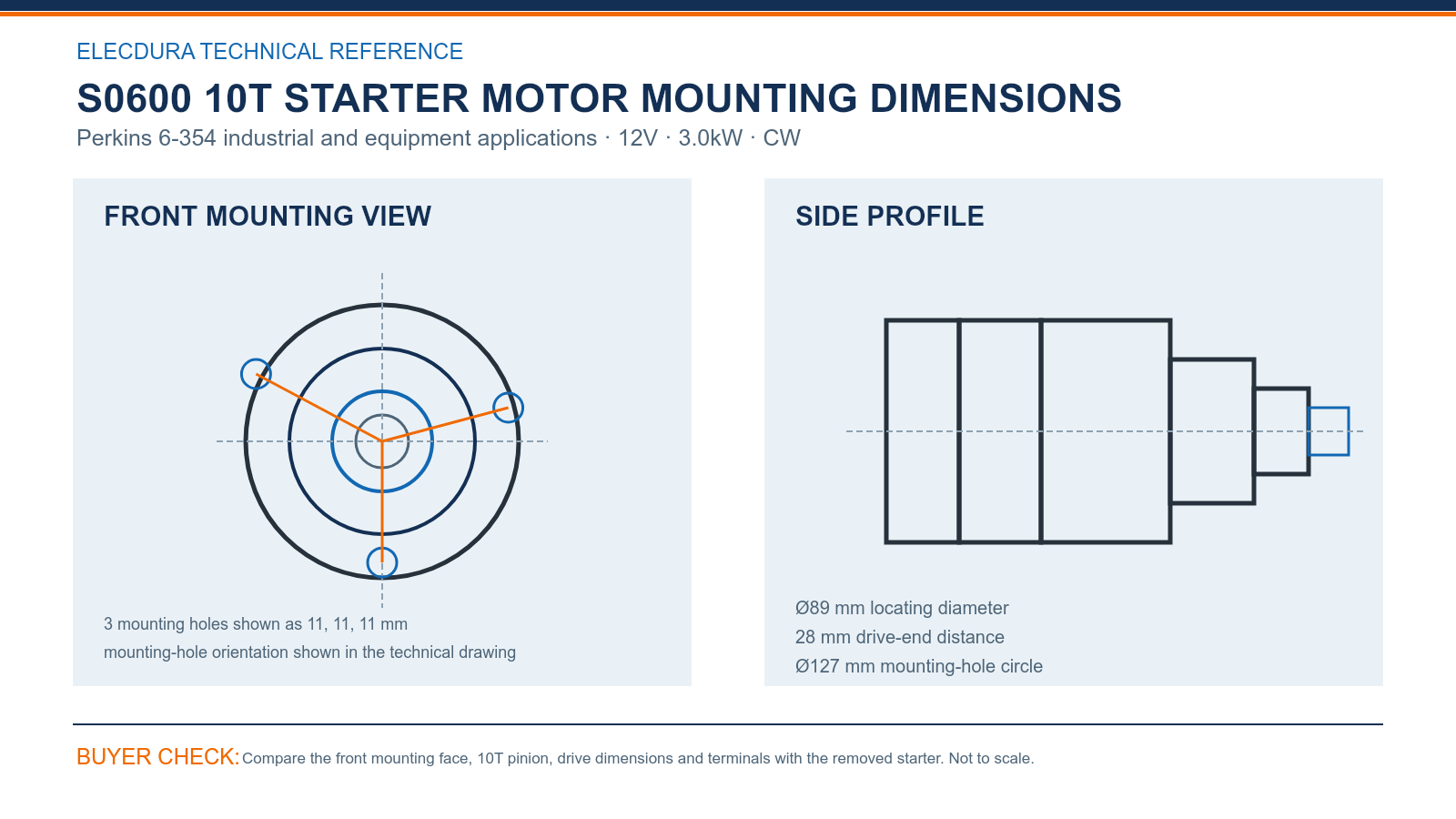

S0600 Starter Motor Drive-End Drawing for Aftermarket Distributors

S0600 Perkins 6-354 industrial and equipment 12V 3.0kW 10T starter mounting dimensions.

For S0600 first-lot sampling, place the old and new starters in the same front-facing position. Check 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter, Ø127 mm mounting-hole circle and 28 mm drive-end distance. Keeping those values with arrival photographs gives purchasing a reusable physical record for later replenishment.

After the S0600 mounting check, verify 12V, 3.0kW, 10T and CW with module 3.175. The final visual review covers the terminal studs, control connector and pinion. This prevents a physically related starter from being approved only because its reference appears in the same family.

S0600 Starter Motor OE Number Guide for Aftermarket Supply

1. Search group: S0600, 113534, 0001367069, 0986018151, CST25101AS, STB3534MN, STB3534UL can help distributor teams locate the relevant starter family.

2. Order boundary: Confirm the complete reference with 12V, 3.0kW, 10T, CW, the drawing and terminal photographs before accepting one physical unit.

S0600 Starter Motor Bulk Order Packing and Lead-Time Support

For a bulk order of S0600, Elecdura confirms availability, packing, lead time and freight against the required quantity and destination. Standard terms begin at 20 pieces, normally require 7–15 days after confirmation and include an 18-month warranty under the final sales agreement.

A first-lot sample is useful when the fleet carries related starters with similar housings. Retain the approved S0600 label, front view and terminal view, then use recent demand and branch transfer time to set reserve stock and delivery priorities.

The video introduces Elecdura starter-motor assembly and electrical testing for B2B supply programs. Selection of S0600 remains tied to the stated Perkins 6-354 industrial and equipment application, 10T drive, mounting interface and terminals, while the video helps distributor teams review production and testing capability.

S0600 Starter Motor Questions from Commercial Buyers

Before removing S0600, what should the workshop test under load during a Perkins 6-354 fleet electrical check?

Before fitting S0600, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

What physical controls belong on a first-lot check for S0600 during a Perkins 6-354 fleet inspection?

For S0600, compare 3 mounting holes shown as 11, 11, 11 mm and Ø127 mm mounting-hole circle in a straight front view, then Ø89 mm locating diameter and 28 mm drive-end distance in the side view. Add 10T, CW and terminal orientation; this is more reliable than an angled overall photograph.

What should a distributor match before ordering S0600 for Perkins 6-354 industrial and equipment during fleet sourcing?

Use the full old-unit number and Perkins 6-354 industrial and equipment record. Compare the 10T pinion, 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and terminal side. Reject a candidate when its drive position, mounting face or cable connection differs.

What is the safe way to order S0600 from an alternate OE number in a Perkins 6-354 fleet sourcing program?

Cross-references help purchasing teams search different brand systems, but the order should still resolve to one physical starter. Compare the candidate number with the S0600 electrical rating, pinion and drawing. Keep unmatched housings, terminal positions or drive ends on separate RFQ lines so the supplier can price them correctly.

How can S0600 stock be separated by application risk in a Perkins 6-354 fleet program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent S0600 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which first-lot checks protect a distributor receiving S0600 during a Perkins 6-354 fleet receiving check?

For S0600, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 mounting holes shown as 11, 11, 11 mm, Ø89 mm locating diameter and the specified 10T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for S0600 in a Perkins 6-354 fleet sourcing program?

Send the complete OE number, exact Perkins 6-354 industrial and equipment details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 12V 3.0kW 10T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review S0600 after installation in a Perkins 6-354 fleet review?

Keep the carton or product traceability code and note when and where S0600 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete records allow technical support to respond without repeated requests for basic information.

S0600 Request Starter Motor Wholesale Pricing

Email info@elecdurauto.com with S0600, the supported Perkins 6-354 industrial and equipment record, old-unit photographs, quantity, destination and required arrival date. Elecdura will use those details to confirm the 12V, 3.0kW, 10T CW starter and prepare wholesale pricing with MOQ, lead time, packing and freight.
