S1047 Doosan 225-7 Starter Motor Wholesale Supply

S1047 Starter Motor Aftermarket Supply for Doosan 225-series and Daewoo DH300-7 excavators

The buyer value of S1047 is a clear stock definition for Doosan 225-series and Daewoo DH300-7 excavators: 24V, 6.0kW, 11T and CW. The deciding physical detail is the 11T module-4.233 drive for the stated 225-series and DH300-7 group, so the application name alone is not enough to release a first order or replace an approved sample.

For the first S1047 order, include the removed-unit label, application details and straight photographs of the drive end and terminals. Quantity, destination, delivery target and any private-label requirement complete the commercial brief and reduce the risk of pricing a related but physically different starter.

S1047 Starter Motor Specification Table for B2B Sourcing

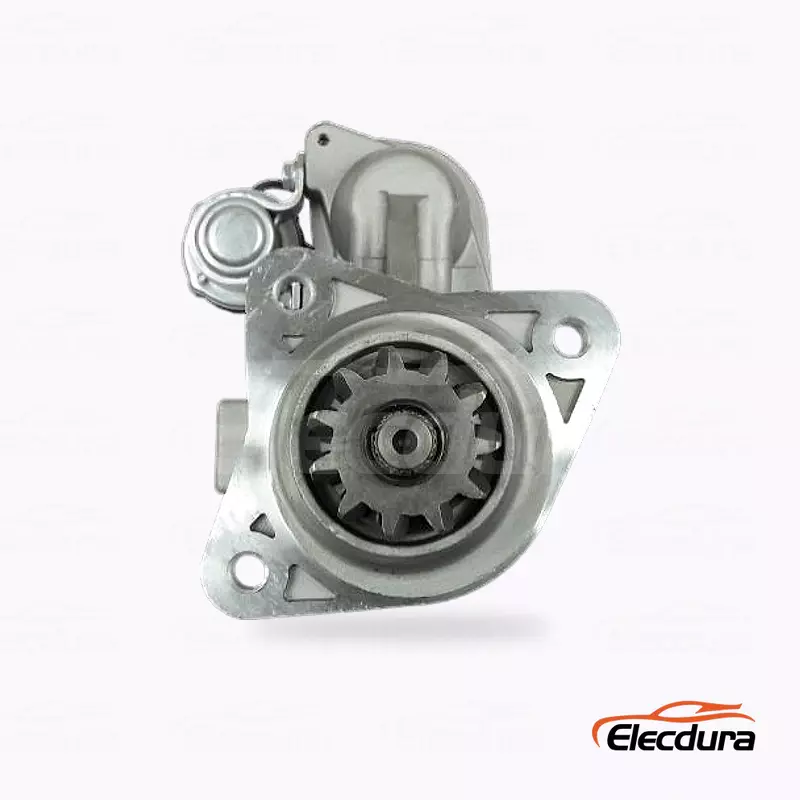

A warehouse can confirm the S1047 interface without dismantling the unit. Measure Ø89 locating diameter and Ø127 mounting-hole circle, inspect 3 × Ø11 mounting holes, then verify the 48 mm distance to drive gear. Photograph the pinion and terminal side so workshop staff can review details that a carton label cannot show.

For S1047, record 11T, CW, 24V and 6.0kW, including module 4.233. Inspect the pinion, solenoid orientation and terminal access from the same side as the removed unit. A first sample should pass both the label check and this physical comparison.

S1047 Starter Motor Reference Matching for B2B Quotations

• Use the full number: Start with S1047, 19080030, 19080031, 8200334, 8200349, DRS0307, retaining prefixes, suffixes and separators in the RFQ.
• Confirm the hardware: The final match requires the stated electrical rating, drive, mounting interface and terminal side; unmatched versions should remain separate.

S1047 Starter Motor Aftermarket Supply for Regional Distributors

Distributors can combine an initial S1047 sample plan with a later replenishment forecast. MOQ is 20 pieces, normal lead time is 7–15 days after confirmation and warranty is 18 months under agreed terms; packing and shipping are quoted for the actual route and arrival requirement.

A first-lot sample is useful when the fleet carries related starters with similar housings. Retain the approved S1047 label, front view and terminal view, then use recent demand and branch transfer time to set reserve stock and delivery priorities.

This video introduces Elecdura production and electrical testing for starter motors supplied to distributors and service networks. The commercial offer for S1047 continues to follow the stated application, electrical rating, pinion and mounting details so factory capability and product selection remain clearly connected.

S1047 Starter Motor Questions from Commercial Buyers

Before removing S1047, what should the workshop test under load in a Doosan 225-7 regional workshop?

Before fitting S1047, verify battery condition, cable size and voltage drop at cranking current. Clean the mounting ground and inspect the ring gear and control circuit. A slow-crank complaint can come from weak batteries, poor connections or mechanical drag, so those causes should be separated from the starter itself.

Which checks should follow an OE-number match for S1047 in a Doosan 225-7 regional sourcing program?

A number match narrows the search but does not finish it. For S1047, compare the stated application, electrical output, 11T drive, mounting geometry and terminal side. Buyers handling several references should list each complete number separately, allowing any genuinely different unit to receive its own offer and sample check.

What should a distributor match before ordering S1047 for Doosan 225-series and Daewoo DH300-7 excavators during regional sourcing?

Use the complete removed-unit number and exact Doosan 225-series and Daewoo DH300-7 excavators record. Compare the 11T pinion, 3 × Ø11 mounting holes, Ø89 locating diameter and terminal side with the old starter. A housing resemblance is insufficient when the drive position, mounting face or cable connection differs.

Which mounting-face points distinguish the specified S1047 version during a Doosan 225-7 regional inspection?

Place the removed starter and S1047 on the same mounting-face orientation. Compare Ø89 locating diameter, Ø127 mounting-hole circle, the 3 × Ø11 mounting holes and the 48 mm distance to drive gear. The drawing is a dimensional reference rather than a scale template, so use suitable measuring tools and verify the terminals separately.

How can S1047 stock be separated by application risk in a Doosan 225-7 regional program?

Separate planned maintenance demand from breakdown coverage and new-account stock. Share the number of supported machines, recent S1047 usage, transfer time between branches and the desired reserve. The resulting order can combine immediate units and scheduled replenishment while keeping the application and physical specification clearly identified.

Which first-lot checks protect a distributor receiving S1047 during a Doosan 225-7 regional receiving check?

For S1047, count the cartons, compare labels and inspect selected units for flange, pinion and terminal damage. The sample should match 3 × Ø11 mounting holes, Ø89 locating diameter and the specified 11T drive. Hold any exception outside normal inventory until purchasing and the supplier agree on the correct disposition.

Which commercial details belong in an export enquiry for S1047 in a Doosan 225-7 regional sourcing program?

Send the complete OE number, exact Doosan 225-series and Daewoo DH300-7 excavators details, removed-unit photographs, quantity and destination. Add the required arrival date, carton marking, payment preference and any sample request. Elecdura can then quote the specified 24V 6.0kW 11T CW starter with packing, lead time, warranty and freight options.

Which photographs and readings help Elecdura review S1047 after installation in a Doosan 225-7 regional review?

Keep the carton or product traceability code and note when and where S1047 was installed. A review should include symptoms, operating time, old and replacement-unit photographs, cable and battery readings and any ring-gear observations. Complete evidence allows technical support to respond without repeated requests for basic information.

S1047 Start a Starter Motor Wholesale Enquiry

To discuss S1047 supply, send the complete application and old-unit identification, mounting-face and terminal photos, requested quantity, destination and timing to info@elecdurauto.com. The reply will address the specified starter, sample or bulk availability, export packing, commercial terms and delivery route.
