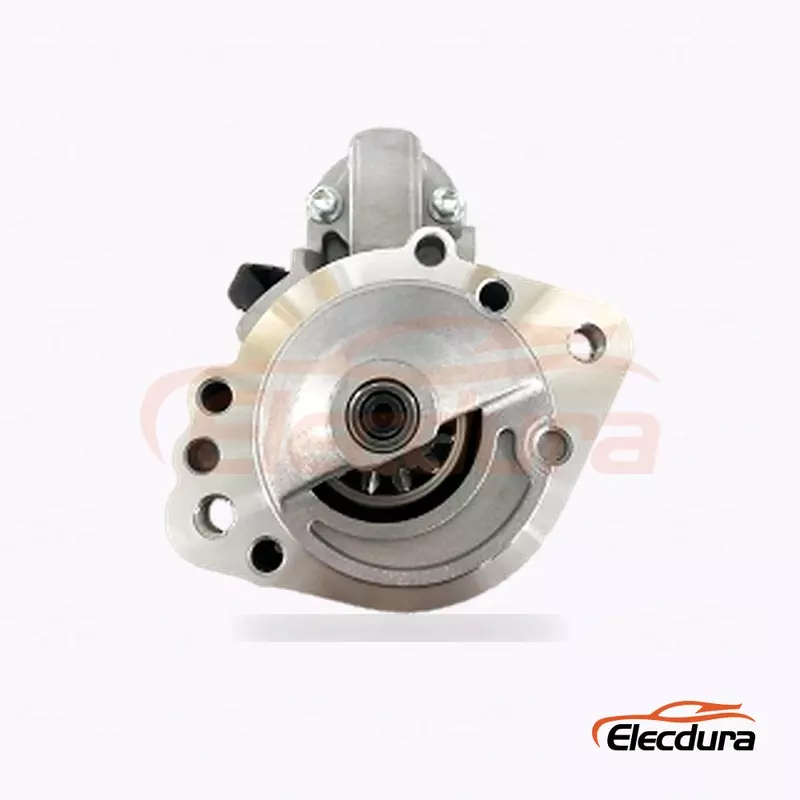

S5223 Hyundai H1 Starex and Kia Bongo Starter Motor 12V 2.2kW 10T

S5223 Hyundai H1 Starex and Kia Bongo Starter Motor Replacement Supply for B2B Procurement

S5223 is intended for procurement against Hyundai H1 Starex and Kia Bongo 3 2.5 CRDi applications with a 12V, 2.2kW, 10-tooth clockwise configuration. Keep the approved unit photos, application record and full reference group together so future quotations and repeat orders stay linked to the same physical starter.

S5223 Starter Motor B2B Production and Test Video for Bulk Procurement

This video introduces Elecdura starter-motor production and supply capabilities. Use the specification, cross-reference details and fitment checks on this page when evaluating S5223.

S5223 Starter Motor Distributor Specifications for B2B Supply

S5223 Starter Motor OE Cross-Reference Review for Aftermarket Buyers

Use S5223 as the primary purchasing reference and cross-check UD02148S, M002T84781, M2T84781. These numbers identify the candidate starter family, but approval still requires the exact suffix, electrical rating, drive end, mounting geometry, pinion and terminal layout to match the removed unit or signed sample.

S5223 Starter Motor Bulk Fitment Approval for Fleet Replacement

Confirm the complete S5223 / UD02148S / M002T84781 / M2T84781 group together with the 12V, 2.2kW, 10-tooth clockwise configuration. Similar appearance or a shared partial number is not enough; compare equipment and engine record, complete OE, mounting face, pinion position and terminal arrangement against the removed unit or approved sample and keep the signed sample with the purchase record.

S5223 Starter Motor Wholesale Receiving Inspection for Wholesale Supply

For a wholesale shipment, sample units across the S5223 lot rather than inspecting only the top carton. Compare reference label, electrical rating, drive end, mounting geometry, terminals, packing and lot traceability with the approval record and document pass, fail and hold quantities. Do not mix a disputed suffix or drive-end version with cleared stock, even when the outer housing looks alike.

S5223 Starter Motor MOQ and Private-Label Supply for Distributor Sourcing

S5223 Starter Motor Distributor FAQ for Bulk Procurement

How can distributors reduce disputes on S5223 claims?

The standard warranty is 18 months under agreed sales terms, but a claim still needs traceable supporting evidence. Record the invoice or lot, installed application, old and supplied references, installation date, symptoms and electrical test results. Include photographs of the unit, terminals, mounting and pinion. Do not dismantle or discard the product before instructions are agreed. Complete supporting evidence speeds technical review and prevents a battery, wiring or ring-gear problem from being misclassified.

Which OE numbers should a distributor match for S5223?

Use S5223 as the control reference and compare the complete group S5223 / UD02148S / M002T84781 / M2T84781. A cross-reference narrows the candidate, but it does not prove that every suffix has the same rating or mounting. Keep the removed-unit label, drive-end photograph, mounting-face view and rear-terminal view in the approval file, then connect that evidence to one RFQ and order line so repeat orders remain traceable.

Where is S5223 commonly used, and what still needs confirmation?

Confirm the complete S5223 / UD02148S / M002T84781 / M2T84781 group together with the 12V, 2.2kW, 10-tooth clockwise configuration. Similar appearance or a shared partial number is not enough; compare equipment and engine record, complete OE, mounting face, pinion position and terminal arrangement against the removed unit or approved sample and keep the signed sample with the purchase record.

What specification mismatch creates the greatest risk on S5223?

Confirm the complete S5223 / UD02148S / M002T84781 / M2T84781 group together with the 12V, 2.2kW, 10-tooth clockwise configuration. Similar appearance or a shared partial number is not enough; compare equipment and engine record, complete OE, mounting face, pinion position and terminal arrangement against the removed unit or approved sample and keep the signed sample with the purchase record.

Which configuration checks prevent a mismatched S5223 order?

Confirm the complete S5223 / UD02148S / M002T84781 / M2T84781 group together with the 12V, 2.2kW, 10-tooth clockwise configuration. Similar appearance or a shared partial number is not enough; compare equipment and engine record, complete OE, mounting face, pinion position and terminal arrangement against the removed unit or approved sample and keep the signed sample with the purchase record.

Which mounting details should be compared before ordering S5223?

Compare the equipment and engine record, complete OE, mounting face, pinion position and terminal arrangement with the removed starter. Check bolt-hole spacing, locating diameter, starter clocking, pinion rest position and rear-terminal clearance instead of judging from the outer housing alone. Never pull a misaligned unit into place with mounting bolts. A measured or photographed fitment record is especially valuable when nearby references share the same voltage and tooth count but use another drive-end or solenoid orientation.

Which incoming-inspection points matter for S5223?

Tie every carton and sampled unit to S5223, the approved cross-reference set and the supplier lot. Inspect reference label, electrical rating, drive end, mounting geometry, terminals, packing and lot traceability, then compare the sampled unit with the signed photos or dimensional record. Record pass and fail quantities before the stock is mixed. Quarantine any different rating, pinion, mounting face or terminal layout, because an unverified substitute can stop equipment, generate a claim and turn a low unit price into a costly order. This receiving discipline is cheaper than sorting returns after distribution.

Can a similar 12V starter replace S5223?

A substitute is acceptable only when its complete OE relationship, 12V system, 2.2kW rating, 10T, rotation and mounting geometry agree with the approved unit. Similar appearance or a shared partial number is not enough. Ask for application and old-unit evidence, then test or approve a sample prior to changing the purchase line. Retain materially different versions separate in inventory so warehouse staff cannot fulfil one inquiry with the wrong variant.

How can buyers separate a S5223 fault from an equipment fault?

Inspect battery capacity, voltage drop, start signal, grounds, ring gear and mechanical engine load before condemning the starter. Record battery voltage at rest and during the start command, then measure voltage drop under load; a weak supply or poor ground can imitate starter failure. Inspect the mounting surface and gear engagement as well. Attach these results, the old-unit label and failure symptoms to the claim so the supplier can distinguish a product defect from an upstream electrical or mechanical problem.

Request a B2B Quote for S5223 Starter Motors

Send the complete reference, Hyundai H1 Starex and Kia Bongo 3 2.5 CRDi applications, old-unit photos, quantity, destination and packaging or inspection requirements. Elecdura will use that evidence to review one defined aftermarket starter configuration for your quotation.
