S6083 Toyota 1CD-FTV 9T Starter Motor Wholesale

S6083 Starter Motor Wholesale Fitment for Toyota 1CD-FTV and 2C diesel applications

Toyota diesel stockists can quote S6083 as the nine-tooth member of this 1CD-FTV and 2C starter family, keeping it visible beside the neighboring ten-tooth configuration.

Application

Toyota 1CD-FTV and 2C diesel applications

Commercial focus

Repeatable S6083 identification for Toyota diesel distributors and independent engine-parts importers.

Control point

9T drive, mounting face and terminals.

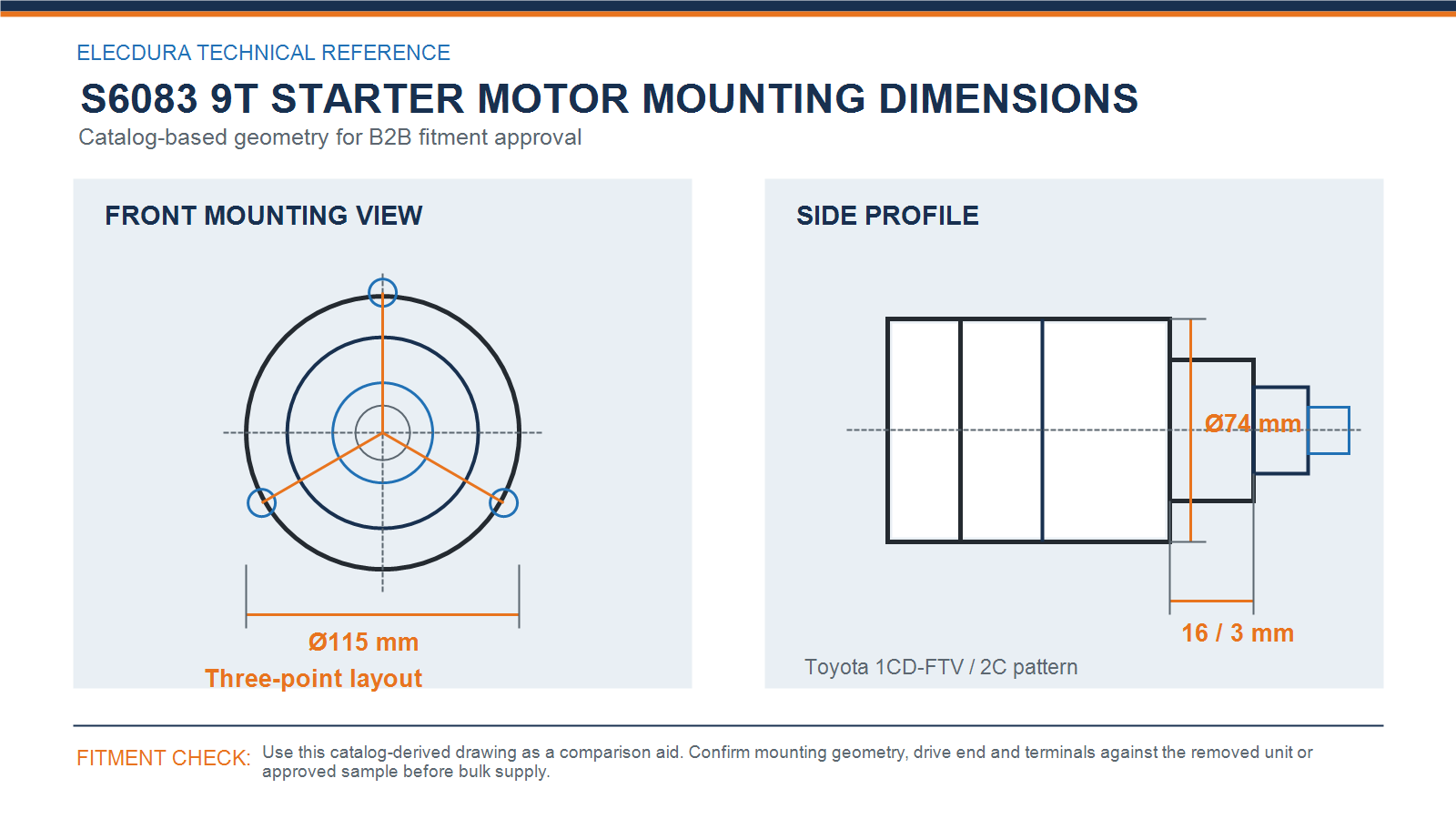

S6083 Starter Motor Technical Drawing for Distributor Approval

Technical mounting reference for comparison with the approved unit before sample or volume release.

Before the first lot goes to sale, count the nine teeth, check CW rotation, compare the three-point mounting face and record the 16/3 mm axial references from the approved unit. The drawing supports quotation and incoming inspection; the approved S6083 sample controls the final physical comparison.

S6083 Starter Motor OE Control for B2B Procurement

Use S6083 and 228000-3640 as the starting point, then document the 9T pinion, 115 mm mounting face and 74 mm drive-end reference on the approved master sample.

An order based only on a Toyota engine or 228000 family reference may accidentally combine 9T and 10T versions that require separate warehouse SKUs.

• Reference discipline: retain S6083 and the complete cross-reference in the buyer’s item record.

• Fitment discipline: record Toyota 1CD-FTV and 2C diesel applications plus pinion, mounting-face and terminal evidence.

• Stock discipline: separate any version that differs in tooth count, drive end or connection layout.

S6083 Starter Motor Bulk Supply, Sampling and Video

Quote requests should carry S6083 or the full Toyota number, engine code, confirmed 9T drive, photos, expected order quantity and package or label requirements.

Standard MOQ begins at 20 pieces. Neutral packing is available, and qualified private-label programs can be reviewed after the approved label, barcode, carton strength and protective inserts are confirmed for this exact item.

The video below introduces Elecdura starter-motor production and electrical-testing capability. The unit supplied under this page remains the S6083 configuration identified by the listed application, 9T drive and physical checks.

S6083 Starter Motor Buyer FAQ for Wholesale Orders

How should a distributor define S6083 for Toyota 1CD-FTV and 2C diesel applications before asking for volume pricing?

For a dealer or branch replenishment decision, begin the S6083 inquiry with the complete reference and the stated Toyota 1CD-FTV and 2C diesel applications scope. Use S6083 and 228000-3640 as the starting point, then document the 9T pinion, 115 mm mounting face and 74 mm drive-end reference on the approved master sample. Keep the machine or engine record beside the S6083 request because a shortened number or a housing photo does not define a reliable bulk-order configuration.

Why must the 9T pinion remain visible on S6083 dealer-order documents?

The key separator for this S6083 configuration is the 9T pinion with 12V, 2.2kW and CW rotation. An order based only on a Toyota engine or 228000 family reference may accidentally combine 9T and 10T versions that require separate warehouse SKUs. Count the S6083 teeth on the removed unit and include a drive-end photo before approving a replacement or combining adjacent references in one stock code.

Which measured points matter when comparing the S6083 technical image with a master sample?

Use the S6083 technical image as a comparison aid, not as a scaled installation drawing for Toyota 1CD-FTV and 2C diesel applications. Before the first lot goes to sale, count the nine teeth, check CW rotation, compare the three-point mounting face and record the 16/3 mm axial references from the approved unit. The removed starter or approved S6083 master sample remains the final reference for mounting face, nose profile, connection position and drive engagement.

How can a S6083 OE group be controlled across dealer and independent-service enquiries?

The references S6083, 228000-3640, 228000-3641 can locate demand for S6083, but they must remain tied to the defined Toyota 1CD-FTV and 2C diesel applications record. Use S6083 and 228000-3640 as the starting point, then document the 9T pinion, 115 mm mounting face and 74 mm drive-end reference on the approved master sample. If a S6083 physical control differs, quote it on a separate line rather than turning it into a universal interchange claim.

What should a distributor sign off on before accepting a first S6083 lot?

For initial S6083 acceptance, document the 9T drive, mounting arrangement, terminal orientation, labels and carton protection on a sample. Before the first lot goes to sale, count the nine teeth, check CW rotation, compare the three-point mounting face and record the 16/3 mm axial references from the approved unit. The approved S6083 sample gives procurement and warehouse teams one consistent release definition.

Which Toyota 1CD-FTV and 2C diesel applications records should appear on a detailed S6083 purchase request?

A useful S6083 enquiry needs more than a vehicle or machine name. Quote requests should carry S6083 or the full Toyota number, engine code, confirmed 9T drive, photos, expected order quantity and package or label requirements. Those Toyota 1CD-FTV and 2C diesel applications details allow the supplier to review the exact S6083 configuration without assumptions from a broad application family.

When is private-label review appropriate for the S6083 wholesale program?

Neutral cartons can support standard S6083 wholesale orders, while private-label work starts after label, barcode, carton strength and protective inserts are agreed for this configuration. Toyota diesel distributors and independent engine-parts importers should retain the S6083 version-specific references on purchase orders and warehouse labels.

What purchasing limitation should be remembered when viewing the S6083 factory video?

The product video introduces Elecdura starter-motor production and testing capability; it does not establish S6083 fitment. For Toyota 1CD-FTV and 2C diesel applications, the S6083 release decision remains tied to the full OE reference, 9T drive and the physical comparison saved for the order.

How can a parts network avoid reopening S6083 fitment questions on repeat orders?

For a repeat S6083 purchase, archive approved sample photos, reference list and inspection result with the item master. An order based only on a Toyota engine or 228000 family reference may accidentally combine 9T and 10T versions that require separate warehouse SKUs. That Toyota 1CD-FTV and 2C diesel applications record prevents the same fitment question being reopened when a customer supplies an abbreviated number or a different description.

Request S6083 Starter Motor Wholesale Pricing

Quote requests should carry S6083 or the full Toyota number, engine code, confirmed 9T drive, photos, expected order quantity and package or label requirements. Elecdura will review the 12V, 2.2kW, 9T and CW configuration with the supplied application information before confirming sample, lead-time and wholesale-supply details.
