S6135 Cummins Scania 24V Starter Motor Wholesale

S6135 Wholesale Starter Motor for Cummins and Scania heavy-duty applications

For multi-brand distributors supporting both Cummins equipment and Scania heavy-vehicle demand, S6135 is identified by the S6135 10T module-3.175 drive combined with its three-point mounting face. One warehouse description can merge Cummins and Scania enquiries even when the old-unit terminals or pinion geometry differ.

Include engine or vehicle family, complete removed-unit reference, front, side and terminal views, first-order quantity and shipment timing for S6135 10T. This gives sales and technical teams enough information to quote the correct starter for Cummins and Scania heavy-duty applications without relying on a broad application name.

S6135 Starter Motor Dimensions for Cummins Scania Buyers

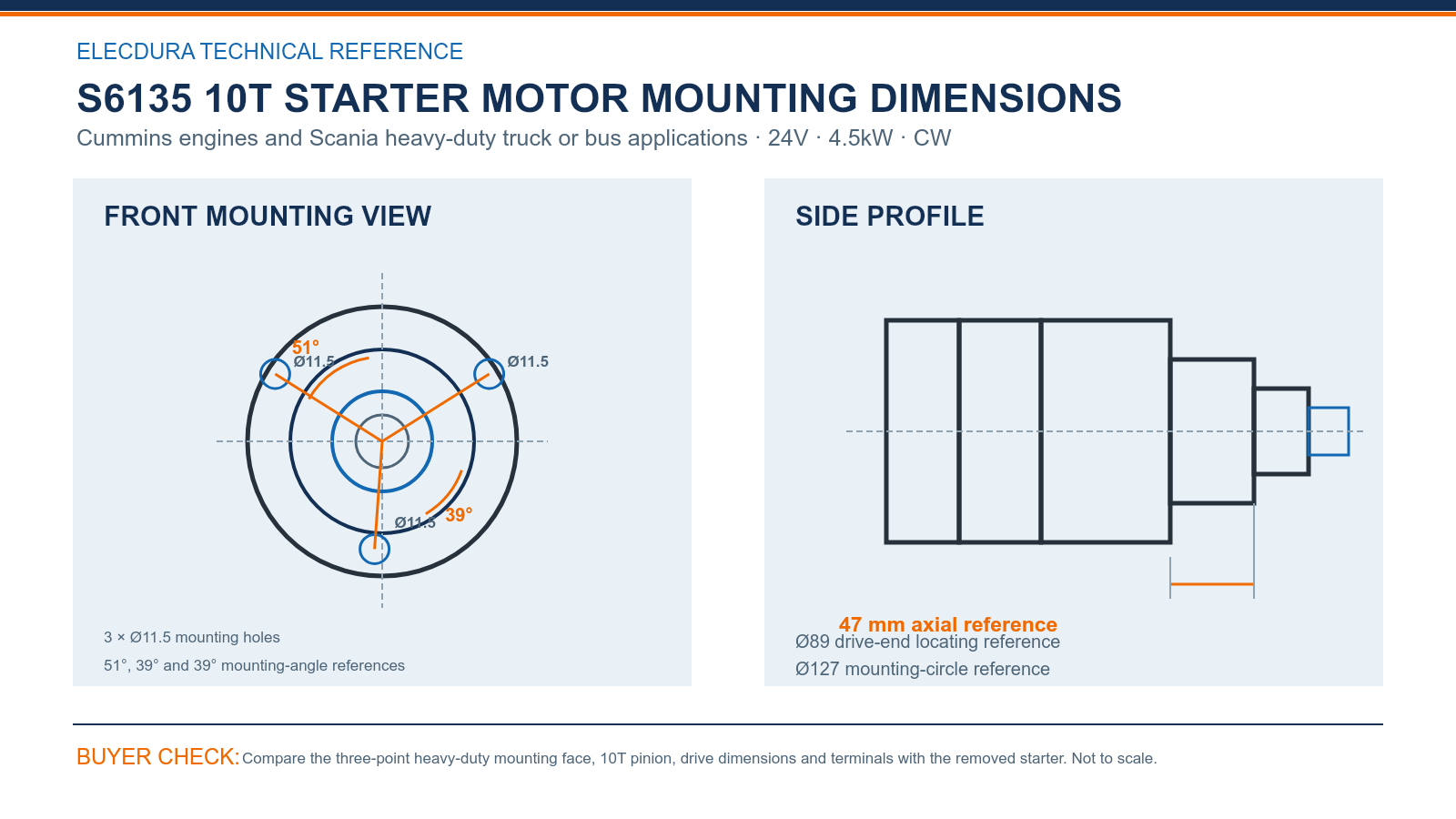

S6135 Cummins Scania 24V 4.5kW 10T starter mounting dimensions.

Start the S6135 10T drive-end comparison with Ø89 drive-end locating reference, 47 mm axial reference and Ø127 mounting-circle reference. A straight old-unit photograph helps reveal a different pilot, offset or pinion position for Cummins and Scania heavy-duty applications.

Keep the S6135 10T dimensions together with 24V, 4.5kW, 10T, module 3.175, CW. Before warehouse entry, sample the three Ø11.5 holes, Ø89 pilot, 47 mm drive position and solenoid connection side; isolate any changed construction or shipping damage.

S6135 Starter Motor Cross-References and Fitment Checks

1. Reference group: Begin with S6135 10T and record every complete number on the removed unit. Related references help locate S6135 10T, but buyers must still confirm the S6135 10T module-3.175 drive combined with its three-point mounting face.

2. Alternative review: Compare any S6135 10T substitute with the same application, 24V, 4.5kW, 10T, module 3.175, CW, drive-end image and connection side. A change in one of those points identifies another product for Cummins and Scania heavy-duty applications.

S6135 Starter Motor MOQ, Lead Time and Export Supply

B2B supply for S6135 10T starts at 20 pieces, with normal lead time of 7–15 days and an 18-month agreed-term warranty. For stock planning, keep application notes by customer fleet while preserving S6135, 10T and module 3.175 on the shared stock identity.

S6135 10T receiving should include a physical sample check: sample the three Ø11.5 holes, Ø89 pilot, 47 mm drive position and solenoid connection side. Retain the lot number and comparison photographs for Cummins and Scania heavy-duty applications, branch transfers and later repeat orders.

The S6135 10T video below shows Elecdura starter-motor assembly and electrical testing. Buyers can use the footage to review supply capability; final selection for Cummins and Scania heavy-duty applications still depends on the confirmed drive end and terminals.

S6135 Starter Motor FAQs for Cummins Scania Parts Buyers

How can buyers distinguish S6135 10T from a similar starter?

One warehouse description can merge Cummins and Scania enquiries even when the old-unit terminals or pinion geometry differ. Confirm S6135 10T by comparing the S6135 10T module-3.175 drive combined with its three-point mounting face against the old unit's label, pinion and terminals. Keep Cummins and Scania heavy-duty applications on the enquiry; a matching rating or housing is not enough.

Which details are needed for a S6135 10T wholesale quotation?

Send engine or vehicle family, complete removed-unit reference, front, side and terminal views, quantity, destination and target date for S6135 10T. For Cummins and Scania heavy-duty applications, show machine-down demand apart from planned replenishment and add branch packing instructions. Elecdura can then price 24V, 4.5kW, 10T, module 3.175, CW with MOQ, timing, warranty and freight options for S6135.

What drive-end dimensions should be compared for S6135 10T?

For S6135 10T, compare 3 × Ø11.5 mounting holes, Ø89 drive-end locating reference and 47 mm axial reference. Relate those dimensions to Ø127 mounting-circle reference and the 10T pinion for Cummins and Scania heavy-duty applications. Use a straight drive-end photograph, since perspective can hide hole position, pilot diameter or pinion depth for Cummins and Scania heavy-duty applications.

How should distributors plan stock for S6135 10T?

Keep application notes by customer fleet while preserving S6135, 10T and module 3.175 on the shared stock identity. Calculate the S6135 10T reserve from supported machines, recent withdrawals and transfer time. Keeping the Cummins and Scania heavy-duty applications and drive description on the bin helps branches avoid issuing another Cummins Scania starter during an urgent repair.

Which electrical checks should precede starter replacement on Cummins and Scania heavy-duty applications?

Compare loaded voltage and cable drop before removal, then inspect tooth wear and mounting-face damage. After removing the old starter from Cummins and Scania heavy-duty applications, inspect the mounting surface, pinion and ring gear for abnormal contact. Those readings on Cummins and Scania heavy-duty applications distinguish starter condition from weak batteries, cable resistance, poor grounding, a start-control fault or mechanical resistance.

What belongs in receiving inspection for this Cummins Scania starter?

Sample the three Ø11.5 holes, Ø89 pilot, 47 mm drive position and solenoid connection side. Match the S6135 10T label and 24V, 4.5kW, 10T, module 3.175, CW specification to the order, photograph the confirmed construction and retain the shipment lot. Isolate damaged connections, changed flanges or different pinions before releasing stock for Cummins and Scania heavy-duty applications.

What should remain on a repeat order for Cummins and Scania heavy-duty applications?

Keep S6135 10T, Cummins and Scania heavy-duty applications, the confirmed product photographs and the previous shipment result on the repeat order. Add new quantity, destination, target date and packing instructions. This helps serve two heavy-duty channels through one controlled product identity rather than a vague universal starter.

Which records support an after-sales review for Cummins Scania buyers?

Provide customer fleet, engine identity, shipment lot, fitted hours and matched photographs of the reported unit for a S6135 10T review. For Cummins and Scania heavy-duty applications, supply duty conditions, electrical test results and like-for-like photographs of the removed and returned products. This helps Cummins Scania buyers separate product condition from installation, electrical-system, transport or application causes for Cummins and Scania heavy-duty applications.

Request S6135 Starter Motor Wholesale Pricing

Email engine or vehicle family, complete removed-unit reference, front, side and terminal views, quantity, destination and arrival date to info@elecdurauto.com. Elecdura will quote S6135 with MOQ, packing, lead time, warranty and freight options for the specified 24V, 4.5kW, 10T, module 3.175, CW unit.
