S9169 Cummins 24V 4.5kW 9T Starter Motor Wholesale

S9169 Wholesale Starter Motor for Cummins-powered heavy-duty equipment

For heavy-equipment electrical distributors sourcing nine-tooth starters for Cummins-powered machines, confirm the 9T module-3 drive and three-hole Ø88.8 locating geometry before quoting S9169. The S9169 housing can be confused with ten- or eleven-tooth Cummins alternatives when the pinion is not counted.

Send engine family, host machine, full old-unit references, close pinion image and front flange view, quantity by destination and required arrival date. Elecdura can compare the S9169 9T request with the specified drive end before preparing pricing, packing, lead-time and freight terms.

S9169 Starter Motor Dimensions for Cummins Equipment Supply

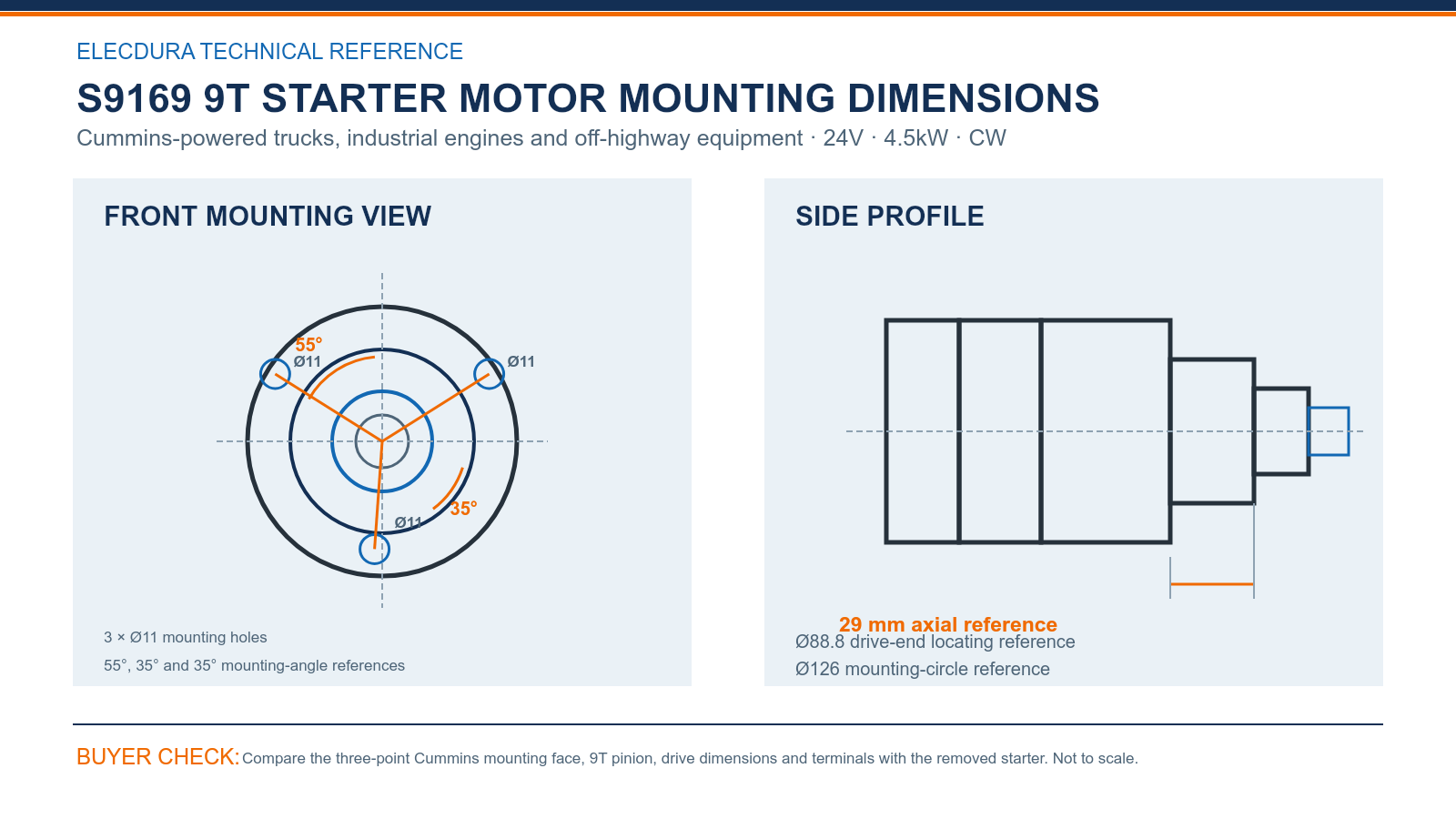

S9169 Cummins 24V 4.5kW 9T starter mounting dimensions.

Use the S9169 9T technical image to compare 3 × Ø11 mounting holes, 55°, 35° and 35° mounting-angle references and Ø88.8 drive-end locating reference. These features show how the drive end meets Cummins-powered heavy-duty equipment.

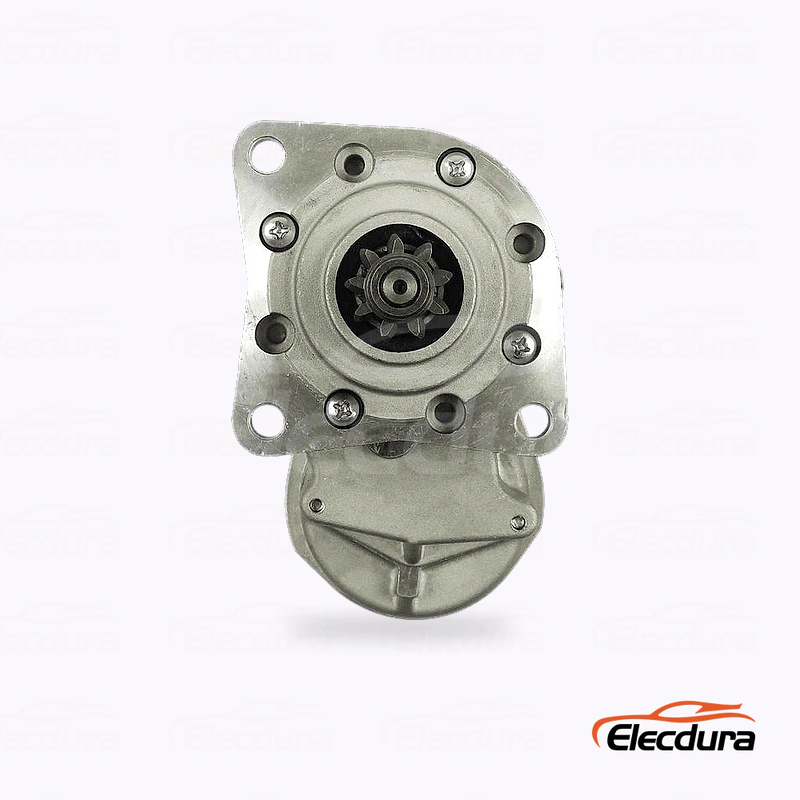

Count the 9T pinion and verify CW rotation before checking the cable side for Cummins-powered heavy-duty equipment. For S9169 9T, count nine teeth and compare the 29 mm axial position, Ø126 circle, flange holes and terminal guards; resolve any disagreement before stock release.

S9169 Starter Motor Cross-References and Fitment Checks

1. Reference group: Begin with S9169 9T and record every complete number on the removed unit. Related references help locate S9169 9T, but buyers must still confirm the 9T module-3 drive and three-hole Ø88.8 locating geometry.

2. Purchase-order detail: State S9169, Cummins-powered trucks, industrial engines and off-highway equipment, 24V, 4.5kW, 9T, module 3, CW and the destination. Use the removed starter or confirmed sample to review any alternative before volume supply for Cummins-powered heavy-duty equipment.

S9169 Starter Motor MOQ, Lead Time and Export Supply

B2B supply for S9169 9T starts at 20 pieces, with normal lead time of 7–15 days and an 18-month agreed-term warranty. For stock planning, make 9T part of every shelf, picking and transfer description so the S9169 line stays separate during urgent service.

S9169 9T receiving should include a physical sample check: count nine teeth and compare the 29 mm axial position, Ø126 circle, flange holes and terminal guards. Retain the lot number and comparison photographs for Cummins-powered heavy-duty equipment, branch transfers and later repeat orders.

Elecdura's S9169 9T production video presents starter assembly and electrical testing for B2B supply. It supports supplier evaluation, while the order for Cummins-powered heavy-duty equipment remains tied to the buyer's fitment and delivery details.

S9169 Starter Motor FAQs for Cummins Parts Buyers

How can buyers distinguish S9169 9T from a similar starter?

The S9169 housing can be confused with ten- or eleven-tooth Cummins alternatives when the pinion is not counted. Confirm S9169 9T by comparing the 9T module-3 drive and three-hole Ø88.8 locating geometry against the old unit's label, pinion and terminals. Keep Cummins-powered heavy-duty equipment on the enquiry; a matching rating or housing is not enough.

Which details are needed for a S9169 9T wholesale quotation?

Send engine family, host machine, full old-unit references, close pinion image and front flange view, quantity, destination and target date for S9169 9T. For Cummins-powered heavy-duty equipment, separate urgent service from forecast stock and note packing or branch-allocation needs. Elecdura can then price 24V, 4.5kW, 9T, module 3, CW with MOQ, timing, warranty and freight options for S9169.

What drive-end dimensions should be compared for S9169 9T?

For S9169 9T, compare 3 × Ø11 mounting holes, Ø88.8 drive-end locating reference and 29 mm axial reference. Relate those dimensions to Ø126 mounting-circle reference and the 9T pinion for Cummins-powered heavy-duty equipment. Request a square-on drive-end photograph, since perspective can hide hole position, pilot diameter or pinion depth for Cummins-powered heavy-duty equipment.

How should distributors plan stock for S9169 9T?

Make 9T part of every shelf, picking and transfer description so the S9169 line stays separate during urgent service. Plan the S9169 9T reserve from supported machines, recent withdrawals and transfer time. Keeping the Cummins-powered heavy-duty equipment and drive description on the bin helps branches avoid issuing another Cummins starter during an urgent repair.

Which electrical checks should precede starter replacement on Cummins-powered heavy-duty equipment?

Measure battery capacity, cranking voltage drop and start-signal quality before classifying a no-crank complaint. After removing the old starter from Cummins-powered heavy-duty equipment, examine the installed face, drive gear and ring gear for damage. Those readings on Cummins-powered heavy-duty equipment distinguish starter condition from weak batteries, cable resistance, poor grounding, a start-control fault or mechanical resistance.

What belongs in receiving inspection for this Cummins starter?

Count nine teeth and compare the 29 mm axial position, Ø126 circle, flange holes and terminal guards. Match the S9169 9T label and 24V, 4.5kW, 9T, module 3, CW specification to the order, photograph the confirmed construction and retain the shipment lot. Isolate damaged connections, changed flanges or different pinions before releasing stock for Cummins-powered heavy-duty equipment.

What should remain on a repeat order for Cummins-powered heavy-duty equipment?

Keep S9169 9T, Cummins-powered heavy-duty equipment, the confirmed product photographs and the previous shipment result on the repeat order. Add new quantity, destination, target date and packing instructions. This helps protect Cummins equipment uptime without substituting a similar three-hole starter with another drive. This keeps the 9T module-3 drive and three-hole Ø88.8 locating geometry visible to both purchasing and service teams.

Which records support an after-sales review for Cummins buyers?

Provide machine identity, work hours, starter lot, failure symptom, ring-gear observation and cranking-circuit readings for a S9169 9T review. For Cummins-powered heavy-duty equipment, record when the fault occurred and attach cranking measurements plus matched views of both units. This helps Cummins buyers separate product condition from installation, electrical-system, transport or application causes for Cummins-powered heavy-duty equipment.

Request S9169 Starter Motor Wholesale Pricing

Email engine family, host machine, full old-unit references, close pinion image and front flange view, quantity, destination and arrival date to info@elecdurauto.com. Elecdura will quote S9169 with MOQ, packing, lead time, warranty and freight options for the specified 24V, 4.5kW, 9T, module 3, CW unit.
