STN6188 New Holland Starter Motor Type A Wholesale

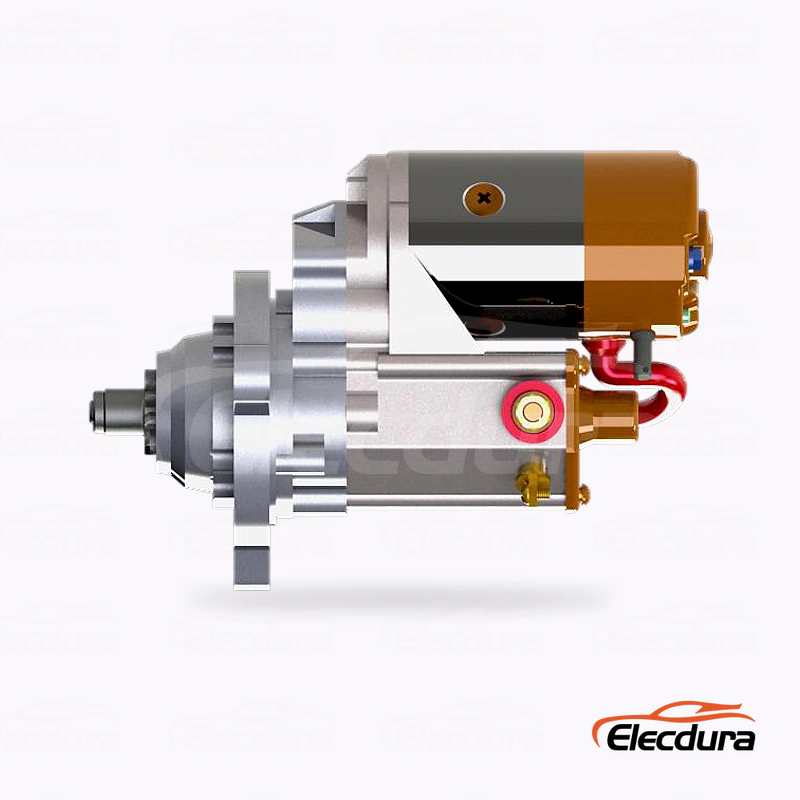

STN6188 Type A Wholesale Starter Motor for New Holland agricultural equipment, Type A housing

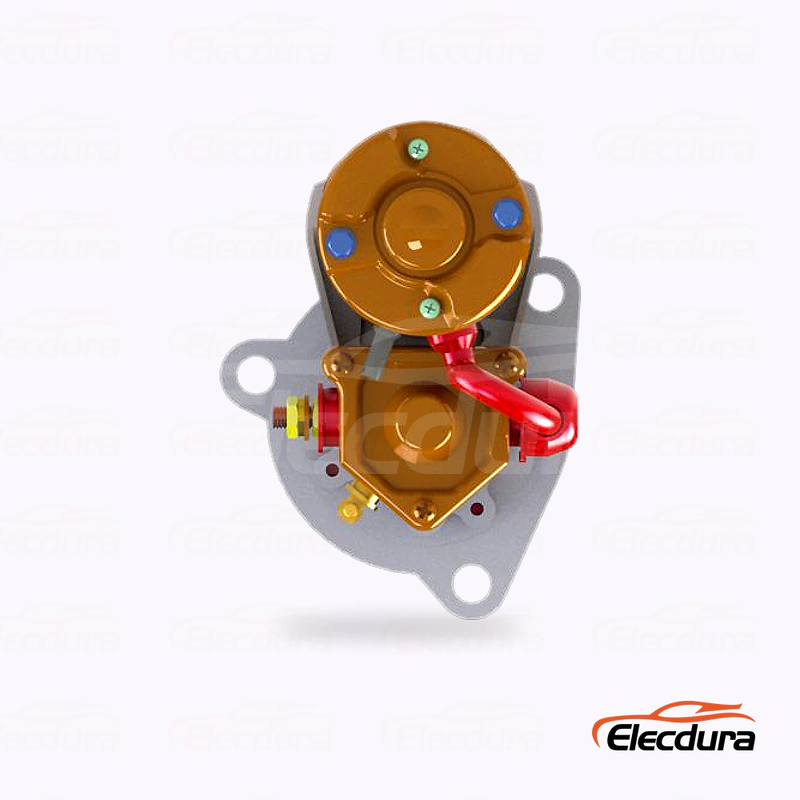

New Holland agricultural dealers ordering the STN6188 Type A construction for field-service stock should match STN6188 Type A through the Type A housing and terminal arrangement shown with STN6188. That check matters because Type A and Type B share the same reference and dimensions but remain separate physical products.

STN6188 Type A Starter Motor Dimensions for New Holland Dealers

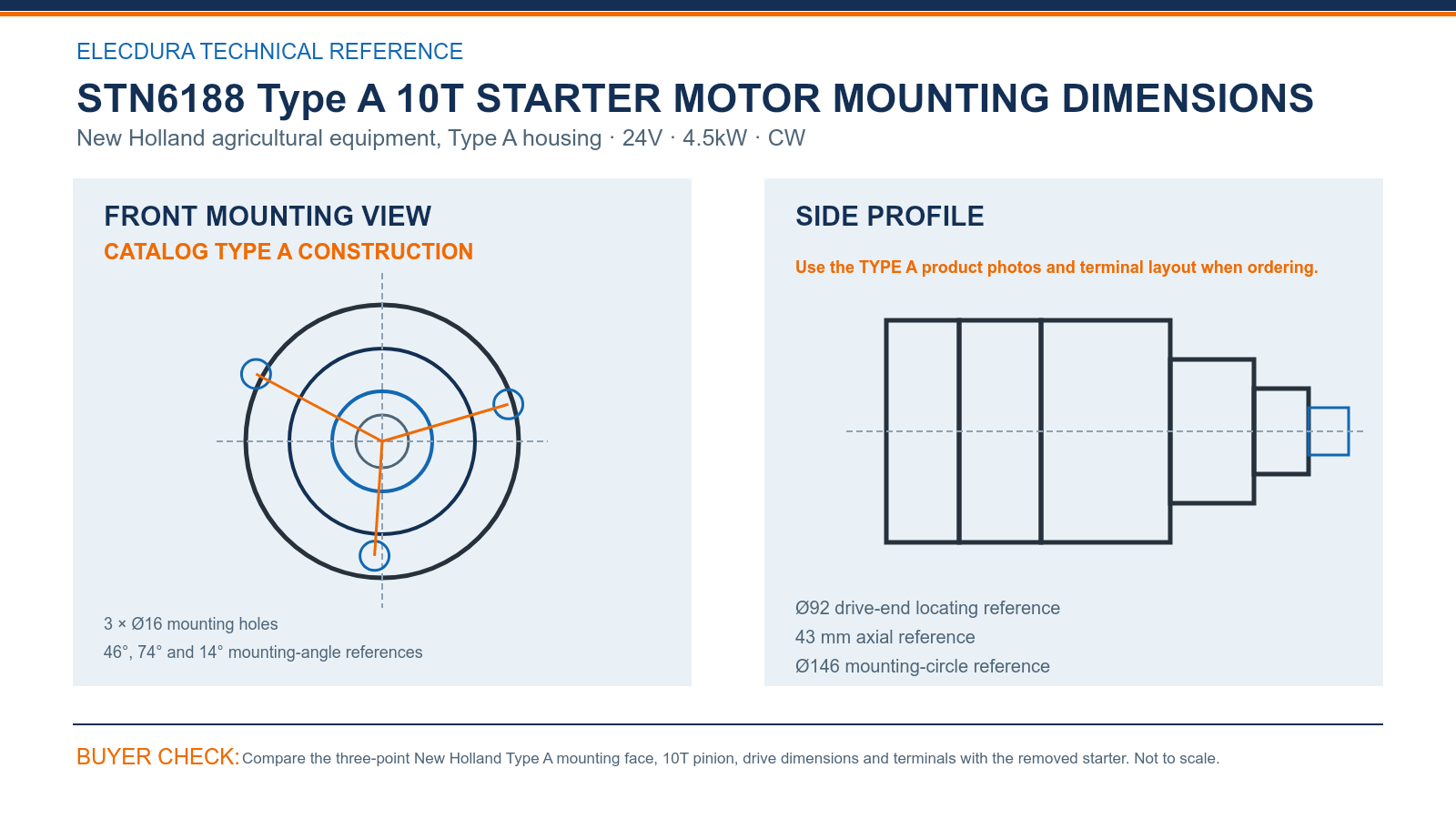

STN6188 New Holland Type A 24V 4.5kW 10T starter mounting dimensions.

Check STN6188 Type A 10T using 3 × Ø16 mounting holes and 46°, 74° and 14° mounting-angle references before comparing Ø92 drive-end locating reference. The hole pattern and pilot decide whether the drive end can seat correctly in New Holland agricultural equipment, Type A housing.

Keep the STN6188 Type A 10T dimensions together with 24V, 4.5kW, 10T, module 3.175, CW. Before warehouse entry, compare the Type A body and terminals, then confirm the 3 × Ø16 face, Ø92 pilot and ten-tooth pinion; isolate any changed construction or shipping damage.

STN6188 Type A Starter Motor Cross-References and Fitment Checks

1. Reference group: Begin with STN6188 Type A 10T and record every complete number on the removed unit. Related references help locate STN6188 Type A 10T, but buyers must still confirm the Type A housing and terminal arrangement shown with STN6188.

2. Fitment check: Keep New Holland agricultural equipment requiring the STN6188 Type A starter configuration, 24V, 4.5kW, 10T, module 3.175, CW and the confirmed product photographs together on the STN6188 Type A 10T quotation. A different pinion, flange, rotation or cable position requires a separate comparison for New Holland agricultural equipment, Type A housing.

STN6188 Type A Starter Motor MOQ, Lead Time and Export Supply

B2B supply for STN6188 Type A 10T starts at 20 pieces, with normal lead time of 7–15 days and an 18-month agreed-term warranty. For stock planning, use Type A in the item name and attach the confirmed image to every purchase, transfer and receiving document.

Use the STN6188 Type A 10T video to review Elecdura's starter production and testing process. The footage complements, but does not replace, comparison of STN6188 Type A 10T with the removed starter and target equipment.

STN6188 Type A Starter Motor FAQs for New Holland Parts Buyers

How can buyers distinguish STN6188 Type A 10T from a similar starter?

Type A and Type B share the same reference and dimensions but remain separate physical products. Confirm STN6188 Type A 10T by comparing the Type A housing and terminal arrangement shown with STN6188 against the old unit's label, pinion and terminals. Keep New Holland agricultural equipment, Type A housing on the enquiry; a matching rating or housing is not enough.

Which details are needed for a STN6188 Type A 10T wholesale quotation?

Send tractor or machine model, old-unit label, complete Type A product photographs, pinion view, quantity, destination and target date for STN6188 Type A 10T. For New Holland agricultural equipment, Type A housing, split breakdown demand from scheduled purchasing and identify any branch-specific packing. Elecdura can then price 24V, 4.5kW, 10T, module 3.175, CW with MOQ, timing, warranty and freight options for STN6188 Type A.

What drive-end dimensions should be compared for STN6188 Type A 10T?

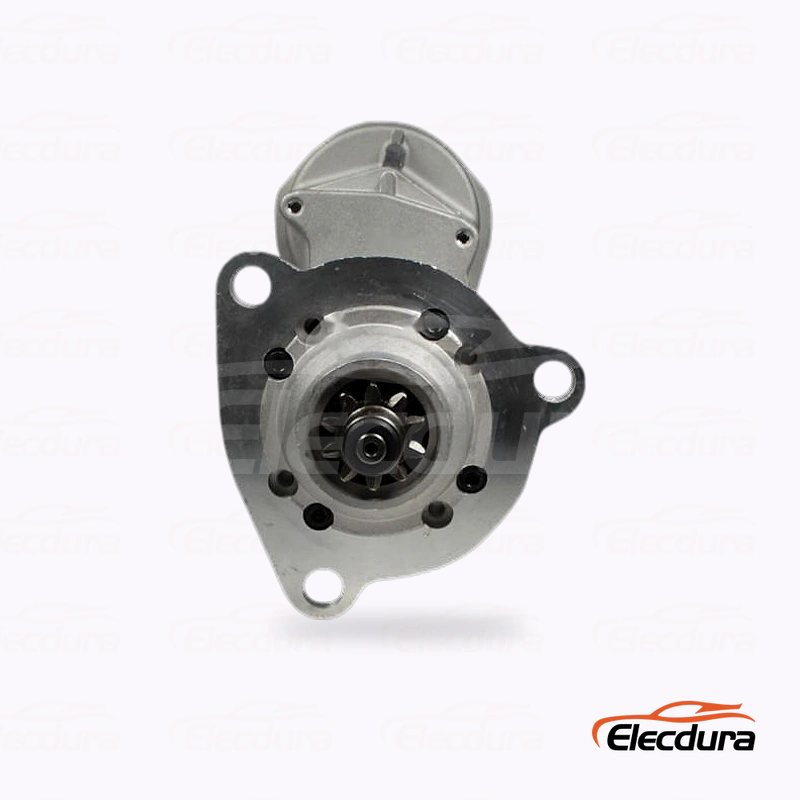

For STN6188 Type A 10T, compare 3 × Ø16 mounting holes, Ø92 drive-end locating reference and 43 mm axial reference. Relate those dimensions to Ø146 mounting-circle reference and the 10T pinion for New Holland agricultural equipment, Type A housing. Compare a direct drive-end photograph, since perspective can hide hole position, pilot diameter or pinion depth for New Holland agricultural equipment, Type A housing.

How should distributors plan stock for STN6188 Type A 10T?

Use Type A in the item name and attach the confirmed image to every purchase, transfer and receiving document. Build the STN6188 Type A 10T reserve from supported machines, recent withdrawals and transfer time. Keeping the New Holland agricultural equipment, Type A housing and drive description on the bin helps branches avoid issuing another New Holland starter during an urgent repair.

Which electrical checks should precede starter replacement on New Holland agricultural equipment, Type A housing?

Check battery condition, ground integrity and start-signal voltage before removing a starter during seasonal field work. After removing the old starter from New Holland agricultural equipment, Type A housing, review the mounting face, pinion wear and ring-gear engagement. Those readings on New Holland agricultural equipment, Type A housing distinguish starter condition from weak batteries, cable resistance, poor grounding, a start-control fault or mechanical resistance.

What belongs in receiving inspection for this New Holland starter?

Compare the Type A body and terminals, then confirm the 3 × Ø16 face, Ø92 pilot and ten-tooth pinion. Match the STN6188 Type A 10T label and 24V, 4.5kW, 10T, module 3.175, CW specification to the order, photograph the confirmed construction and retain the shipment lot. Isolate damaged connections, changed flanges or different pinions before releasing stock for New Holland agricultural equipment, Type A housing.

What should remain on a repeat order for New Holland agricultural equipment, Type A housing?

Keep STN6188 Type A 10T, New Holland agricultural equipment, Type A housing, the confirmed product photographs and the previous shipment result on the repeat order. Add new quantity, destination, target date and packing instructions. This helps prevent a Type B unit from entering Type A dealer stock merely because the core dimensions agree.

Which records support an after-sales review for New Holland buyers?

Provide machine serial, operating hours, shipment lot, installation details and matched Type A housing photographs for a STN6188 Type A 10T review. For New Holland agricultural equipment, Type A housing, add the working conditions and pre-removal test values, with comparable images of the original and returned starters. This helps New Holland buyers separate product condition from installation, electrical-system, transport or application causes for New Holland agricultural equipment, Type A housing.

Request STN6188 Type A Starter Motor Wholesale Pricing

Email tractor or machine model, old-unit label, complete Type A product photographs, pinion view, quantity, destination and arrival date to info@elecdurauto.com. Elecdura will quote STN6188 Type A with MOQ, packing, lead time, warranty and freight options for the specified 24V, 4.5kW, 10T, module 3.175, CW unit.
