STN6188 New Holland Starter Motor Type B Wholesale

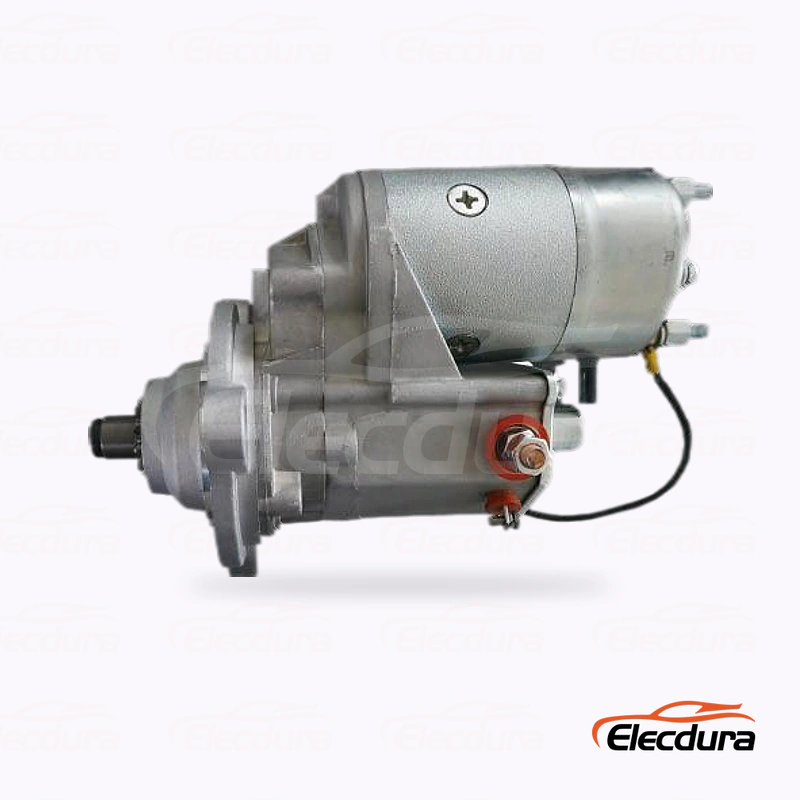

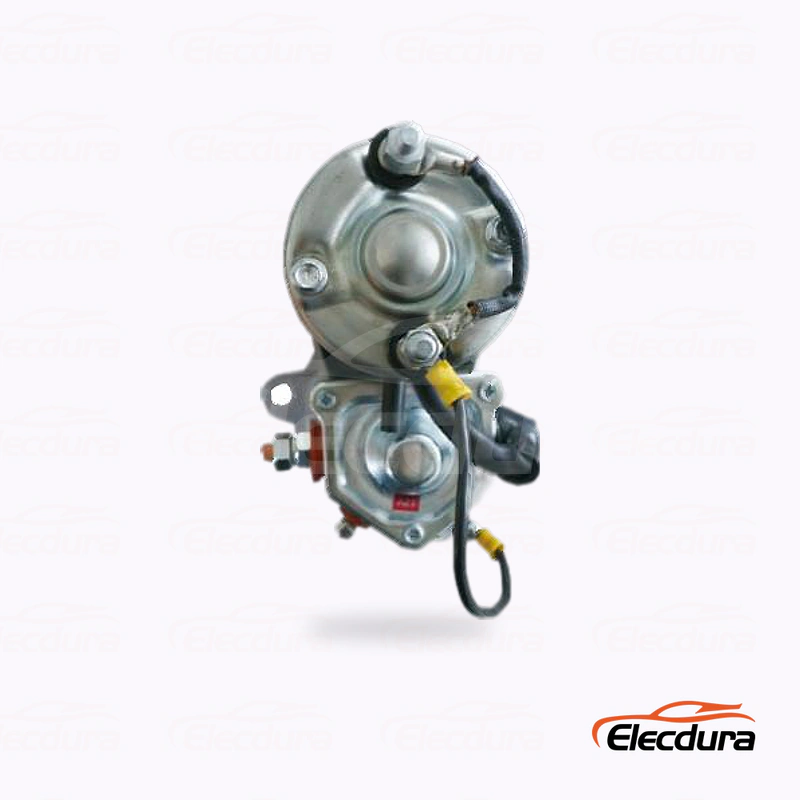

STN6188 Type B Wholesale Starter Motor for New Holland agricultural equipment, Type B housing

For agricultural-parts importers and multi-branch New Holland networks buying STN6188 Type B, confirm the photographed Type B body and connection layout under the shared STN6188 reference before quoting STN6188 Type B. Geometry alone cannot separate Type B from the Type A product offered beside it.

STN6188 Type B Starter Motor Dimensions for New Holland Importers

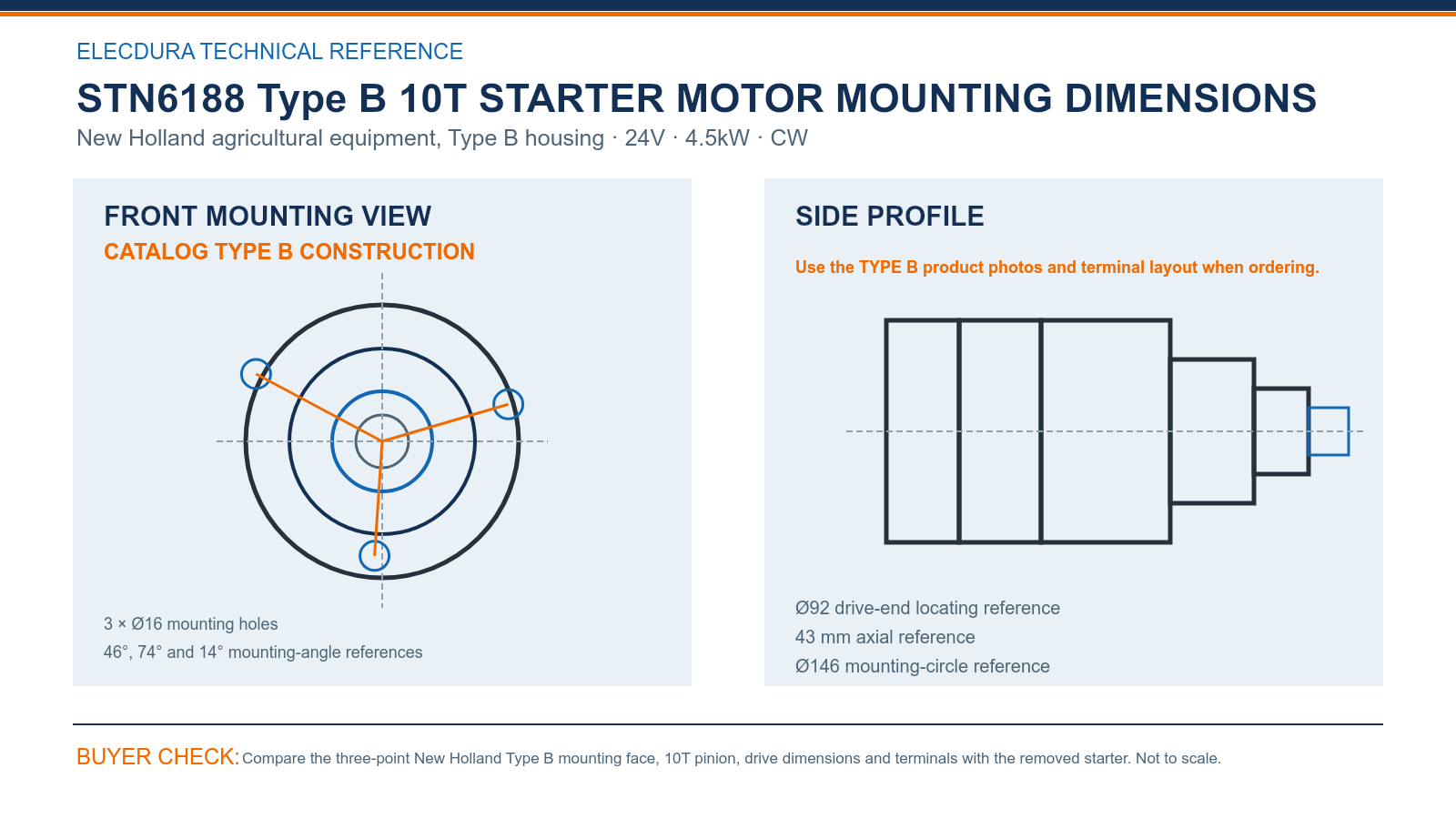

STN6188 New Holland Type B 24V 4.5kW 10T starter mounting dimensions.

Check STN6188 Type B 10T using 3 × Ø16 mounting holes and 46°, 74° and 14° mounting-angle references before comparing Ø92 drive-end locating reference. The hole pattern and pilot decide whether the drive end can seat correctly in New Holland agricultural equipment, Type B housing.

Confirm STN6188 Type B 10T as 24V, 4.5kW, 10T, module 3.175, CW, then confirm the Type B construction first, then sample the Ø146 circle, 43 mm drive reference and 10T pinion. For New Holland agricultural equipment, Type B housing, a changed pinion, flange or terminal side identifies another starter even when voltage and output agree.

STN6188 Type B Starter Motor Cross-References and Fitment Checks

1. Reference group: Begin with STN6188 Type B 10T and record every complete number on the removed unit. Related references help locate STN6188 Type B 10T, but buyers must still confirm the photographed Type B body and connection layout under the shared STN6188 reference.

2. Alternative review: Compare any STN6188 Type B 10T substitute with the same application, 24V, 4.5kW, 10T, module 3.175, CW, drive-end image and connection side. A change in one of those points identifies another product for New Holland agricultural equipment, Type B housing.

STN6188 Type B Starter Motor MOQ, Lead Time and Export Supply

Elecdura supports STN6188 Type B 10T wholesale orders from 20 pieces, normally 7–15 days after confirmation, with an 18-month warranty under agreed terms. Maintain a Type B item, barcode and photo set independently from Type A throughout receiving and branch allocation.

The STN6188 Type B 10T video below shows Elecdura starter-motor assembly and electrical testing. Buyers can use the footage to review supply capability; final selection for New Holland agricultural equipment, Type B housing still depends on the confirmed drive end and terminals.

STN6188 Type B Starter Motor FAQs for New Holland Parts Buyers

How can buyers distinguish STN6188 Type B 10T from a similar starter?

Geometry alone cannot separate Type B from the Type A product offered beside it. Confirm STN6188 Type B 10T by comparing the photographed Type B body and connection layout under the shared STN6188 reference against the old unit's label, pinion and terminals. Keep New Holland agricultural equipment, Type B housing on the enquiry; a matching rating or housing is not enough.

Which details are needed for a STN6188 Type B 10T wholesale quotation?

Send New Holland machine identity, old label, full body views from both sides, drive-end image, quantity, destination and target date for STN6188 Type B 10T. For New Holland agricultural equipment, Type B housing, separate urgent service from forecast stock and note packing or branch-allocation needs. Elecdura can then price 24V, 4.5kW, 10T, module 3.175, CW with MOQ, timing, warranty and freight options for STN6188 Type B.

What drive-end dimensions should be compared for STN6188 Type B 10T?

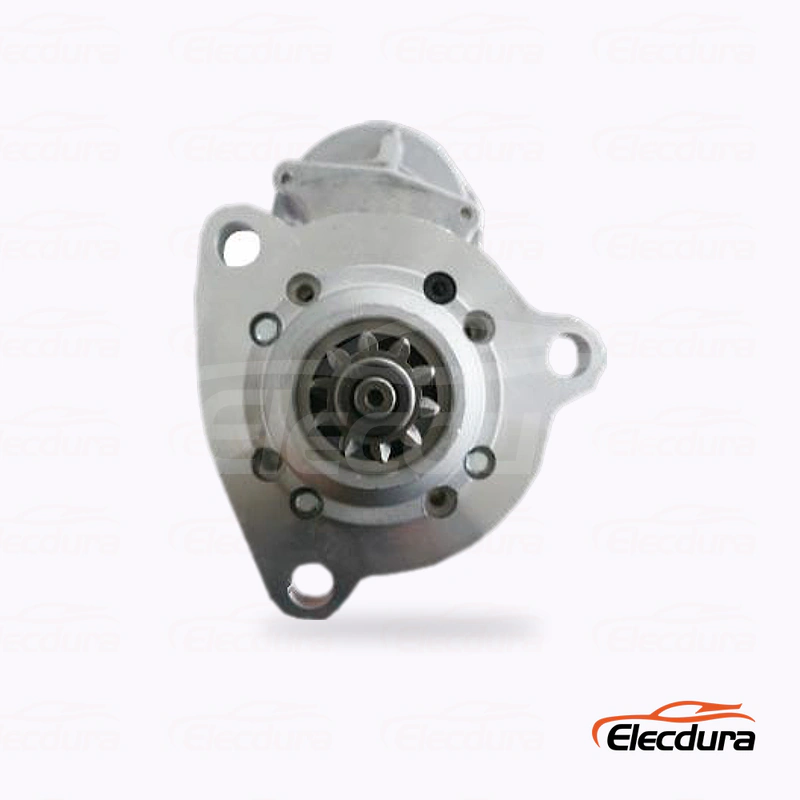

For STN6188 Type B 10T, compare 3 × Ø16 mounting holes, Ø92 drive-end locating reference and 43 mm axial reference. Relate those dimensions to Ø146 mounting-circle reference and the 10T pinion for New Holland agricultural equipment, Type B housing. Work from a front-facing drive-end photograph, to avoid perspective masking hole position, pilot diameter or pinion depth for New Holland agricultural equipment, Type B housing.

How should distributors plan stock for STN6188 Type B 10T?

Maintain a Type B item, barcode and photo set independently from Type A throughout receiving and branch allocation. Set the STN6188 Type B 10T reserve from supported machines, recent withdrawals and transfer time. Keeping the New Holland agricultural equipment, Type B housing and drive description on the bin helps branches avoid issuing another New Holland starter during an urgent repair.

Which electrical checks should precede starter replacement on New Holland agricultural equipment, Type B housing?

Record cranking voltage and cable-drop results before exchange, particularly when field symptoms are intermittent. After removing the old starter from New Holland agricultural equipment, Type B housing, examine the installed face, drive gear and ring gear for damage. Those readings on New Holland agricultural equipment, Type B housing distinguish starter condition from weak batteries, cable resistance, poor grounding, a start-control fault or mechanical resistance.

What belongs in receiving inspection for this New Holland starter?

Confirm the Type B construction first, then sample the Ø146 circle, 43 mm drive reference and 10T pinion. Match the STN6188 Type B 10T label and 24V, 4.5kW, 10T, module 3.175, CW specification to the order, photograph the confirmed construction and retain the shipment lot. Isolate damaged connections, changed flanges or different pinions before releasing stock for New Holland agricultural equipment, Type B housing.

What should remain on a repeat order for New Holland agricultural equipment, Type B housing?

Keep STN6188 Type B 10T, New Holland agricultural equipment, Type B housing, the confirmed product photographs and the previous shipment result on the repeat order. Add new quantity, destination, target date and packing instructions. This helps make STN6188 Type B repeat orders visually and commercially distinct despite shared technical dimensions.

Which records support an after-sales review for New Holland buyers?

Provide machine serial, hours, delivery lot, installation date, fault description and Type B comparison images for a STN6188 Type B 10T review. For New Holland agricultural equipment, Type B housing, record when the fault occurred and attach cranking measurements plus matched views of both units. This helps New Holland buyers separate product condition from installation, electrical-system, transport or application causes for New Holland agricultural equipment, Type B housing.

Request STN6188 Type B Starter Motor Wholesale Pricing

Email New Holland machine identity, old label, full body views from both sides, drive-end image, quantity, destination and arrival date to info@elecdurauto.com. Elecdura will quote STN6188 Type B with MOQ, packing, lead time, warranty and freight options for the specified 24V, 4.5kW, 10T, module 3.175, CW unit.
