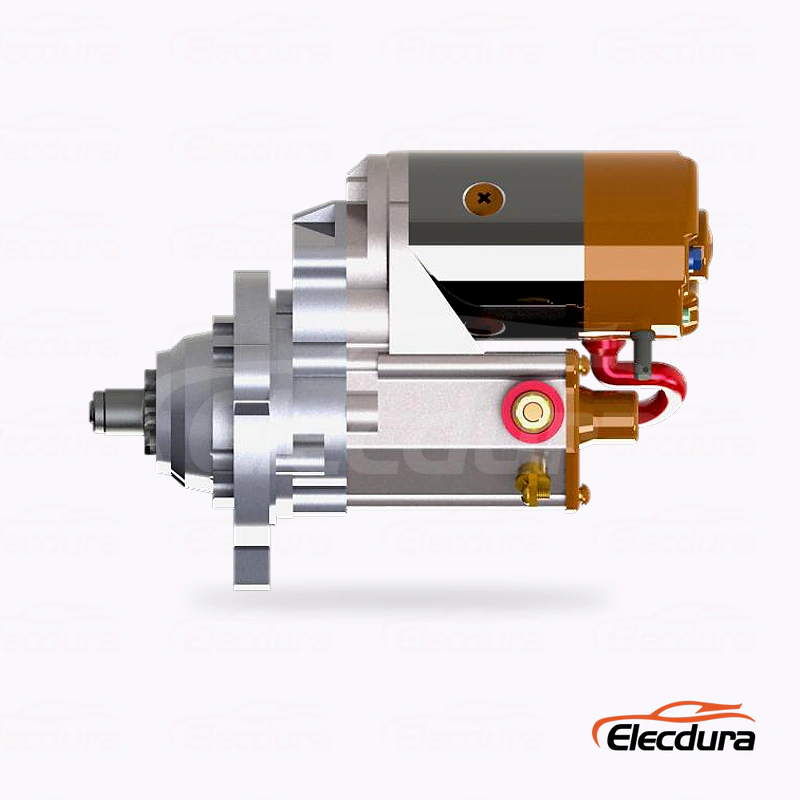

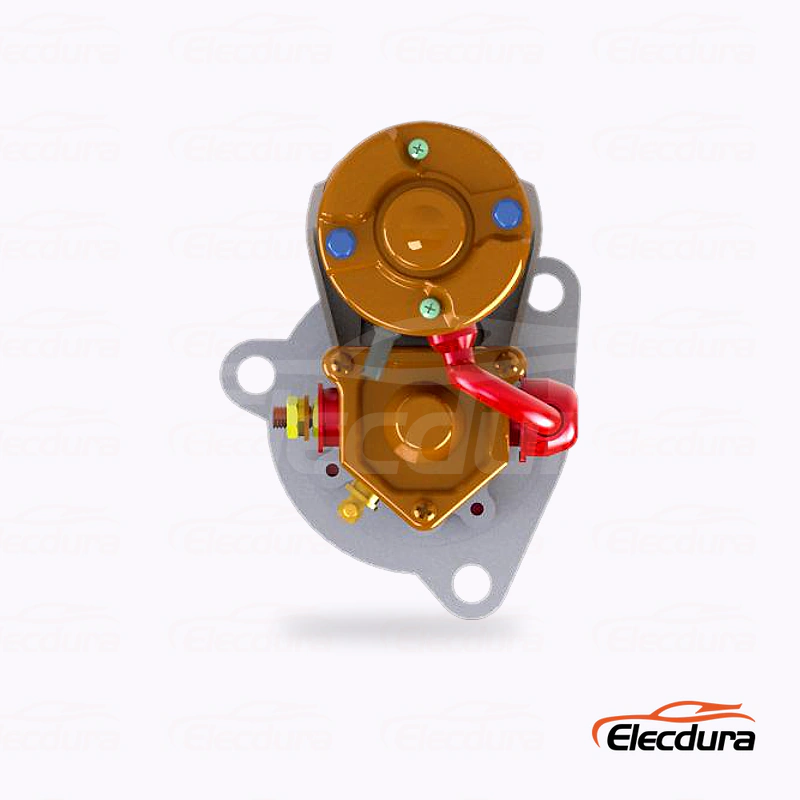

STN7111 Toyota 24V 4.5kW 11T Starter Motor Wholesale

STN7111 Wholesale Starter Motor for Toyota heavy-duty and industrial applications

For Toyota commercial and industrial parts distributors sourcing STN7111 for defined 24V applications, the decisive STN7111 check is STN7111, the 11T module-3 drive and its large three-hole mounting circle. A broad Toyota heavy-duty description can hide differences in nose diameter, pinion and connection orientation.

A workable STN7111 11T enquiry combines vehicle or equipment model, engine data, full STN or old-unit number, front and cable-side photographs, order volume, receiving location and delivery deadline. State whether the need for Toyota heavy-duty and industrial applications is routine replenishment, a branch transfer or equipment already out of service.

STN7111 Starter Motor Dimensions for Toyota Commercial Buyers

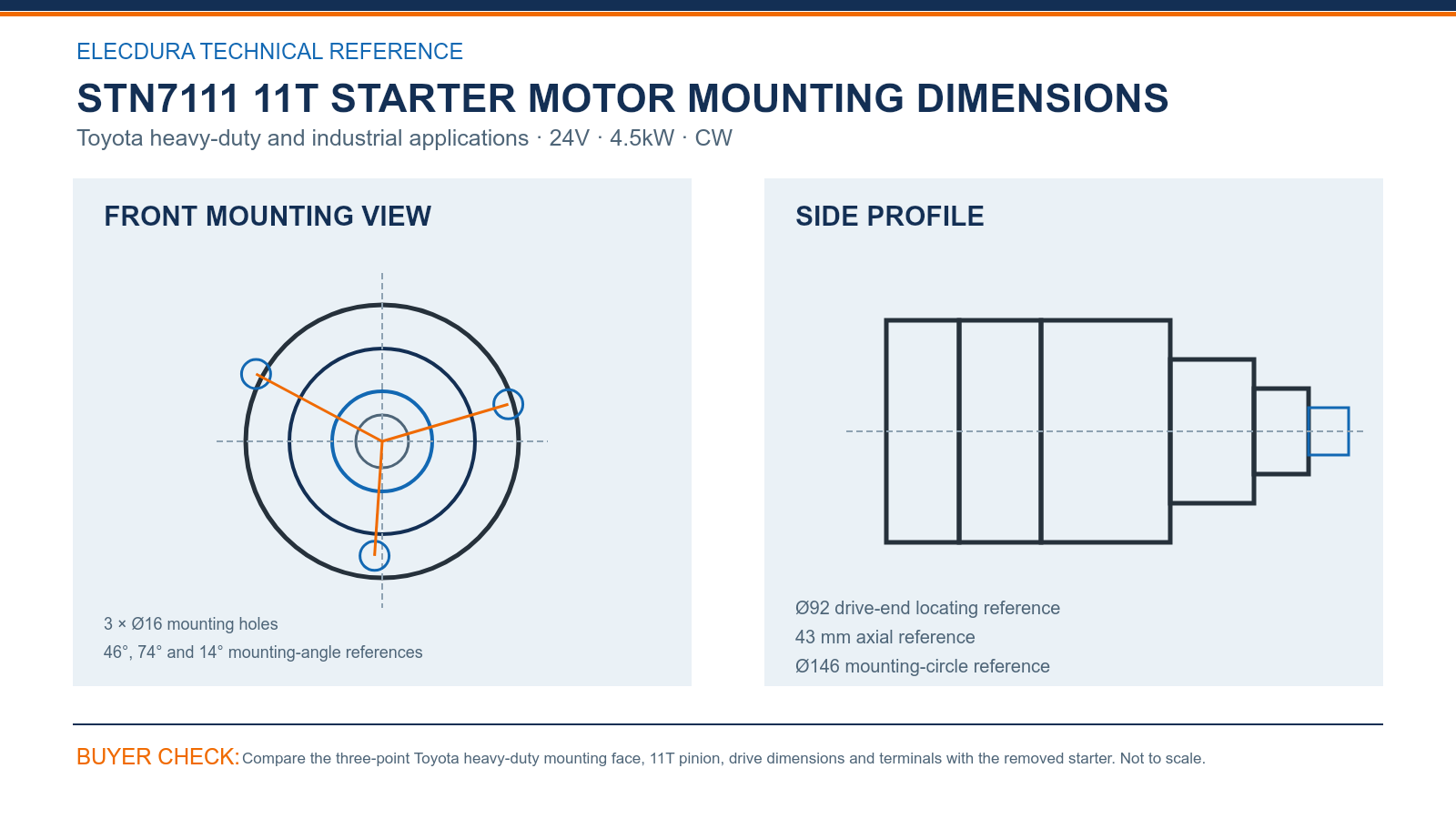

STN7111 Toyota 24V 4.5kW 11T starter mounting dimensions.

Check STN7111 11T using 3 × Ø16 mounting holes and 46°, 74° and 14° mounting-angle references before comparing Ø92 drive-end locating reference. The hole pattern and pilot decide whether the drive end can seat correctly in Toyota heavy-duty and industrial applications.

Bench comparison for STN7111 11T should retain 24V, 4.5kW, 11T, module 3, CW. Receiving staff should sample the Ø16 holes, Ø92 pilot, Ø146 circle, 43 mm drive position and eleven-tooth pinion, using the old unit or confirmed sample for the final physical check.

STN7111 Starter Motor Cross-References and Fitment Checks

1. Reference group: Begin with STN7111 11T and record every complete number on the removed unit. Related references help locate STN7111 11T, but buyers must still confirm STN7111, the 11T module-3 drive and its large three-hole mounting circle.

2. Alternative review: Compare any STN7111 11T substitute with the same application, 24V, 4.5kW, 11T, module 3, CW, drive-end image and connection side. A change in one of those points identifies another product for Toyota heavy-duty and industrial applications.

STN7111 Starter Motor MOQ, Lead Time and Export Supply

Distributor terms for STN7111 11T are MOQ 20 pieces, normally 7–15 days after order confirmation and an 18-month warranty under agreed sales terms. Buyers should record the supported application beside STN7111 and retain the accepted mounting image for counter comparison.

At STN7111 11T receiving, sample the Ø16 holes, Ø92 pilot, Ø146 circle, 43 mm drive position and eleven-tooth pinion. Photograph the confirmed sample and keep the shipment lot with the warehouse record for Toyota heavy-duty and industrial applications before cartons move to customers or branches.

The STN7111 11T video below shows Elecdura starter-motor assembly and electrical testing. Buyers can use the footage to review supply capability; final selection for Toyota heavy-duty and industrial applications still depends on the confirmed drive end and terminals.

STN7111 Starter Motor FAQs for Toyota Parts Buyers

How can buyers distinguish STN7111 11T from a similar starter?

A broad Toyota heavy-duty description can hide differences in nose diameter, pinion and connection orientation. Confirm STN7111 11T by comparing STN7111, the 11T module-3 drive and its large three-hole mounting circle against the old unit's label, pinion and terminals. Keep Toyota heavy-duty and industrial applications on the enquiry; a matching rating or housing is not enough.

Which details are needed for a STN7111 11T wholesale quotation?

Send vehicle or equipment model, engine data, full STN or old-unit number, front and cable-side photographs, quantity, destination and target date for STN7111 11T. For Toyota heavy-duty and industrial applications, list immediate service quantity separately from routine stock and state allocation needs. Elecdura can then price 24V, 4.5kW, 11T, module 3, CW with MOQ, timing, warranty and freight options for STN7111.

What drive-end dimensions should be compared for STN7111 11T?

For STN7111 11T, compare 3 × Ø16 mounting holes, Ø92 drive-end locating reference and 43 mm axial reference. Relate those dimensions to Ø146 mounting-circle reference and the 11T pinion for Toyota heavy-duty and industrial applications. Request a square-on drive-end photograph, because an angled image can disguise hole position, pilot diameter or pinion depth for Toyota heavy-duty and industrial applications.

How should distributors plan stock for STN7111 11T?

Record the supported application beside STN7111 and retain the accepted mounting image for counter comparison. Plan the STN7111 11T reserve from supported machines, recent withdrawals and transfer time. Keeping the Toyota heavy-duty and industrial applications and drive description on the bin helps branches avoid issuing another Toyota starter during an urgent repair.

Which electrical checks should precede starter replacement on Toyota heavy-duty and industrial applications?

Verify battery load, cable voltage drop and control voltage before treating slow cranking as a starter defect. After removing the old starter from Toyota heavy-duty and industrial applications, check the flange, drive teeth and ring gear for unusual marks. Those readings on Toyota heavy-duty and industrial applications distinguish starter condition from weak batteries, cable resistance, poor grounding, a start-control fault or mechanical resistance.

What belongs in receiving inspection for this Toyota starter?

Sample the Ø16 holes, Ø92 pilot, Ø146 circle, 43 mm drive position and eleven-tooth pinion. Match the STN7111 11T label and 24V, 4.5kW, 11T, module 3, CW specification to the order, photograph the confirmed construction and retain the shipment lot. Isolate damaged connections, changed flanges or different pinions before releasing stock for Toyota heavy-duty and industrial applications.

What should remain on a repeat order for Toyota heavy-duty and industrial applications?

Keep STN7111 11T, Toyota heavy-duty and industrial applications, the confirmed product photographs and the previous shipment result on the repeat order. Add new quantity, destination, target date and packing instructions. This helps turn a broad Toyota request into a controlled STN7111 wholesale item that buyers can reorder.

Which records support an after-sales review for Toyota buyers?

Provide equipment identity, service hours, delivery lot, symptom, cranking readings and detailed drive-end images for a STN7111 11T review. For Toyota heavy-duty and industrial applications, include operating conditions and electrical readings taken before removal, then photograph the old and returned units from matching angles. This helps Toyota buyers separate product condition from installation, electrical-system, transport or application causes for Toyota heavy-duty and industrial applications.

Request STN7111 Starter Motor Wholesale Pricing

Email vehicle or equipment model, engine data, full STN or old-unit number, front and cable-side photographs, quantity, destination and arrival date to info@elecdurauto.com. Elecdura will quote STN7111 with MOQ, packing, lead time, warranty and freight options for the specified 24V, 4.5kW, 11T, module 3, CW unit.
