STR6078 Cummins 12V 2.5kW Starter Motor for Distributors

STR6078 Cummins Starter Motor Supply for Multi-Reference Parts Counters

A distributor may receive the same Cummins demand as STR6078, STR6078A, WOOSTR6078 or a PSH number. The counter needs a description that survives those numbering systems: 12V, 2.5kW, 10 teeth, module 2.54 and the three-hole mounting face.

Include the engine or vehicle identity and photographs of the complete label, drive and terminal side. Elecdura maps the supplied number to the physical unit, helping sales staff quote one relevant starter instead of presenting several look-alike Cummins options.

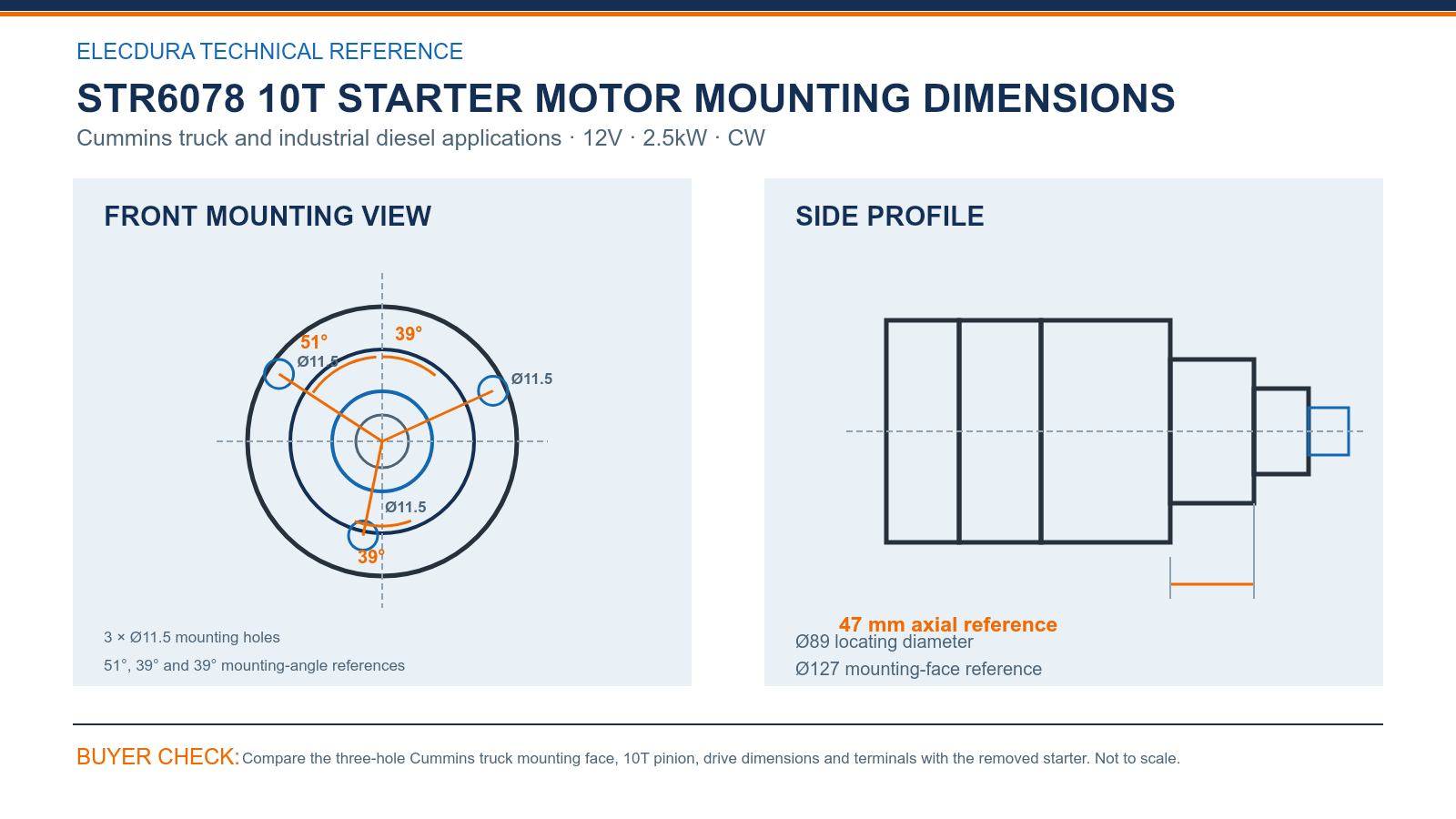

STR6078 Starter Motor Specifications and B2B Fitment Drawing

STR6078 10T starter motor mounting and drive-end dimensions for buyer-side comparison.

STR6078 uses three Ø11.5 holes with 51°, 39° and 39° references around an Ø89 locator and Ø127 mounting face. The 47 mm axial reference helps a workshop compare pinion position, while the complete face pattern separates the unit from other Cummins starters that share a similar cylindrical housing.

Record 10 teeth together with module 2.54 and clockwise rotation. Those drive details are valuable when a fleet or distributor receives the request under a Wood Auto or PSH number, because the drawing keeps every reference connected to the same measurable finished unit.

STR6078 Starter Motor Reference Mapping and Module 2.54 Checks for Wholesalers

STR6078A, WOOSTR6078, WOOSTR6078A, 700562103 and 700.562.103.900 can remain in the buyer's ERP or cross-reference notes. The module 2.54 pinion is the key mechanical detail that should accompany those numbers.

1. Keep the exact suffix or dotted PSH format from the source document.

2. Confirm the 10T gear and 47 mm axial reference.

3. Compare the three-hole face and installed cable direction.

The result is a cross-reference group that supports product discovery without weakening the fitment information used by the workshop.

STR6078 Starter Motor Fleet Replenishment Supply for Cummins Service Networks

Service networks can assign STR6078 demand to known truck, engine or branch groups and set reorder points from actual consumption. Elecdura can review scheduled releases, neutral cartons or branded labels while retaining the module 2.54 and 10T identity on the technical marking.

Share branch demand, annual volume, destination and required release dates. The video below shows assembly and electrical testing, supporting a supplier review for buyers who need consistent replenishment rather than a one-time emergency purchase.

The production video supports evaluation of Elecdura manufacturing and test capability for truck and industrial-engine distribution programs.

STR6078 Starter Motor Wholesale FAQ

How can a parts counter recognize one STR6078 request under several brands?

Keep the exact Unipoint, Wood Auto or PSH number supplied by the customer, then attach the Cummins engine or vehicle identity. Confirm 12V, 2.5kW, 10 teeth, module 2.54 and the three-hole face. That combination lets the counter treat the references as useful routes to one configuration without relying on the number alone.

Does STR6078A replace the need to record STR6078?

No. Use the suffix exactly as shown on the old starter or purchasing document and include both forms when they appear together. The quotation should still state the Cummins application, 10T module 2.54 drive and mounting details. Retaining the source number helps the customer reconcile the new offer with its own invoice or ERP history.

How should 700562103 and 700.562.103.900 be handled?

Record the complete PSH-style number rather than shortening it to a few common digits. Add STR6078 or STR6078A only when it is supported by the same old-unit information. Elecdura will compare the application, electrical rating, pinion and face, giving the buyer a traceable reference chain for quotation and later replenishment.

Why can a 10T pinion still be wrong if the module differs?

Ten teeth describe the count, while module 2.54 describes the gear form. Both must agree with the removed starter and intended ring gear. A visually similar ten-tooth drive with another module can create poor engagement, noise or damage, so the module should remain on the STR6078 technical description and receiving check.

What application information separates truck and industrial STR6078 demand?

Provide the engine model and serial plus the host truck, machine or industrial equipment model. Include the installed cable position and complete old label. Even when the physical starter agrees, this application information helps a distributor organize customer demand, service history and branch stock instead of using a single broad Cummins description.

How can a distributor set a practical STR6078 reorder point?

Use actual branch consumption, fleet size, supplier lead time and the emergency stock level required by customers. Keep the confirmed STR6078 reference and 10T module 2.54 description with the item. Elecdura can review opening quantity and scheduled releases when the buyer supplies annual demand and preferred delivery intervals.

Which cable-side photographs are useful before ordering STR6078?

Take one installed view before removal and one clear terminal-side view on the bench. Show the battery cable, switch lead and nearby brackets or guards. These photographs help compare solenoid orientation and cable reach, preventing a mechanically similar starter from creating strain or interference in the identified Cummins installation.

What belongs in a scheduled-release proposal for STR6078?

State the total annual volume, opening order, branch destinations, release dates, packaging preference and full technical reference. Add the engine or fleet groups behind the quantity. Elecdura can then prepare price, production and shipment terms for the confirmed 12V 2.5kW 10T configuration instead of treating every carton as an urgent spot order.

Request a STR6078 Starter Motor Wholesale Quote

Send STR6078, STR6078A, the full Wood Auto or PSH reference, Cummins engine or vehicle details, drive and terminal photographs, branch quantity and destination. Elecdura will quote the 12V 2.5kW 10T CW starter with reference mapping, packaging and release options.

For a service-network program, include the branches or fleet groups behind the demand so replenishment timing and carton identification can be planned around real consumption.
