VG1560090001 HOWO A7 24V 7.8kW 10T Starter Motor Wholesale

VG1560090001 HOWO A7 Starter Motor for Truck Parts Importers

HOWO fleet enquiries may list VG1560090001, VG1560090007 or only a Denso number. Leading with the truck model and the readable old-unit marking helps the buyer build one dependable 7.8kW line while keeping destination, fleet and private-label quantities visible for commercial planning.

Ten teeth alone do not define the gear interface. The module-3.5 pinion must agree with the removed starter, together with 24V 7.8kW, three Ø11 mounting holes, Ø127 face, Ø89 locating reference and the complete solenoid-terminal orientation.

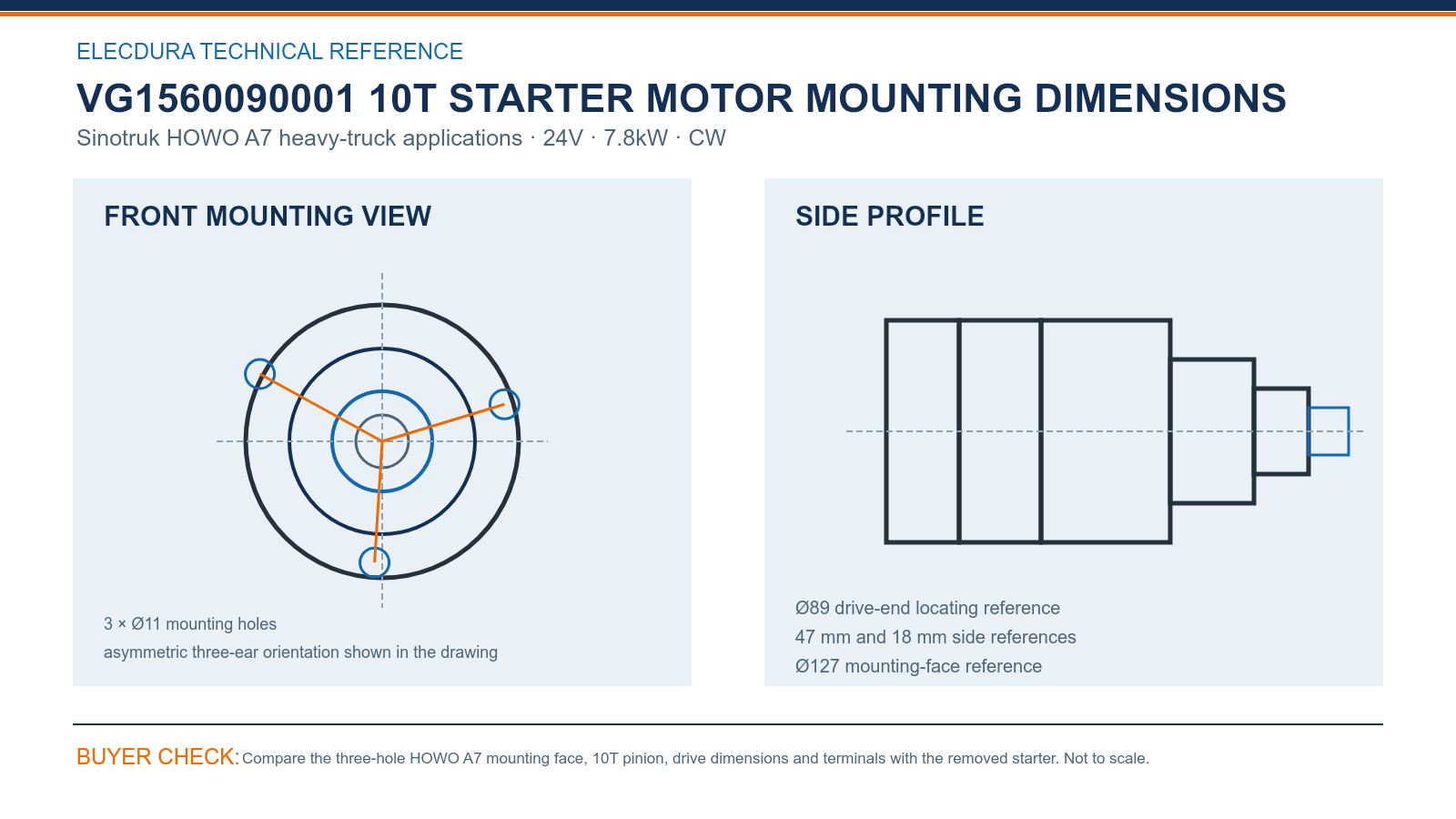

VG1560090001 24V 7.8kW Starter Drawing with Module 3.5

This HOWO A7 unit uses 24V, 7.8kW, 10T, module 3.5 and clockwise rotation. Including module 3.5 on the quotation and carton is valuable because another ten-tooth heavy-duty starter may use a different tooth form despite a similar power rating and housing size.

VG1560090001 HOWO A7 Starter Motor Dimensions for Export Buyers — compare the drawing with the removed starter before placing a volume order.

Begin with a head-on flange view that captures all three Ø11 holes and the Ø127 face. Check the Ø89 locating diameter separately, then verify the 47 mm and 18 mm axial positions from a side image that keeps the solenoid links and cable studs uncropped.

VG1560090001 HOWO Reference Matching for Fleet Procurement

VG1560090001 is the lead HOWO number for this product; VG1560090007 and 428000-6320 support cross-reference searches. Preserve the full number rather than shortening the zeros, and keep HOWO A7 plus the module-3.5 drive data beside it throughout purchasing and receiving.

Truck-parts importers can combine fleet, dealer and spare-market demand after the electrical rating, pinion and mounting face agree. Quantities should still be split by destination and customer program so cartons, labels and delivery documents support the correct regional distribution and later replenishment history.

VG1560090001 Starter Supply Planning for Truck Distributors

For container orders, sample units across several cartons and inspect the ten-tooth pinion, flange, terminal protection and body supports. Outer marks showing VG1560090001, HOWO A7, 7.8kW and module 3.5 make destination sorting clearer when one shipment serves multiple dealers.

The embedded Elecdura video introduces starter assembly and electrical testing for international supply. HOWO buyers can use it when agreeing on sampled tests, neutral or branded packing, container allocation and scheduled replenishment for the VG1560090001 program.

VG1560090001 Starter Motor FAQs for B2B Buyers

Why lead the product with VG1560090001 instead of VG1560090007?

VG1560090001 gives this product its chosen HOWO buying identity, while VG1560090007 remains a useful related reference. Keeping the lead number distinct supports separate distributor listings without changing the required product facts. The HOWO A7 application, 24V 7.8kW rating, module-3.5 pinion and measured three-hole face must still agree.

How does module 3.5 affect VG1560090001 matching?

A ten-tooth count does not define the tooth form by itself. VG1560090001 uses a 10T module-3.5 pinion, so buyers should compare both values with the removed starter and ring gear. Keep module 3.5 beside the 24V 7.8kW rating so a module-3.175 heavy-duty starter is not proposed from a similar outline.

What fleet information helps quote VG1560090001 for HOWO A7 trucks?

Provide the A7 truck count, engine details, operating regions, previous starter consumption and planned delivery points. Add complete old-unit markings and straight photographs. This information allows the supplier to address one confirmed VG1560090001 product while the buyer divides quantities by fleet, dealer or destination for more useful commercial and logistics planning.

Which photographs best show the VG1560090001 mounting pattern?

Take one centered image square to the three-ear flange, one close view of the ten-tooth pinion and one uncropped cable side. The front view should show three Ø11 holes, the Ø127 face and Ø89 locating reference. These matching angles let receiving teams compare the module-3.5 starter without relying on a tilted marketplace image.

How can importers divide VG1560090001 quantities in one container?

Confirm the same 7.8kW module-3.5 product first, then list quantity, carton language, brand preference and destination for each dealer or fleet. Keep allocations on the packing list and outer marks. One container can therefore serve several programs while preserving the regional information needed for destination sorting, sales history and later HOWO A7 replenishment.

What evidence helps review a VG1560090001 field return?

Record the truck and engine details, installation date, battery and cable test results, starter markings and clear views of the pinion, flange and terminals. Keep the shipment lot and failure description together. This gives after-sales teams enough context to distinguish a product issue from wiring, battery, ring-gear or incorrect-application causes.

What should appear on a VG1560090001 warehouse label?

Show VG1560090001, HOWO A7, 24V 7.8kW, 10T and module 3.5, with the related VG1560090007 or 428000-6320 available in the item record. A representative three-ear image is useful. Clear labeling prevents a same-tooth-count starter with another module from entering an urgent truck-parts order during branch transfers and reorders.

Which details support a VG1560090001 export offer?

Email the HOWO A7 truck and engine information, full VG1560090001, VG1560090007 or 428000-6320 marking, rating label, pinion, mounting and terminal views, quantity by destination, branding preference, delivery terms and required date. Elecdura can compare the module-3.5 starter and provide price breaks, packing options and production timing.

Request VG1560090001 HOWO A7 Starter Motor Wholesale Terms

Email the HOWO A7 truck and engine details, complete VG1560090001, VG1560090007 or 428000-6320 marking, square mounting, pinion and terminal photographs, quantity by destination, branding need and delivery terms to info@elecdurauto.com. Elecdura will review the module-3.5 starter and prepare a wholesale offer.
