Volvo 12V 2.5kW 11T Starter Motor Wholesale Supply

Volvo 12V 2.5kW 11T Starter Motor Sourcing for Equipment Parts Buyers

Some Volvo inquiries arrive with a worn label, a workshop description or only a photograph. This configuration becomes commercially useful when the host, engine and measured 11T three-hole drive end are recorded together.

Send the machine or vehicle model and serial, every readable character on the old unit, and square photographs of the pinion, face and terminals. Elecdura can then quote the measured configuration with clear fitment, packing and delivery information for the intended Volvo service channel.

Volvo 12V 2.5kW 11T Starter Motor Identification Data for Importer Supply

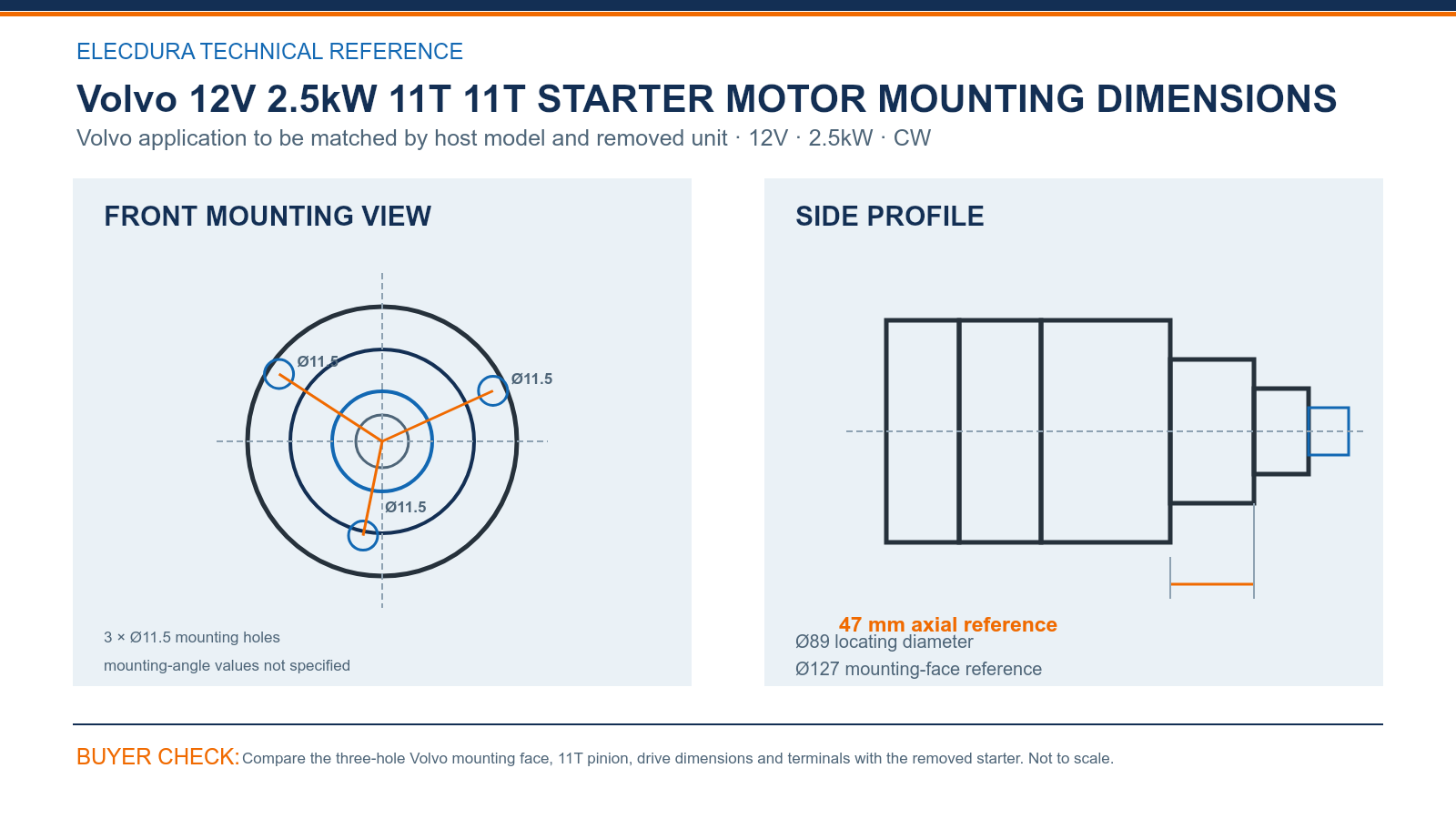

Volvo 12V 2.5kW 11T starter motor mounting and drive-end dimensions for buyer-side comparison.

This Volvo drive end uses three Ø11.5 holes, an Ø89 locating diameter, Ø127 mounting face and 47 mm axial reference. The drawing does not assign mounting angles, so the complete three-hole pattern and measured diameters should be compared without estimating an angle value.

The 11T module 3 pinion, terminal side and exact host application complete the product identity. Together, these points give an importer a clear basis for quotation and later replenishment even when the old label does not provide a usable OE number.

Volvo 12V 2.5kW 11T Starter Motor Dimension Checks for Parts Distributors

For purchasing, combine 12V, 2.5kW, 11 teeth, module 3 and CW with the measured drive end. A distributor should keep the customer's original description attached to the inquiry.

• Compare three Ø11.5 mounting holes.

• Measure the Ø89 locator and Ø127 face.

• Check the 47 mm axial point and installed terminal direction.

If any measurement differs, request additional photographs and keep that demand separate from this Volvo configuration.

Volvo 12V 2.5kW 11T Starter Motor First-Order Support for Specialist Importers

For a first order based on host details and measured dimensions, specialist importers can begin with a quantity matched to confirmed customer demand and retain the installed photographs from the first successful units. Later orders can then use the same host details, dimensions and carton identity.

Provide the initial quantity, customer application, destination and expected repeat volume. The video below presents Elecdura manufacturing and electrical testing for buyers assessing factory support before establishing a new Volvo service line.

The production video helps Volvo parts specialists evaluate Elecdura assembly and testing while the exact host and removed unit remain the basis of each fitment comparison.

Volvo 12V 2.5kW 11T Starter Motor Wholesale FAQ

Which Volvo host details are required before a quotation?

Provide the machine or vehicle model, serial or VIN, engine model and serial, and the complete description supplied by the workshop. Add photographs of the installed cable side and removed starter. These details give Elecdura enough context to compare the product without extending a generic Volvo description across unrelated applications.

Why are no mounting angles stated for this Volvo unit?

The available dimensions specify three Ø11.5 holes, an Ø89 locator, Ø127 mounting face and 47 mm axial point but do not include hole-angle values. Elecdura therefore does not add guessed angles. Use a square front photograph and direct measurements to compare the complete hole pattern with the removed starter.

What identifies this Volvo starter for quotation?

Use the exact host machine or vehicle, engine model, every readable old-unit marking and the physical 12V 2.5kW 11T CW configuration. The three Ø11.5 holes, Ø89 locator, Ø127 mounting face and 47 mm axial reference add measurable identification. Together, these details let Elecdura describe and quote the required starter without relying on a broad Volvo application name.

What information is needed before Elecdura can price this Volvo starter?

Provide the host model and serial, engine identity, old label details, measured drive end, pinion and terminal views, quantity, destination and required date. The quotation can then state the 12V 2.5kW 11T CW configuration and the fitment points reviewed. A broad request for a Volvo starter alone is not enough to price the correct mounting version responsibly.

How should a buyer photograph a worn or unreadable label?

Clean the label gently without removing remaining print, then photograph it squarely under diffuse light from several angles. Include close views of any stamped digits, the 11T pinion, mounting face and terminals. The combination of partial characters and physical features is more useful than discarding the label because one section cannot be read.

What should be reported after the first Volvo unit is installed?

Record the host machine, installation date, cranking response, cable position and whether the pinion engages and releases correctly. Keep the carton label and the dimensions used for comparison. This information helps the buyer build a dependable repeat-order reference for the same application and gives Elecdura useful context if any technical or after-sales question follows.

What makes a complete Volvo starter quotation request?

Send the machine or vehicle and engine identity, all readable old-unit markings, the 11T pinion, three-hole face, terminal arrangement, measured dimensions, quantity, destination, target date and packing needs. Elecdura can return one clearly described offer for the measured configuration and state any additional fitment information still needed before the order is confirmed.

How can a distributor repeat this Volvo order accurately?

Retain the confirmed host model, engine, label details, drive-end dimensions, terminal orientation and shipment lot with the customer's part description. Use the same information on the next inquiry rather than relying on a generic Volvo label. Elecdura can then compare the repeat request with the previously supplied 11T three-hole configuration and flag any changed physical detail before quotation.

Request a Volvo 12V 2.5kW 11T Starter Motor Wholesale Quote

Send the Volvo machine or vehicle model and serial, engine details, every readable old-unit number, square drive-end and terminal views, measured dimensions, quantity and destination. Elecdura will compare the 12V 2.5kW 11T CW three-hole configuration and return a matched quotation with fitment, packing and delivery information.

Do not combine another unlabeled Volvo starter with this line unless its voltage, tooth count, rotation, face, locator, axial point and terminal position all agree.
