028000-6870 Toyota 2L VW Taro Starter Motor Wholesale

028000-6870 Starter Motor Fitment for Toyota and VW B2B Buyers

028000-6870 crosses two buyer channels: Toyota diesel specialists and Volkswagen Taro parts distributors. The common Toyota 2L engine origin is useful, but it does not replace the need to retain the complete Denso suffix and compare the triangular drive end.

Send the vehicle model, chassis or VIN, engine code, old label and photographs of the lower mounting point and terminal side. Elecdura can then quote the 11T clockwise version with physical checks that both Toyota and VW purchasing teams can use.

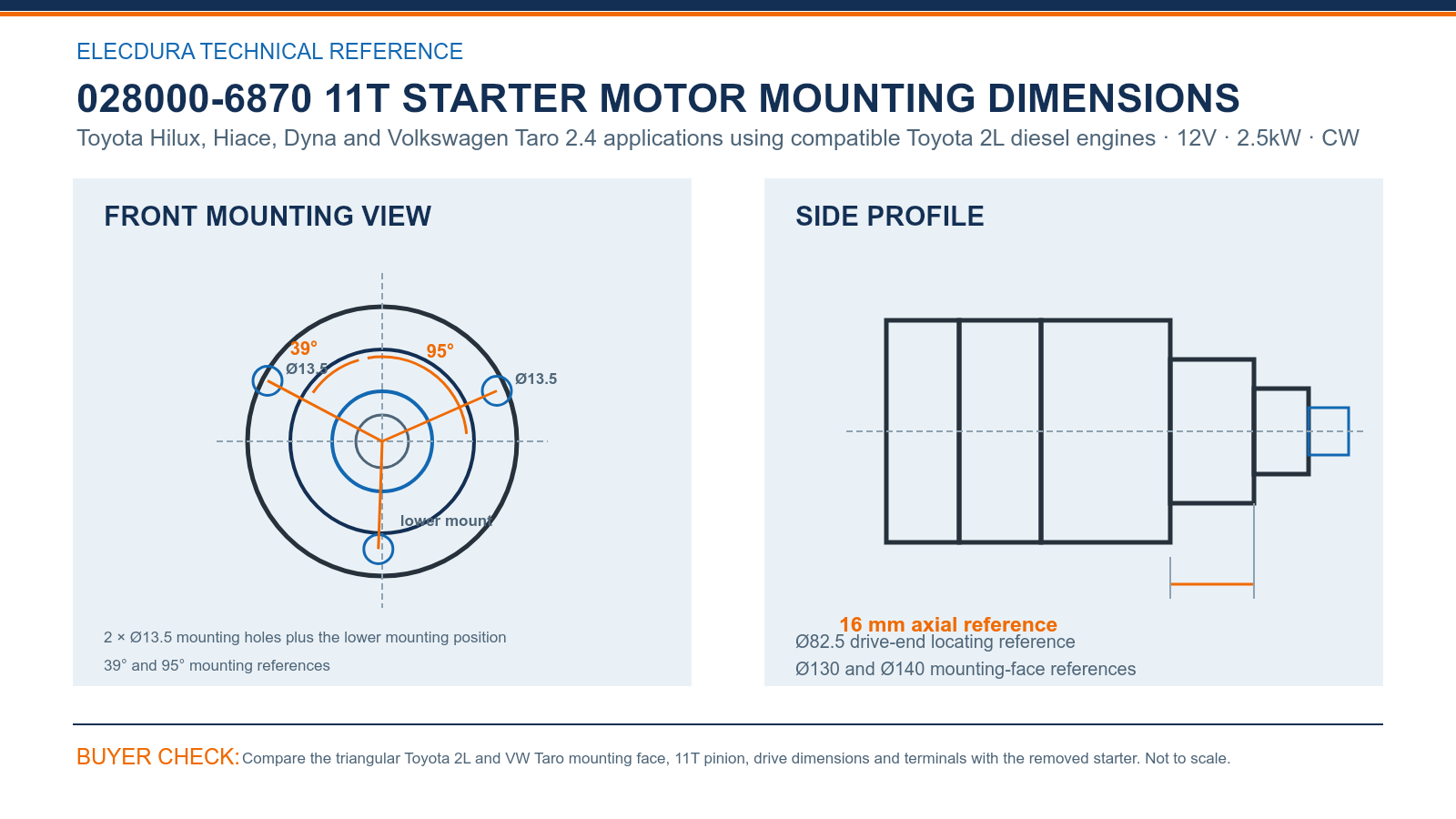

028000-6870 Starter Motor Flange Drawing for Toyota VW B2B Fitment

The 028000-6870 triangular face uses two specified Ø13.5 holes plus the lower mounting position, with Ø130 and Ø140 face references, an Ø82.5 locator and a 16 mm axial point. The 39° and 95° references help workshops compare mounting clocking between visually similar Toyota starter noses.

Use the face dimensions together with an 11-tooth count and a straight terminal photograph. These checks let a cross-border distributor sell the same verified hardware into Toyota 2L and VW Taro channels without reducing the product identity to a broad engine description.

028000-6870 Starter Motor Reference Group for Cross-Border Stock

The buying group includes 028000-6870, -6871 and -6872 together with earlier -5580, -6860, -6880 and -6890 variants, plus S6068, 16830N, 18151N and STR70011. Because the group is long, preserve the exact suffix from the removed unit rather than entering only 028000 into the warehouse system.

1. Confirm Toyota 2L or the corresponding Taro application.
2. Verify 12V, 2.5kW, 11T and CW.
3. Compare the triangular face, axial point and cable terminals.

028000-6870 Starter Motor Wholesale Logistics for Toyota VW Channels

A distributor serving different countries may sell this unit under Toyota or Volkswagen language. Use one technical identity on the product carton, then add destination-market model references on the outer label without changing the complete OE.

During receiving, inspect the lower mounting position, both specified Ø13.5 holes, pinion and terminal protection across several cartons. Elecdura can review neutral packing, private labels and barcode formats once quantities and destination requirements are clear.

The video introduces Elecdura starter production and testing. Include the Toyota or Taro chassis, full Denso suffix, old-unit images, quantity and country so the offer can address the correct fitment and shipment labeling.

028000-6870 Starter Motor Wholesale FAQ

Why does 028000-6870 appear in Toyota and Volkswagen applications?

Volkswagen Taro models share Toyota-derived diesel applications, so the same starter family can appear under both vehicle brands. Buyers should still provide the chassis, engine and complete old-unit number. The shared origin explains the cross-brand demand but does not prove that every Toyota 2L or every Taro version uses this exact triangular flange.

Which Denso cross-reference suffixes should a buyer keep separate?

Record the full number, including -6870, -6871 or -6872, and retain any -5580, -6860, -6880 or -6890 suffix found on the old unit. Use the cross-reference family to widen sourcing, then verify 12V, 2.5kW, 11 teeth, clockwise rotation, mounting face and terminals before moving quantities onto one purchase line.

Which mounting points verify the lower position?

Photograph the drive end straight on and compare the lower mounting position with the two specified Ø13.5 holes, Ø130 and Ø140 face references and the 39° and 95° orientation points. Measure the removed unit directly. An angled image can make the lower ear appear aligned even when its clocking differs from the required casting.

Which Taro vehicle information supports accurate 028000-6870 fitment?

Provide the Volkswagen Taro model, chassis or VIN, production year and 2.4 diesel details, plus the complete Denso number. Add pinion, mounting and terminal photographs. This lets Elecdura connect the Taro request to the specified Toyota 2L-derived starter configuration rather than assuming fitment from the vehicle badge or engine size alone.

Can packing labels use Toyota and VW descriptions for different markets?

Destination-market outer labels can be reviewed for the destination market, but the technical identity should remain the same: complete 028000-6870 family reference, 12V, 2.5kW, 11T and CW. Keeping one technical label beneath localized model wording helps branches, warranty teams and future buyers identify the actual hardware consistently.

Which electrical terminal checks matter on a Toyota 2L or Taro installation?

Compare the battery stud, switch terminal, solenoid clocking and cable approach with the removed starter before tightening cables. Ensure the leads reach without bending or rubbing surrounding parts. During the first start, check engagement, release and cranking voltage. A correct flange does not solve a cable-clearance problem created by another terminal orientation.

How should importer inventory be checked after a cross-border shipment?

Sample cartons intended for each market and verify full Denso suffixes, 11-tooth drives, triangular mounting faces, terminals, protective caps and localized labels. Compare one unit with the confirmed vehicle measurements and note the shipment lot. Isolate any different suffix or casting before country-specific labels make the units harder to trace.

What should be included in an 028000-6870 export inquiry?

Send the complete reference, Toyota or Volkswagen vehicle details, 2L engine information, old-unit label and photographs, quantity by market, destination, target date and packaging or barcode requirements. Elecdura can then state the specified 12V 2.5kW 11T CW unit, MOQ, normal lead time, warranty and shipment labeling options.

Request a 028000-6870 Starter Motor Wholesale Quote

Send 028000-6870 or the complete Denso, WAI or AS reference, Toyota or VW chassis details, 2L engine information, old-unit photographs, quantity, destination and label requirements. Elecdura will quote the 12V 2.5kW 11T CW starter with fitment and delivery terms.

If cartons will serve both Toyota and Volkswagen customers, state the required model wording and barcode while keeping the full technical reference identical on every unit.
