0K620-18-400 Kia K2400 Mazda B2200 Starter Motor Wholesale

0K620-18-400 Starter Motor Fitment Control for B2B Replacement Programs

Light-commercial vehicle starter distributors serving Kia and Mazda repair markets usually see 0K620-18-400 after an machine's fitted starter has failed in service and a replacement is needed without creating a second installation problem. The working scope is Kia K2400 and Mazda B2200 light-commercial applications using the confirmed 13T starter configuration, with 12V, 2.0kW, 13T and CW kept together as one sellable configuration.

This K2400/B2200 product is defined by its 13T drive; nearby Mazda and Kia starters with nine or ten teeth must not share its stock code even when the rear body looks similar. The practical release point is therefore simple but strict: Confirm 0K620-18-400 or the full Mazda reference, count thirteen teeth, then compare the three-hole face, Ø133.5 mm layout, Ø90 mm drive end, M12 terminal and 41 mm rest position. Once documented, the same checkpoints can be reused for quotation, sample sign-off and incoming inspection.

0K620-18-400 13T Starter Motor Technical Review for Distributors

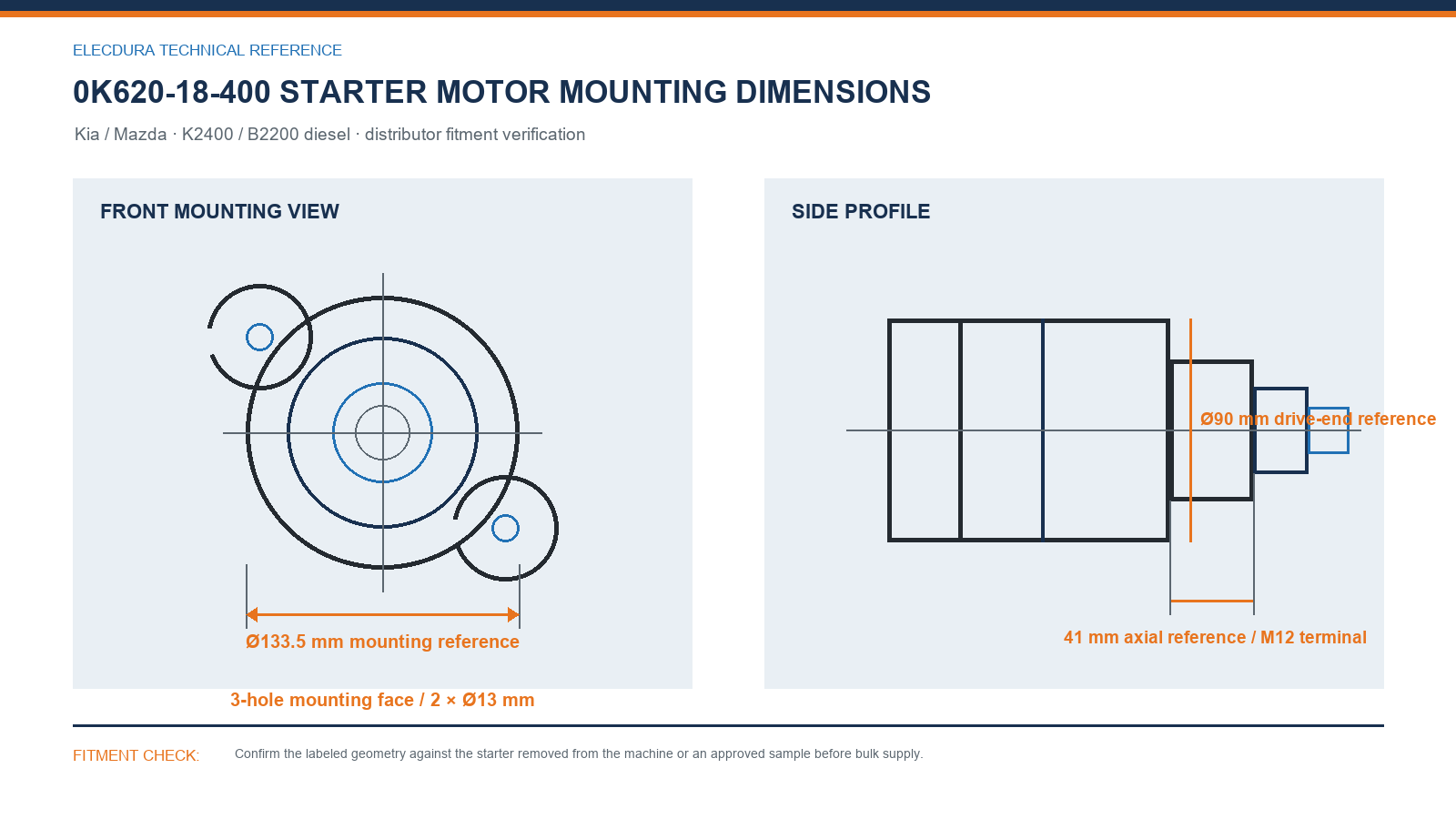

The drawing below converts the catalog geometry into a practical distributor check for the machine's fitted starter and incoming sample.

Confirm 0K620-18-400 or the full Mazda reference, count thirteen teeth, then compare the three-hole face, Ø133.5 mm layout, Ø90 mm drive end, M12 terminal and 41 mm rest position. The image is a fitment reference and should be checked against the machine's fitted starter or branch reference starter rather than scaled from the screen.

0K620-18-400 OE Cross-Reference Control for Wholesale Orders

0K620-18-400, 0K62018400, 8599-18-400, 8599-18-400A connect the main service channels for this product. They should stay together only when the 13T drive, 12V system and approved mounting arrangement are present on the sample.

Confirm 0K620-18-400 or the full Mazda reference, count thirteen teeth, then compare the three-hole face, Ø133.5 mm layout, Ø90 mm drive end, M12 terminal and 41 mm rest position. This protects margin by reducing preventable returns and gives the sales team a specific reason to request missing application data.

• Installed scope: Kia K2400 and Mazda B2200 light-commercial applications using the confirmed 13T starter configuration.

• Version separator: This K2400/B2200 product is defined by its 13T drive; nearby Mazda and Kia starters with nine or ten teeth must not share its stock code even when the rear body looks similar. Confirm 0K620-18-400 or the full Mazda reference, count thirteen teeth, then compare the three-hole face, Ø133.5 mm layout, Ø90 mm drive end, M12 terminal and 41 mm rest position.

• Trade handoff: light-commercial vehicle starter distributors serving Kia and Mazda repair markets should retain 0K620-18-400, 0K62018400, 8599-18-400, 8599-18-400A, M3T66071 with the accepted physical comparison and customer requirement.

For Kia / Mazda K2400 / B2200 diesel sourcing, the retained geometry combines 3-hole drive-end fixing pattern / 2 × Ø13 mm, Ø133.5 mm mounting reference, Ø90 mm drive-end reference and 41 mm axial reference / M12 terminal. Additional service identifiers include M3T66072, M3T66073, S203-18-400A, S203-18-400B, S6358S, 16744. A quotation for this line should arrive with Kia or Mazda model, complete 0K620/8599 number, engine record, tooth-count photograph, mounting image and electrical-side image; that information lets light-commercial vehicle starter distributors serving Kia and Mazda repair markets distinguish this configuration before stock is committed.

0K620-18-400 Starter Motor Receiving and Private-Label Supply

Incoming inspection for 0K620-18-400 should start with the product label and move to the drive end, drive-end fixing pattern and terminals. Make the 13T count visible on receiving photographs and carton labels, and quarantine any similar 9T or 10T starter before K2400 orders are released.

Elecdura supports sample-led wholesale supply with a usual starting MOQ of 20 pieces and a normal lead time of 7–15 days after confirmation. Private-label requests are handled as controlled programs, with artwork and reference wording approved before production.

View Elecdura assembly and test operations below when evaluating manufacturing support for a distributor program. Product acceptance for 0K620-18-400 still depends on the application, 13T drive and branch reference starter.

0K620-18-400 Starter Motor FAQ for B2B Procurement

For K2400 / B2200 diesel, which machine record should accompany 0K620-18-400?

In the K2400 / B2200 diesel 0K620-18-400 identity file, use the application record for Kia K2400 and Mazda B2200 light-commercial applications using the confirmed 13T starter configuration, including the engine designation K2400 / B2200 diesel and serial or production information when available. For this Kia / Mazda number set, add the entire old-starter number and photographs. Within the 0K620-18-400 sourcing record, this allows the factory to separate a machine-family description from the actual starter version and gives the wholesaler a repeatable reference after the first reference piece is accepted. For the Kia / Mazda K2400 / B2200 diesel item, the usable identity chain is 0K620-18-400, 0K62018400, 8599-18-400, 8599-18-400A.

For K2400 / B2200 diesel, why can the OE group not be approved by number matching alone?

For the K2400 / B2200 diesel fitment, references such as 0K620-18-400, 0K62018400, 8599-18-400, 8599-18-400A guide the search, but they do not show every physical revision or a wrongly labeled original starter. In this Kia / Mazda application, validate 12V, 2.0kW, 13T and CW, then use the mounting and stud checks. For the defined 0K620-18-400 scope, this K2400/B2200 product is defined by its 13T drive; nearby Mazda and Kia starters with nine or ten teeth must not share its stock code even when the rear body looks similar. For the K2400 / B2200 diesel fitment, a controlled cross-reference is a conclusion from those checks, not the only input. For K2400 / B2200 diesel, the version boundary is 13T, 2.0kW, Ø133.5 mm mounting reference and the complete OE group.

For K2400 / B2200 diesel, what should be photographed on the removed Kia / Mazda starter?

At the 13T drive check, take a square image of the drive end, a side view showing nose depth and solenoid clocking, a clear label photograph, and a rear view of the battery and switch studs. For the 0K620-18-400 pinion review, include a ruler when the OE is unreadable. Within the K2400 / B2200 diesel drive record, these views support the physical release described for this product without forcing sales staff to guess from one angled photo. The Kia / Mazda release uses 13T with CW rotation, so both details belong on the sample and carton checks.

For K2400 / B2200 diesel, how is the 2.0kW version kept separate in stock?

During mounting review for 0K620-18-400, put 2.0kW, 13T and the primary 0K620-18-400 reference on the internal label and receiving checklist. At the K2400 / B2200 diesel flange check, do not rely on the outer casting color or a broad application name. For the Kia / Mazda installation comparison, when a factory or customer proposes a supersession, compare a physical reference piece and update the approved cross-reference list before the alternate enters the same bin. For K2400 / B2200 diesel, the drawing controls are 3-hole drive-end fixing pattern / 2 × Ø13 mm, Ø133.5 mm mounting reference, Ø90 mm drive-end reference and 41 mm axial reference / M12 terminal.

For K2400 / B2200 diesel, what dimensions should be checked before a warehouse replenishment?

Within the Kia / Mazda interchange group, validate 0K620-18-400 or the full Mazda reference, count thirteen teeth, then compare the three-hole face, Ø133.5 mm layout, Ø90 mm drive end, M12 stud and 41 mm rest position. For the 0K620-18-400 cross-reference decision, measure from the bolt pattern rather than an irregular housing edge and note whether holes are threaded or unthreaded. In the K2400 / B2200 diesel stocking boundary, compare stud clearances as well as the front geometry. Within the Kia / Mazda interchange group, a signed old-unit or reference piece check protects both the wholesaler and end user from a starter that is electrically correct but cannot be installed. The working scope is Kia K2400 and Mazda B2200 light-commercial applications using the confirmed 13T starter configuration; it is not a universal statement for every Kia / Mazda machine.

For K2400 / B2200 diesel, how should mixed-reference RFQs be presented?

For this light-commercial vehicle starter distributors serving Kia and Mazda repair markets inquiry, place each entire OE on its own line with the associated K2400 / B2200 diesel or machine record, even when several numbers may cross to 0K620-18-400. When quoting 0K620-18-400, add quantity and photographs to each line. For the Kia / Mazda commercial request, the factory can then validate which lines share the 13T physical version and which require separate reference pieces, prices or packaging labels. A practical K2400 / B2200 diesel inquiry includes Kia or Mazda model, complete 0K620/8599 number, engine record, tooth-count photograph, mounting image and electrical-side image.

For K2400 / B2200 diesel, what is the receiving release for this product?

At incoming inspection for 0K620-18-400, make the 13T count visible on receiving photographs and carton labels, and quarantine any similar 9T or 10T starter before K2400 orders are released. During the K2400 / B2200 diesel lot release, extend the check to product labels, studs, pinion protection and carton integrity. For Kia / Mazda warehouse acceptance, inspect cartons from different pallet positions rather than only the top carton. At incoming inspection for 0K620-18-400, once the lot agrees with the signed unit, save photographs and inspection results with the 0K620-18-400 SKU before stock is made available to sales branches. The receiving release for this Kia / Mazda starter is the combined 13T, 3-hole drive-end fixing pattern / 2 × Ø13 mm and terminal check.

For K2400 / B2200 diesel, what information speeds up a 0K620-18-400 quotation?

For the 0K620-18-400 supply program, provide Kia or Mazda model, entire 0K620/8599 number, engine record, tooth-count photograph, mounting image and electrical-side image, required quantity, destination, delivery target and packaging request. When preparing the K2400 / B2200 diesel order, if the machine is immobilized, state whether an urgent reference piece is needed. For this Kia / Mazda distributor line, clear application and physical data at the start lets Elecdura review the correct 12V, 2.0kW, 13T product instead of sending a low-confidence price for a broad cross-reference family. The K2400 / B2200 diesel commercial request should retain 0K620-18-400, 12V, 2.0kW, 13T, quantity, destination and packaging preference on one line.

Send a B2B RFQ for 0K620-18-400 Starter Motor Supply

Send Kia or Mazda model, complete 0K620/8599 number, engine record, tooth-count photograph, mounting image and electrical-side image, required quantity, destination and packaging preference. Elecdura will review the 12V, 2.0kW, 13T 0K620-18-400 configuration and confirm sample, lead-time and wholesale-supply details before the order is released.
